1 Inch Spotlight

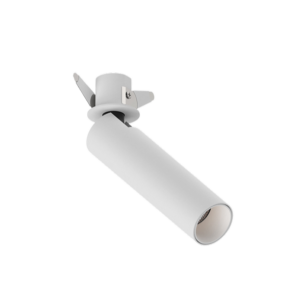

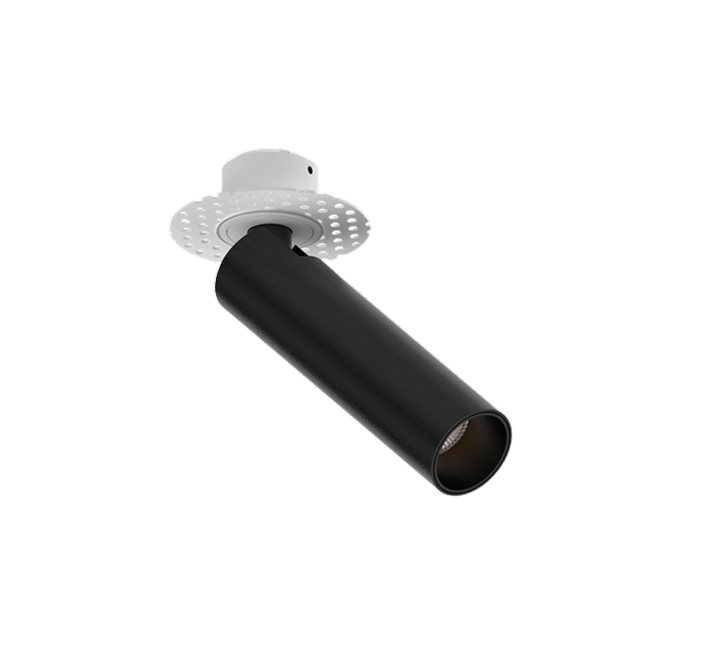

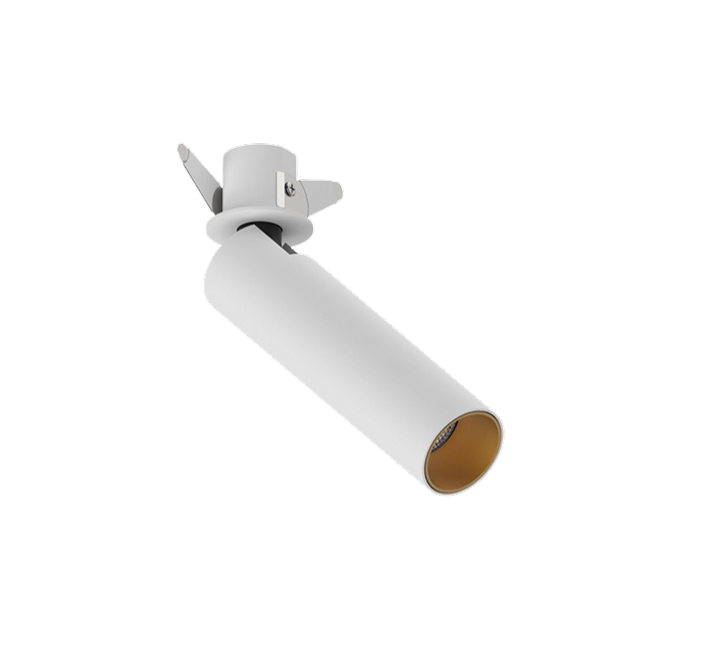

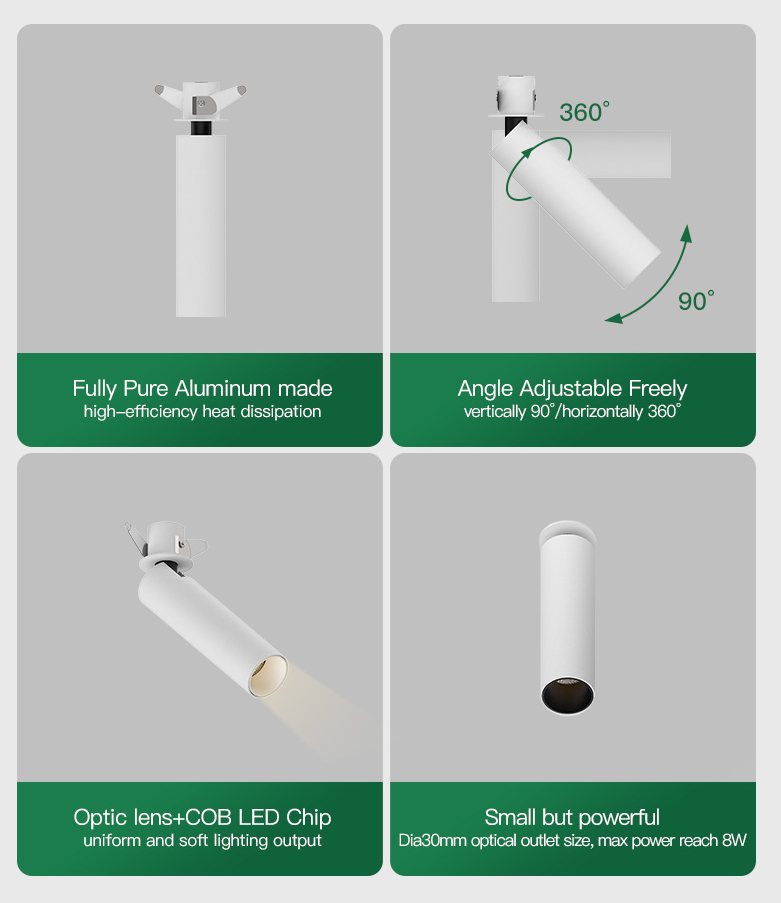

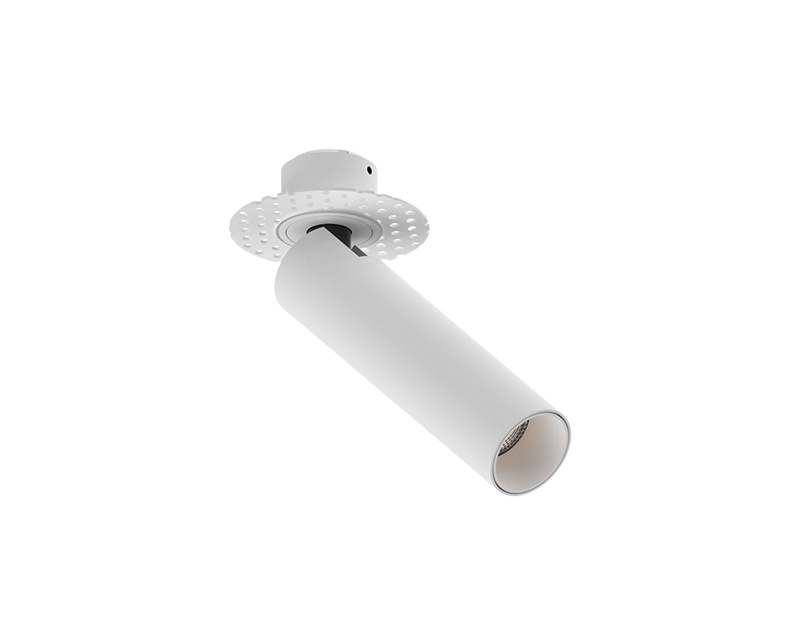

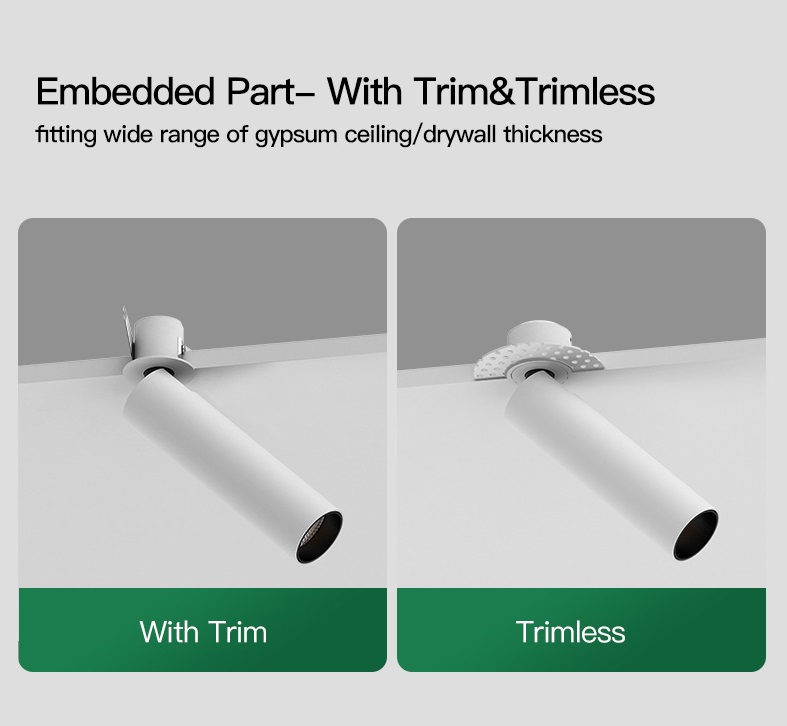

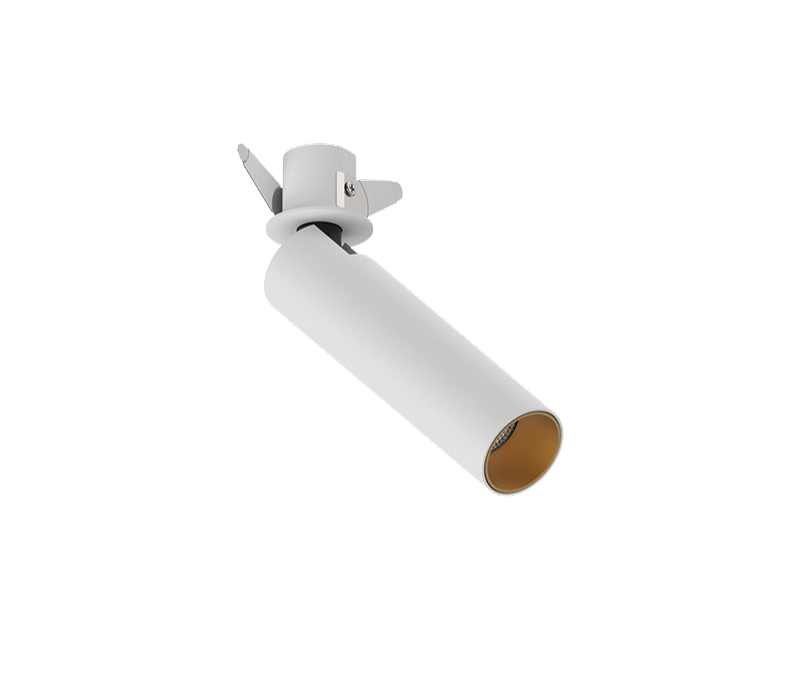

The 1 inch spotlight features an ultra-compact size with a 29mm cutout, ensuring minimal visual impact while delivering maximum lighting effect. Crafted from high-quality pure aluminum, this fixture guarantees durability and optimal heat dissipation for extended performance. With exceptional color rendering options of 97Ra or 90Ra, the spotlight reproduces colors with remarkable accuracy, making it ideal for applications where color fidelity is crucial. Versatility is enhanced through multiple beam angle options of 15°, 25°, and 35°, allowing for precise control of light distribution based on your specific needs. The customizable color temperature range from warm 1800K to cool 6000K enables you to create the perfect ambiance for any space. Available in both trim and trimless versions with a choice of white, black, or gold trim finishes, the 1 inch spotlight seamlessly integrates with any interior design scheme. The 90° or 360° light direction options provide flexibility for either focused accent lighting or broader general illumination. Compatible with various dimming systems including TRIAC, PHASE-CUT, 0-1-10V, and DALI, the spotlight offers convenient light control. With a remarkable 50,000-hour LED lifespan, this fixture ensures maintenance-free operation for years to come.

The 1 inch spotlight is designed for recessed mounting applications, constructed from pure aluminum for superior durability and thermal management. With an IP20 rating, this fixture is optimized for indoor installations where protection from dust is beneficial. Operating at a maximum power of 8W with DC36V input voltage and maximum 200mA input current, the spotlight delivers efficient performance while requiring minimal energy. Installation is straightforward with a compact cutout size of 29mm × 25mm. The high-quality LED COB light source provides excellent efficiency ranging from 65-90lm/W with exceptional color rendering capabilities of either 97Ra or 90Ra. Lighting versatility is enhanced through three beam angle options (15°, 25°, 35°) and multiple color temperature selections including 2700K, 3000K, 3500K, 4000K, 6000K, and CCT changeable options from 1800K to 3000K. The spotlight is powered by drivers compatible with either AC100-120V or AC220-240V, featuring a UGR rating of 9 for superior glare control. With an impressive LED lifespan of 50,000 hours, this fixture offers long-term reliability. Flexibility in lighting control is ensured through various dimming options including ON/OFF, TRIAC/PHASE-CUT, 0/1-10V, and DALI compatibility.
