Product Code: DOB26Q400V24MINI
$105.00
Ultra-slim 5mm Diode-on-Board (DOB) LED tape built with high-density SMD chips for smooth, uniform illumination. This 24V free-cut strip delivers CRI 90 color accuracy, 400 LEDs per meter, and a clean 180° beam angle. Supplied in a 5 meter roll and UL listed, it is ideal for tight architectural and millwork applications.
Discover unique, celebrated designs from Nourdic.
Our products are commercial grade and meet building code.
Accessible for every purchase made via our online store.
If you're not happy, take advantage of our easy returns within 30 days.

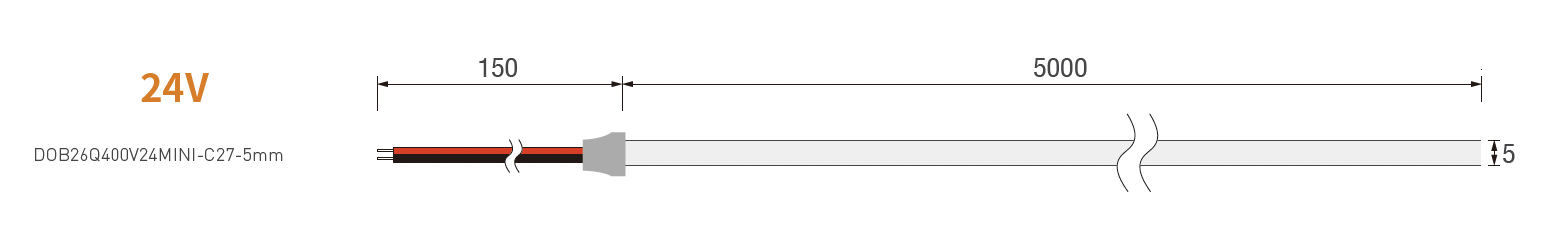

LED Strip, 150mm PVC Cable (Red V+, Black V-
Power Supply/Transforme

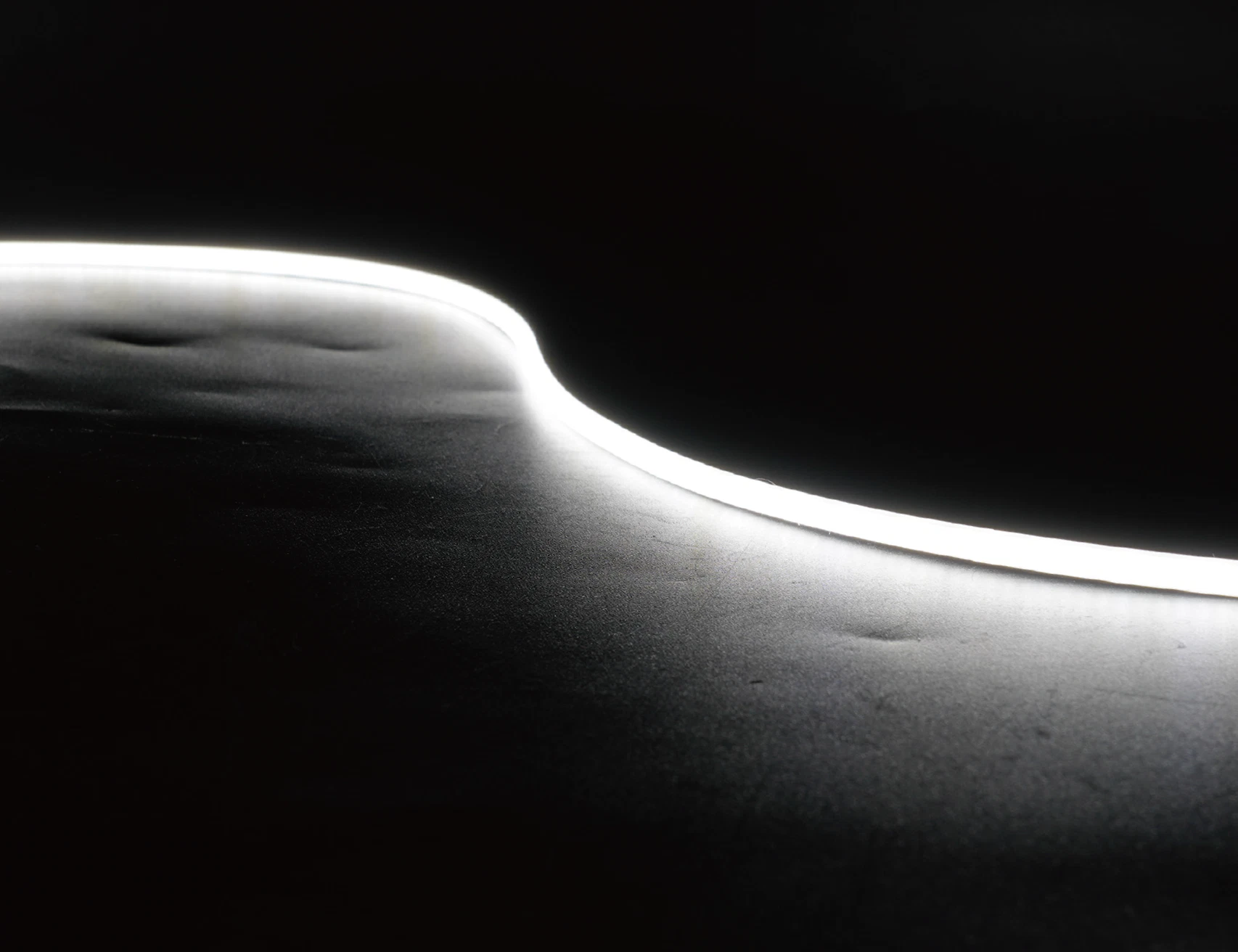

The 5mm DOB LED Tape is engineered for projects where space is limited but performance cannot be compromised. DOB stands for Diode on Board, referring to the high-density SMD LED configuration mounted directly onto the PCB to create a continuous line of light. The result is smoother output and reduced visible spotting compared to conventional low-density strip lights.
With an ultra-narrow 5mm PCB width, this strip fits into extremely tight aluminum profiles and detailed millwork applications. It is particularly well suited for cabinetry, shelving, display cases, toe-kick lighting, and architectural reveals where a minimal footprint is critical.
The free-cut design allows installers to cut the strip at virtually any point for precise on-site customization. This reduces material waste and simplifies complex layouts. Operating at DC24V constant voltage and 10W per meter, the strip provides lumen outputs ranging from approximately 710 to 780 lm/m depending on color temperature selection.
Available CCT options include 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K, all with CRI ≥90 for accurate and natural color rendering. Color consistency is controlled within SDCM ≤3 and supplied from a single bin to maintain uniformity across installations.

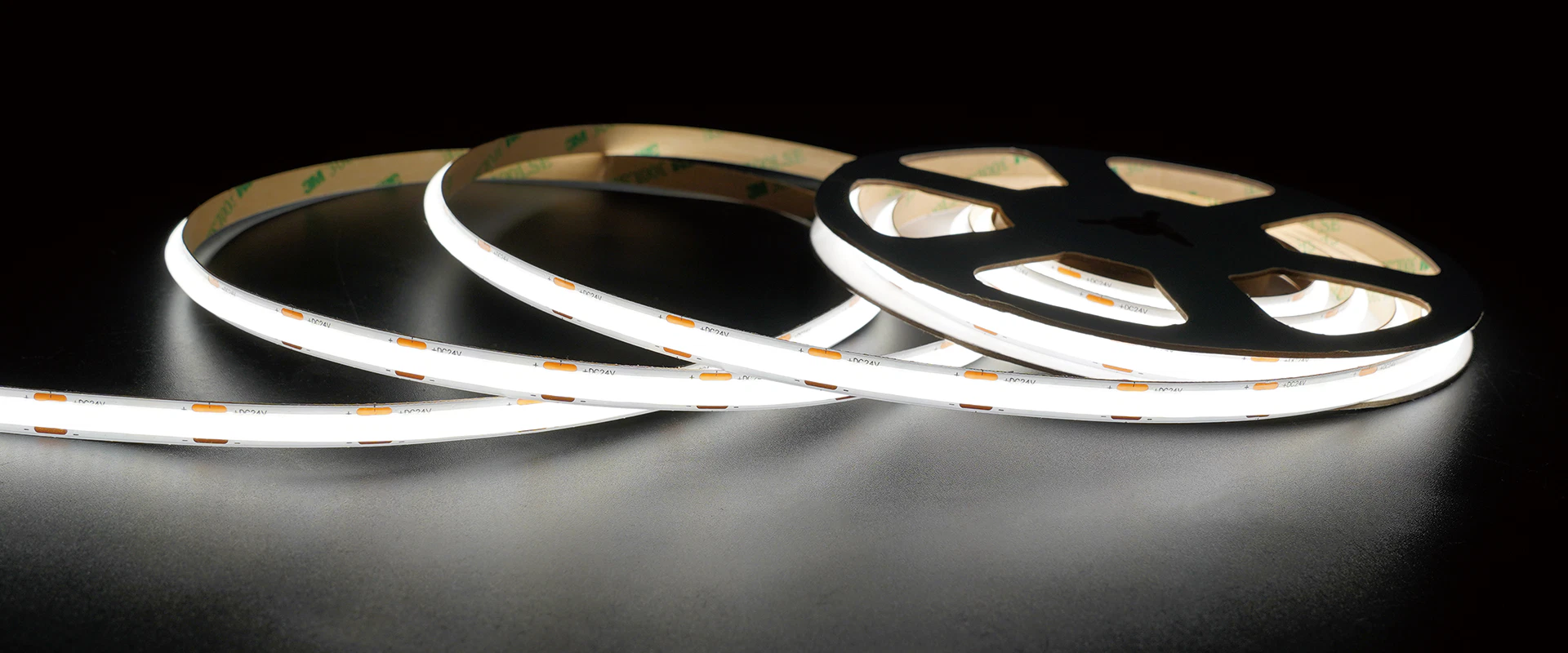

Each roll comes in a 5 meter length and features strong adhesive backing for secure mounting. Optional IP65 protection is available through nano coating or shrink wrap for humid environments. Rated for 50,000 hours and backed by a 5-year warranty, this strip is designed for professional architectural lighting applications.
Key Features:
5mm ultra-narrow PCB
Diode on Board (DOB) SMD LED technology
400 LEDs per meter
24V constant voltage
10W per meter
Free cut design for precise field adjustment
180° beam angle
CRI ≥90
SDCM ≤3 color consistency
Available in 2700K to 6500K
5 meter roll
UL listed
Optional IP65 protection
50,000 hour lifespan
5-year warranty
