In-Ground
2 Inch In-Ground Uplight IP68 24V
Model ODG-R2048Q · 2 trims
A 2 inch stainless steel in-ground uplight, sealed to IP68 and rated for walk-over and drive-over. 24V DC, high CRI, multiple beam angles from narrow accent to wide wash, 2700K, 3000K, 4000K, RGB, or RGBW, with On/Off, 0-10V, DALI, or DMX512 driver options. For trees, columns, facades, and hardscape in any climate.
- Beam
- 15-36°
- Ingress
- IP65-67
- Trims
- 2
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- FCC
- IP67Wet location
Ratings apply per build. The IP67 rating belongs to the builds that carry it, not to every option on this page.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
0 of 6 required
Load Rating (required)
RequiredBeam (required)
RequiredColor Temp (required)
RequiredDriver (required)
RequiredTrim Finish (required)
RequiredIP Rating (required)
RequiredOptions add any
None selected
Order code
ODG-··-··-··-··-··-··
6 required axes remaining
Configured price
$75.00
Installed

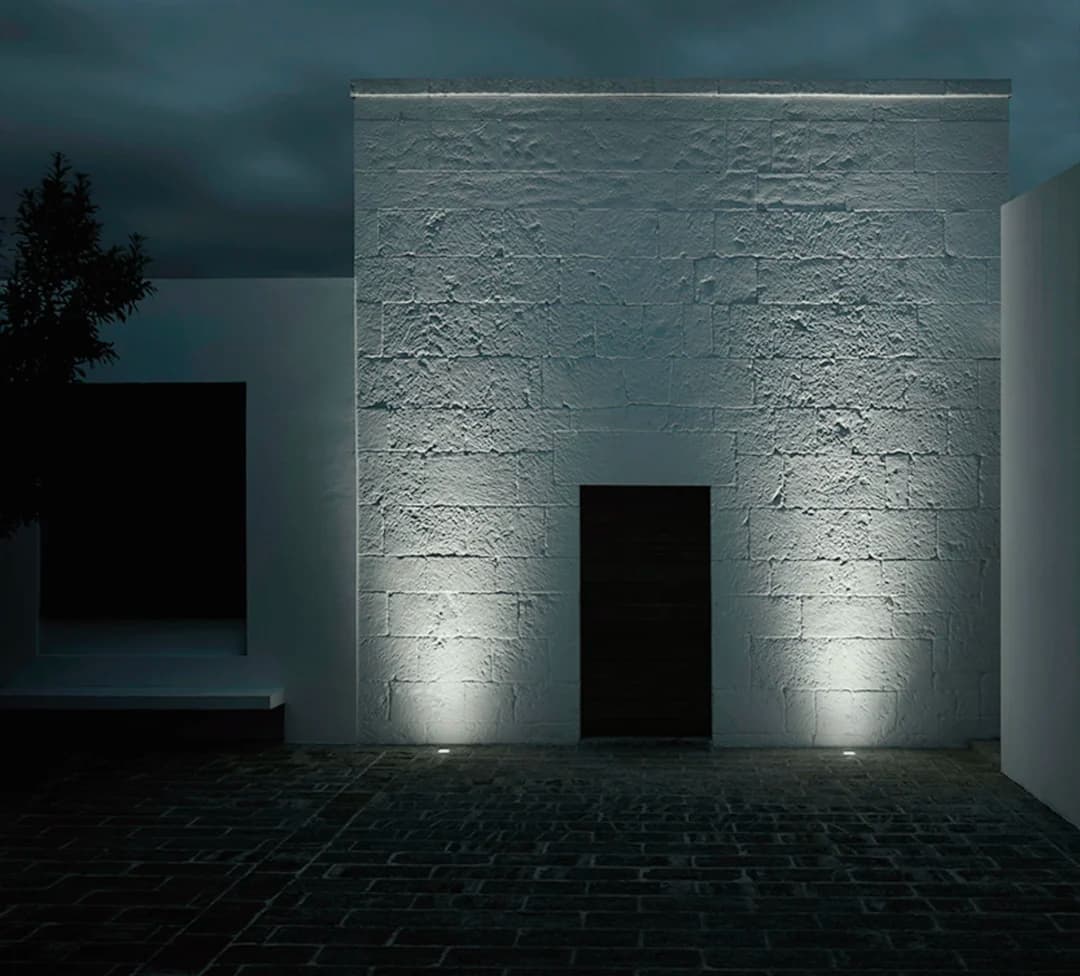

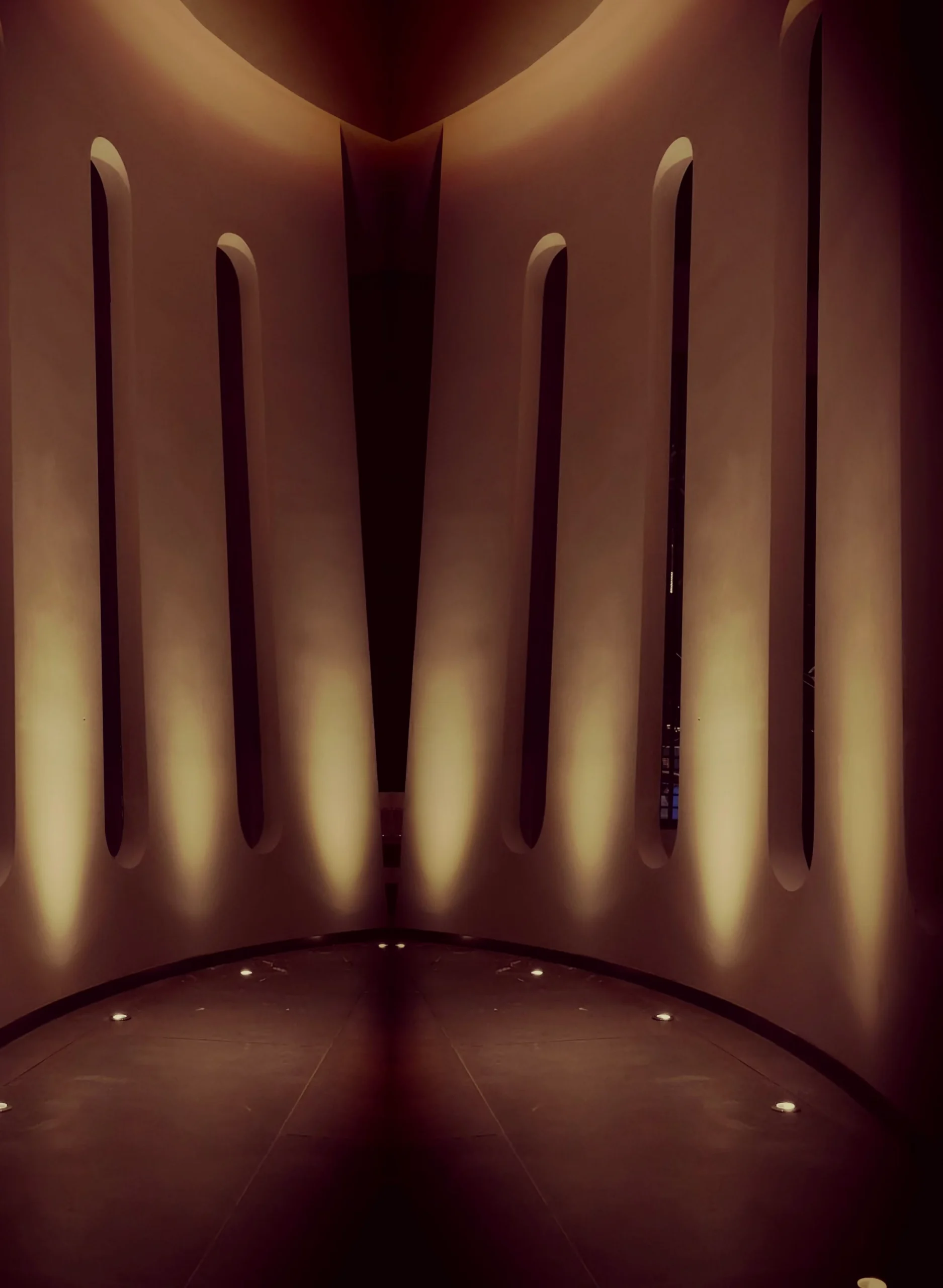

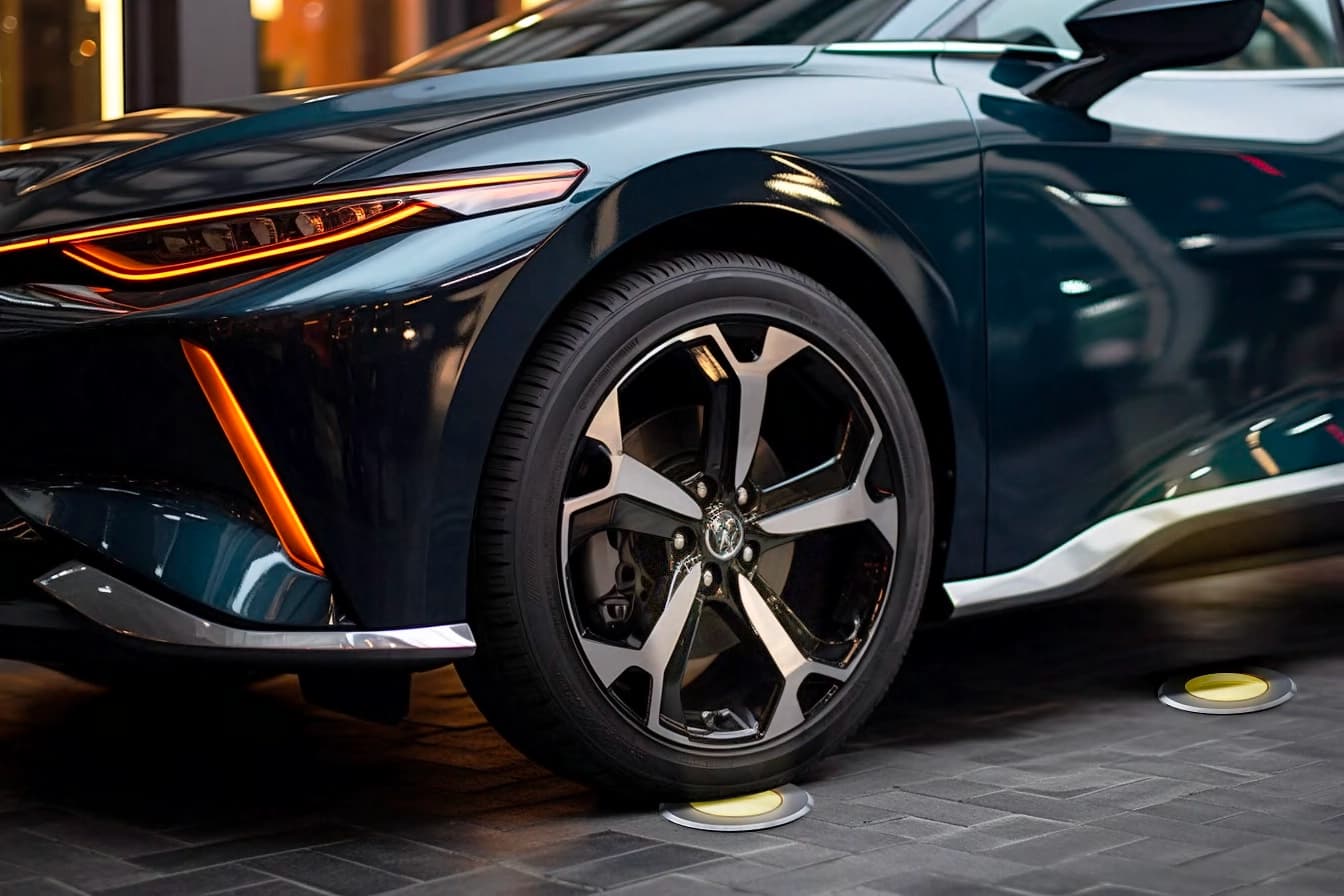

At work in projects we lit.
Technical specification
- Colour
- 2700K · 3000K · 3500K · 4000K
- Beam angles
- 15° · 25° · 36°
- Ingress and aiming
- IP65 · IP67
- Trim
- Walk-over · Drive-over
- Driver
- Non-dimmable · TRIAC / mains dim · 0-10V · DALI
- Certification
- Meets the local safety requirements of the markets we sell into, such as UL in North America, CE in Europe and SAA in Australia
- Warranty
- 5 years
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
