LED Strips

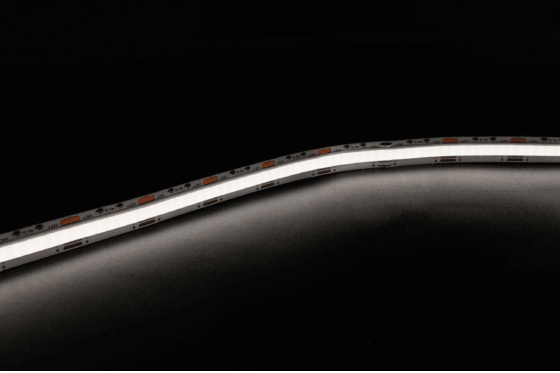

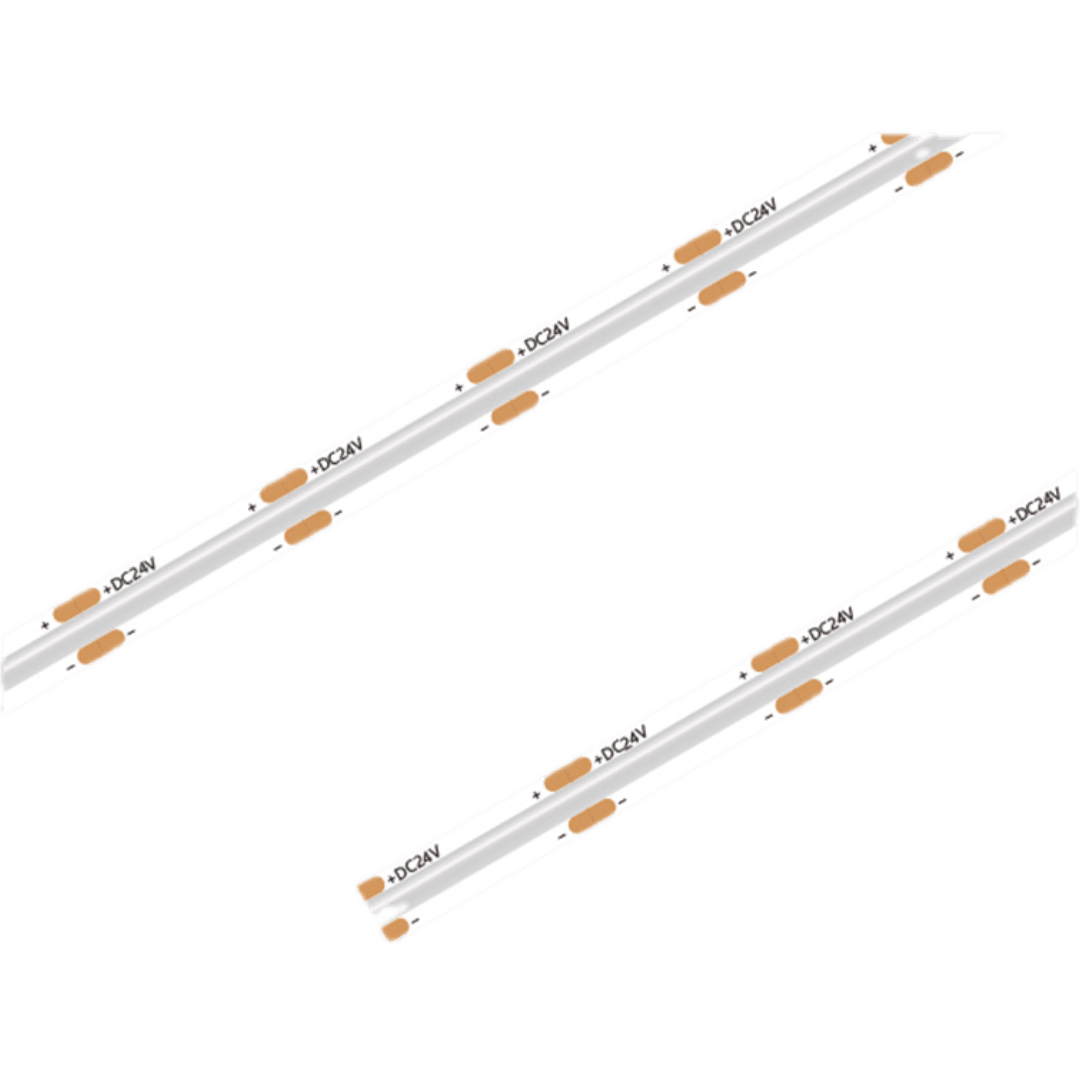

10mm DOB Tunable White LED Tape 24V 5m Roll CRI 94
A 10mm tunable white DOB tape, diode on board: 560 chips per metre under a continuous phosphor line, so the strip reads as one unbroken band of light with no dots and no shadow. Two channels, 2000K and 5000K, mix anywhere between; 24V DC in, cut every 25mm, runs to 5m.
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
Certification pending. Ask us for the current status before specifying.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
0 of 3 required
Light (required)
RequiredProtection (required)
RequiredLength (required)
RequiredOrder code
{code}-··-··-··
3 required axes remaining
From
$259.00

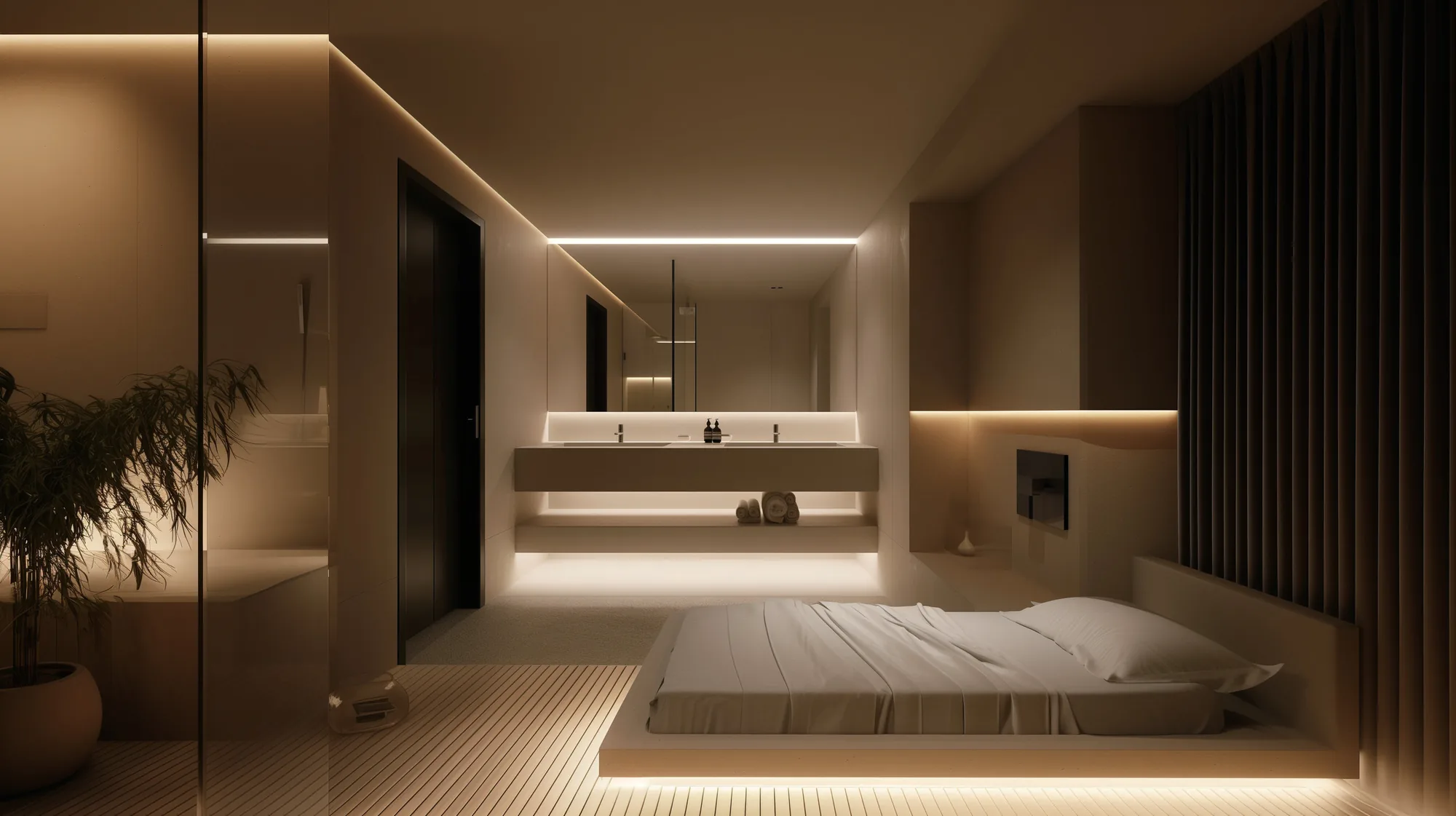

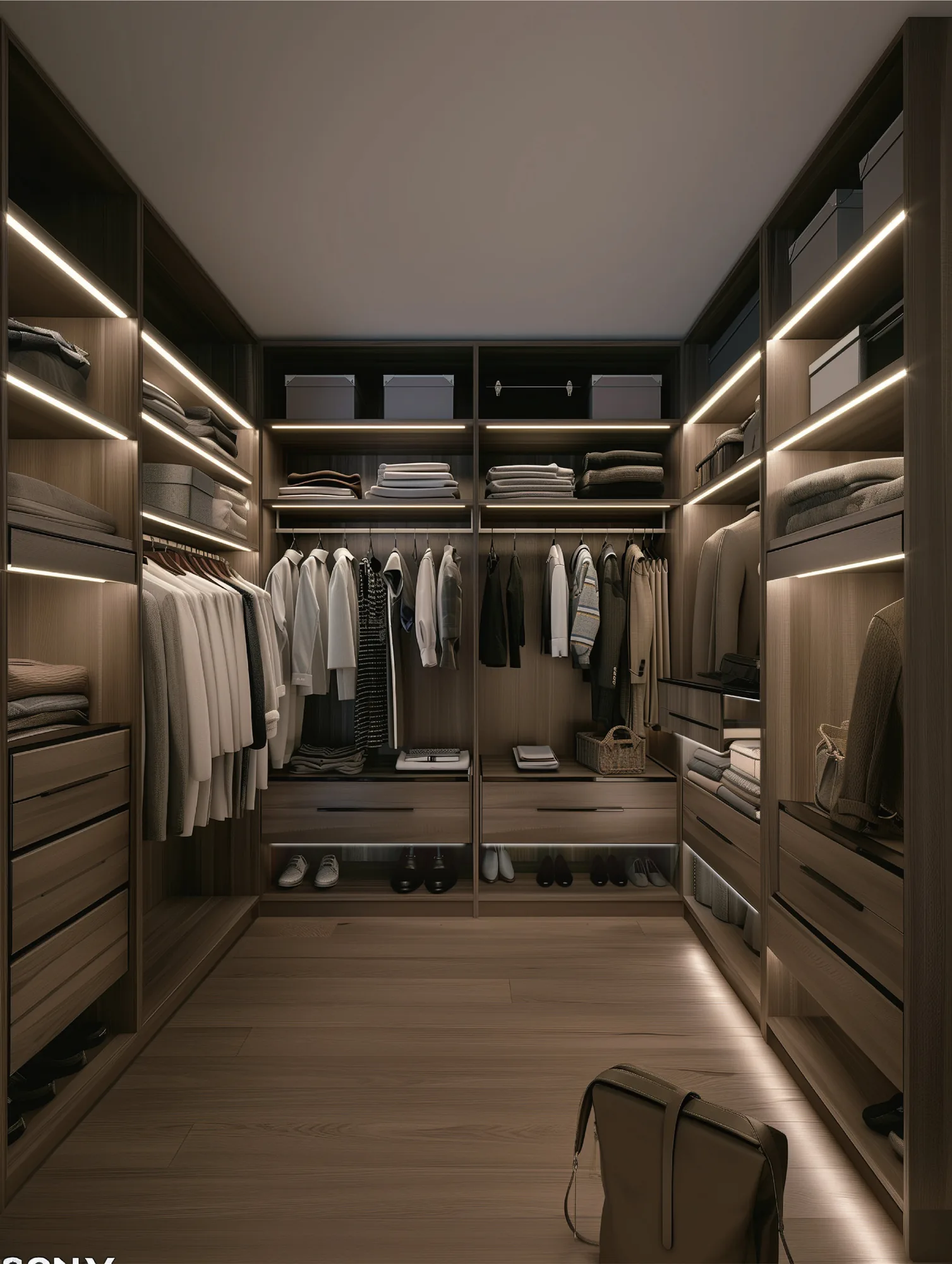

In the field
The family at work.
Technical specification
- Model
- NST10-TW
- Dimensions
- 10 wide, 3.2 high (mm)
- Wattage per metre
- 7.5 to 15 W/m
- Lumens per metre
- 548 to 1290 lm/m
- Color temperature
- 2000K to 5000K tunable
- CRI
- 94
- Beam angles
- 120°
- Fixture voltage
- 24 V DC
- Ingress rating
- IP20 · IP65
- Environment
- Dry · Damp
- Lifespan
- 50,000 hours (L70)
- Warranty
- 5 years
- Lead time
- 1 to 2 days
- Certification
- Certification pending
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportPDF
