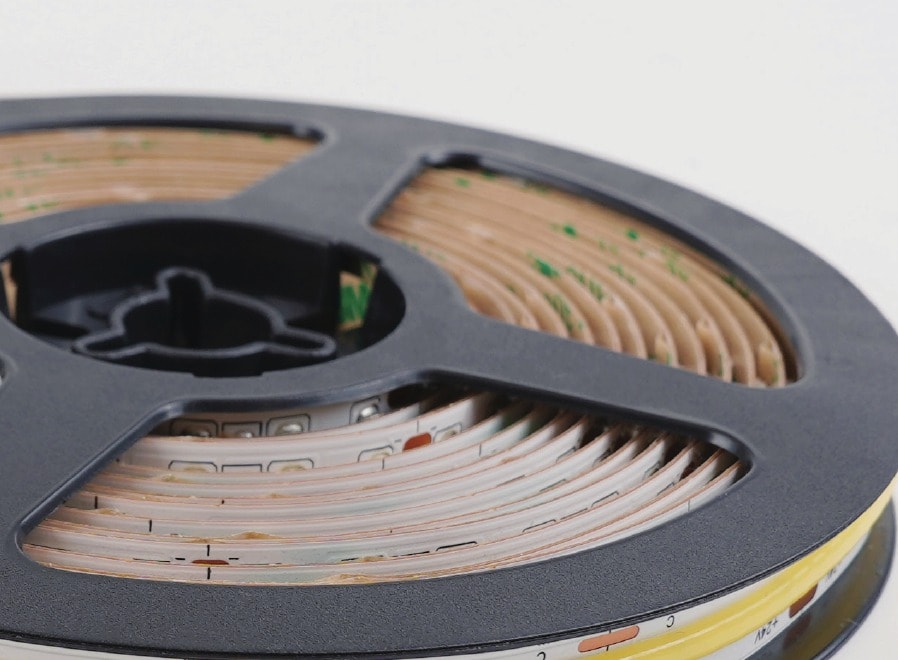

8mm COB tunable white LED tape wound on a 5m reel

LED Strips

8mm Tunable White LED Tape

Model NST8C-TW

An 8mm tunable white COB tape: 576 emitters per meter under one continuous phosphor line, so a cove or channel reads as a single band with no dots. Two channels, 1800K and 5500K, mix anywhere between at 90+ CRI; 24V DC, 15W per meter, cut every 27.8mm, up to 5m per feed.

Beam: 132°
Color rendering index: 90
Ingress: IP20
Output: 15 W

Configure this fixture Specs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

ETLIntertek listed
CEEU conformity
RoHSRestricted substances
IP20Dry interior

Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.

Configurator

Build the fixture, get the order code.

Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.

0 of 5 required

Light (required)

Required

CCT range (required)

Required

Protection (required)

Required

Length (required)

Required

Beam (required)

Required

Order code

NST8C-··-··-··-··

5 required axes remaining

From

$185.00

Photometrics

See what the tape does before you build the cove.

Pick what the tape is doing, how far it sits from the surface it lights, the pocket you are building, a run and a colour temperature. One set of inputs drives all five views: the wash in section, the run with its driver, reels and feeds, the polar distribution, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.

What it is doing

Gap to the ceiling

Tape to the fascia

Fascia above the tape

Run length

Colour temperature

Tested, per metre · 4000K897 lm/m · 241 cd/m · 9.4 W/m

Across the ceilingDirectWith the pocket

At the wall2,480 lx3,470 lx

0.5 m outshielded20 lx

1.0 m outshielded1.7 lx

Direct wash ends 12 in out · ceiling halves 0.13 m out, a tenth by 0.27 m

The direct wash is integrated along the run from the tested distribution in NST8C-TW-10W-4000K.ies, which measures one metre of tape, and the fascia ends it 12 in out: a ray that clears a 2 in lip 4 in away cannot climb higher than that by the time it reaches the ceiling. Past that line the ceiling is lit by the pocket alone. 55% of the tape lands on the wall behind it and on the inside of the fascia, and a pocket painted flat white hands enough of it back that about 76% of the tape’s lumens leave the cove — which is why a cove reads as a flood rolling out of the pocket rather than as a beam. That return is an ESTIMATE, at an assumed 0.8 reflectance for the pocket; the direct column is the tested file and geometry, and neither counts the ceiling’s own bounce back into the room. This 5 m run delivers 100% of what an endless one would at this gap, and the plane along the run is taken as Lambertian, which is what the file measures it to be. For a layout across a whole plan, send us the drawings.
