Downlights

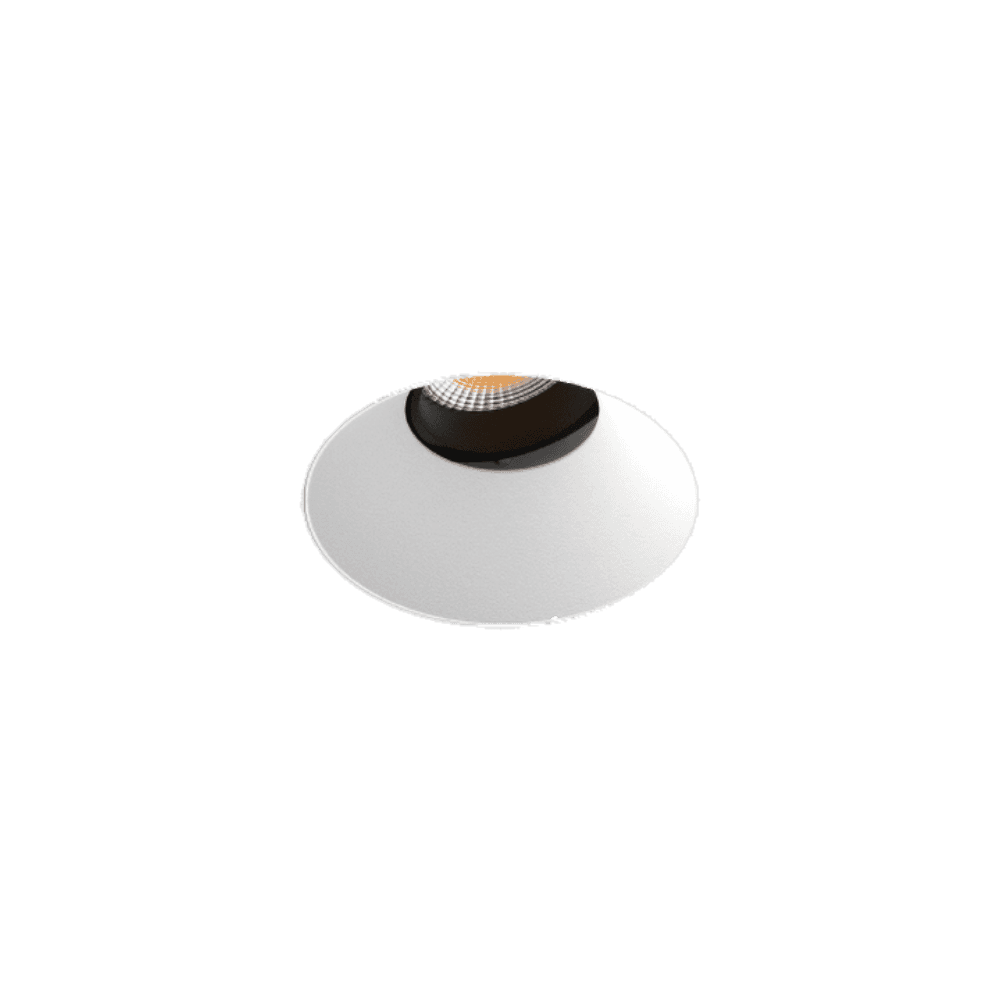

2 Inch Recessed Downlight
Model N55 · 3 trims
A 2 inch round adjustable downlight, micro flange or trimless plaster-in, same engine and optics in both. High CRI COB LED behind a precision lens and deep reflector, tilt and rotate for aiming, multiple beam spreads, cold-forged aluminum heat sink. Re-aim when the art moves instead of cutting new holes. Dry interiors.
- Beam
- 15-80°
- Color rendering index
- 97
- Ingress
- IP20-65
- Output
- 15 W
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- FCCUS emissions
- IP65Wet location
Ratings apply per build. The IP65 rating belongs to the builds that carry it, not to every option on this page.
In the box
Included
- Light Fixture
- Driver/Power Supply
Ordered separately
- Mounting Bracket
- IC Box Mounting Bracket
- Remote Driver
In stock now
2 builds of this fixture are on the shelf.
They ship in 2 business days, without the made-to-order lead time. Every other build on this page is made for your order. The exact codes below are what we hold.
- N55R20A-TR-15-97-30-50-WH$139.00
- Color
- White
- Build
- IP20 / 15W / 97 CRI / 3000K / 50 deg
Trim TypeIn stock, ships in 2 business days - N55R20A-TR-15-95-TW60-50-WH$189.00
- Color
- White
- Build
- IP20 / 15W / 95 CRI / 2700-6000K / 50 deg
Trim TypeIn stock, ships in 2 business days
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
1 of 11 required
Shape (required)
RequiredCCT (required)
RequiredColour Temperature
n/aBeam Angle (required)
RequiredIP Rating (required)
RequiredTrim (required)
RequiredReflector Colour (required)
RequiredTrim Colour (required)
RequiredDriver (required)
RequiredHousing (required)
RequiredTethered Controller (required)
RequiredOrder code
N55-··-··-XK-··-··-····-··-··-··-··
10 required axes remaining
Configured price
$139.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m
The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
N55 · Beam section25° · 3000K · 9 ft ceilingScale varies

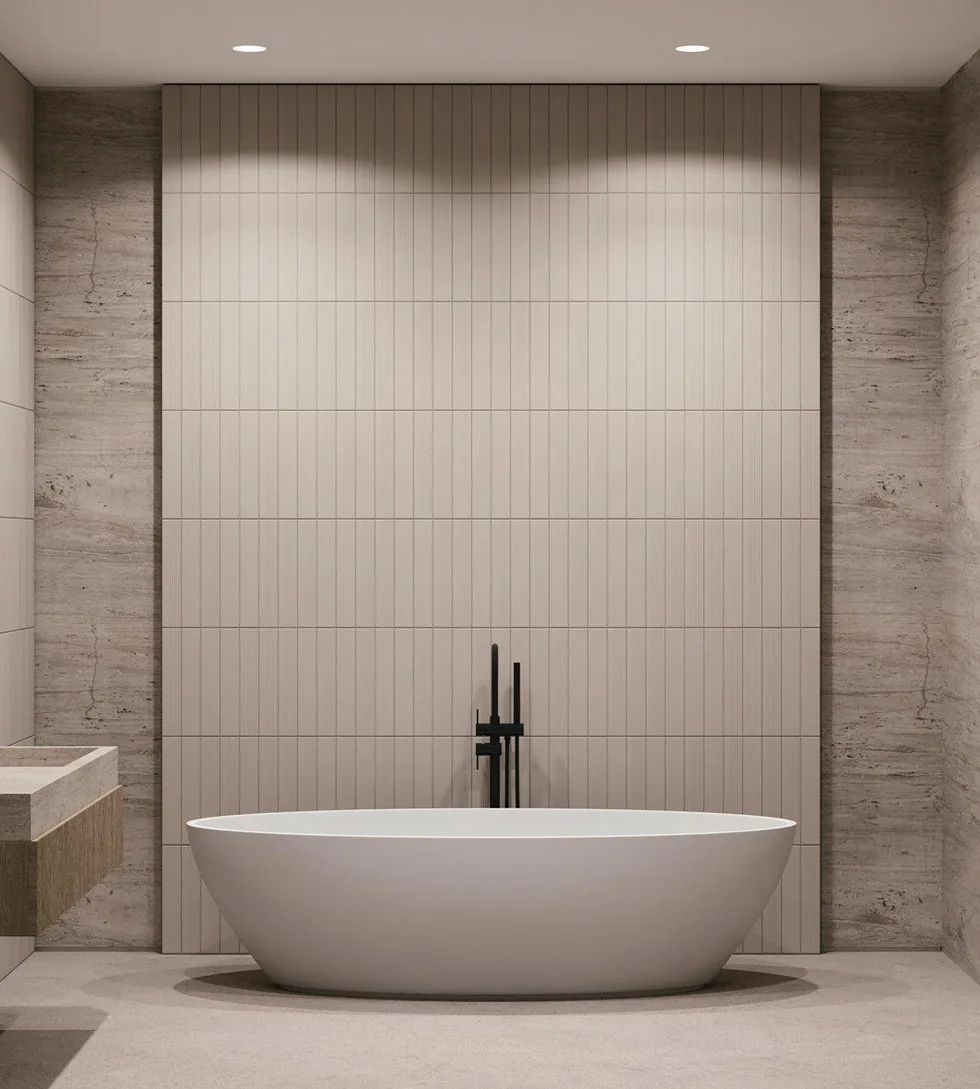

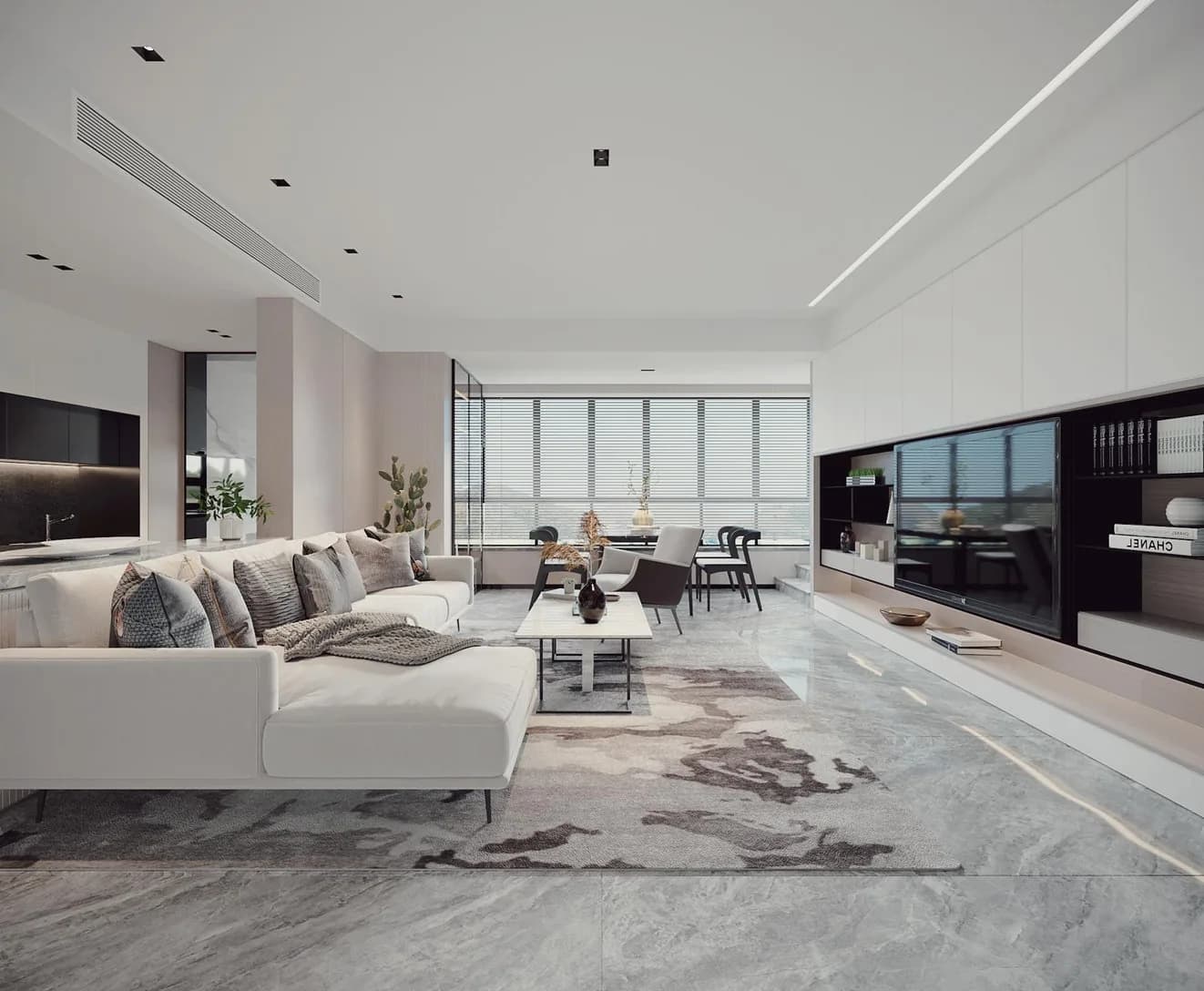

In the field
The family at work.
Technical specification
- Model
- N55
- Cut-out
- 62 mm (2.4 in)
- Wattage
- 15 W
- Lumen output
- 945 to 1485 lm
- Color temperature
- 2700K · 3000K · 3500K · 4000K · 2700/3000/4000/5000/6500K switchable · 2700K to 6500K tunable · 3000K to 1800K warm dim
- CRI
- 90 · 97
- Beam angles
- 25° · 35° · 50°
- Input voltage
- 120 to 277 V AC
- Driver
- Remote
- Dimming
- Non-dimmable · TRIAC
- Ingress rating
- IP20
- Finishes
- White · Black
- Mounting
- Recessed
- Trim
- Micro flange · Trimless
- Environment
- Dry
- Lifespan
- 50,000 hours (L70)
- Warranty
- 5 years
- Lead time
- 14 to 21 days
- DALI
- DALI-2 on a two channel remote driver
- Material
- Aluminum
- Shape
- Round · Square
- Colour
- Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
- Ingress and aiming
- IP20 · IP44 · IP65
- Reflector colour
- Black · White
- Housing
- None · Flat Bracket · Non-IC Housing · IC-Housing
- Tethered control
- Casambi · Tuya · Matter
- Certification
- ETL · CE · FCC
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guidePDF
- Revit and CAD blocksOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
