Downlights · 20° tilt

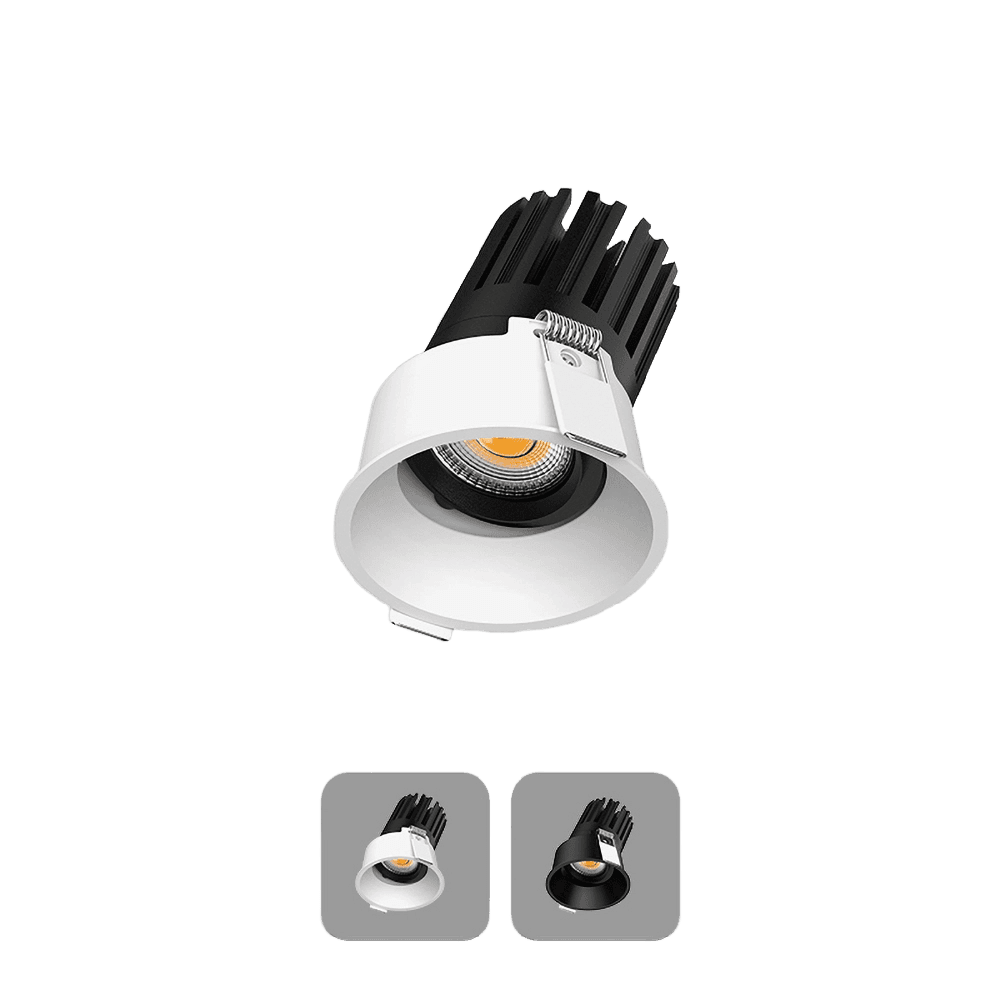

3 Inch High Output Downlight

Model N82 · 3 trims

A round 3 inch downlight built for output. The 40mm aperture sits deep in an 82mm flange, so the source stays out of sight from normal viewing angles. One 20W COB engine at 97 CRI, with tunable white, warm dim and RGBW on the same 75mm cutout, so layouts stay consistent across a project.

Output: 20 W

From $189.00Made to order · ships in 30 days

Configure this fixture Specs and downloads

Choose light Engine, color Temperature, beam Angle, trim, trim Colour, reflector Colour, tethered Controller, driver and housing. Takes about a minute.

Certified & rated

ETLIntertek listed

In the box

Included

Light Fixture
Driver/Power Supply

Ordered separately

Mounting Bracket
IC Box Mounting Bracket

Configurator · N82

Build the fixture, get the order code.

9 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Light Engine

Choose one

Color Temperature

Set by the engine · set by your other choices

Kelvin is chosen only with static white. Every other engine sets its own colour and codes XK.

Beam Angle

Choose one

Trim

Choose one

Trim Colour

Choose one

Reflector Colour

Choose one

Tethered Controller

Choose one

Driver

Choose one

Housing

Choose one

From

$189.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.

N82 · Geometry only

Beam angle

Ceiling height

Color temperature

N82 · Beam section25° · 3000K · 9 ft ceilingScale varies

Beam diameter at the floor

1.22 m4.0 ft

Ø = 2 × 2.74 m × tan 12.5°

Below fixtureBeam Ø

1.0 m0.44 m1.5 ft

2.0 m0.89 m2.9 ft

Floor · 2.74 m1.22 m4.0 ft

The diameter is measured to the beam edge, where intensity falls to half the center value, and follows from the rated beam angle alone, so it holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

In the field

The family at work.

View projects →

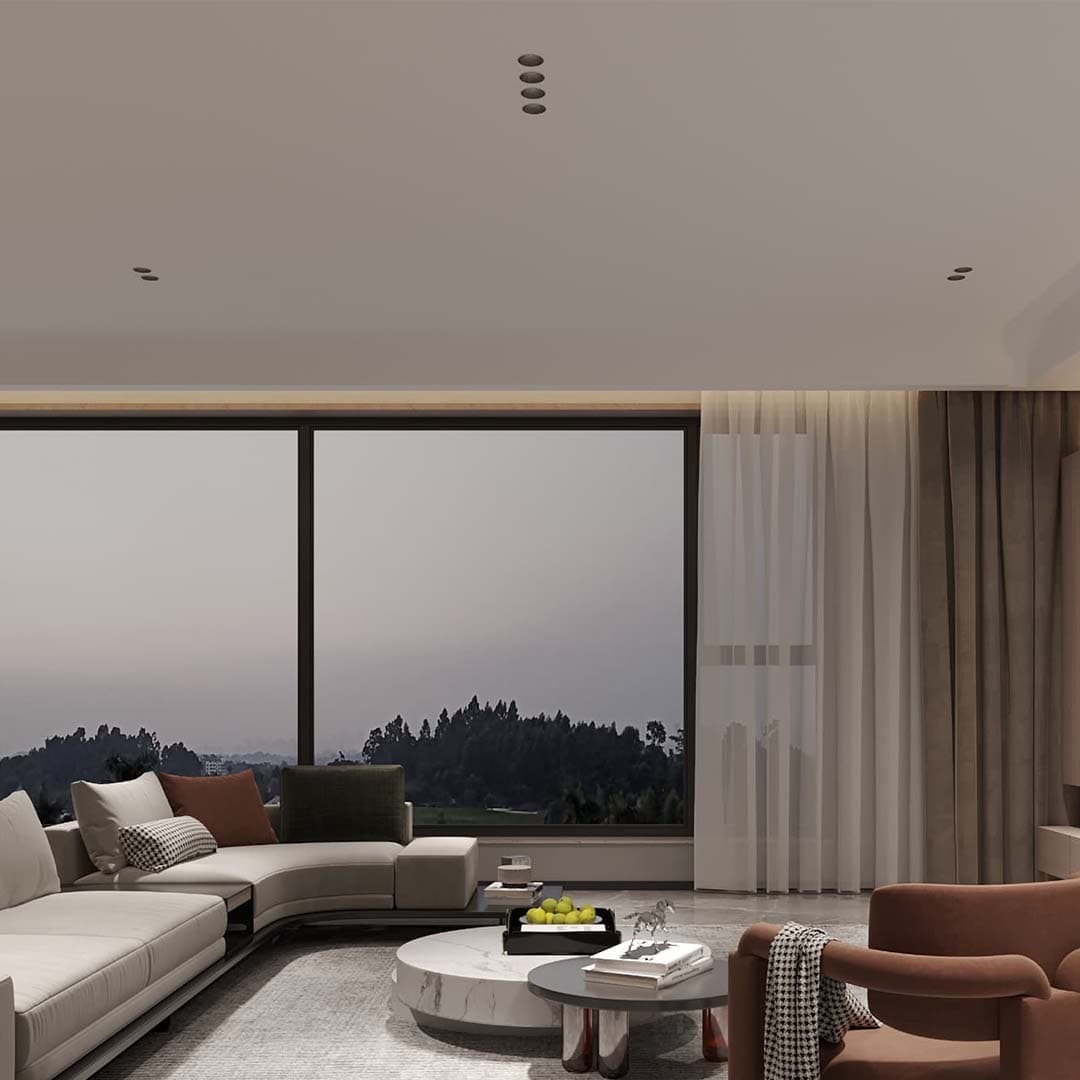

Living room lit by recessed downlights set into a flat plaster ceiling

Bathroom with a freestanding tub, the stone wall grazed by recessed downlights

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: N82
Aperture: 40 mm (1.6 in)
Cut-out (reference): 75 mm (3.0 in)
Dimensions (reference): 120 high, 82 diameter (mm)
Wattage (reference): 20 W
CRI: 97 · 95 · 90
Fixture voltage: 36 V DC
Input voltage (reference): 120 V AC
Ingress rating: IP20
Finishes: White · Black
Mounting: Recessed
Environment: Dry
Lifespan: 50,000 hours
Warranty: 5 years
Lead time: 30 days
5CCT: 2700K, 3000K, 4000K, 5000K or 6000K, selectable on the fixture

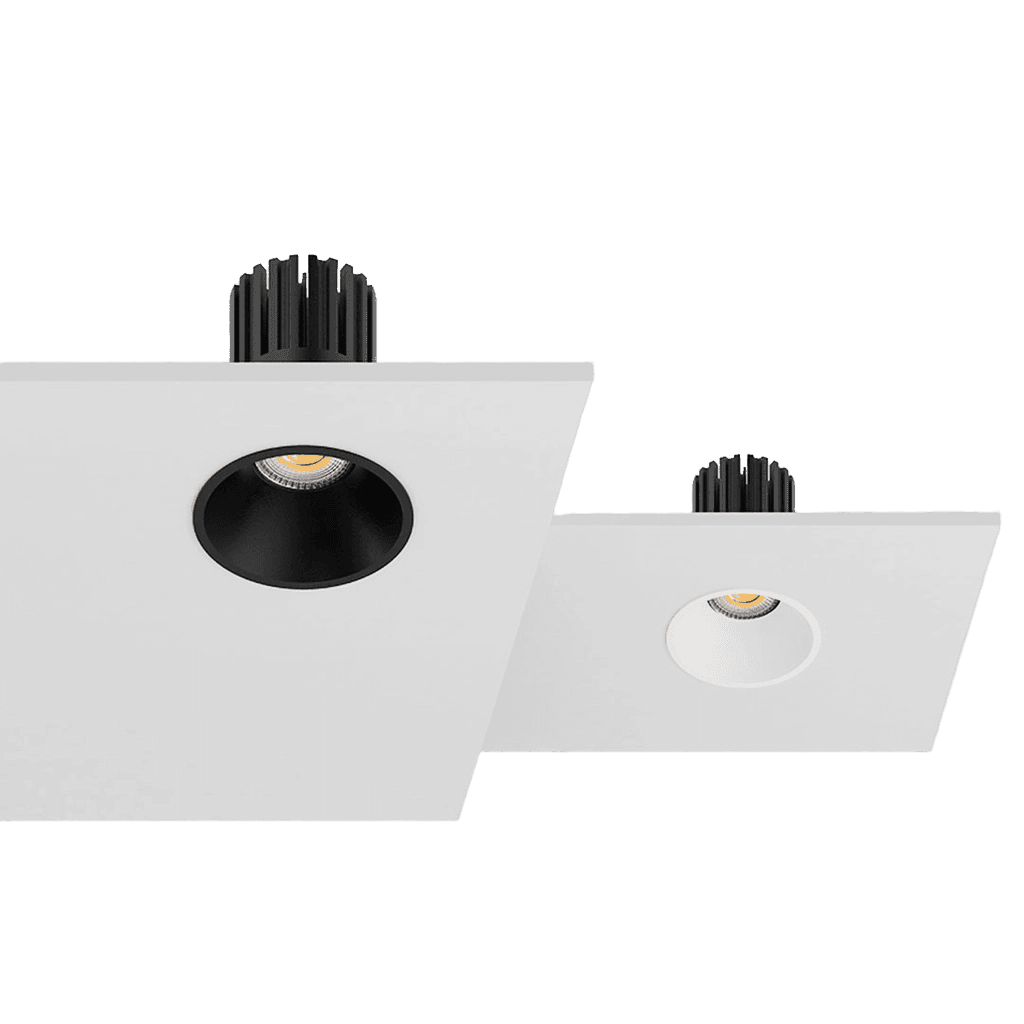

Trims: Micro-flange (white or black), trimless (white only), millwork (white or black)
Aiming: 20° tilt on IP20 builds
Reflector: Black or white
Housing options: None, flat bracket, Non-IC housing or IC housing
Delivered lumens: 1,368 lm (50°), 1,537 lm (35°), 1,640 lm (25°), measured at 4000K on a 90 CRI test build. 97 CRI static delivers fewer through the same optic.
Lumen output (reference): 1,368 to 1,640 lm delivered (90 CRI test build, 4000K)
Material: Aluminum heat sink and body
Certification: ETL
COB chip: Static White, 97 CRI (One fixed CCT, set below) · 5CCT Switch (2700K, 3000K, 4000K, 5000K or 6000K, selectable on the fixture) · Tunable White 2700K to 6000K (95 CRI, DALI-2 or remote driver) · Tunable White 1800K to 5500K (95 CRI, DALI-2 or remote driver) · Dim to Warm 3000K to 1800K (95 CRI) · RGBW (90 CRI, colour and white)
Color temperature: 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white) · Set by the engine (Every engine other than static white)
Beam angles: 15° (Static white and 5CCT only) · 25° · 35° · 50° · 80°
Trim: With Trim (Micro-flange, white or black) · Trimless (Plastered in, white only) · Millwork (For joinery, white or black)
Reflector color: Black · White
Driver options: Remote driver (Placed away from the fixture) · 0-10V (Not for tunable white) · Triac (Mains phase dim. Not for tunable white) · DALI-2 (All engines)
Housing: None (Fixture only) · Flat bracket (Flat rough-in plate) · Non-IC housing (Keep clear of insulation) · IC housing (Insulation contact)
Controls: Casambi (Tethered controller node) · Tuya (Tethered controller node) · Matter (Tethered controller node)

Downloads

Spec sheetPDF
IES photometric filesOn request
Installation guideOn request
Lead and driver wiringPDF
CAD blocksDXF
Revit familiesOn request
Photometric test reportPDF

Anything marked on request we will send the same day. Ask at info@nuordic.com.
