Linear Lights

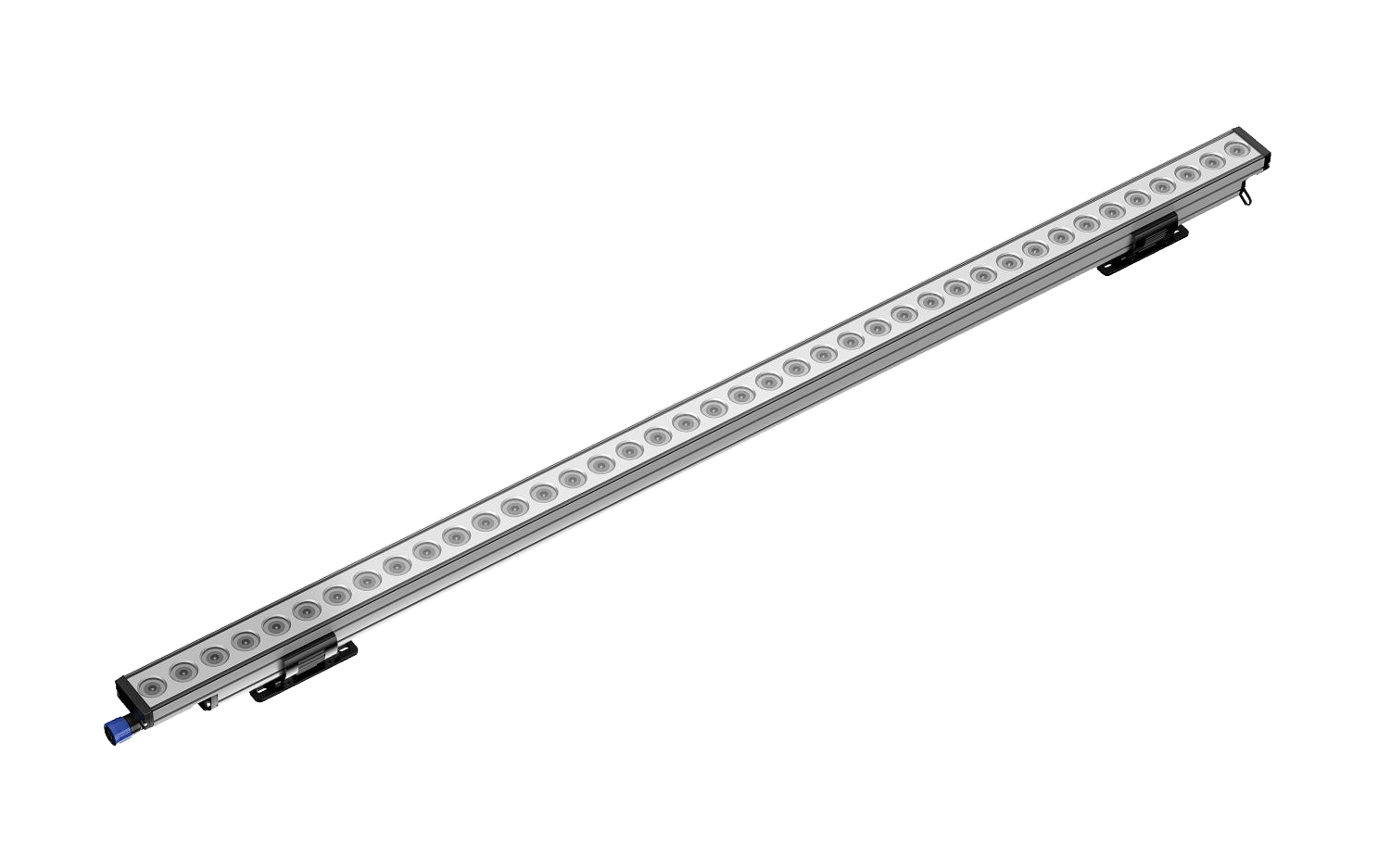

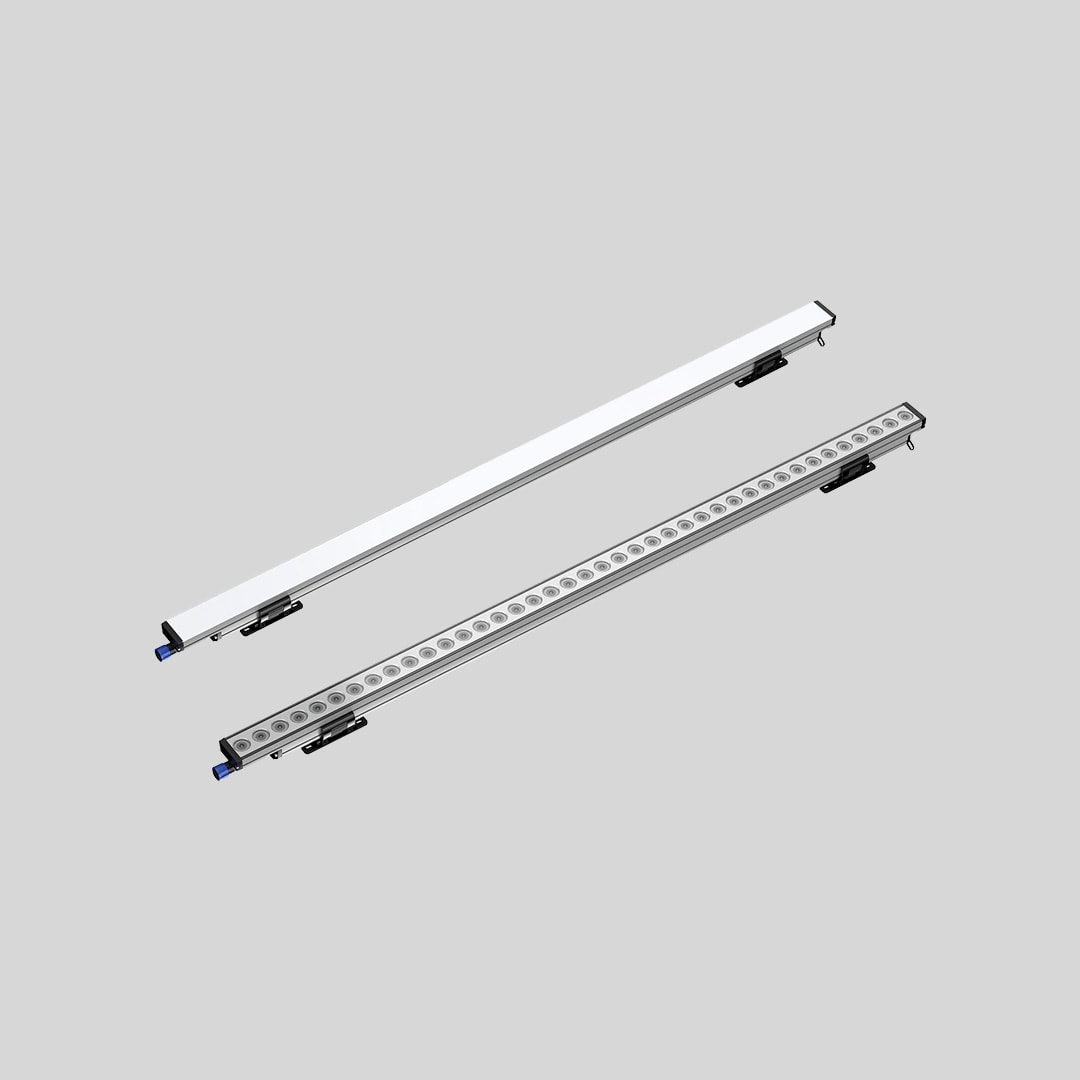

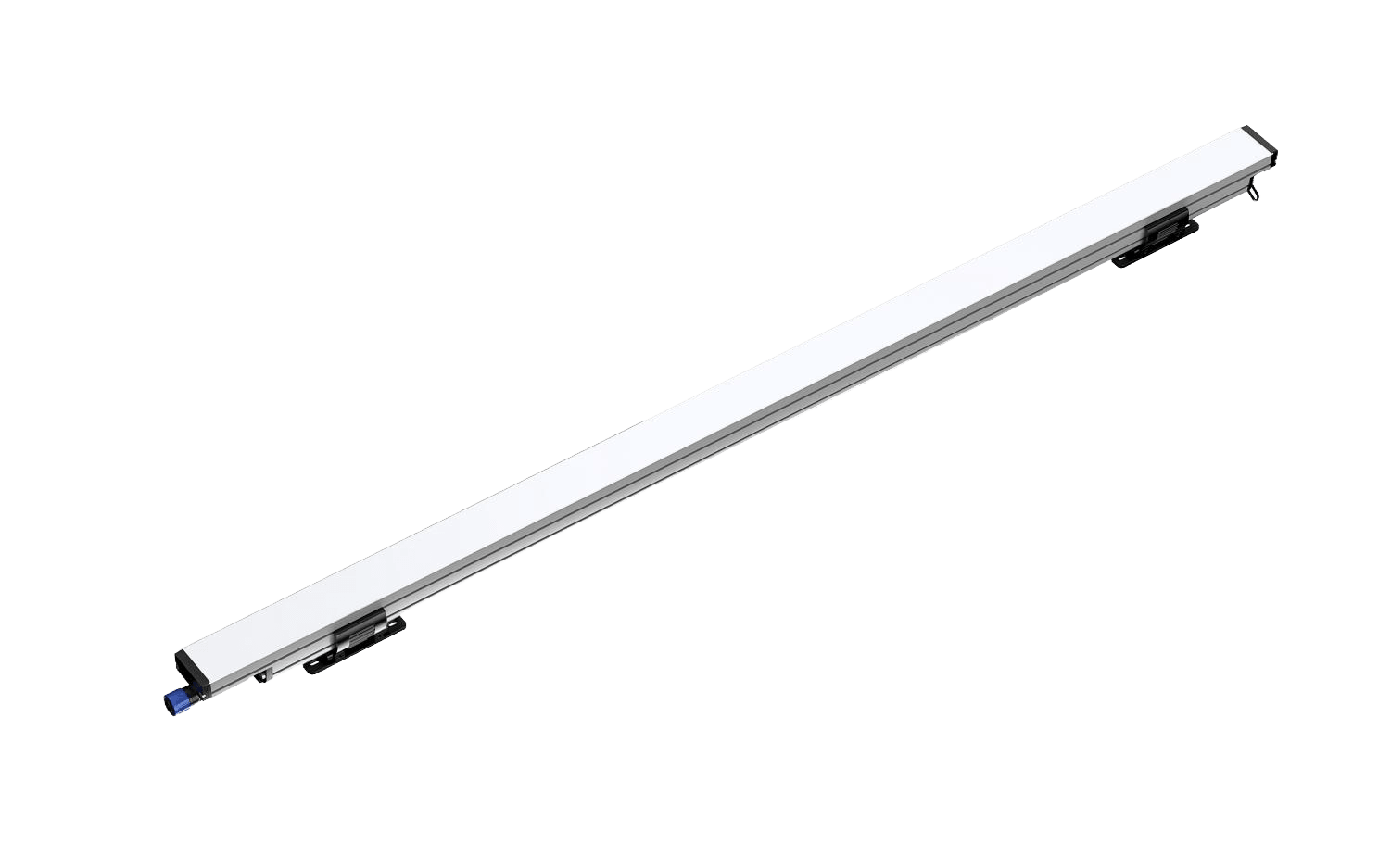

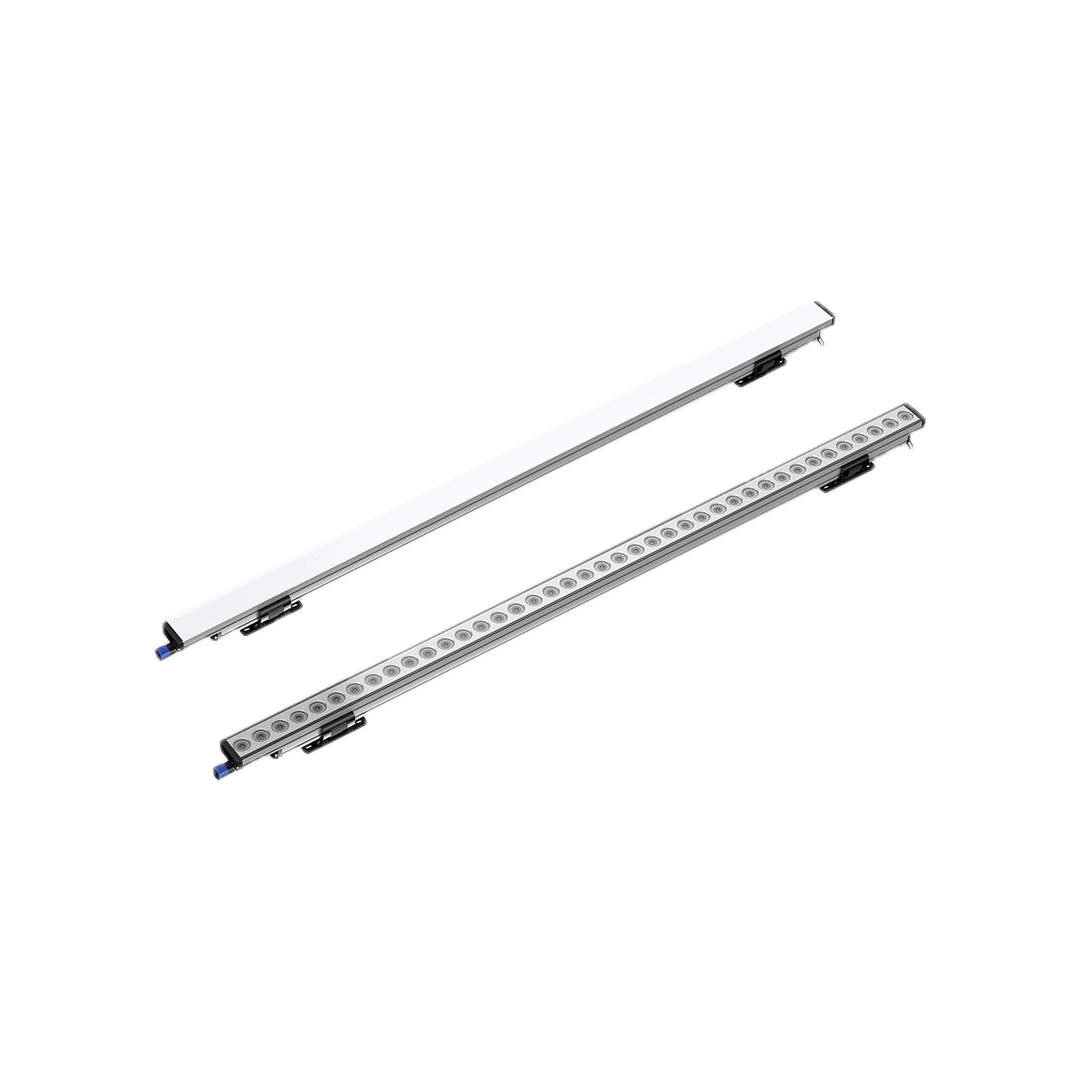

Cannex G3 Exterior Wall Grazer
Model NL82 · Aluminum

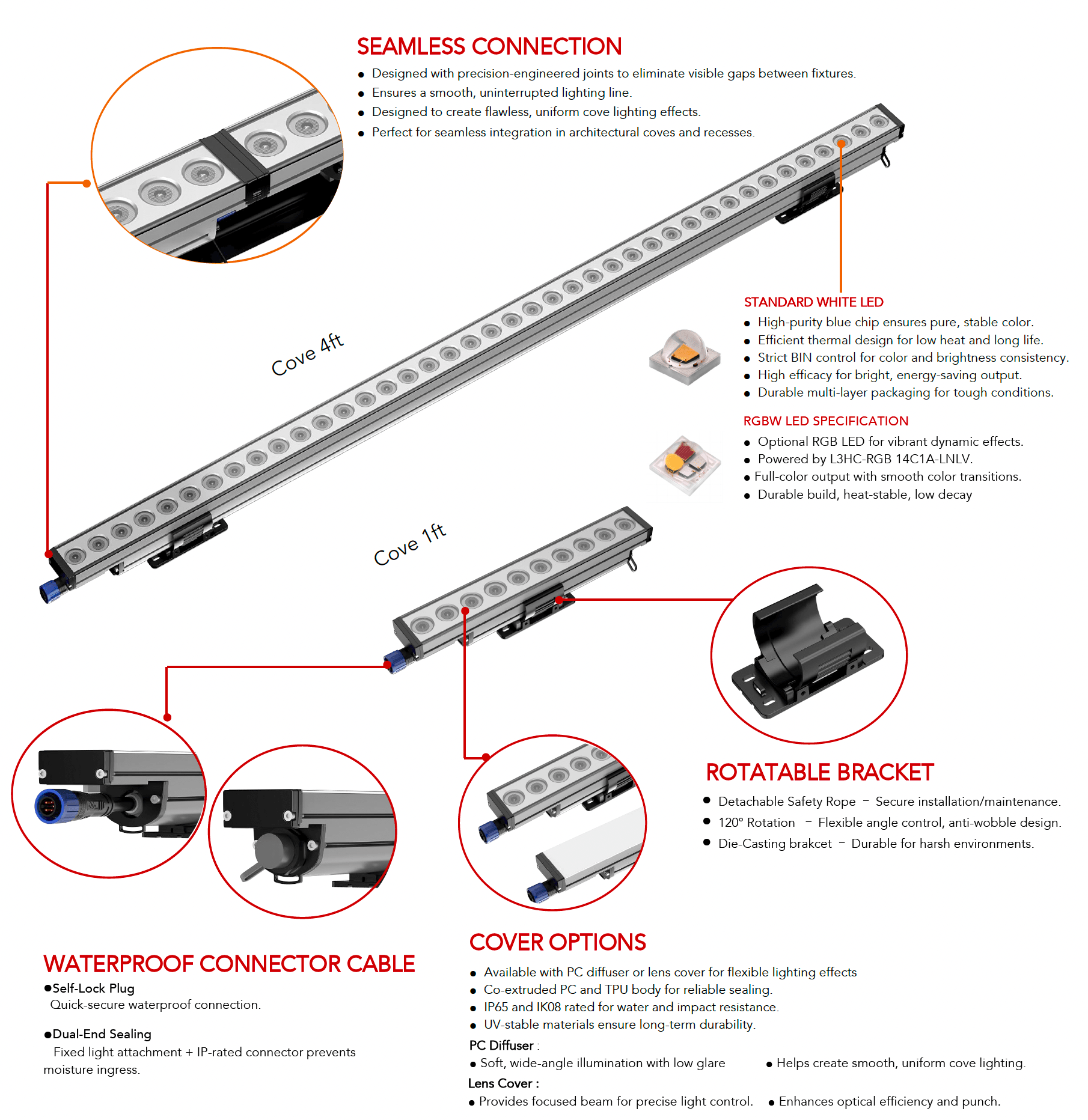

An exterior grazer and cove light in high-density extruded aluminum with an optical-grade PC lens. A single row of high-brightness LEDs in a low-profile housing, two standard lengths, several beam angles, for wall washing, grazing, flood, signage, and garden accents. Runs on direct AC power, so no external driver is needed.
- Beam
- 7-110°
- Output
- 40 W
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Configurator
Build the fixture, get the order code.
Work down the options below. Anything that cannot combine with your selection dims out, and the code updates as you go. Send it to us and we will quote it.
0 of 5 required
Optic (required)
RequiredBeam (required)
RequiredLength (required)
RequiredColor Temp (required)
RequiredControl (required)
RequiredOrder code
NL82-··-··-··-··-··
5 required axes remaining
Configured price
$225.00
Photometrics
See what the beam does on the wall before you fix the run.
Pick an optic, a wall height, a setback and a color temperature. One set of inputs drives all five views: the wall in section, the polar distribution, where the light lands for each setback, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Wall height
Setback from wall
Colour temperature
Tested · 3000K4,740 lm · 1,793 cd · 39.3 W
Up the wallReach from wallOn the wallWall reads
1.0 m1.58 m260 lx41 cd/m²
2.0 m3.01 m30 lx5 cd/m²
Top · 2.74 m4.07 m10 lx2 cd/m²
Wall lit from 0.11 m up at a 6 in setback · reads at a 0.50 wall
Illuminance on the wall is inverse-square from the tested distribution in NL82D-4FT-40W-3000K.ies, taken at the angle each point on the wall sits off the beam axis, with the cosine of incidence on a vertical surface. Where the wall is lit from, and how far the beam reaches out, are geometry from the rated beam angle and the setback. A grazer is not specified to put lux on plaster, so the last column is what the wall READS once it reflects: 0.50 for painted plaster, which is assumed rather than measured. That is the figure that decides how much the wall gives the room, and on a dark stone at 0.10 it is a fifth of it off the same fixture and the same lux. The lux on the wall does not change with its finish, because a flat wall does not light itself. For a layout across a whole elevation, send us the drawings.
NL82 · Wall section110° · 6 in setback · 9 ft wallRoom return estimatedScale varies

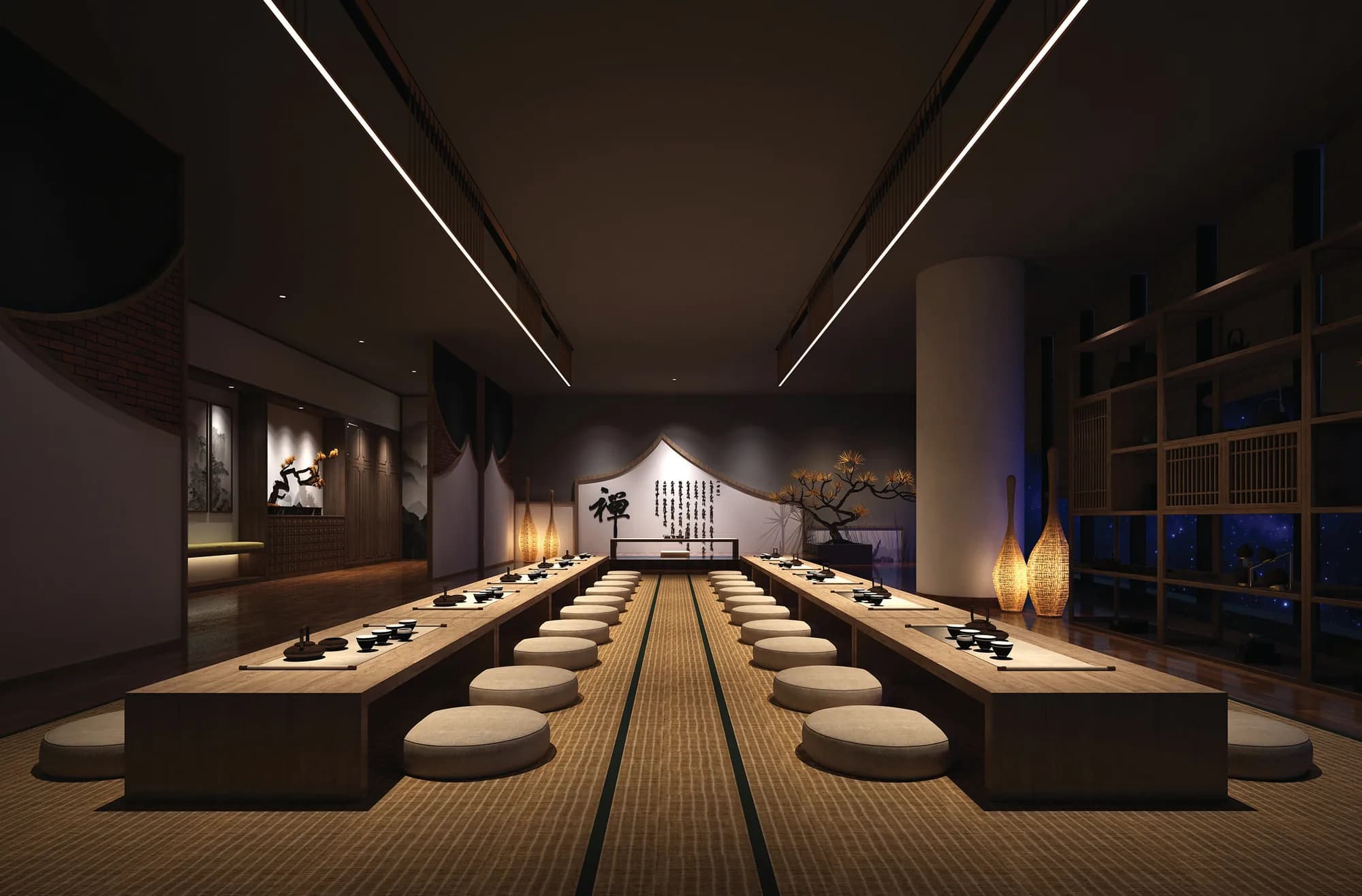

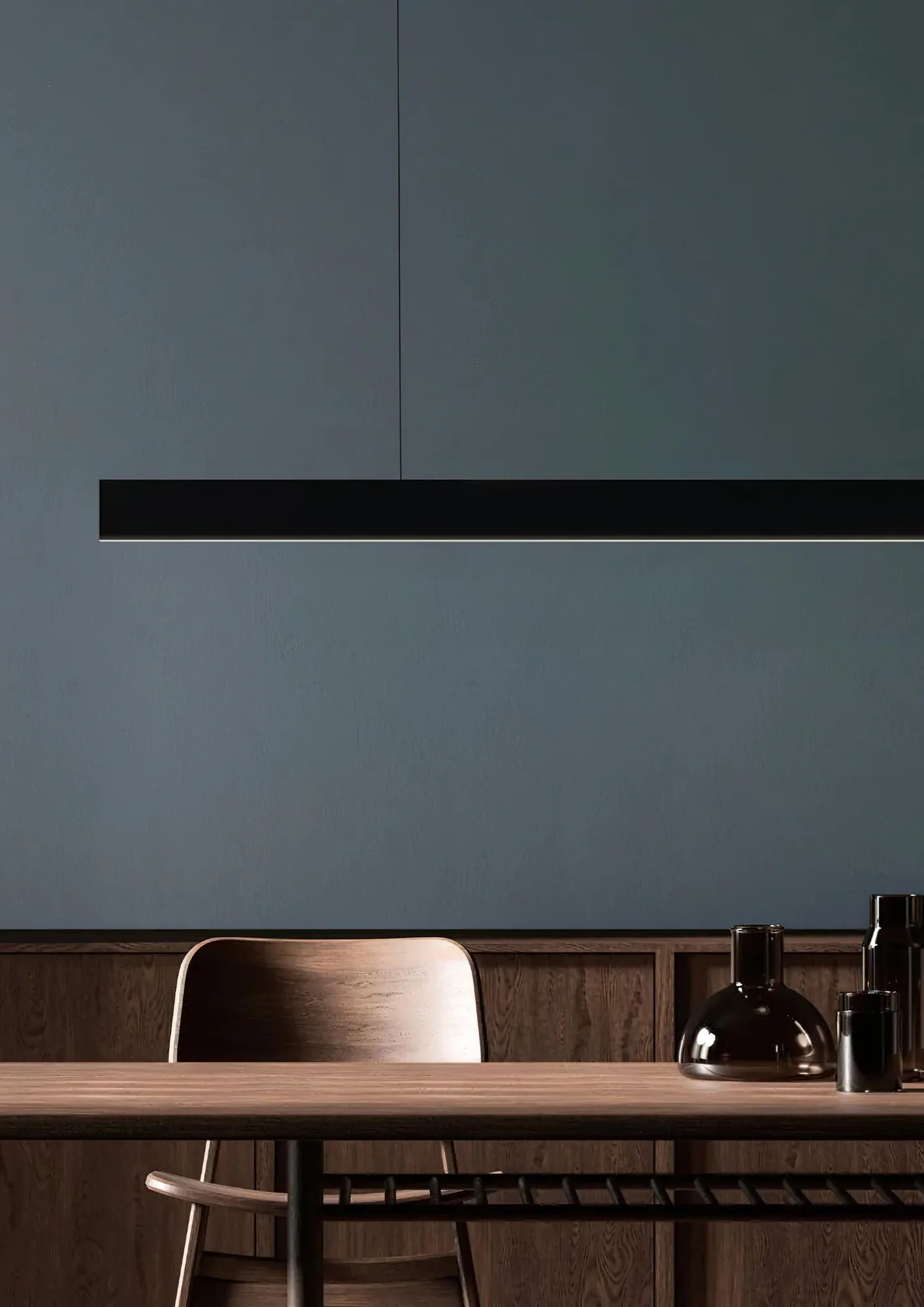

In the field
The family at work.
Technical specification
- Model
- NL82
- Material
- Aluminum
- Colour
- 2700K · 3000K · 3500K · 4000K · 5000K

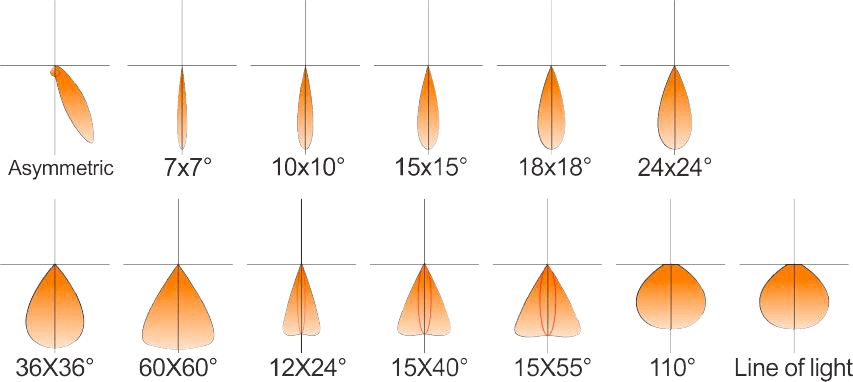

- Beam angles
- 110° · 7° x 7° · 10° x 10° · 15° x 15° · 18° x 18° · 24° x 24° · 36° x 36° · 60° x 60° · 12° x 24° · 15° x 40° · 15° x 55° · Asymmetric 25°
- Driver
- 0-10V · None
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
