Linear Lights
Skyline 18mm Silicone Neon
Model NSN1815 · Silicone (Black)

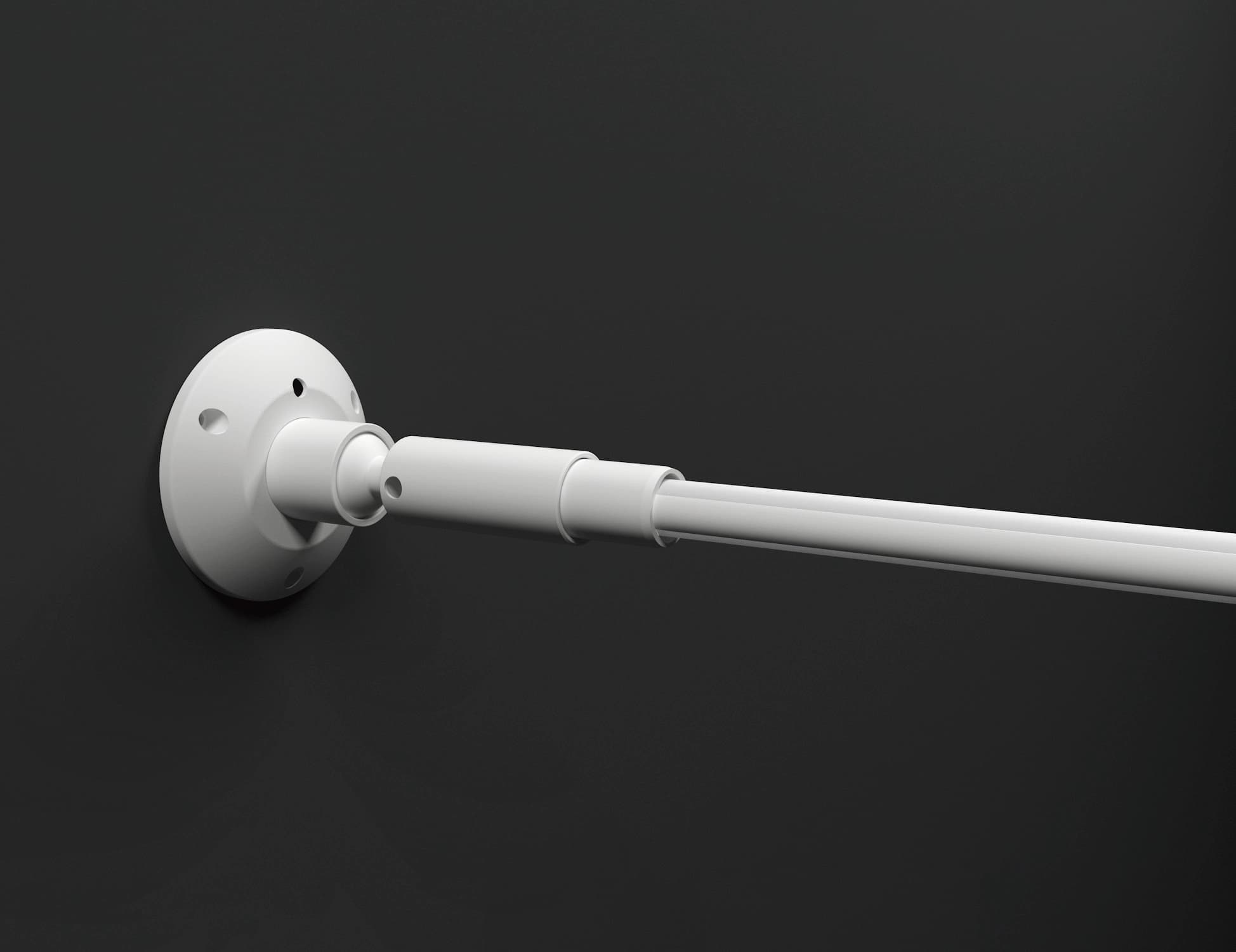

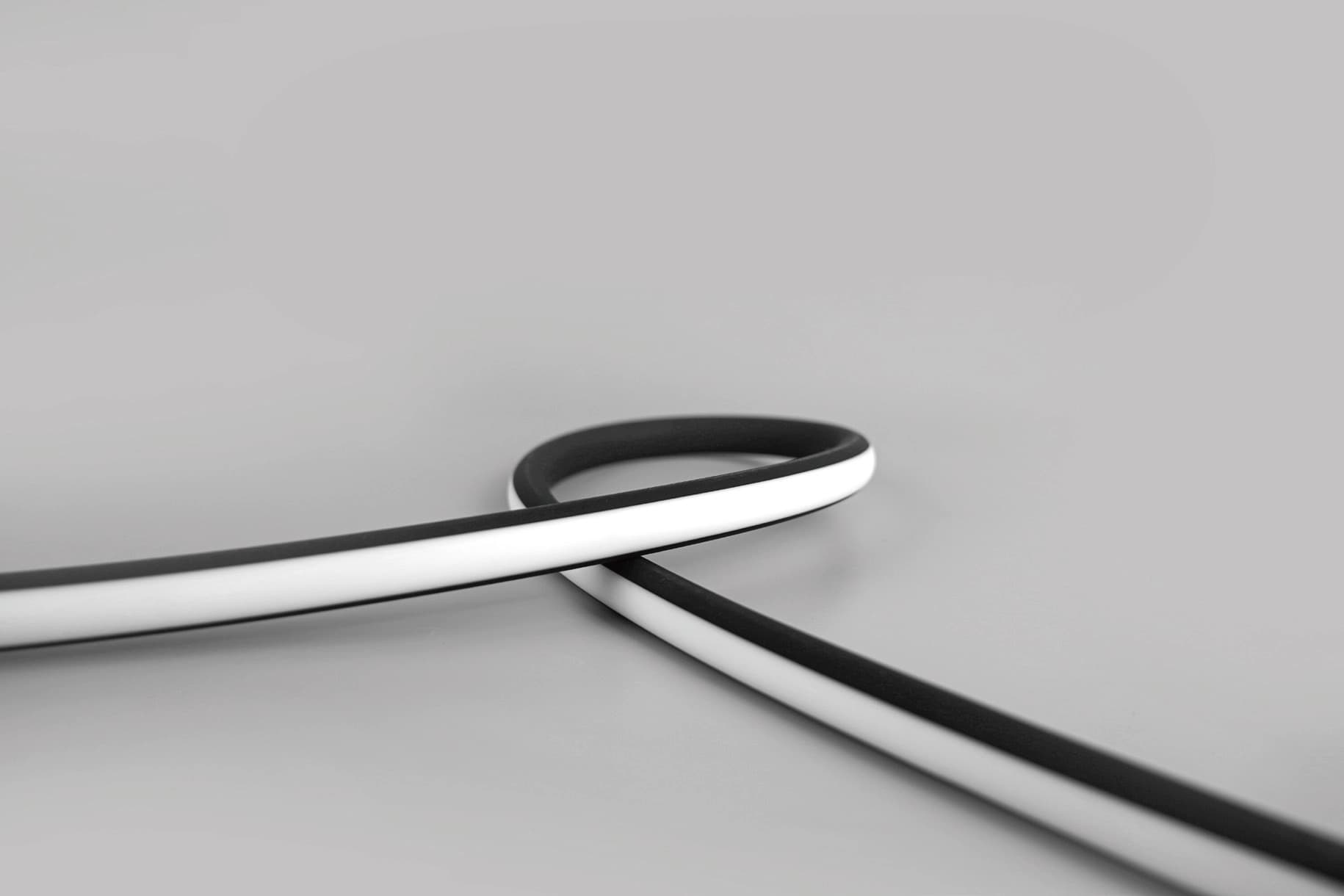

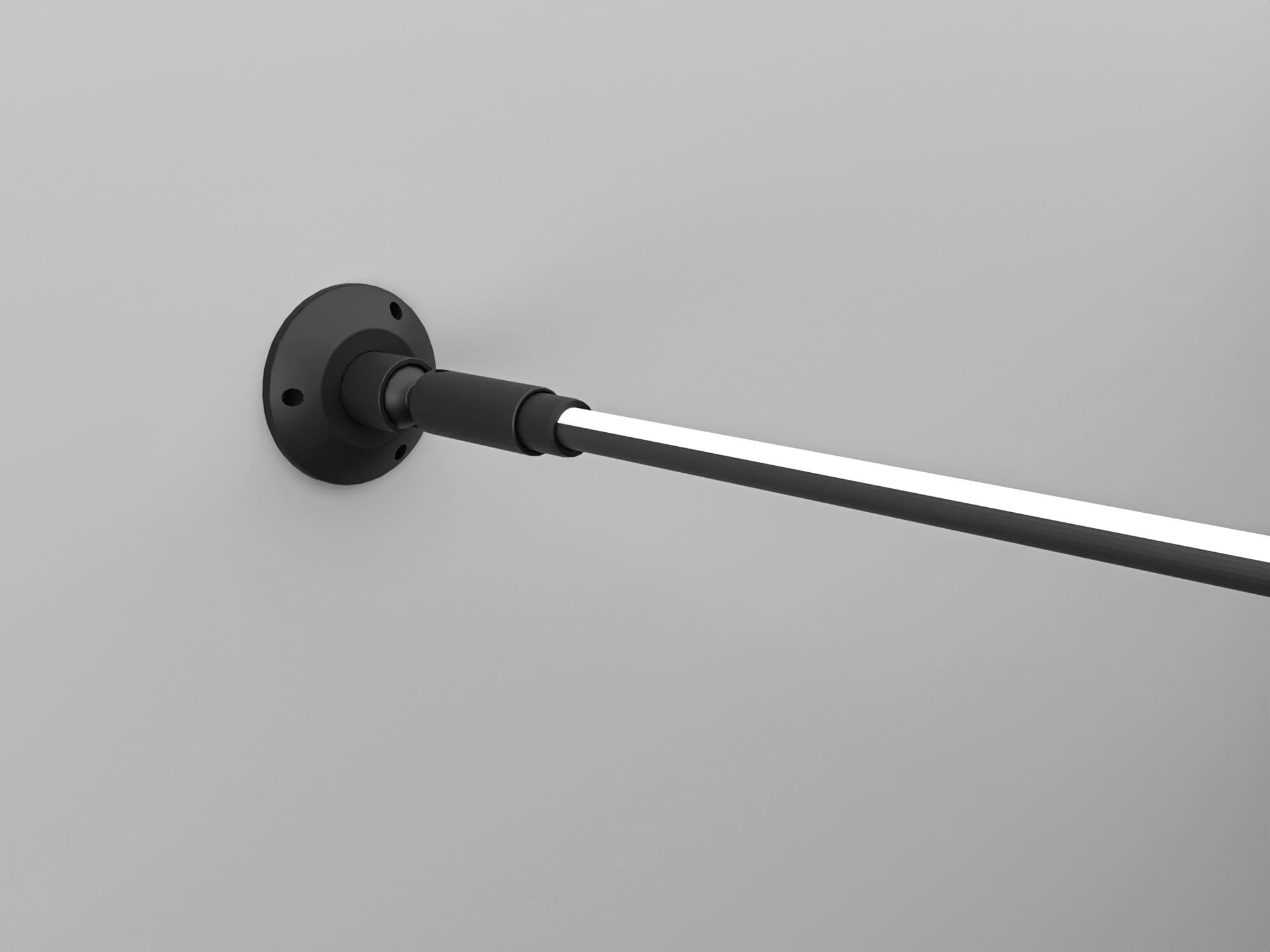

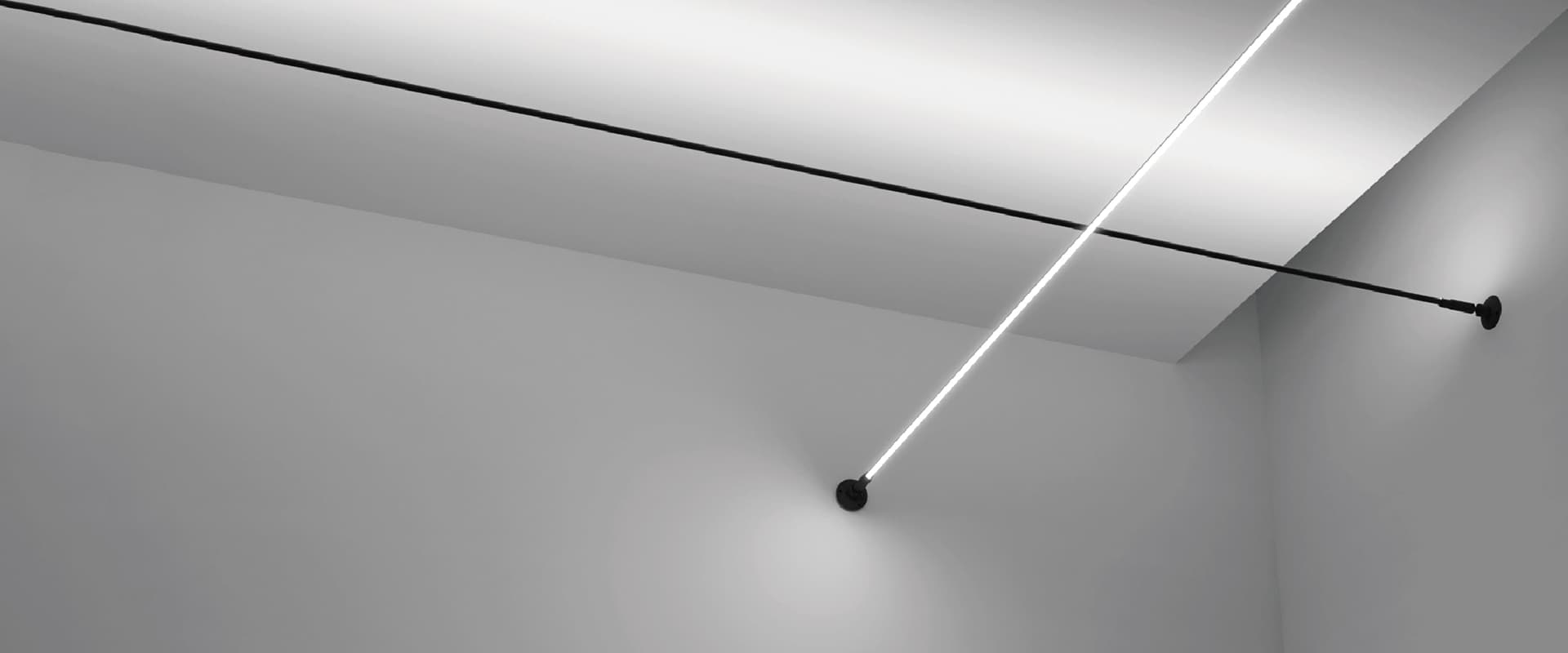

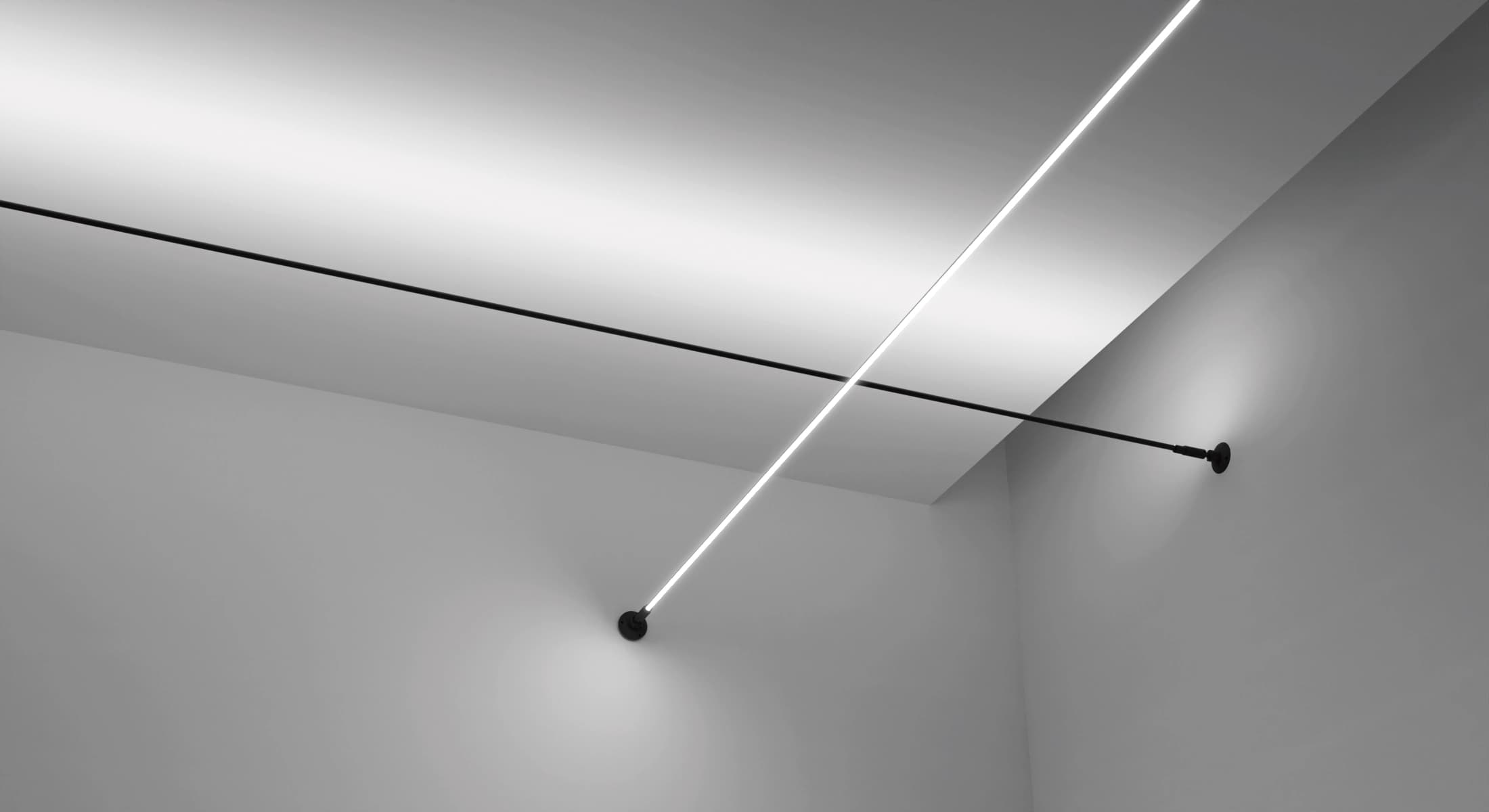

A round silicone neon system for sculptural, three-dimensional lighting, in single or dual emission. The flexible profile bends, curves, and spans across surfaces with a dot-free glow; dual emission radiates outward so floating and ceiling installations read from every angle. IP54 with UV, impact, and corrosion resistance, on modular mounting bases and connectors for precise alignment.
From $56.00Made to order · ships in 14 to 21 days
Choose version, length and light. Takes about a minute.
Certified & rated
- ULNorth America
- CEEU conformity
In the box
Included

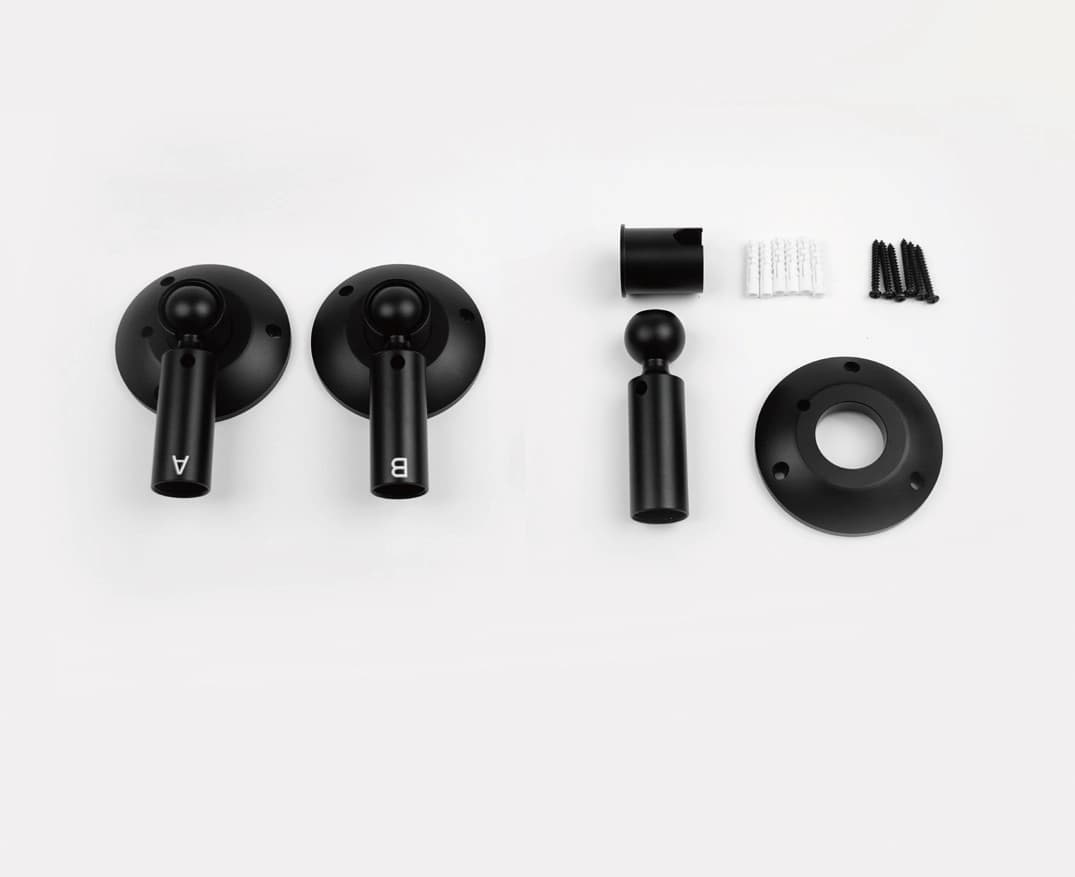

- LED Strip, mounting hardware (A/B bases, screws)
Ordered separately
- Power Supply/Transformer
Configurator · NSN1815
Build the fixture, get the order code.
4 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Version
Choose oneLength
Choose one0.25 m to 5.00 m, cut in 0.25 m steps
Light
Choose oneHow the line is hung

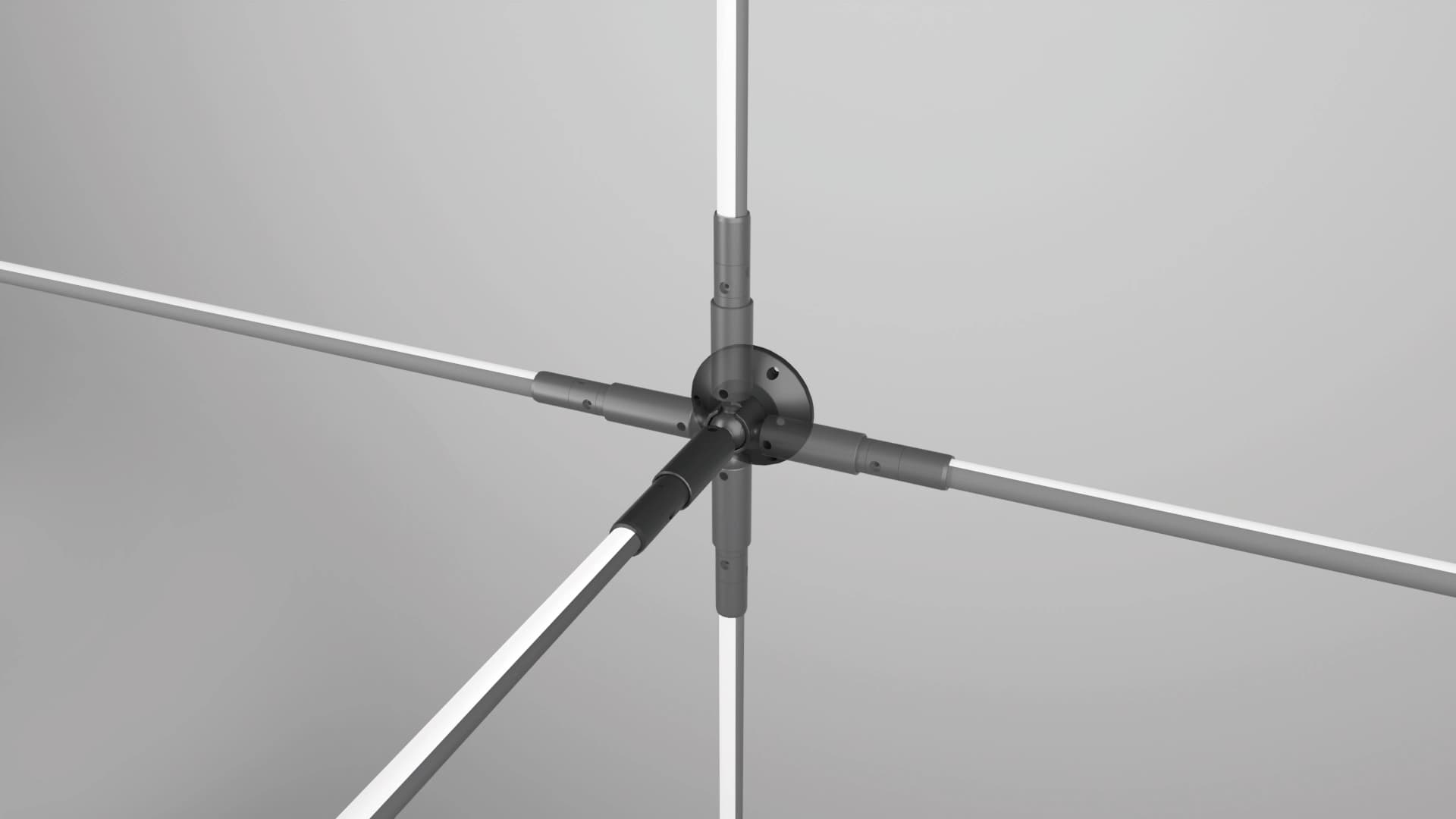

A fitting pair carries two line ends, so one pair hangs a wall to wall run and a base install needs one pair for every two far ends. Odd line counts round up and leave a spare fitting. Counts are a starting point and can be edited.From
$74.00/m

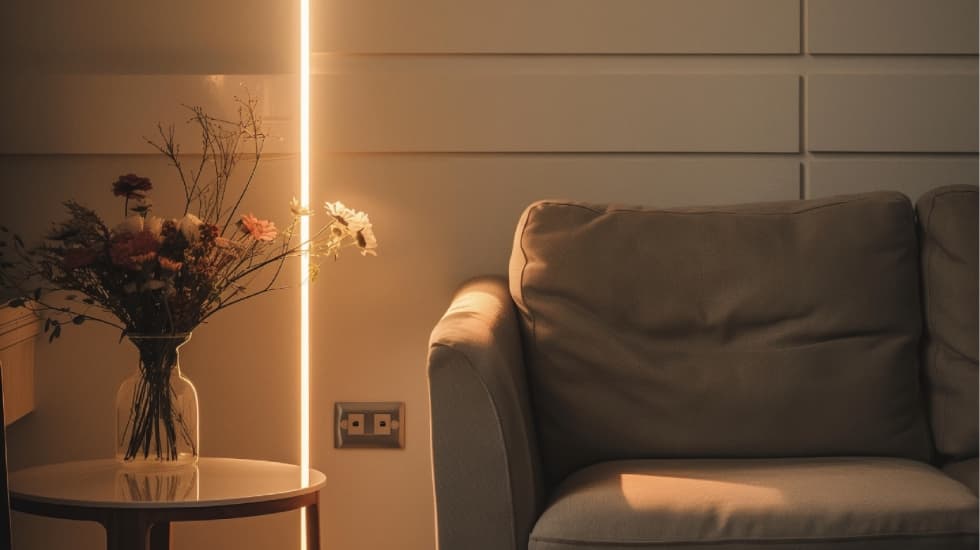

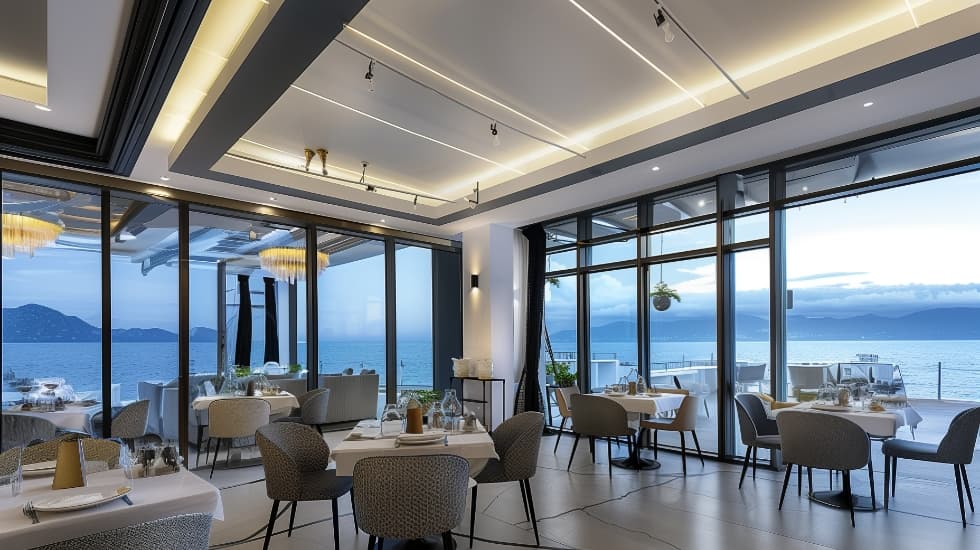

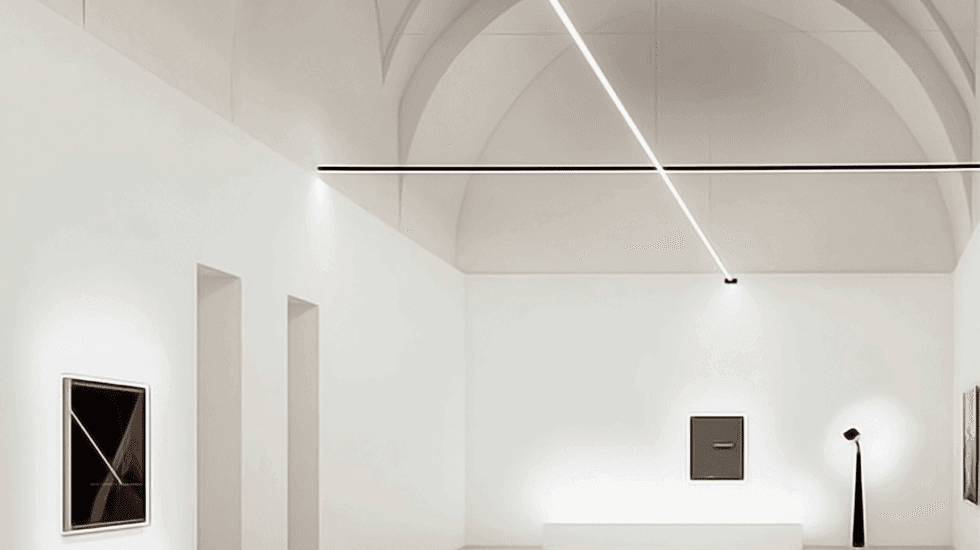

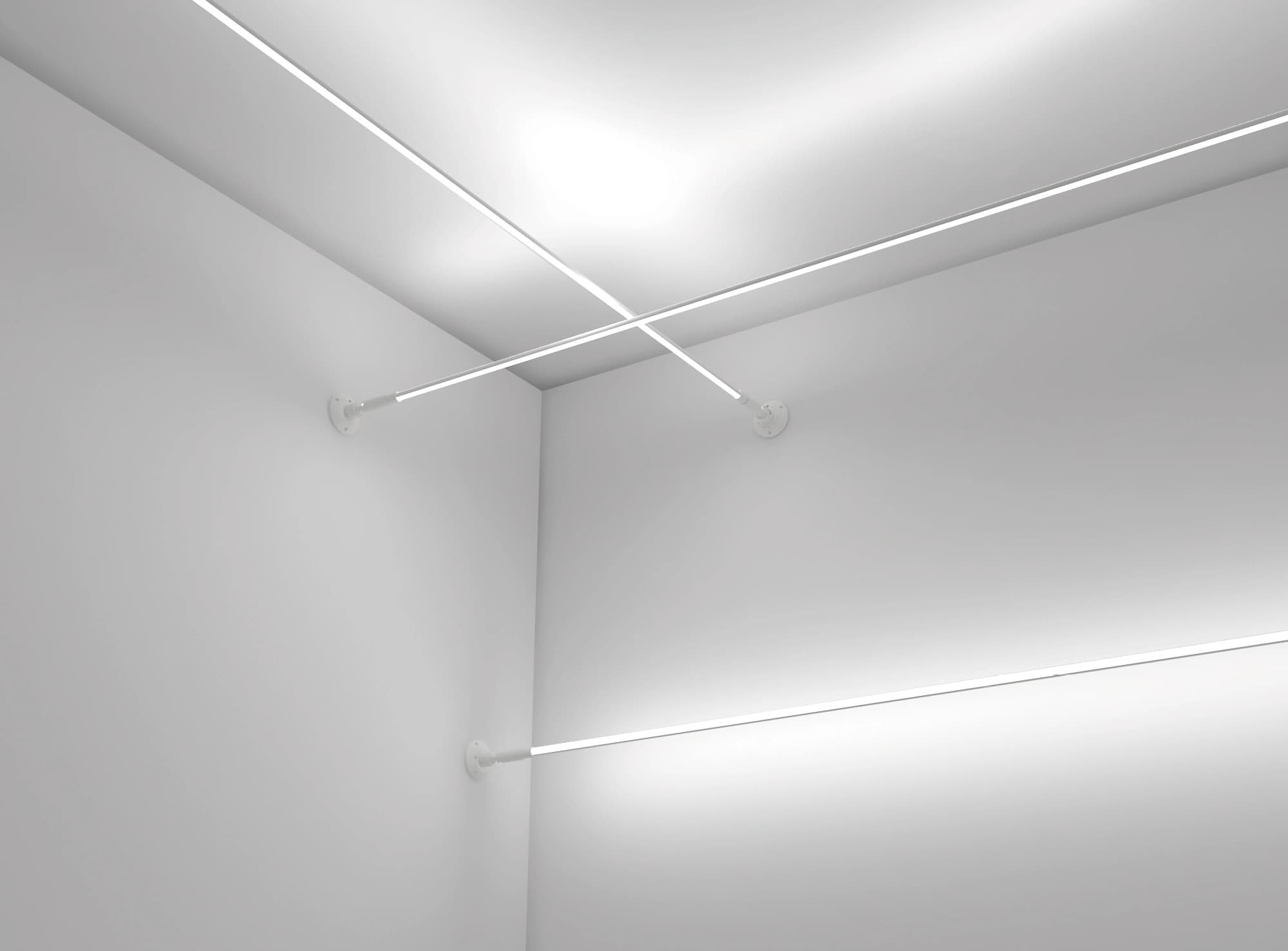

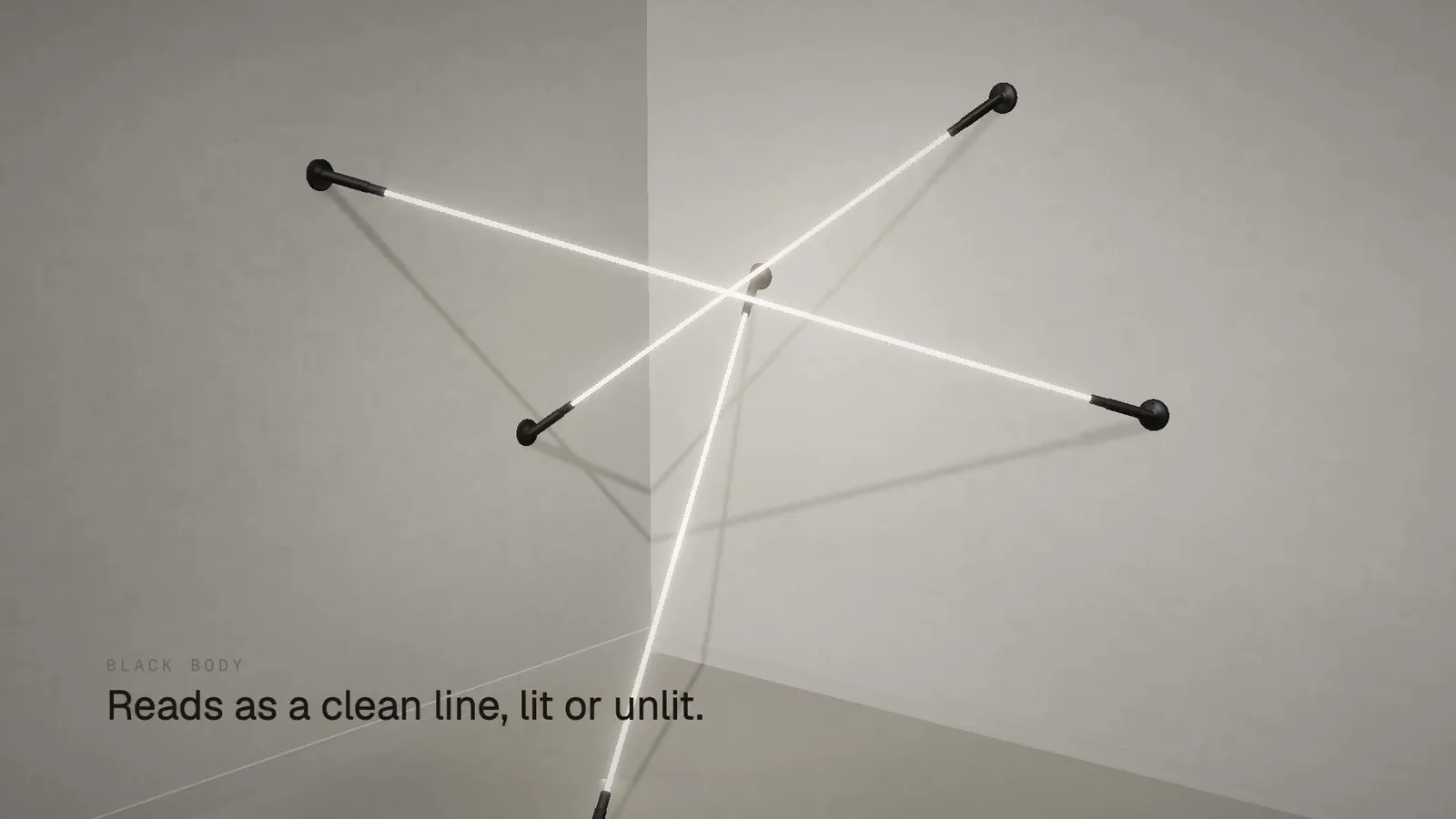

In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NSN1815
- Dimensions (reference)
- 18 wide, 15 high (mm)
- Wattage per metre
- 10 to 26 W/m
- Lumens per metre
- 78 to 495 lm/m
- Maximum run per feed
- 5 m
- Color temperature
- 1800K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 5700K · 6000K · 2700K to 6500K tunable
- CRI
- 90
- Beam angles
- 114° · 118°
- Fixture voltage
- 12 to 24 V DC
- Driver
- Remote
- Ingress rating
- IP54
- Finishes
- White · Black
- Mounting
- Surface · Wall
- Environment
- Dry
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 14 to 21 days
- In the box

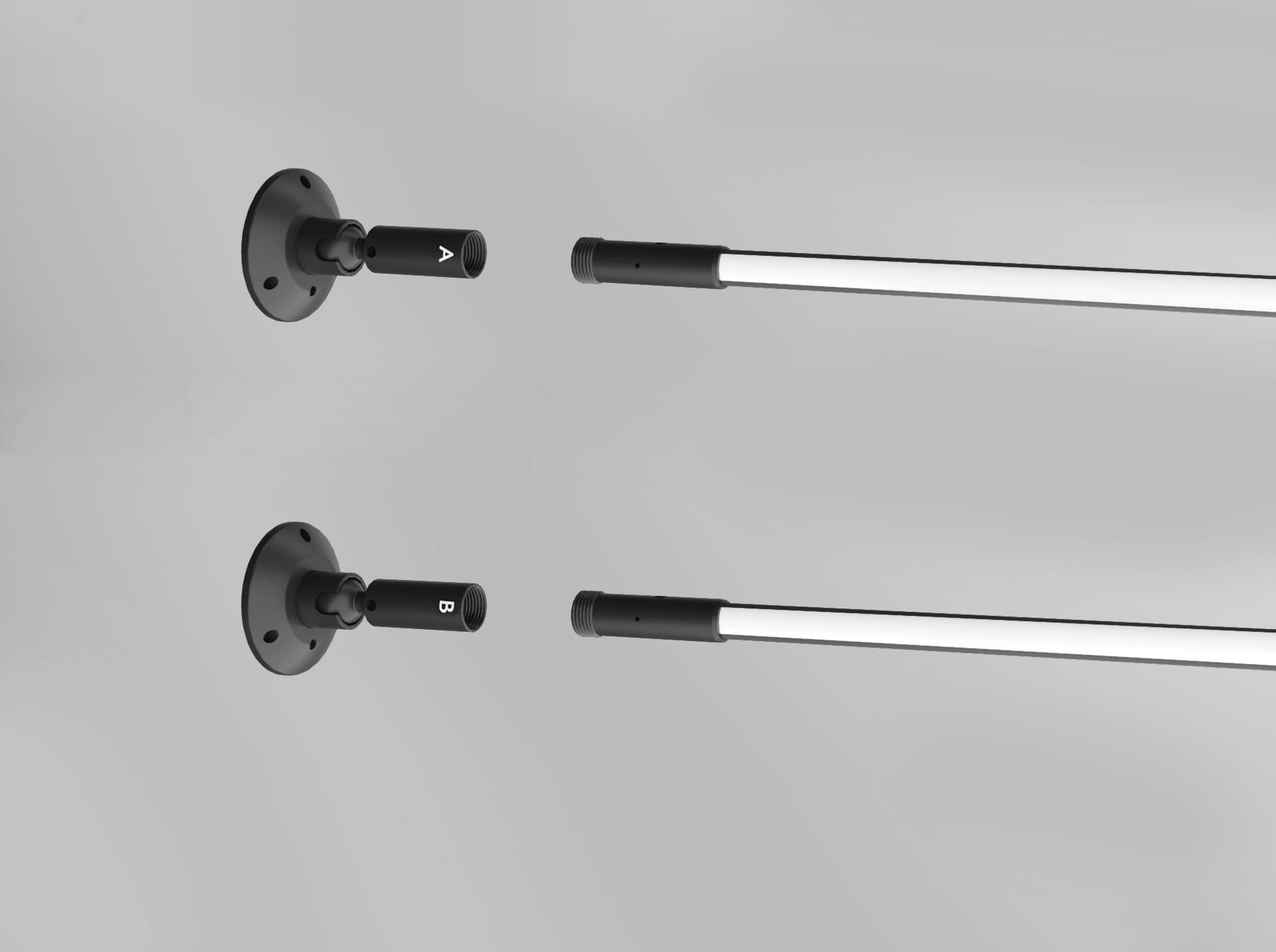

- Silicone neon with 200mm lead, one A base and one B base, 6 screws and wall anchors
- Run lengths
- 1, 2, 3, 4 or 5m per run; lit length is the run length less 40mm
- Cut interval
- Static white and color 25mm White Dual, 50mm Black Mono; tunable white 62.5mm; RGB 50mm; pixel RGB 10mm
- Impact rating
- IK10
- Light options
- Static white; static red, green, blue, yellow, orange and pink; tunable white 2700K to 6500K; RGB; pixel RGB (SPI, 12V DC)
- Mounting surface
- Solid wood, concrete or brick only; not plasterboard or hollow walls
- Ordered separately
- 24V DC constant voltage power supply (12V DC for pixel RGB); controller for tunable white, RGB and pixel builds
- Pixel RGB warranty
- 3 years
- Wattage by light type
- Static white, color, tunable white and RGB 10 W/m at 24V DC; pixel RGB 13 W/m Black Mono, 26 W/m White Dual at 12V DC
- Lumens per metre by build
- White Dual 346 to 495 lm/m, Black Mono 78 to 107 lm/m (static white, 10 W/m)
- Material
- Silicone (Black)
- Certification
- UL · CE
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
