Linear Lights
Cannex G3 Exterior Wall Grazer
Model NL82 · Aluminum

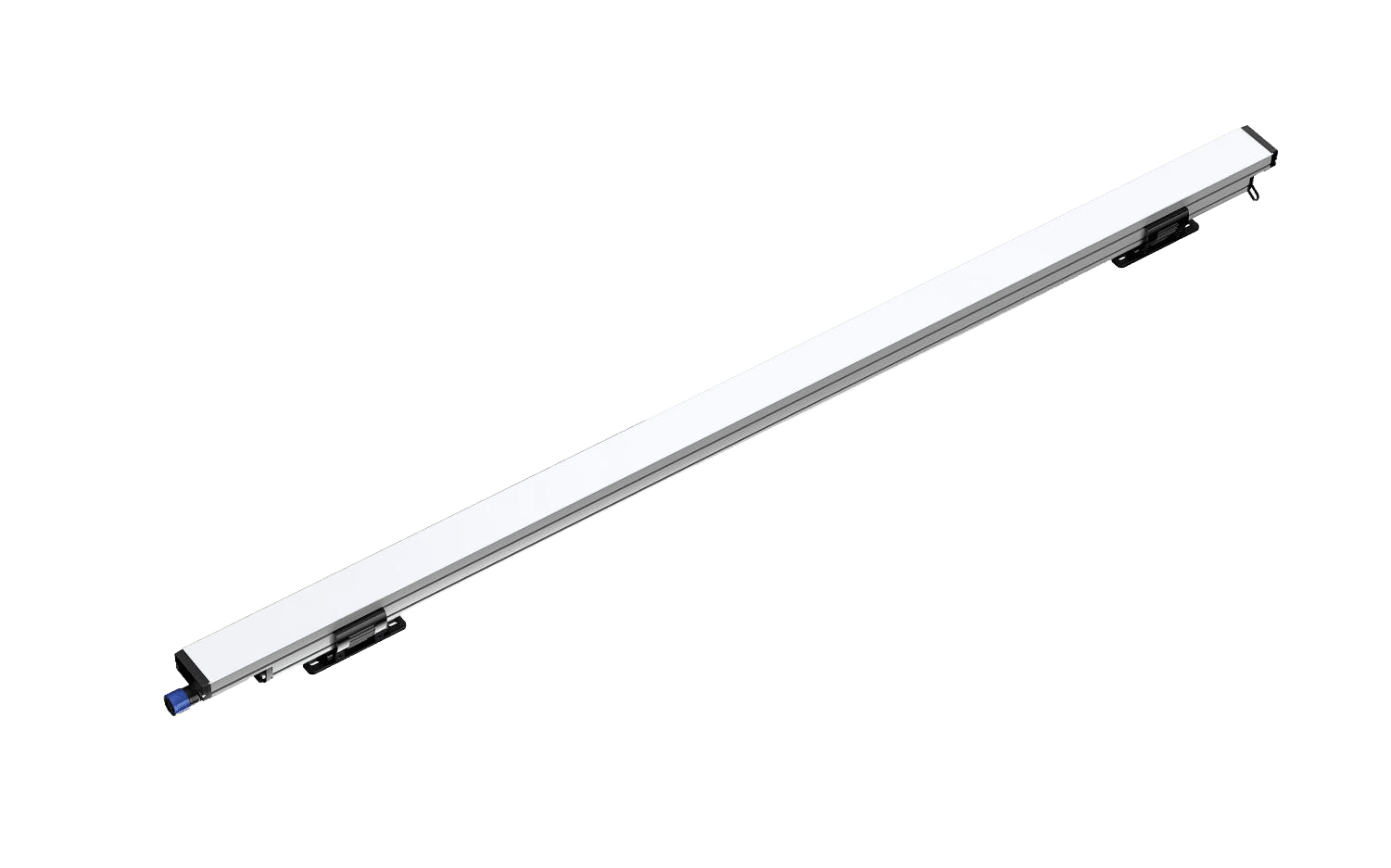

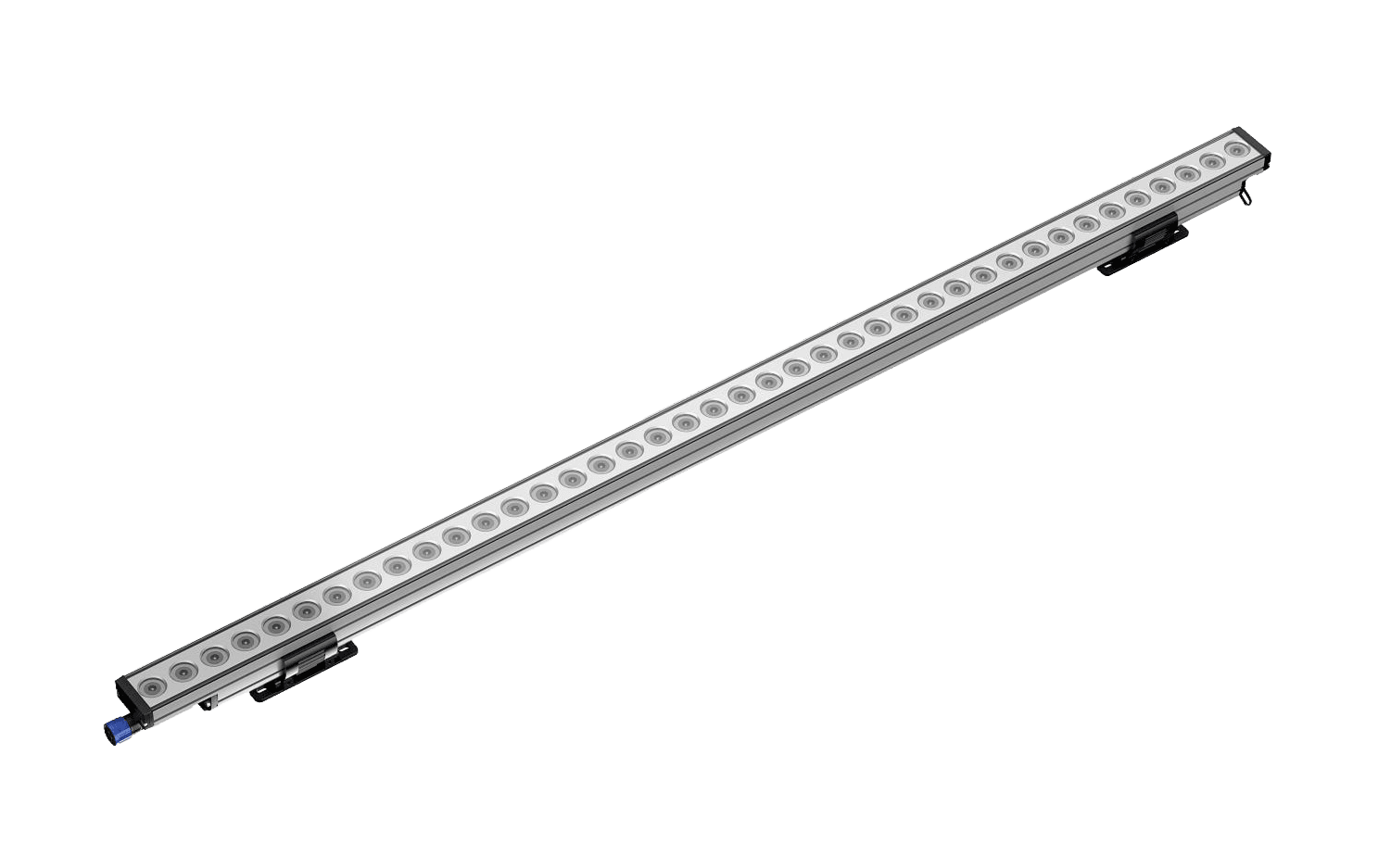

An exterior grazer and cove light in high-density extruded aluminum with an optical-grade PC lens. A single row of high-brightness LEDs in a low-profile housing, two standard lengths, several beam angles, for wall washing, grazing, flood, signage, and garden accents. Runs on direct AC power, so no external driver is needed.
- Beam
- 7-110°
- Output
- 40 W
From $175.00Made to order · ships in 30 days
Choose optic, beam, length, color Temp and control. Takes about a minute.
Configurator · NL82
Build the fixture, get the order code.
5 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Optic
Choose oneBeam
Choose oneLength
Choose oneColor Temp
Choose oneControl
Choose oneTotal, before tax
$225.00
Photometrics
See what the beam does on the wall before you fix the run.
Pick an optic, a wall height, a setback and a color temperature. One set of inputs drives all five views: the wall in section, the polar distribution, where the light lands for each setback, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
NL82 · Tested IES on file
Beam angle
Wall height
Setback from wall
Color temperature
NL82 · Wall section110° · 6 in setback · 9 ft wallRoom return estimatedScale varies
Wall lit from
0.11 m0.4 ft
= 0.152 m setback ÷ tan 55°Tested · 3000K4,740 lm · 1,793 cd · 39.3 W
Up the wallReach from wallOn the wallWall reads
1.0 m3.3 ft1.58 m5.2 ft260 lx41 cd/m²
2.0 m6.6 ft3.01 m9.9 ft30 lx5 cd/m²
Top · 2.74 m9.0 ft4.07 m13.4 ft10 lx2 cd/m²
Wall lit from 0.11 m up at a 6 in setback · reads at a 0.50 wall
Illuminance on the wall is inverse-square from the tested distribution in NL82D-4FT-40W-3000K.ies, taken at the angle each point on the wall sits off the beam axis, with the cosine of incidence on a vertical surface. Where the wall is lit from, and how far the beam reaches out, are geometry from the rated beam angle and the setback. A grazer is not specified to put lux on plaster, so the last column is what the wall READS once it reflects: 0.50 for painted plaster, which is assumed rather than measured. That is the figure that decides how much the wall gives the room, and on a dark stone at 0.10 it is a fifth of it off the same fixture and the same lux. The lux on the wall does not change with its finish, because a flat wall does not light itself. For a layout across a whole elevation, send us the drawings.
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NL82

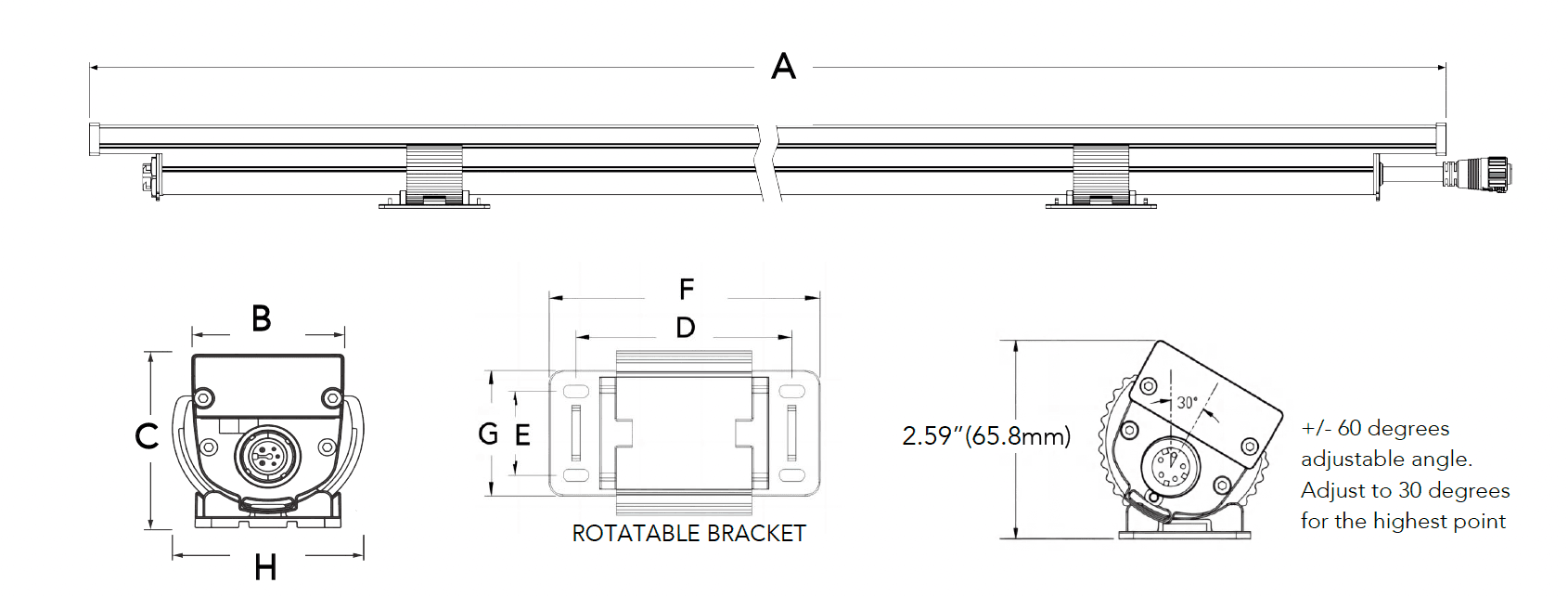

- Dimensions (reference)
- 305 long, 82.5 wide, 54 high (mm)
- Wattage (reference)
- 10 to 40 W
- Lumen output (reference)
- 670 to 5122 lm
- CRI
- 90
- Fixture voltage
- 120 to 277 V AC
- Input voltage (reference)
- 120 to 277 V AC
- Ingress rating
- IP65
- Mounting
- Surface · Wall
- Environment
- Wet
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 30 days
- Aiming
- Bracket rotates ±60°
- Lengths
- 305 mm (1 ft, 10W), 1220 mm (4 ft, 40W)
- Maximum run
- 72 ft at 120V, 165 ft at 277V
- Impact rating
- IK08
- Operating temperature
- -25°C to 50°C
- Elliptical and asymmetric beams
- 12° x 24°, 15° x 40°, 15° x 55°, asymmetric 25° (lens version)
- Material
- Aluminum
- Color temperature
- 2700K · 3000K · 3500K · 4000K · 5000K
- Beam angles

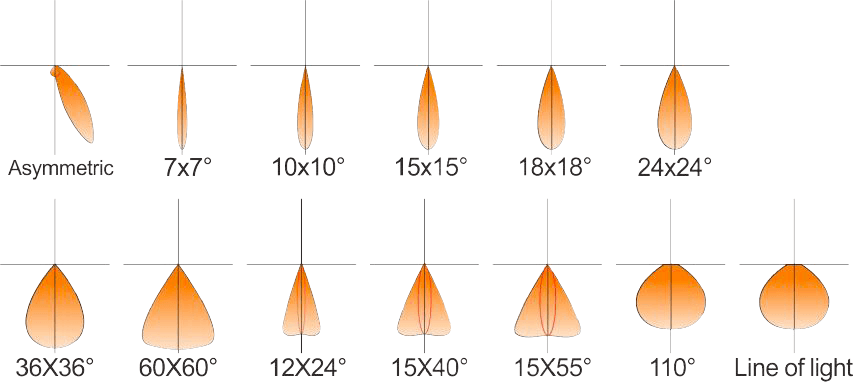

- 110° (Diffuser) · 7° x 7° (Lens) · 10° x 10° (Lens) · 15° x 15° (Lens) · 18° x 18° (Lens) · 24° x 24° (Lens) · 36° x 36° (Lens) · 60° x 60° (Lens) · 12° x 24° (Lens) · 15° x 40° (Lens) · 15° x 55° (Lens) · Asymmetric 25° (Lens)
- Driver options
- 0-10V (1 to 100 percent) · None (Fixed output)
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guideOn request
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
