LED Sheet Single CCT 392

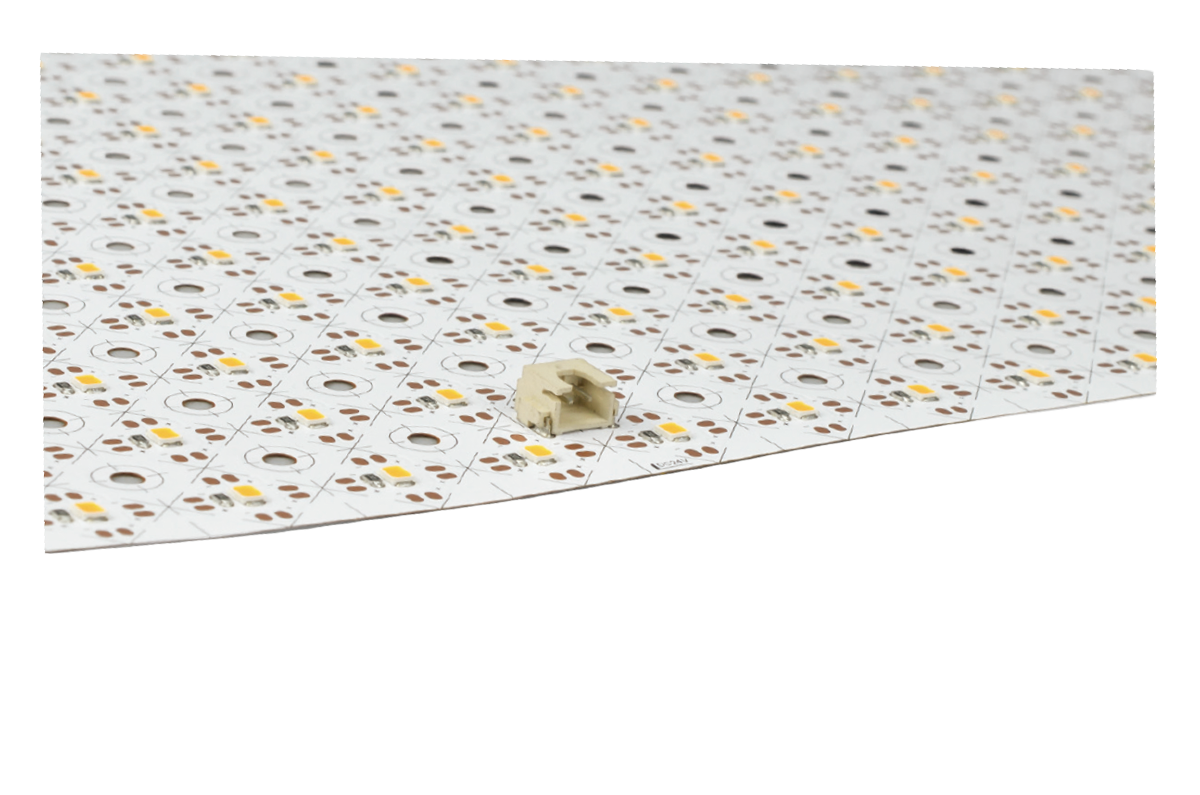

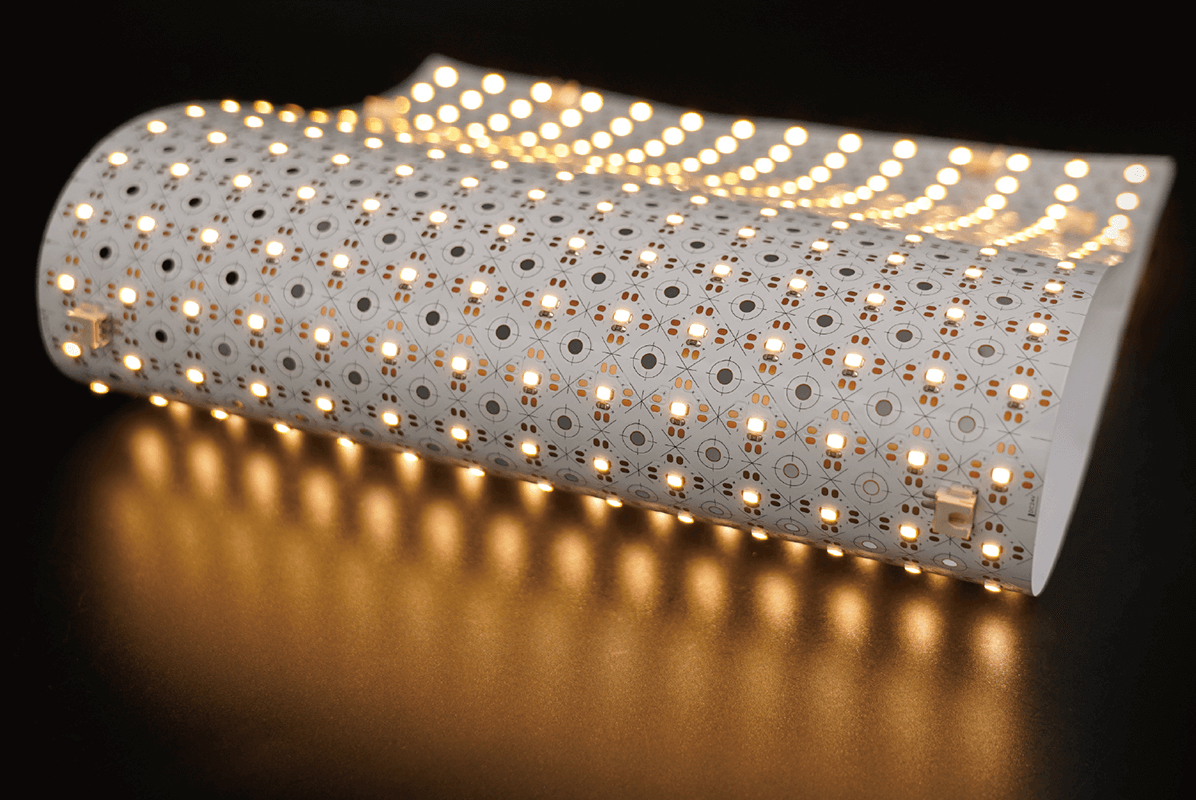

The LED Sheet 392 is a flexible, cuttable LED panel designed for large-format illuminated surfaces where uniform, high-density output is the priority. At 480x240mm per panel, it packs 392 2835-type LEDs onto a single PCB, drawing 32W at DC24V and delivering between 2,493 and 2,688 lumens per panel depending on color temperature. CRI is greater than 90 across all CCT options. Color temperature ranges from 2700K to 6500K, available in four fixed options: 2700K, 3000K, 4000K, and 6500K. Each is rated at 3 SDCM, with the exception of 6500K at 5 SDCM. That tight binning matters in applications like light boxes, backlit panels, and illuminated millwork or bar surfaces, where color consistency across a large area is visible. The sheet cuts along marked grid lines at 17.1×17.1mm intervals, both horizontally and vertically, allowing precise sizing to fit custom cavities without waste. Panels connect in series up to a maximum of 6 PCS per power supply, with a single supply point supporting up to 3 PCS. Connection is handled via one-end or two-end 20AWG cable connectors. Constant voltage (CV) driver required. Total rated lifespan is 50,000 hours. Working temperature range is -20°C to +50°C. RoHS compliant, 5-year warranty.
