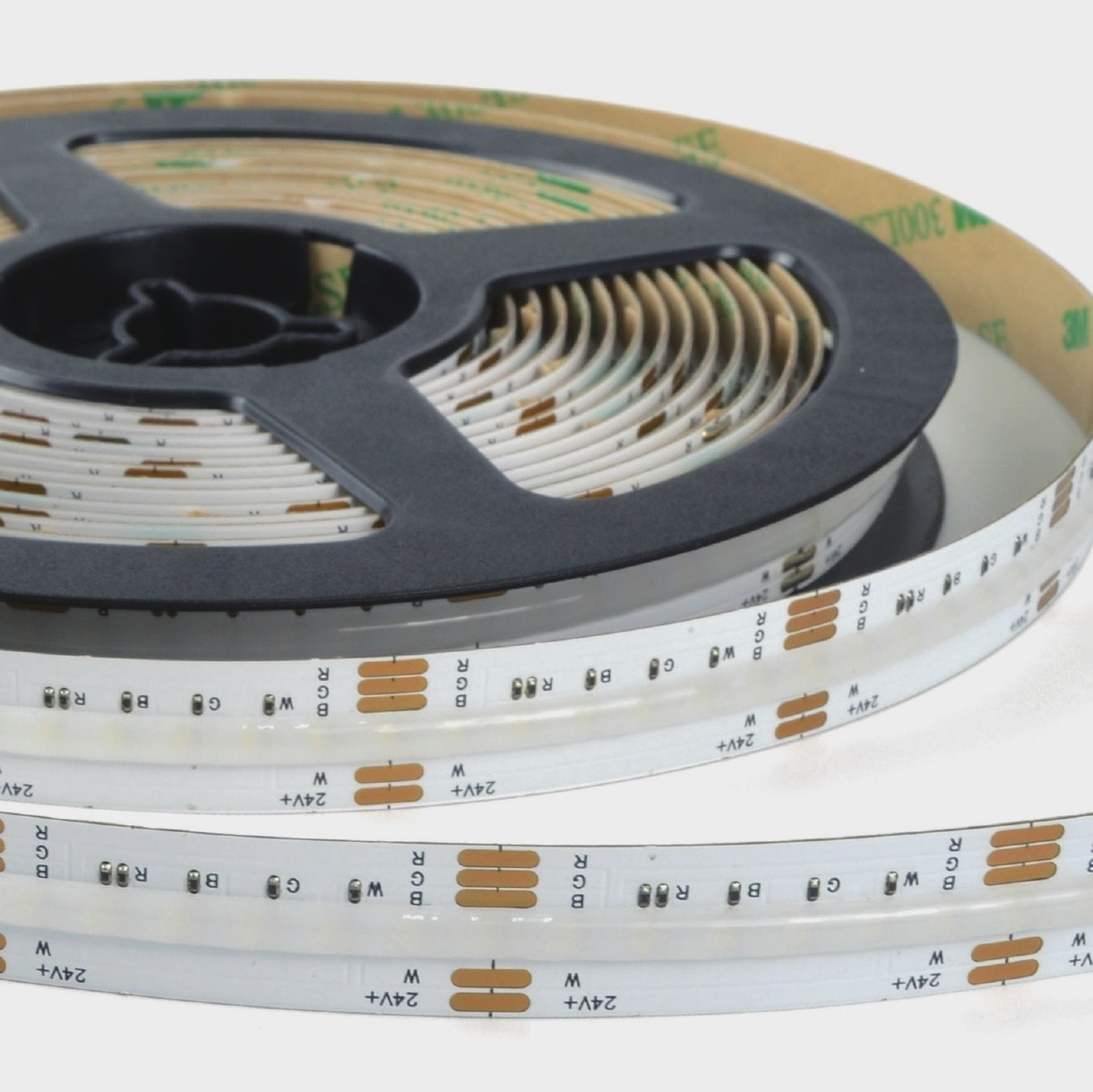

12mm RGBW COB LED Tape
Model NST12C-RGBW
A 12mm COB tape with red, green, blue and a dedicated white channel. 840 LEDs per meter under a continuous diffused line give a dot free line of color, and the white channel adds a clean architectural white in 2700K, 3000K, 4000K or 6500K. 24V DC, 16 W/m, 848 lm/m, cuts every 33.3mm, up to 5m per feed.
- Ingress
- IP20-68
From $165.00Made to order · ships in 14 to 21 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- RoHSRestricted substances
- IP68Wet location
Ratings apply per build. The IP68 rating belongs to the builds that carry it, not to every option on this page.
Configurator · NST12C-RGBW
Build the fixture, get the order code.
4 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Light
Choose oneWhite channel
Choose oneProtection
Choose oneLength
Choose oneTotal, before tax
$165.00
In the field
The family at work.
Technical specification
- Model
- NST12C-RGBW
- Dimensions
- 12 wide, 1.8 high (mm)
- Wattage per metre
- 16 W/m
- Lumens per metre
- 848 lm/m
- LEDs per metre
- 840 (1.2 mm pitch)
- Cut interval
- 33.3 mm
- Reel length
- 5 m
- Maximum run per feed
- 5 m
- Color temperature
- 2700K · 3000K · 4000K · 6500K
- CRI
- 90
- Beam angles
- 142°
- Fixture voltage
- 24 V DC
- Driver
- Remote
- Ingress rating
- IP20 · IP54 · IP65 · IP68
- Environment
- Dry · Damp · Wet
- Lifespan
- 50,000 hours (L70)
- Warranty
- 5 years
- Lead time
- 7 to 30 days
- Beam
- 142 degrees at 50% across the tape (C0), 170 degrees along the tape (C90), 180 degree emission
- Lead
- Black V+ common positive, white W, blue B, green G, red R
- Control
- Four channel RGBW controller or decoder with common anode (V+) output, PWM dimming on every channel
- Listing
- ETL listed to UL 2108 and CSA C22.2 No. 9.0 as a low voltage flexible LED strip
- Channels
- Red 620 to 630nm, green 520 to 530nm, blue 450 to 460nm, white 2700K, 3000K, 4000K or 6500K
- Cut unit
- 33.3mm; leave one extra cut unit and trim
- Mounting
- Aluminum channel at least 13mm wide inside; a diffuser lens blends the colors at close viewing distances
- Connectors
- Solderless strip to strip, strip to lead and jumper connectors for the bare tape, 4A each
- Bend radius
- 5mm minimum, flat only
- Maximum run
- 5m per feed on every channel; a full 5m run draws 80W, plan on 100W of supply per run
- LEDs per meter
- 840
- Ingress options
- IP20 bare tape; IP54 silicone surface coat; IP65S hollow silicone sleeve; IP65H heat shrink sleeve; IP65N nano coating; IP68 solid silicone extrusion. Coated and sleeved versions are wider and taller than the bare tape and need resealing when cut on site
- Standard length
- 5m reel with a 200mm five core 24AWG lead on one end
- Operating ambient
- -25 to 45 degrees C
- Output by channel
- Red 154 lm/m at 6.4 W/m; green 312 lm/m at 2.6 W/m; blue 51 lm/m at 3.0 W/m; white 344 lm/m at 4.2 W/m; all channels 848 lm/m at 16 W/m
- White consistency
- SDCM 5, single bin, Ra 90
- Ordered separately
- 24V DC constant voltage supply and RGBW controller
- Ingress and aiming
- IP20 · IP54 · IP65S · IP65H · IP65N · IP68
- Certification
- ETL · CE · RoHS
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
