LED Strips

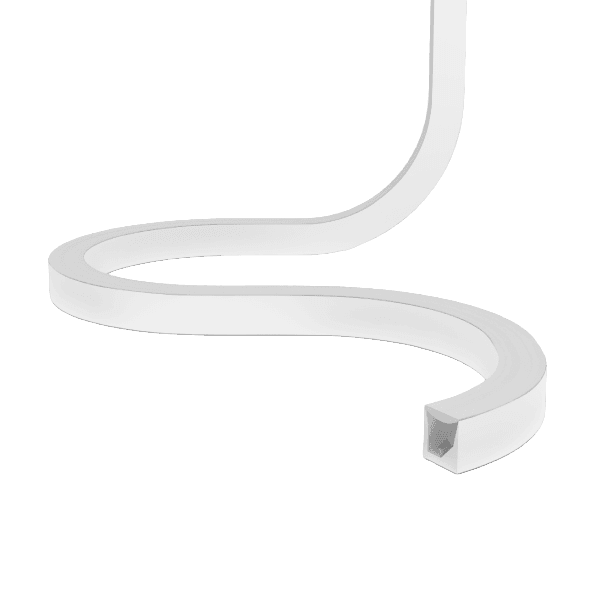

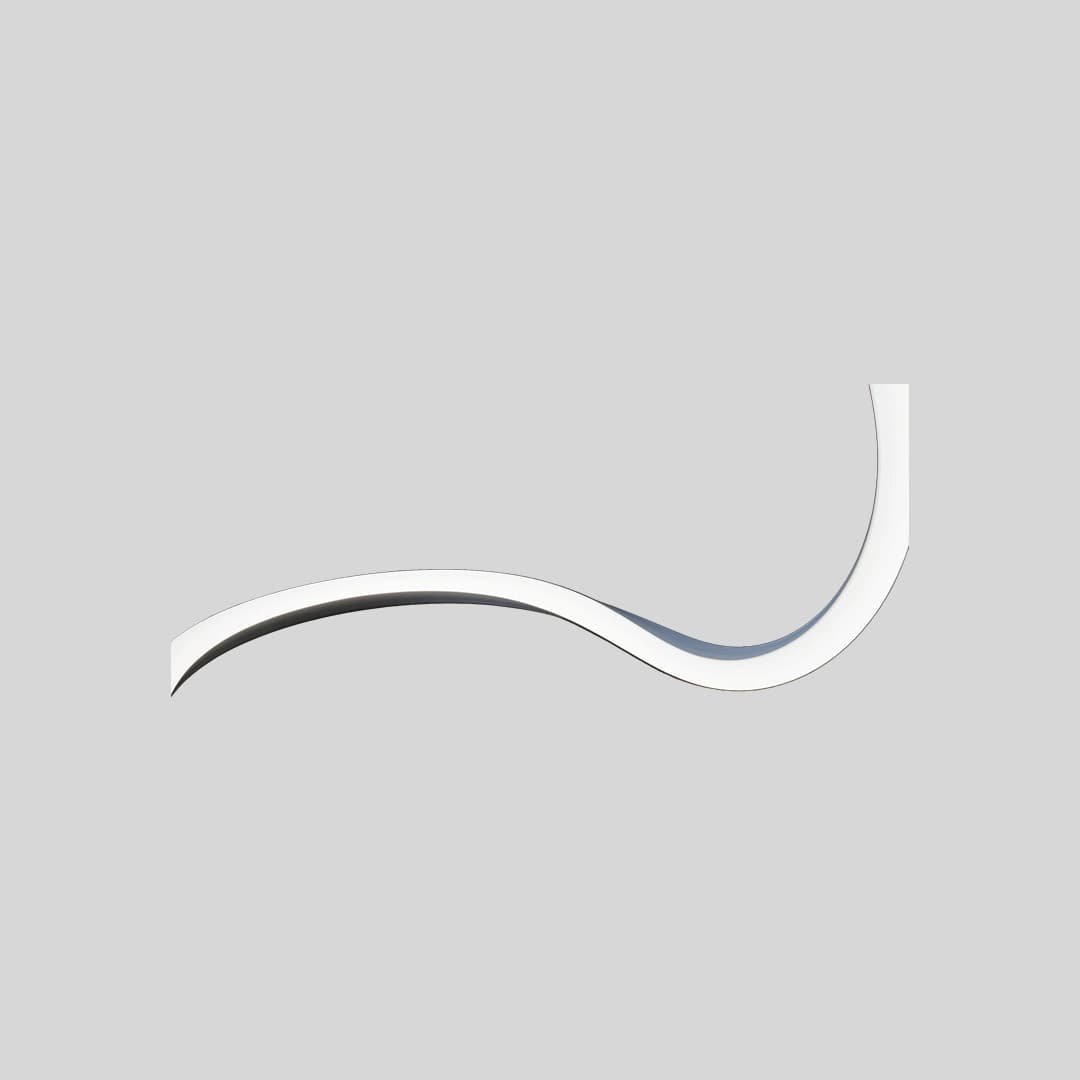

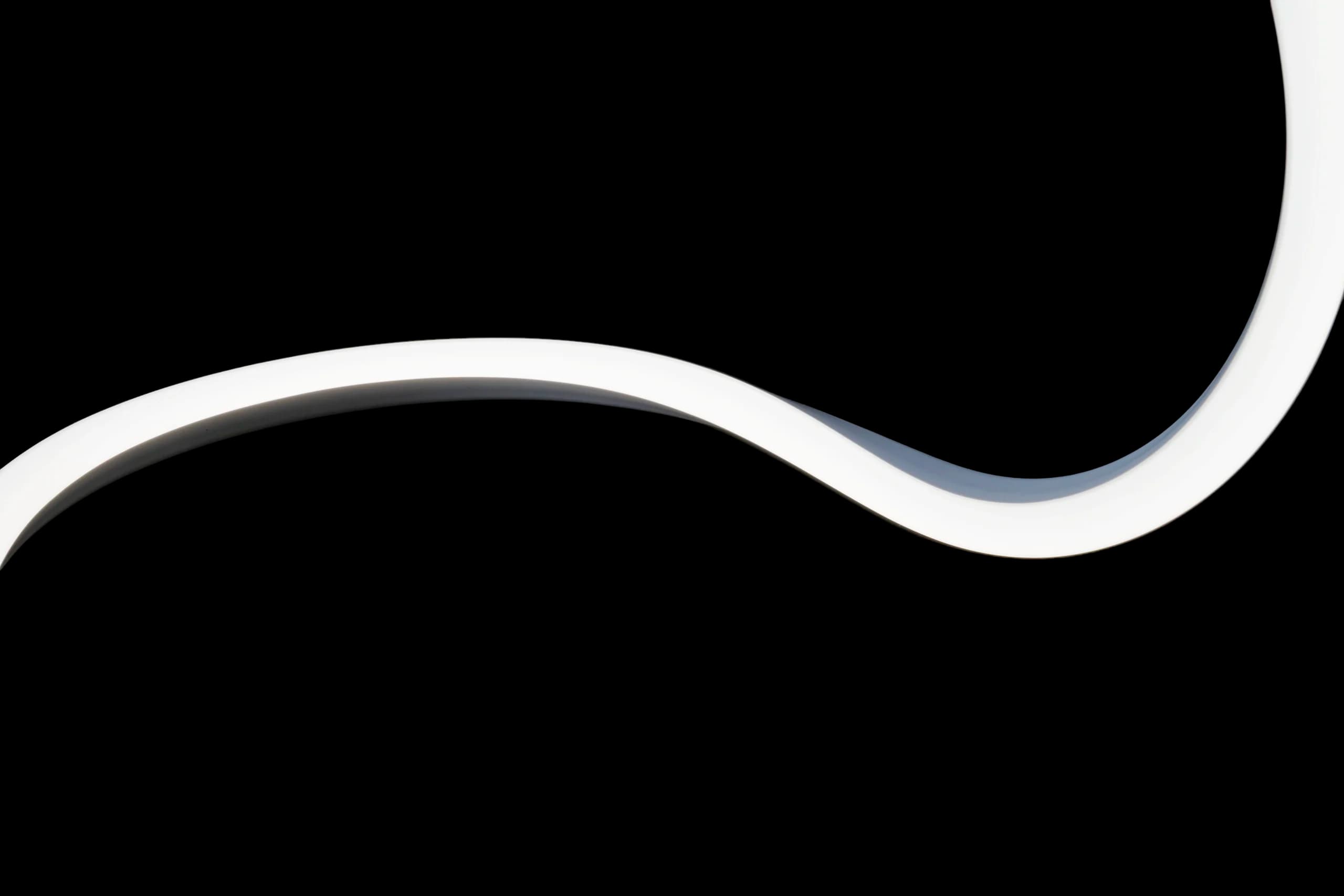

16mm Silicone Neon, 3D Bending
Model NSN1617 · Silicone / PU
A 16 x 17mm silicone neon that bends over the face and across the width, for true 3D curves down to a 300mm diameter. Cut to length in 50mm steps, 24V DC, IP67, IK10, UV and saltwater resistant, in static 1800K to 6500K, six colors, tunable white, RGB or RGBW at 90 CRI, 5 or 10 W/m.
From $35.00Made to order · ships in 30 days
Choose light source, output, length, cable entry, termination and lead. Takes about a minute.
Certified & rated
- ULNorth America
- CEEU conformity
In the box
Included
- LED Strip, 150mm cable
Ordered separately
- Power Supply/Transformer
Configurator · NSN1617
Build the fixture, get the order code.
7 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Light source
Choose oneOutput
Choose oneLength
Choose one0.50 m to 20.00 m, cut in 0.05 m steps
Cable entry
Choose oneTermination
Choose oneLead
Choose oneMounting
Optional · each part is its own line in the cartFrom
$35.00/m

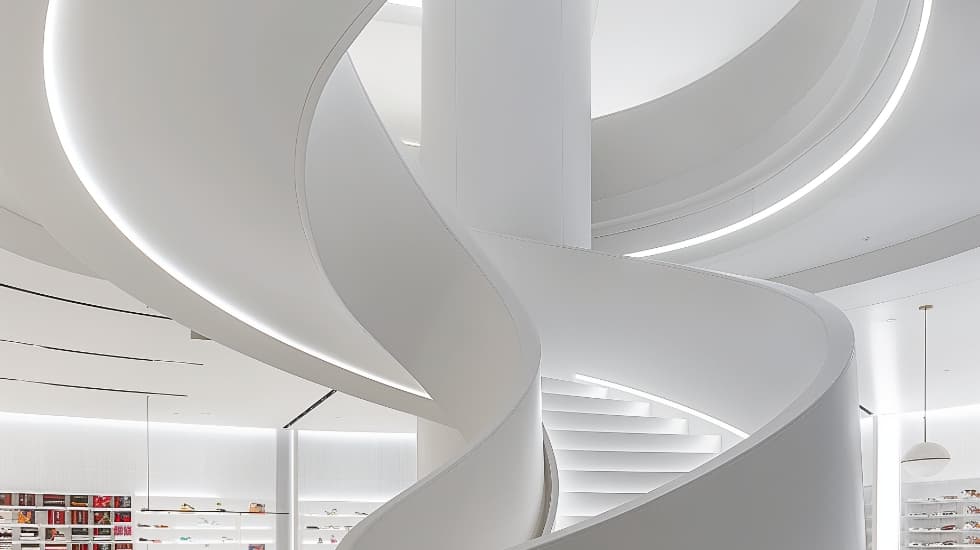

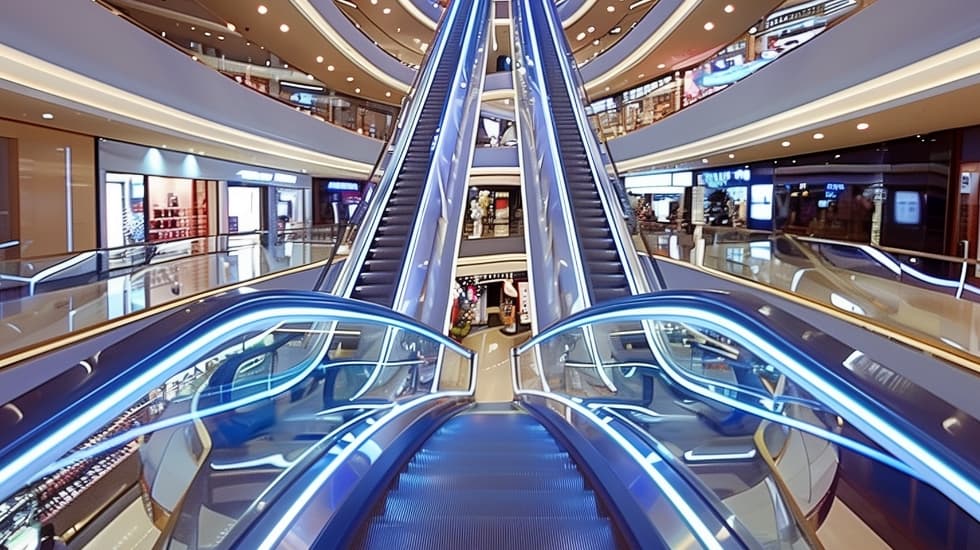

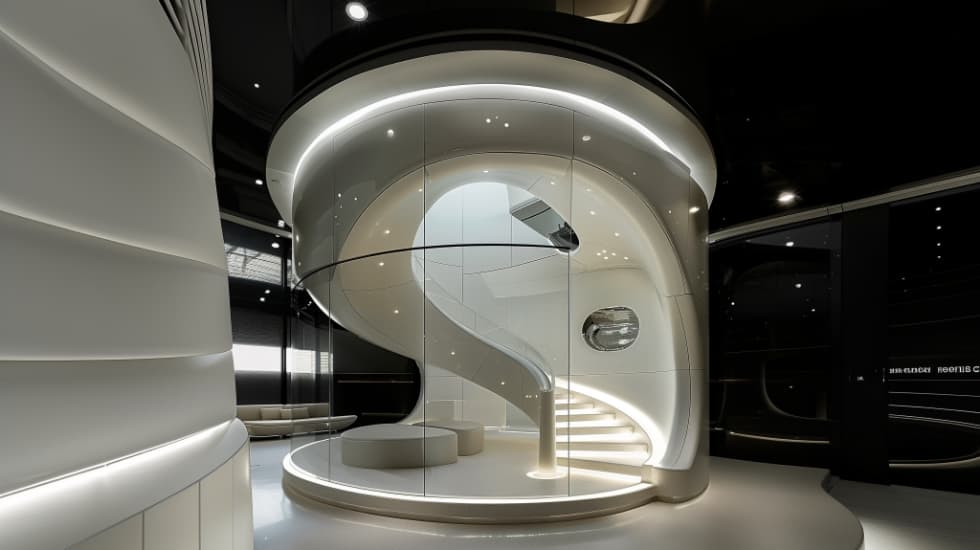

In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NSN1617
- Dimensions (reference)
- 16 wide, 17 high (mm)
- Wattage per metre
- 5 to 15 W/m
- Lumens per metre
- 255 to 694 lm/m
- Cut interval
- 50 mm
- Reel length
- 5 m
- Maximum run per feed
- 5 m
- Color temperature
- 1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K · 2700K to 6500K tunable
- CRI
- 90
- Beam angles
- 113°
- Fixture voltage
- 24 V DC
- Driver
- Remote
- Ingress rating
- IP67
- Environment
- Dry · Damp · Wet
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 30 days
- Cut unit
- 50mm for static white, color and tunable white; 71.4mm for RGB and RGBW
- End caps
- Integral cap on a front or bottom entry, silicone cap on a side entry, both IP67
- Resistance
- UV, saltwater, acid and alkali, solvent
- Bend radius
- Minimum bend diameter 300mm, over the face and across the width
- Lumen output (reference)
- Static white 255 to 694 lm/m at 48.6 to 72.2 lm/W; tunable white 861 lm/m on both channels; RGB 288 lm/m on all channels; RGBW 466 lm/m on all channels
- Color binning
- 3 SDCM from 2700K to 4000K, 4 at 5000K, 5 at 6500K; 1800K to 2400K are not binned
- Impact rating
- IK10
- Finished length
- The ordered length plus 5mm for an integral end cap, or 5.5mm for a silicone cap
- Maximum ambient
- 55 degrees C at 5 W/m, 45 degrees C at 10 W/m; minimum -25 degrees C, LED pin 65 degrees C maximum
- Standard length
- 5005mm, plus or minus 7mm, with a 300mm lead
- Ordered separately
- CV power supply
- Maximum run by build
- Single color 10m at 5 W/m and 6m at 10 W/m; tunable white, RGB and RGBW 5m. One feed with the standard 300mm lead; feeding both ends doubles the run
- Wattage by light type
- Static white and color 5 or 10 W/m; tunable white 7.5 W/m per channel and 15 W/m on both; RGB 3.3 W/m per channel and 10 W/m on all; RGBW 3.7 W/m per channel and 15 W/m on all
- Material
- Silicone / PU
- Certification
- UL · CE
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
