LED Strips

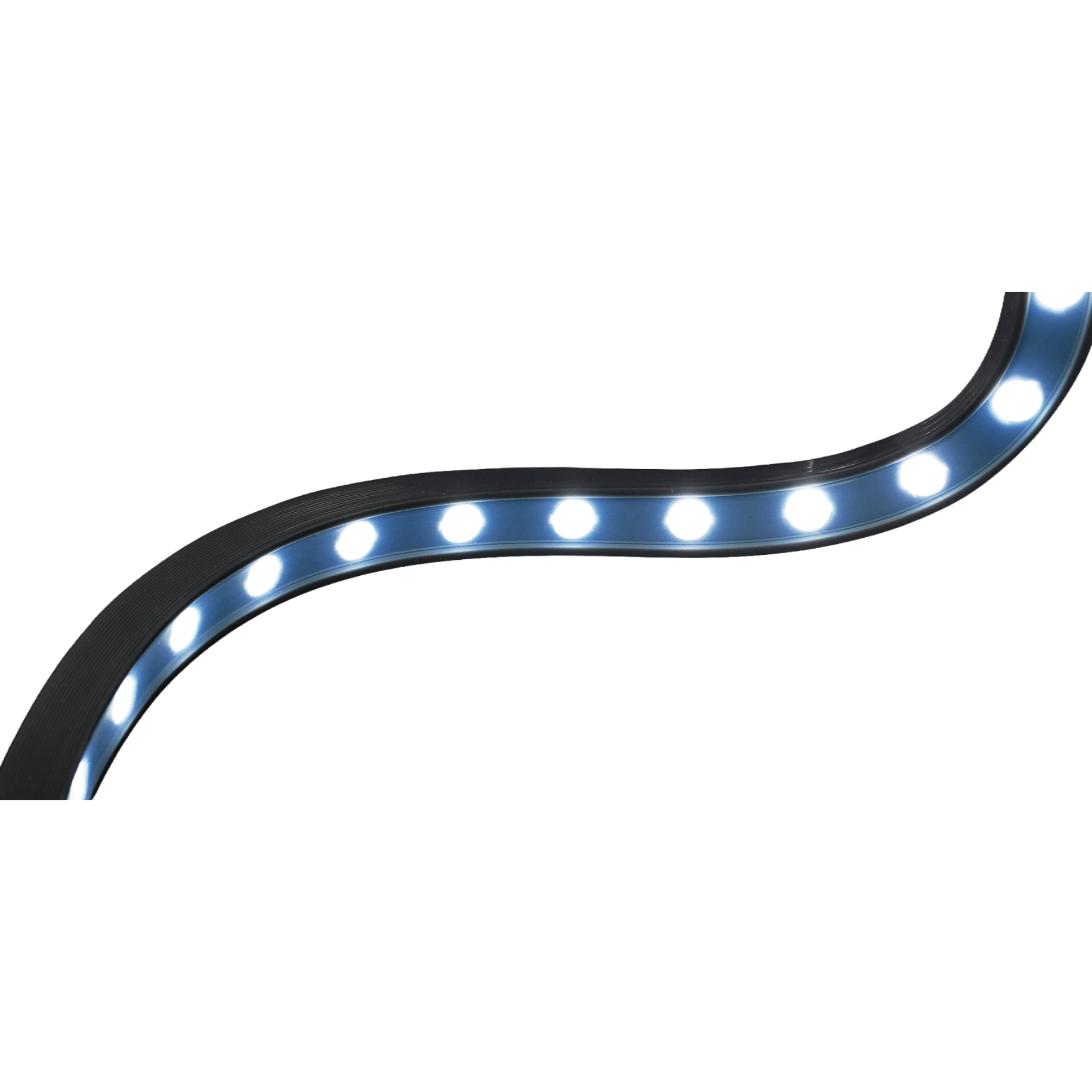

3D Flexible Wall Washer
Model NWW2620
A flexible LED wall washer in a 26 × 20mm silicone body, cut to your length in 0.25m steps and bent to a 400mm diameter flat or on edge. 24 lensed LEDs per meter, six beam options and 24V at 24W per meter, rated IP65 or IP67 and IK10 for curved facades and soffits.
- Beam
- 15-50°
From $100.00Made to order · ships in 14 to 21 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
Certification pending. Ask us for the current status before specifying.
Configurator · NWW2620
Build the fixture, get the order code.
7 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Light source
Choose oneBeam
Choose one · 6 fit your choicesLength
Choose one0.25 m to 10.00 m, cut in 0.25 m steps
Cable entry
Choose oneTermination
Choose oneLead
Choose oneAccessories
Optional · each is its own line in the cart
Aluminum profile PROF2927Sold in 1 m pieces, matched to your run · $19.00 each
Aluminum clip CLIP2927About one every 500 mm, closer through a curve · $4.00 each
Adjustable angle bracket ANGCLIPAdds tilt; one under each clip or profile fixing · $6.00 each
From
$100.00/m
Photometrics
See what the tape does before you build the cove.
Pick what the tape is doing, how far it sits from the surface it lights, the pocket you are building, a run and a colour temperature. One set of inputs drives all five views: the wash in section, the run with its driver, reels and feeds, the polar distribution, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
What it is doing
Gap to the ceiling
Tape to the fascia
Fascia above the tape
Run length
Beam angle
Rated, per metre515 to 1,600 lm/m · 24 W/m
Across the ceilingShare of peak
At the wall98%
0.5 m out<1%
1.0 m out<1%
Direct wash ends 12 in out · ceiling halves 0.13 m out, a tenth by 0.29 m
Where the fascia ends the direct wash is geometry, and holds for any tape: the gap times the pocket’s width over the fascia’s height, 12 in out here. What the pocket hands back past that line is an estimate at an assumed 0.8 reflectance for a flat-white pocket, on which about 76% of the tape’s lumens leave the cove. Lux is not shown for either because it needs the tested distribution for this tape, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
NWW2620 · Cove section · 26 mm tape6 in gap · 4 in pocket · 2 in fascia · 5 m runPocket bounce estimated
In the field
The family at work.
Technical specification
- Model
- NWW2620
- Dimensions
- 26 wide, 20 high (mm)
- Wattage per metre
- 18 to 24 W/m
- Lumens per metre
- 515 to 1600 lm/m
- LEDs per metre
- 24 (41.7 mm pitch)
- Cut interval
- 250 mm
- Reel length
- 10 m
- Maximum run per feed
- 5 m
- Color temperature
- 2700K · 3000K · 4000K · 6500K · 2700K to 6500K tunable · RGBW
- CRI
- 90
- Beam angles
- 15° · 30° · 35° · 50°
- Fixture voltage
- 24 V DC
- Ingress rating
- IP65 · IP67
- Mounting
- Surface · Wall
- Environment
- Dry · Damp · Wet
- Lifespan
- 50,000 hours (L70)
- Warranty
- 5 years
- Lead time
- 21 to 35 days
- Certification
- Certification pending
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
