8mm DOB LED Tape
Model NST8D · Silicone

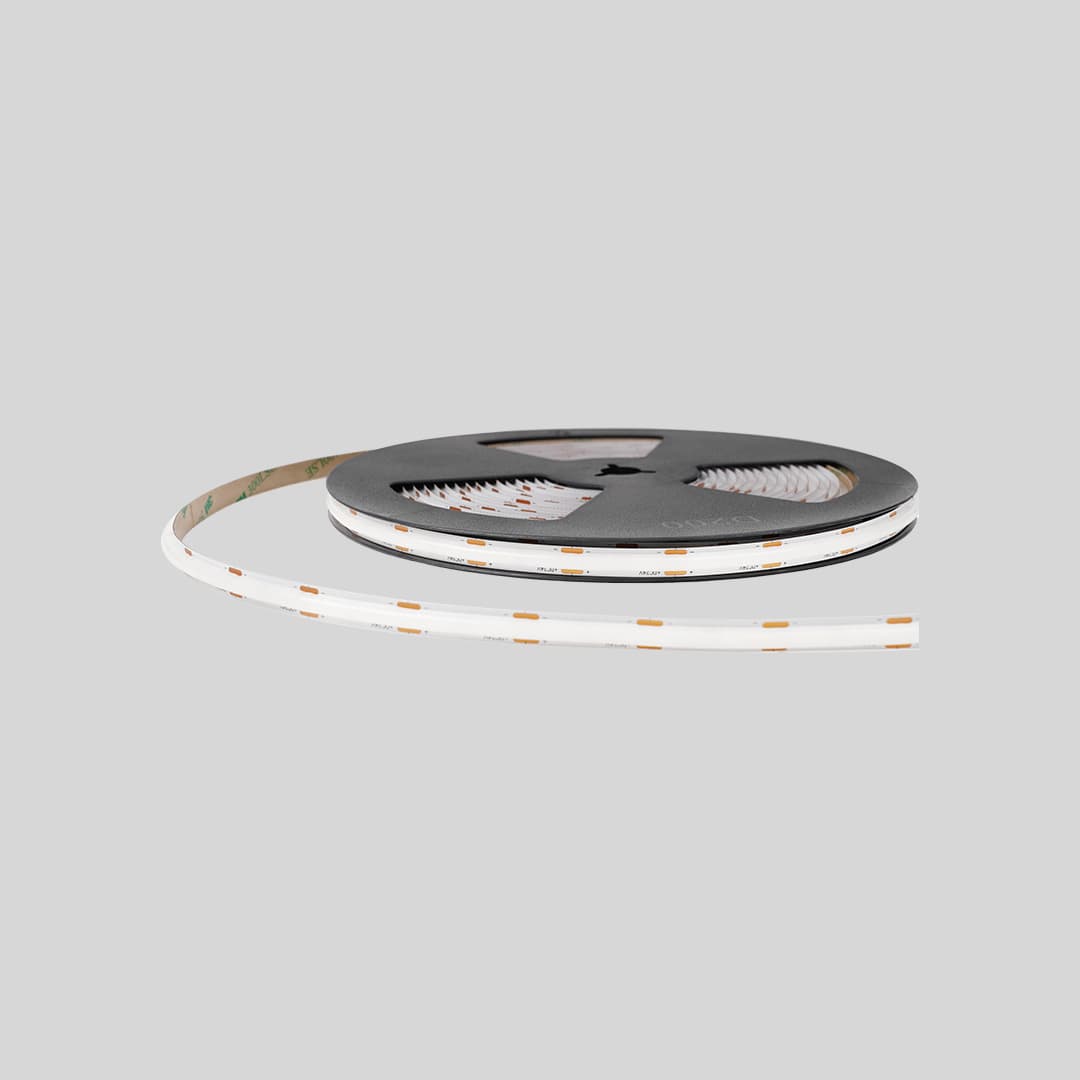

An 8mm diode-on-board tape at 288 LEDs per meter for a dot-free line in compact aluminum profiles. 24V DC, 15 W/m, 180° beam, CRI 90 or better, in several static CCTs. Cuts every 27.8mm on a 5m roll, dimmable with constant-voltage drivers. UL listed, 50,000 hour rated life, five-year warranty.
In the box
Included
- LED Strip, 150mm PVC Cable (Red V+, Black V-)
Ordered separately
- Power Supply/Transformer
Standard configuration
This product ships one way; there is nothing to configure.
Loading purchasing options
In the field
The family at work.
Technical specification
- Model
- NST8D
- Dimensions
- 8 wide, 3.3 high (mm)
- Wattage per metre
- 15 W/m
- Lumens per metre
- 1695 to 1770 lm/m
- LEDs per metre
- 288 (3.5 mm pitch)

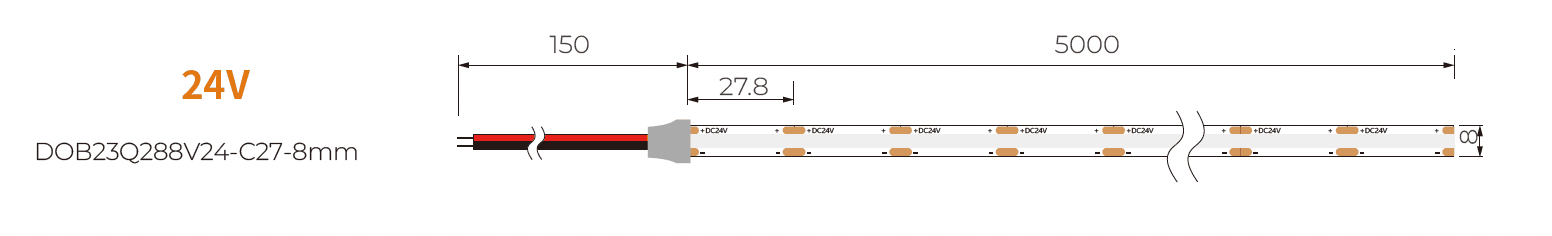

- Cut interval
- 27.8 mm
- Reel length
- 5 m
- Maximum run per feed
- 5 m
- Color temperature
- 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
- CRI
- 90
- Beam angles
- 180°
- Fixture voltage
- 24 V DC
- Dimming
- PWM
- Ingress rating
- IP20 · IP65
- Environment
- Dry · Damp
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 7 to 30 days
- Material
- Silicone
- Certification
- UL · CE
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
