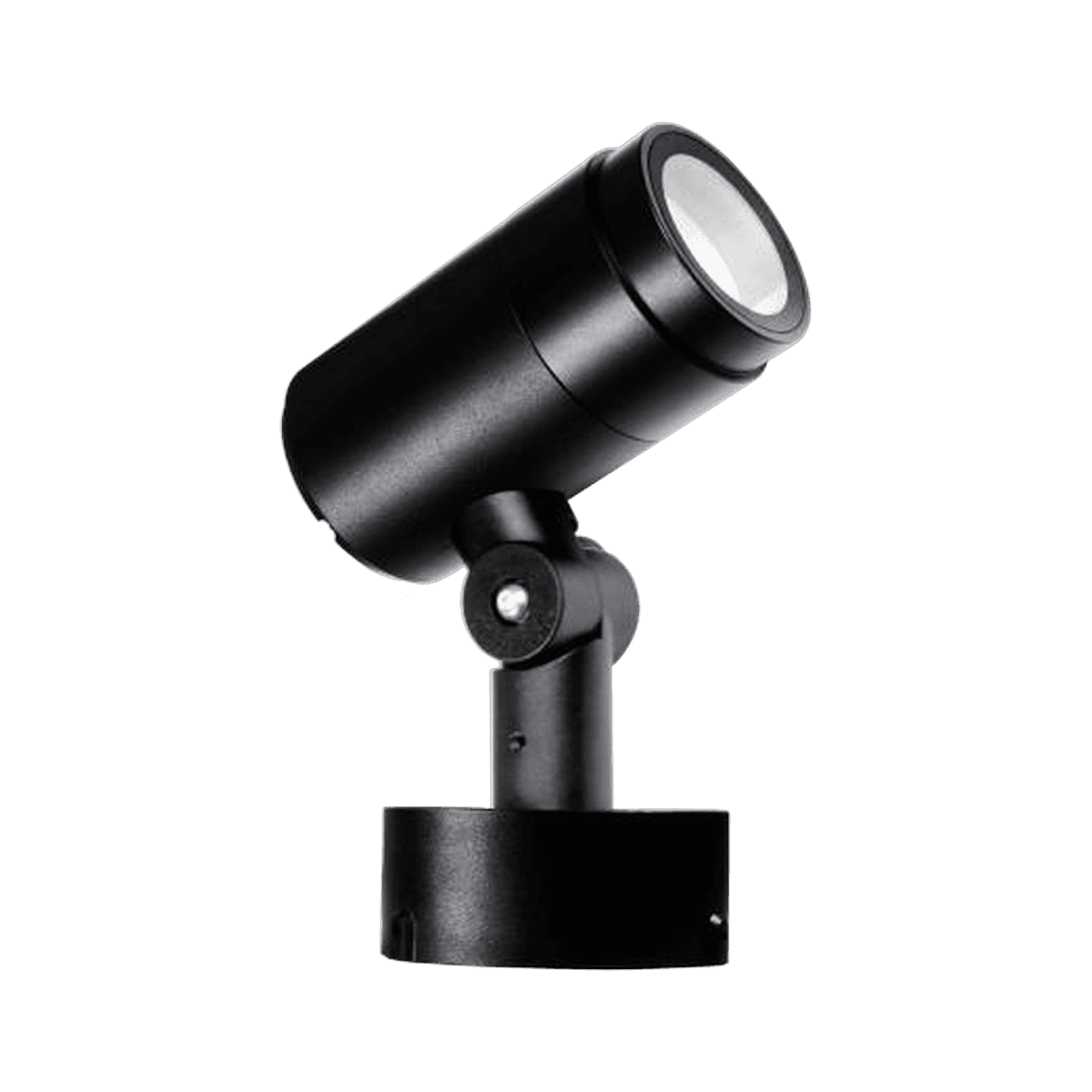

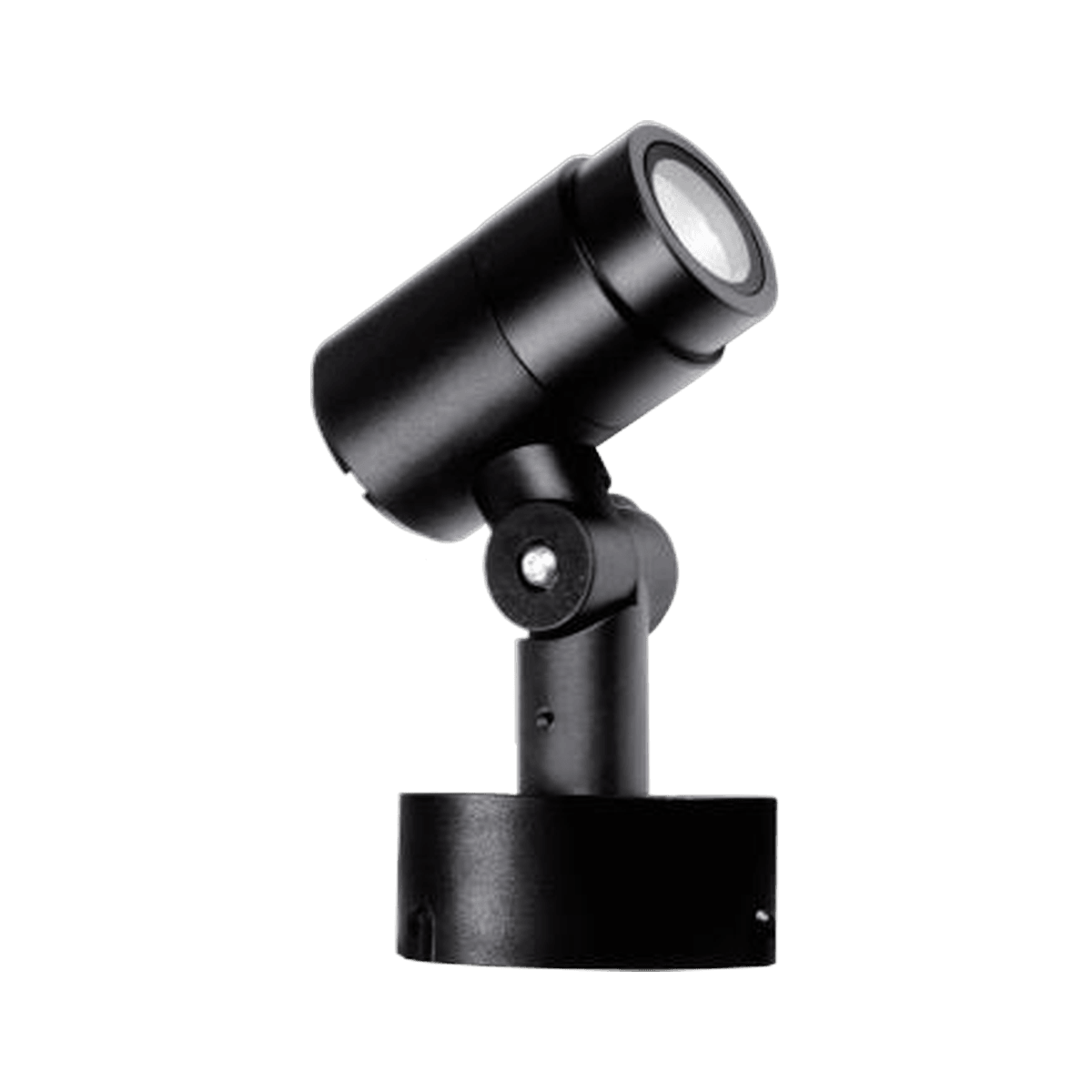

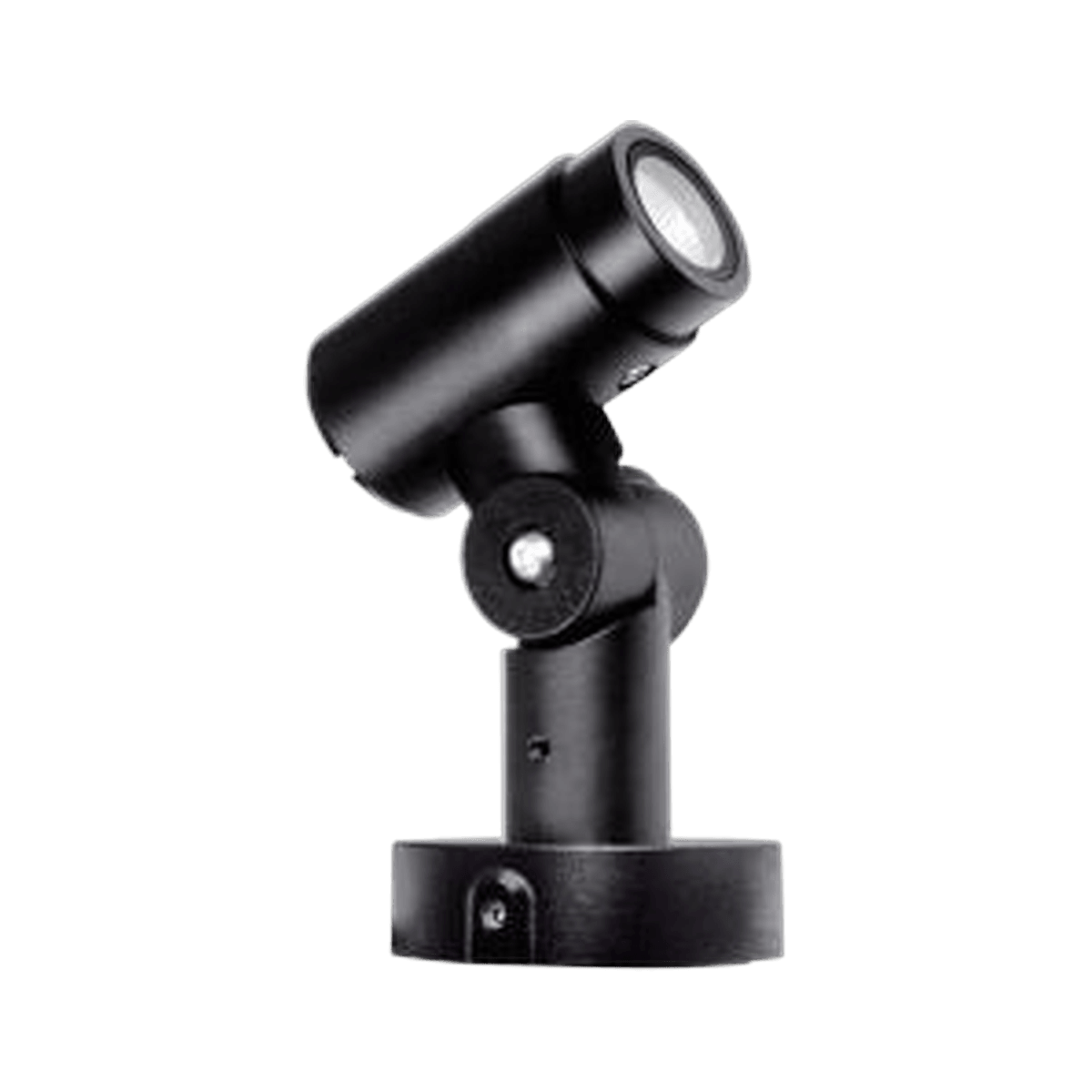

Garden Spotlight, 95mm head, a black cylindrical head on a tilting knuckle and round surface base

Outdoor Floodlight

Garden Spotlight

Model ODF-R30

An adjustable garden spotlight in three head sizes: 47mm at 6W, 75mm at 15W and 95mm at 25W. Each fits a surface base, a tree strap or a ground spike, tilts 145° and rotates 355°. Beams from 10° to 60°, 90 CRI, IP65, on 24V DC. Snoots and a honeycomb louver cut spill.

Beam: 10-60°

From $269.00Made to order · ships in 30 days

Configure this fixture Specs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

CEEU conformity

Configurator · ODF-R30

Build the fixture, get the order code.

6 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Head size

Choose one

Mount

Choose one

Beam

Choose one

Light

Choose one

Driver

Choose one

Accessories

Add any

From

$269.00

In the field

The family at work.

View projects →

Garden at night with palms and sculptures lit by ground-mounted floodlights

Brick building at dusk with its facade washed by floodlights

Technical specification

Model: ODF-R30
Dimensions: 101 long, 47 diameter (mm)
Wattage: 6 to 25 W
Color temperature: 2700K · 3000K · 4000K · 1800K to 5500K tunable · 2700K to 6500K tunable · RGBW
CRI: 90
Beam angles: 10° · 25° · 45° · 60°
Fixture voltage: 24 V DC
Input voltage: 100 to 240 V AC
Driver: Remote
Dimming: Non-dimmable · 0-10V · DALI-2 DT6 · DMX
Ingress rating: IP65
Finishes: Black
Mounting: Surface
Environment: Wet
Lifespan: 50,000 hours (L70)
Warranty: 5 years
Lead time: 30 days
Base: Ø75 × 20mm (47 and 75mm heads), Ø95 × 47mm (95mm head)
Heads: Ø47 × 101mm 6W, Ø75 × 130mm 15W, Ø95 × 162mm 25W
Spike: Ø52 × 200mm. Extended stakes 250, 500, 800mm
Aiming: Tilt 145°, rotate 355°
Mounts: Surface base (M), tree strap (T), ground spike (S)
Accessories: Straight snoot, bevel snoot, honeycomb louver
Color options: RGB, RGBW
Impact rating: IK02
Material: Aluminum alloy
Colour: 2700K · 3000K · 4000K · Tunable White 1800K to 5500K · Tunable White 2700K to 6500K · RGB · RGBW
Certification: CE

Downloads

Spec sheetPDF
IES photometric filesOn request
Installation guideOn request
Revit and CAD blocksOn request
Photometric test reportOn request

Anything marked on request we will send the same day. Ask at info@nuordic.com.

Need a layout, not just a fixture?

Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.

Start a Design Brief
