Standard Lights

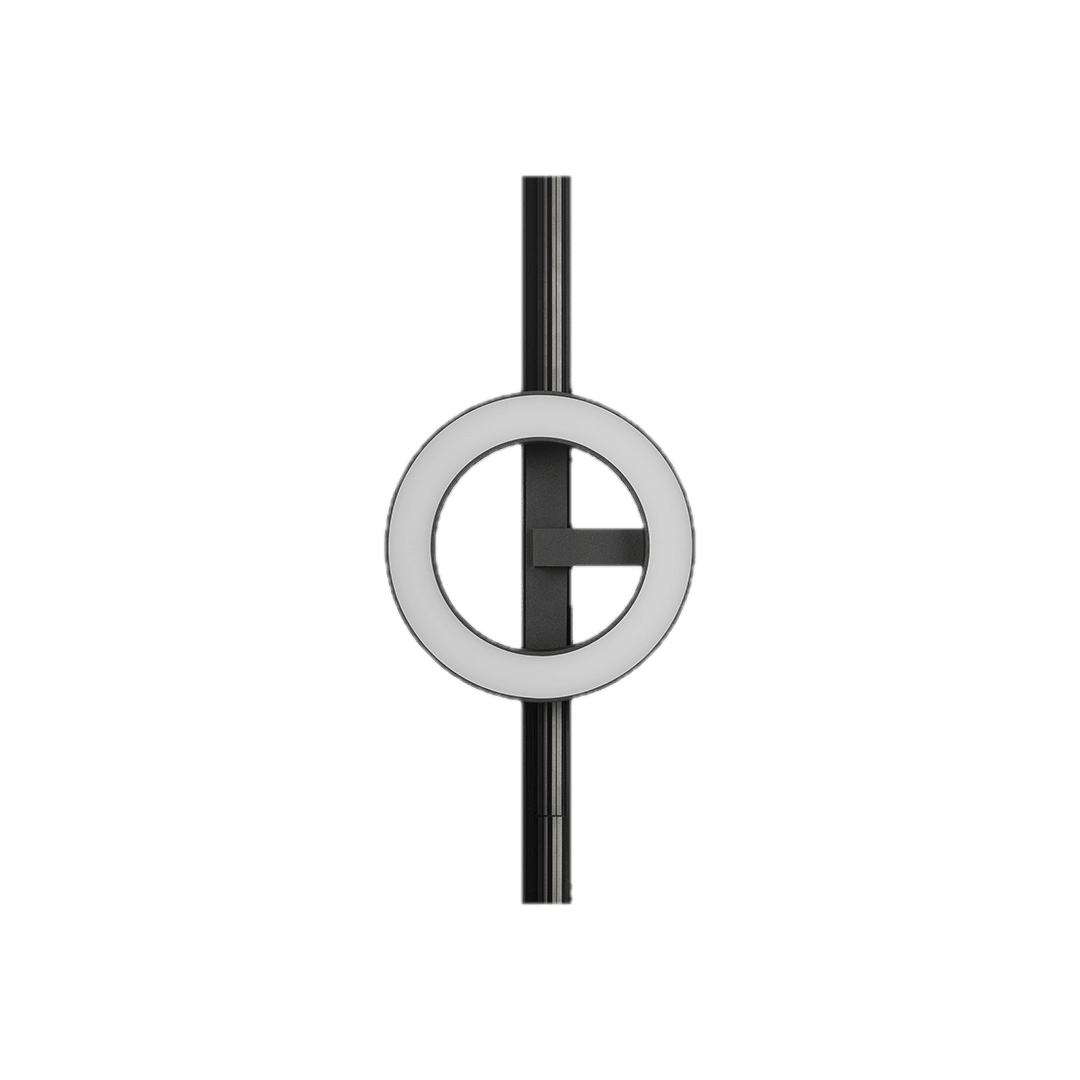

Halo Opal - Standard Track
Model NT39-HD

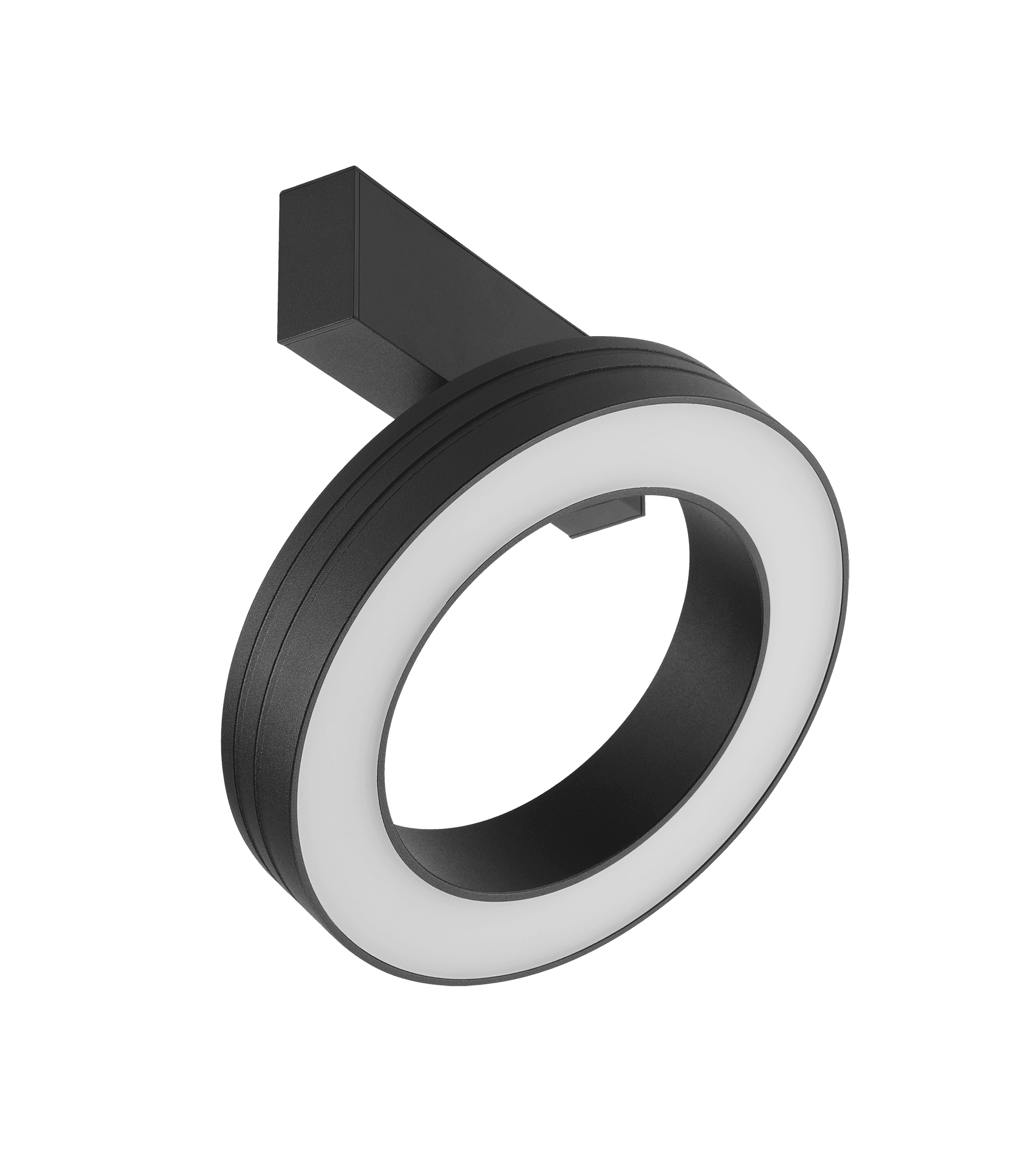

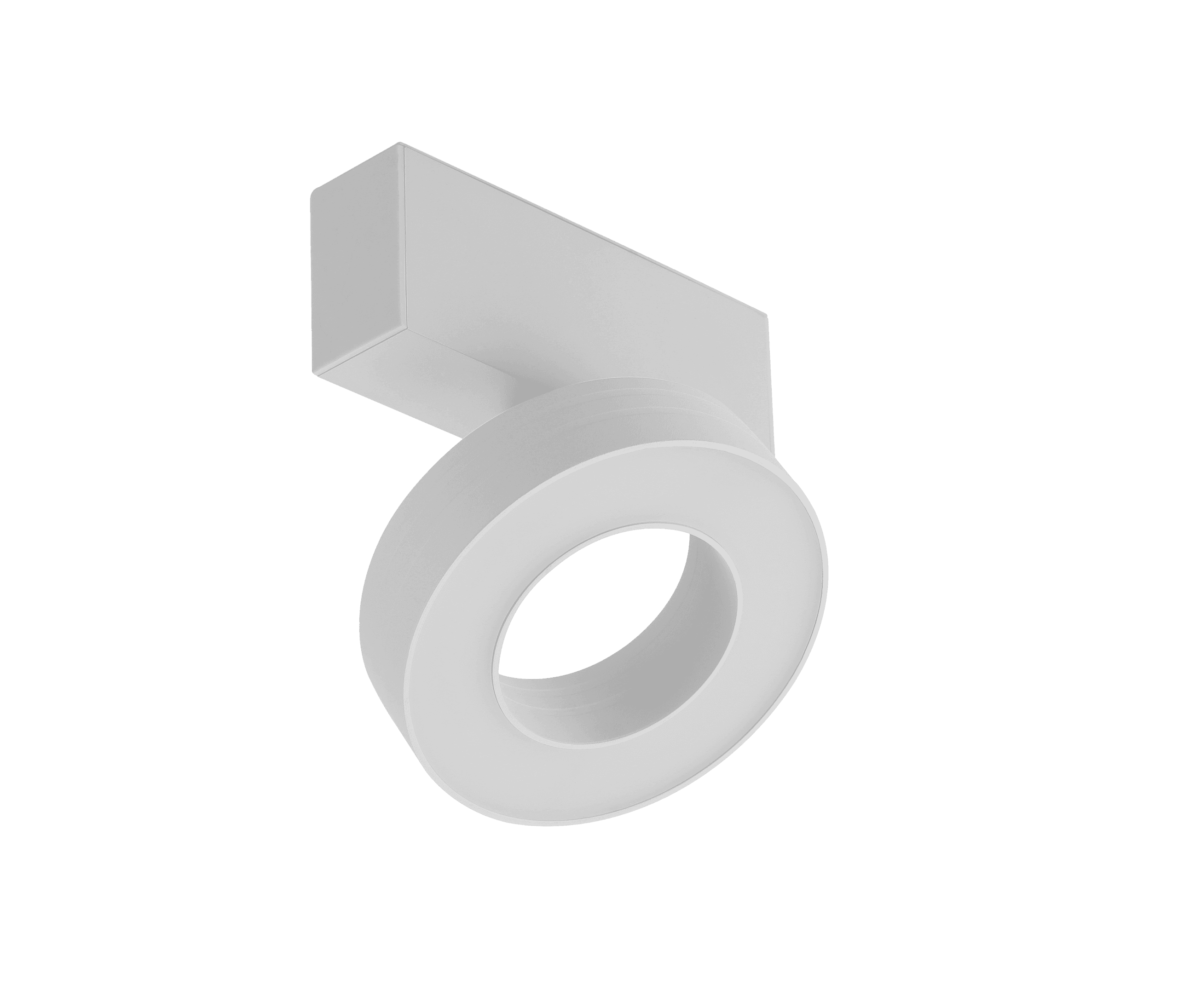

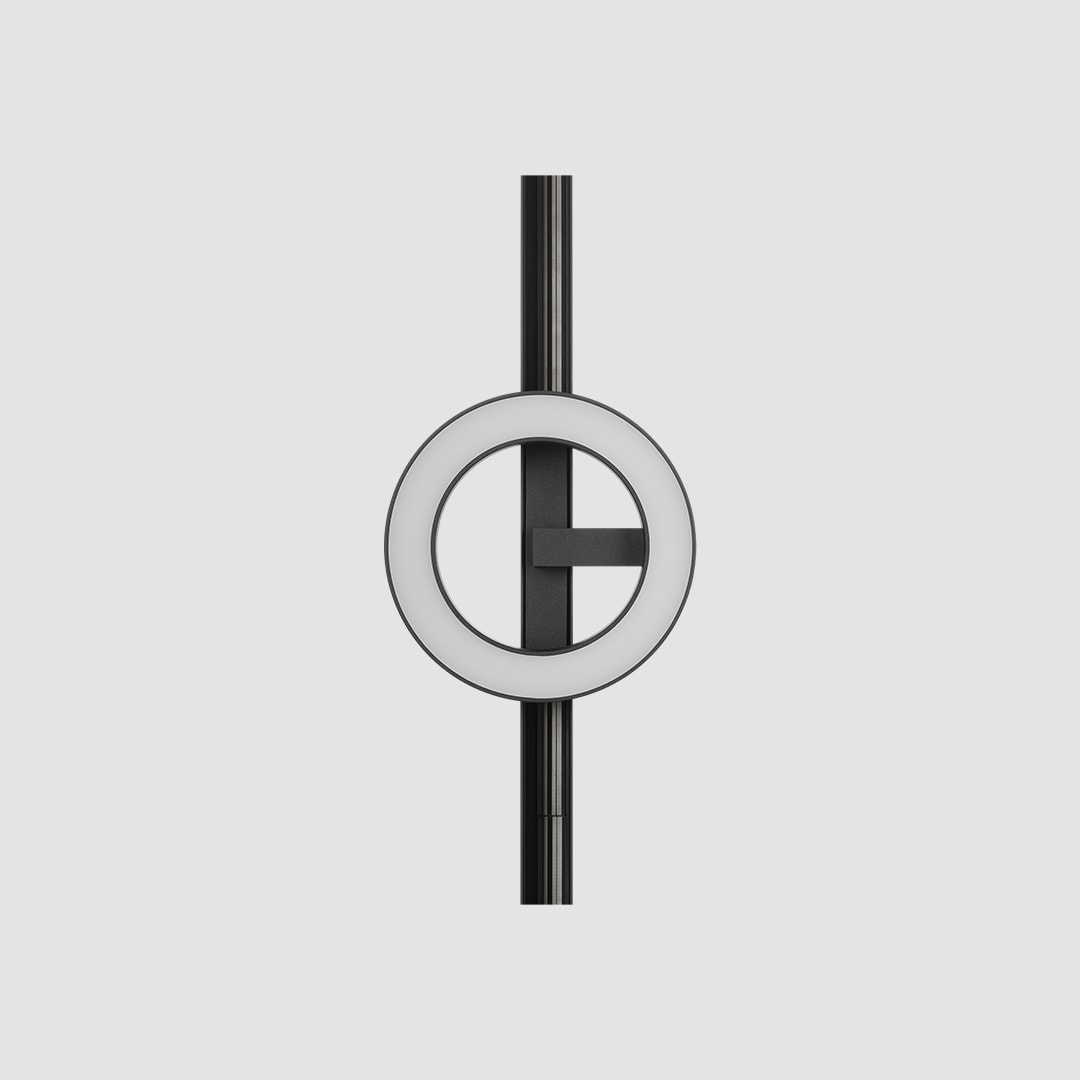

A diffuser head for standard magnetic track that rotates a full 360°. The integrated junction arm keeps the barycenter aligned with the track, so the module stays balanced even on suspended runs. External dimming interface for Triac, 0/1-10V, and DALI. Suited to architectural and functional lighting.
From $163.00Made to order · ships in 20 to 30 days
Choose power, CRI, color temperature, dimming and finish. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
Configurator · NT39-HD
Build the fixture, get the order code.
5 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Power
Choose oneCRI
Choose oneColor temperature
Choose oneDimming
Choose oneFinish
Choose oneFrom
$204.00
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NT39-HD
- Wattage (reference)
- 12 to 18 W
- Lumen output (reference)
- 470 to 690 lm
- CRI
- 90
- Fixture voltage
- 24 V DC
- Driver
- Remote
- Dimming
- TRIAC · 0-10V · DALI-2 DT8
- Ingress rating
- IP20
- Finishes
- White · Black
- Mounting
- Recessed · Surface · Pendant
- Environment
- Dry
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 20 to 30 days
- Adjustment
- Head rotates on its stem
- Dimensions (reference)

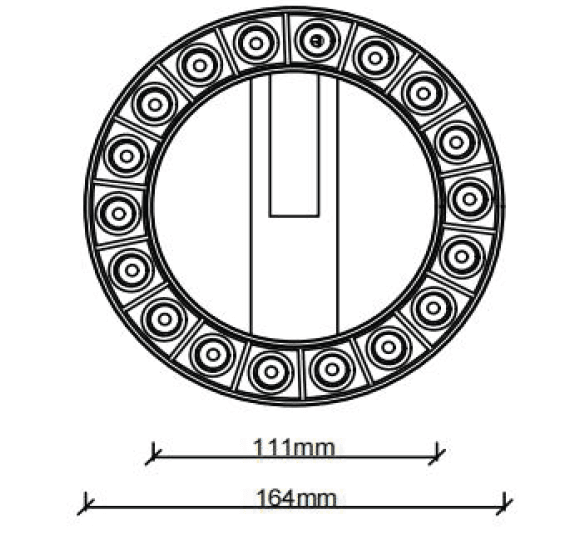

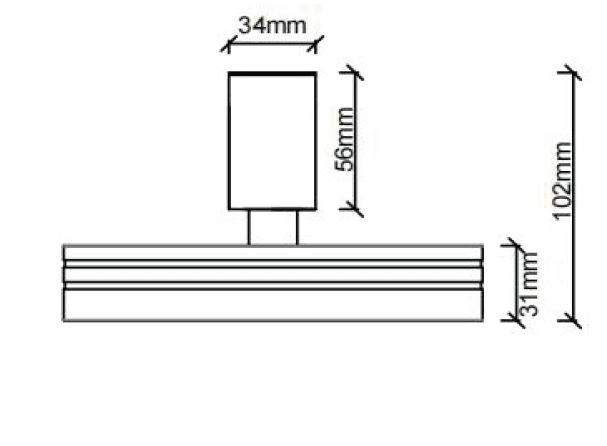

- 12W: Ø120 x 102 mm · 18W: Ø164 x 102 mm
- Distribution
- Diffuse (opal ring)
- Material
- Aluminum
- Certification
- ETL · CE
- Color temperature
- 2700K · 3000K · 3500K · 4000K
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guideOn request
- Magnetic track power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
