Accessories

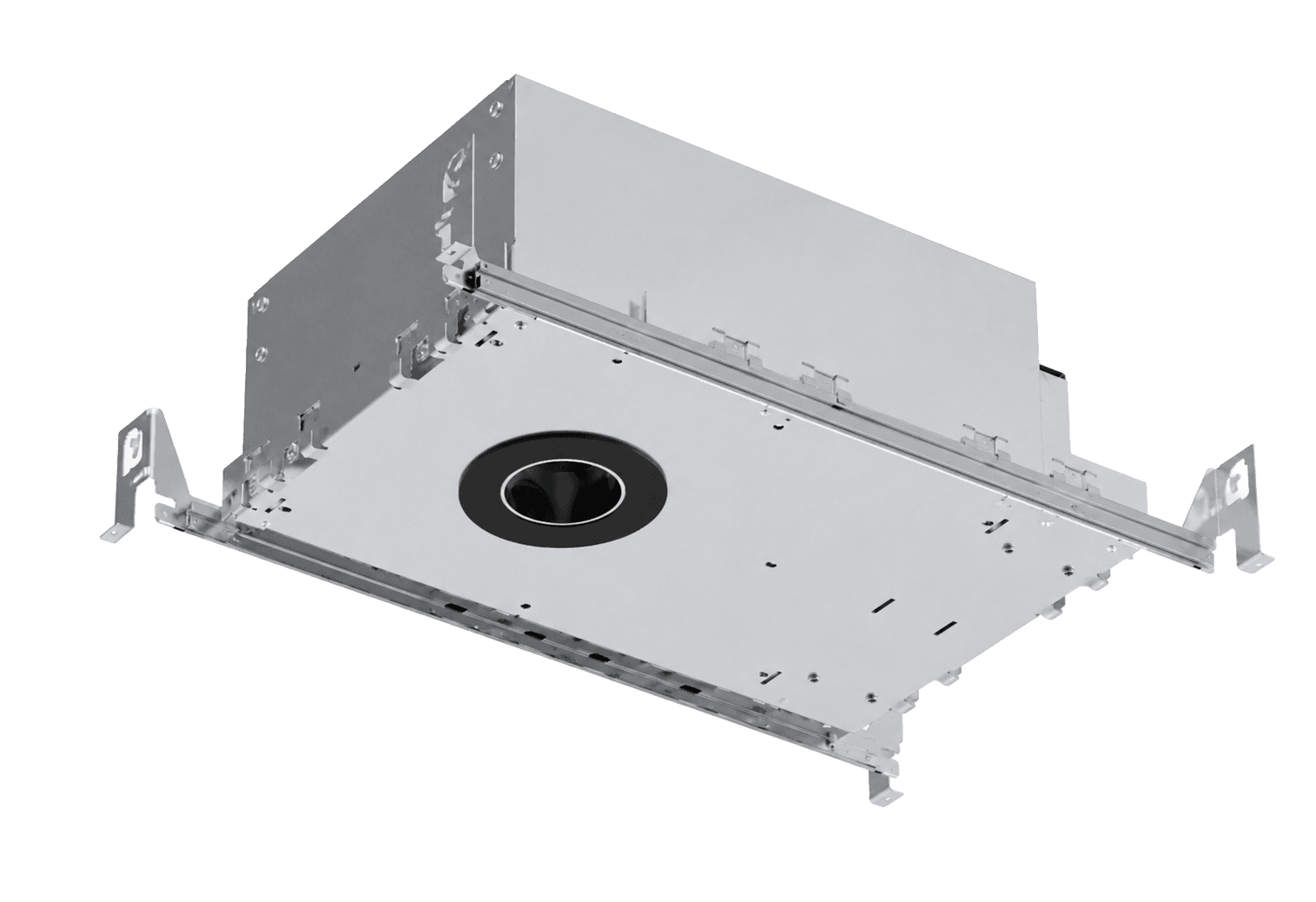

IC Box And Mounting Bracket For 3 to 1 Inch Downlights
Model NB-IC4
An IC-rated housing and adjustable mounting bracket for 3 to 1 inch downlights. Fire-rated construction gives the fixture thermal protection in insulated ceilings, and the bracket adjusts for precise positioning and a clean finish. For new construction and retrofit in a variety of ceiling types.
From $65.00Made to order · ships in 30 days
Choose housing. Takes about a minute.
Configurator · NB-IC4
Build the fixture, get the order code.
1 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Housing
Choose oneFrom
$65.00
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NB-IC4

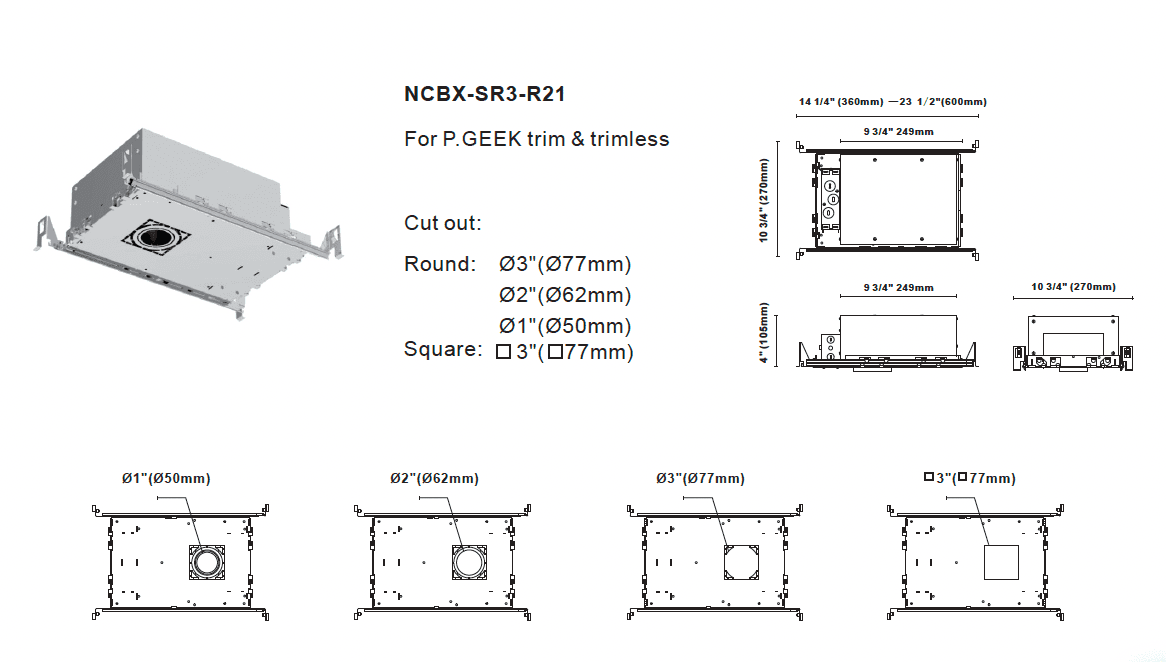

- Dimensions (reference)
- 270 long, 249 wide, 105 high (mm)
- IC rated
- Yes
- Warranty
- 5 years
- Cut-outs
- Round 1 in (50mm), 2 in (62mm) or 3 in (77mm), square 3 in (77mm)
- Material
- Metal
- Hanging bar span
- 14 1/4 to 23 1/2 in (360 to 600mm)
- Housing
- Standard · Airtight
Downloads
- Spec sheetOn request
- IES photometric filesOn request
- Installation guidePDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
