In-Ground

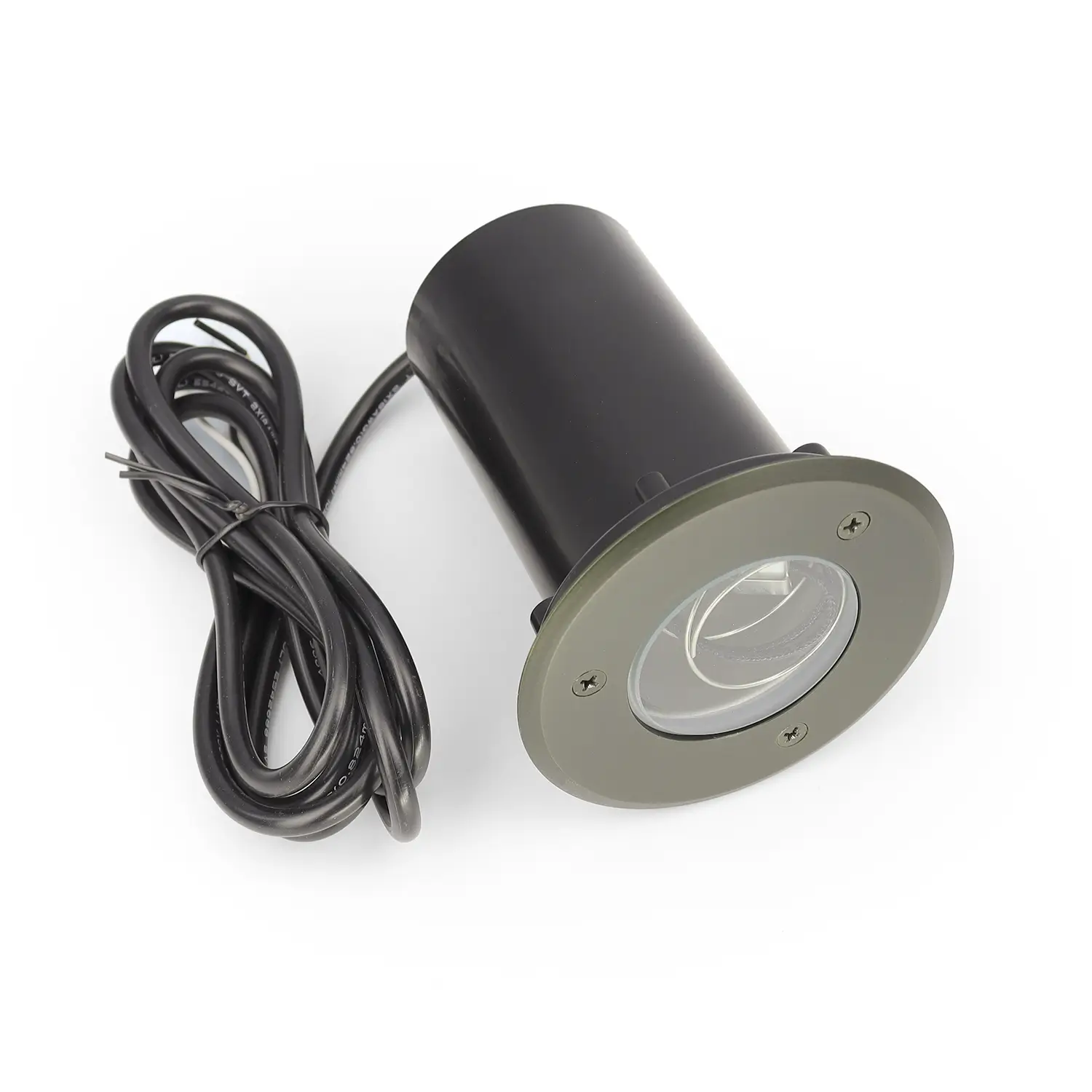

In-Ground Well Light
Model ODG-R2206 · Brass · 2 trims
A solid brass in-ground well light for an MR16 lamp (sold separately, up to 50W). Adjustable internal bracket for aiming, clear flat glass lens, IP65, 9-17V AC/DC on a remote transformer, 72 inch pre-stripped lead. Antique Bronze, Gun Metal Black, or Matte Black. For uplighting trees, columns, and facades.
- Beam
- 15-36°
- Ingress
- IP65-67
- Trims
- 2
From $95.00Made to order · ships in 30 days
Choose load Rating, beam, color Temp, driver, trim Finish, IP Rating and options. Takes about a minute.
Certified & rated
- IP67Wet location
Ratings apply per build. The IP67 rating belongs to the builds that carry it, not to every option on this page.
In the box
Included
- Light Fixture
Ordered separately
- Power Supply/Driver
Configurator · ODG-R2206
Build the fixture, get the order code.
7 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Load Rating
Choose oneBeam
Choose oneColor Temp
Choose oneDriver
Choose oneTrim Finish
Choose oneIP Rating
Choose oneOptions
Add anyTotal, before tax
$95.00
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- ODG-R2206
- Dimensions (reference)
- 120 high, 99.2 diameter (mm)
- Finishes
- Dark bronze · Black
- Mounting
- In-ground · Recessed
- Warranty
- 5 years
- Lead time
- 30 days
- Lamp
- MR16, sold separately, up to 50W
- Lead
- 72 in pre-stripped, 18 AWG
- Lens
- Clear flat glass
- Aiming
- Adjustable lamp bracket
- Housing
- Solid brass
- Finish options
- Antique bronze, gun metal black, matte black
- Low voltage input
- 9 to 17V AC or DC from a remote low-voltage transformer, sold separately
- Material
- Brass
- Color temperature
- 2700K (Warm White) · 3000K (Soft White) · 3500K (Neutral) · 4000K (Cool White)
- Beam angles
- 15° (Narrow spot) · 25° (Spot) · 36° (Flood)
- Ingress rating
- IP65 (Washdown, exterior) · IP67 (Temporary immersion)
- Trim
- Walk-over · Drive-over (Vehicle rated)
- Driver options
- Non-dimmable · TRIAC / mains dim · 0-10V · DALI
Downloads
- Spec sheetOn request
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
