Straight Connectors - 7mm Track
Model NT7-JC · 3 trims

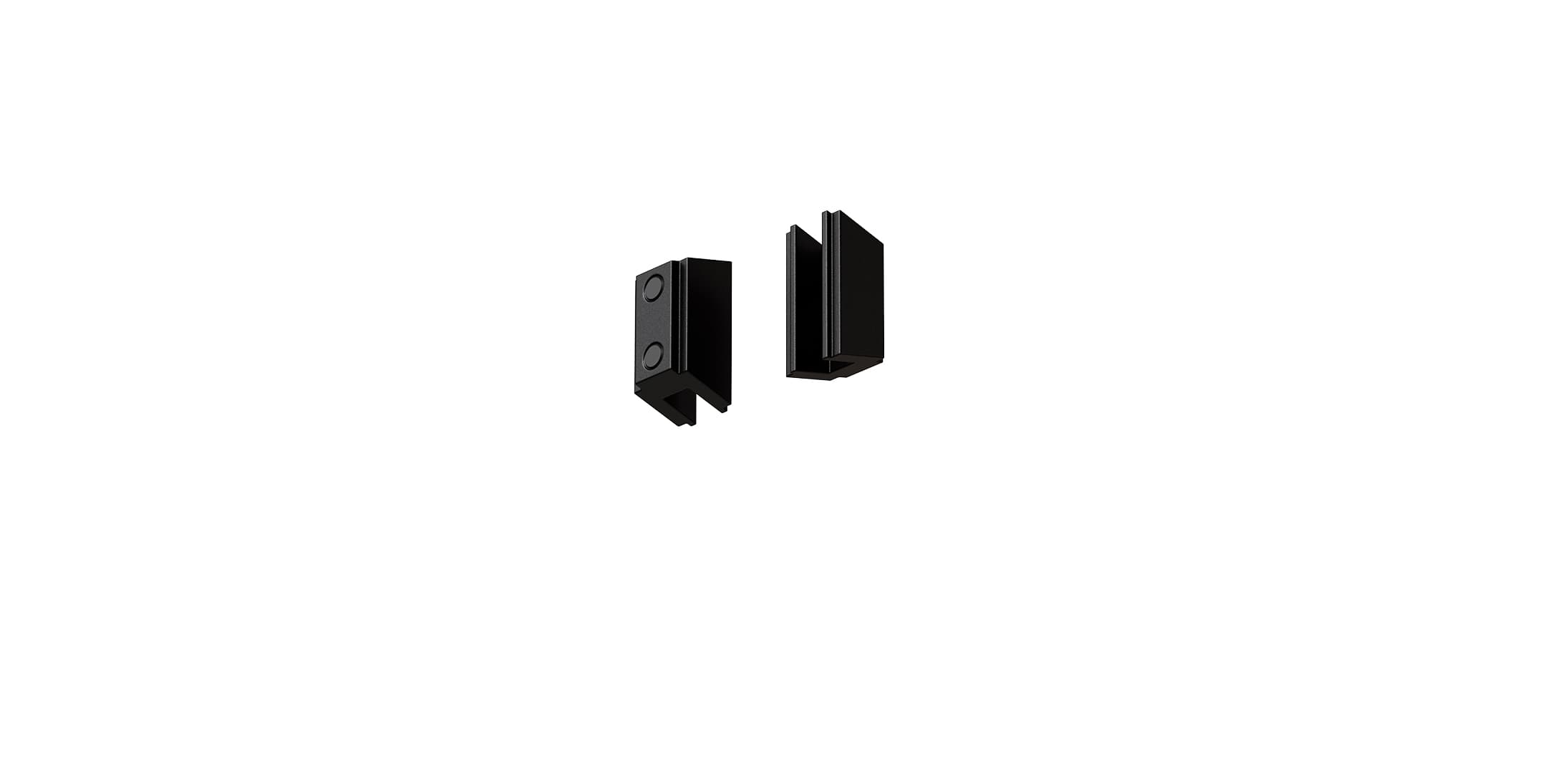

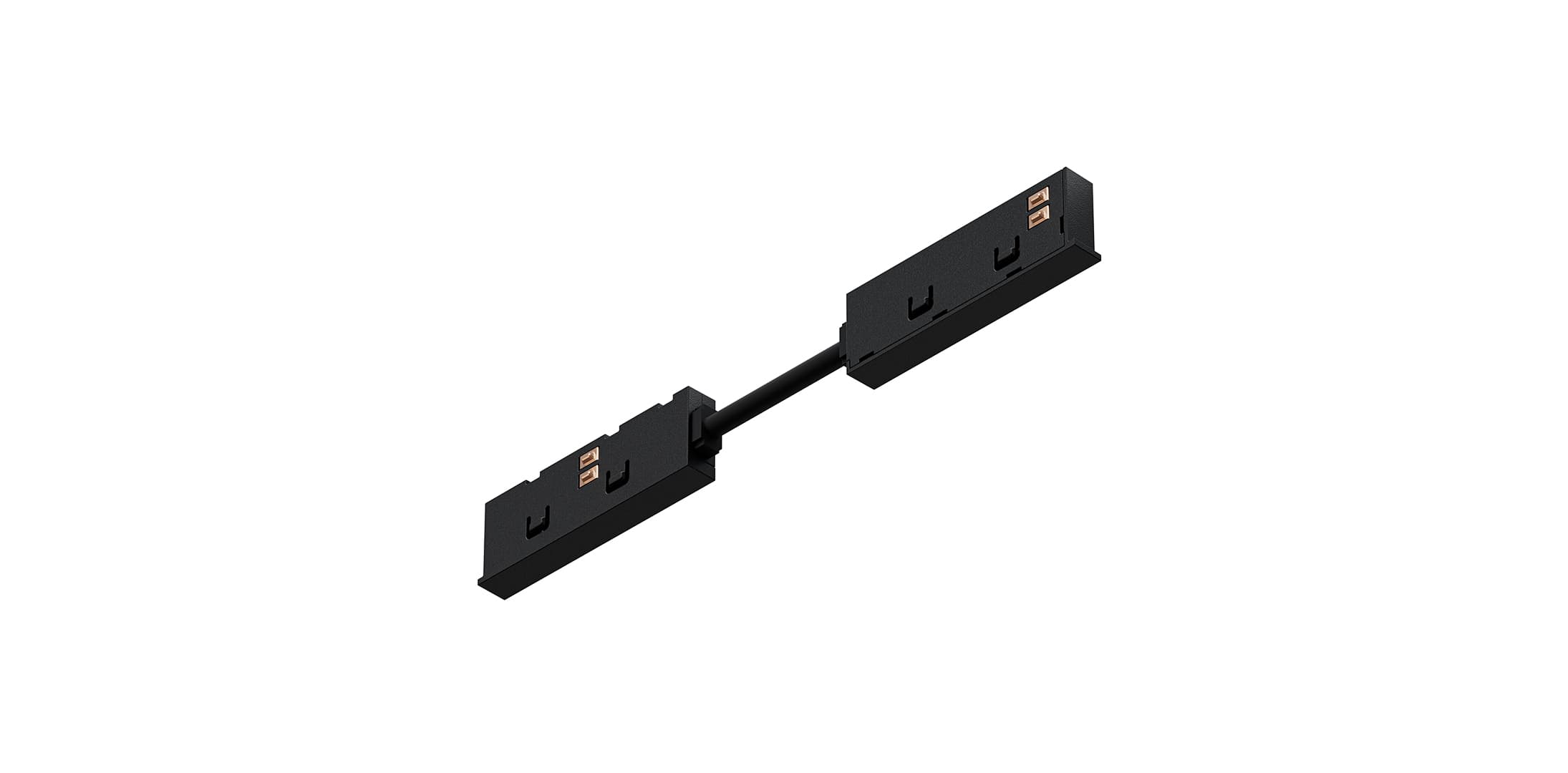

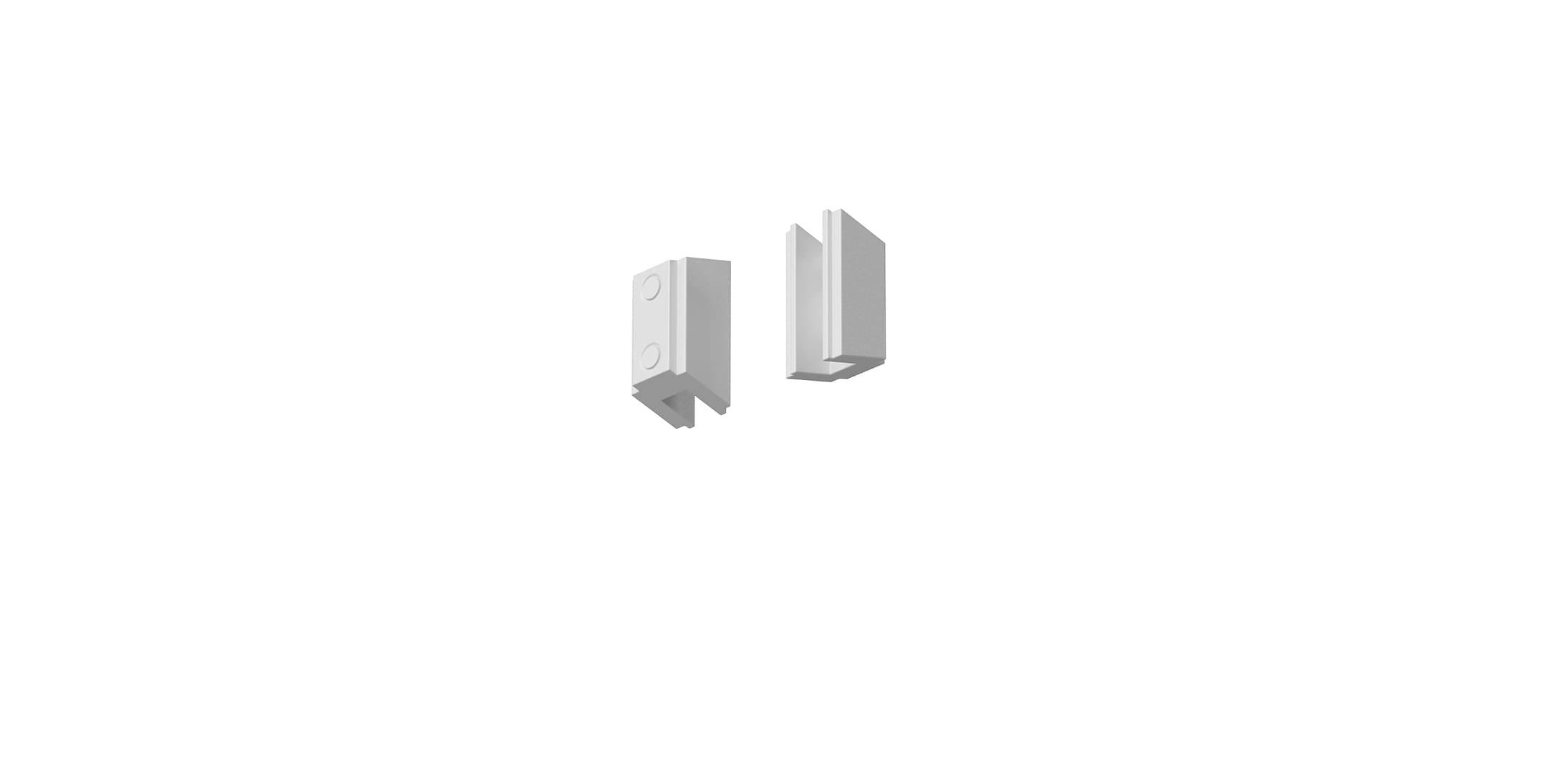

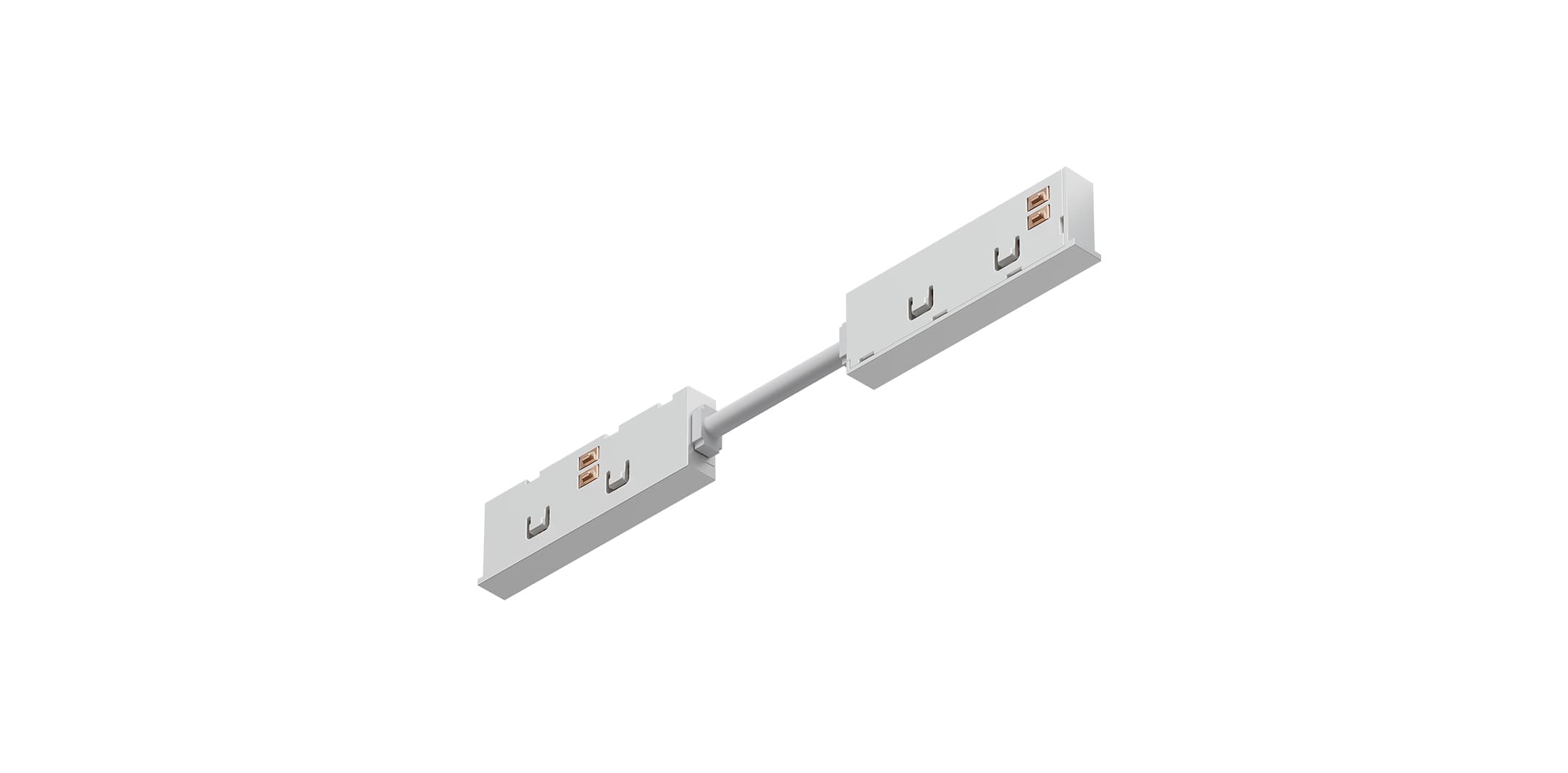

Straight connection components for joining sections of the 7mm magnetic track system. Electrical and mechanical connectors serve different roles in the assembly and are selected separately. Both are offered in black and white to coordinate with the rail finish.
- Beam
- 15-80°
- CRI
- 97
- Ingress
- IP20
- Trims
- 3
From $6.00Made to order · ships in 30 days
Choose CCT, colour Temperature, beam Angle, trim, reflector Colour, trim Colour, driver, housing and tethered Controller. Takes about a minute.
Certified & rated
Certification pending. Ask us for the current status before specifying.
- IP20Dry interior
Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.
Configurator · NT7-JC
Build the fixture, get the order code.
11 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Shape
Choose oneCCT
Choose oneColour Temperature
Not applicable · set by your other choicesThis CCT option sets its own colour temperature, so there is no fixed kelvin to choose.
Beam Angle
Choose one · 4 fit your choicesIP Rating
Choose oneTrim
Choose oneReflector Colour
Choose oneTrim Colour
Choose oneDriver
Choose oneHousing
Choose oneTethered Controller
Choose oneTotal, before tax
$38.00
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NT7-JC
- Fixture voltage
- 48 V DC
- Finishes
- Black · White
- Warranty
- 5 years
- Lead time
- 30 days
- Certification
- Certification pending
- Shape
- Round
- Color temperature
- Static CCT (97 CRI, fixed) · 5CCT Switch (Selectable on the fixture) · 2700K to 6000K (95 CRI, tunable white) · 1800K to 5500K (95 CRI, tunable white) · 3000K to 1800K (95 CRI, dim to warm) · RGBW (90 CRI, colour and white)
- Static color temperatures
- 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white)
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress rating
- IP20 (Adjustable, 20° tilt)
- Trim
- Trimless (Plastered in) · Micro-flange (Minimal visible edge) · Millwork (For joinery)
- Reflector color
- Black · White
- Driver options
- Remote driver (Driver away from the fixture) · 0-10V · Triac (Mains dim) · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing (Keep clear of insulation) · IC-Housing (Insulation contact)
- Controls
- Casambi · Tuya · Matter
- CRI
- 90 · 95 · 97
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guidePDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
