Aluminum Profile
Flexible Mud-In Recessed Aluminum Profile
Model N1617-DEP · Aluminum

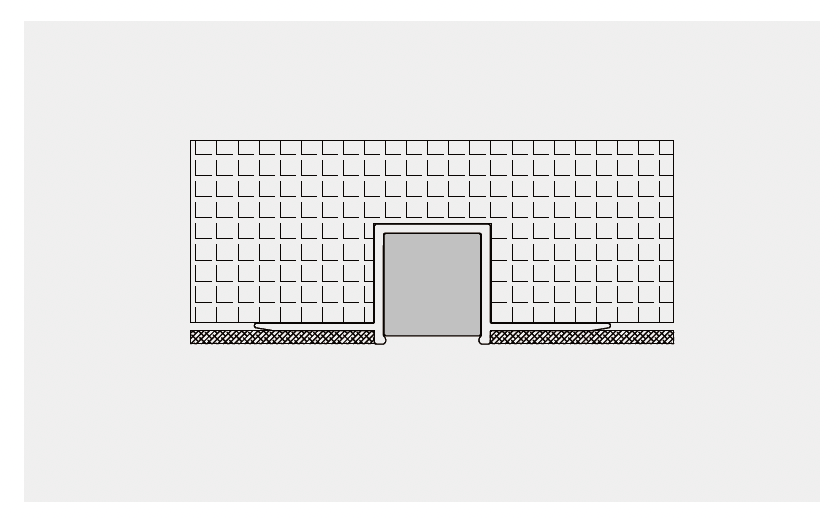

The N1617-DEP Flexible Mud-In Recessed Double Sided Aluminum Profile is engineered to carry 16mm wide by 17mm high silicone neon strips into drywall and gypsum applications. Designed specifically for mud-in installations, it allows the profile to be plastered directly into the surface, creating a clean, trimless architectural finish. 1m length.

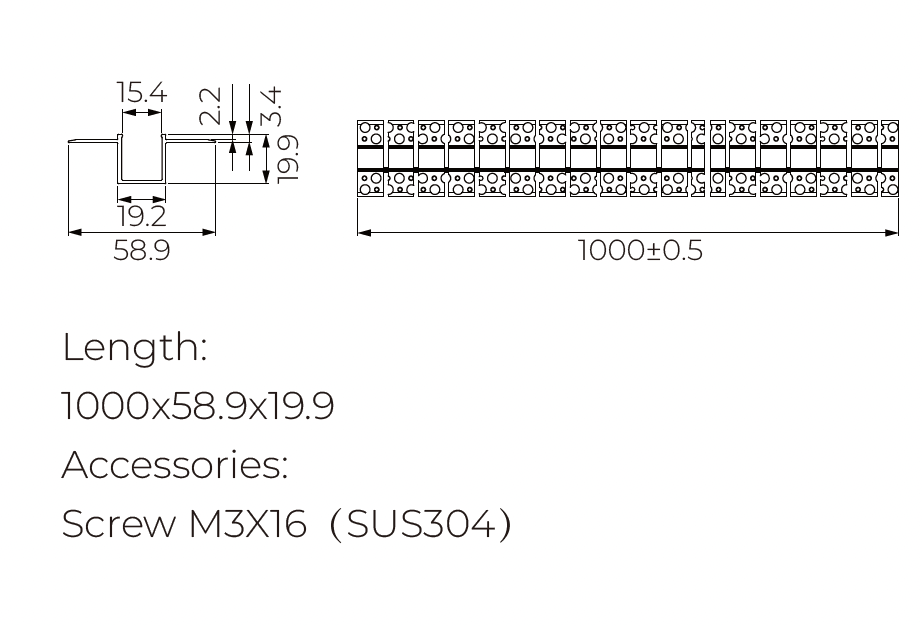

Length: 1000x58.9x19.9mm
Accessories: Screw M3X16（SUS304）
Standard configuration
This product ships one way; there is nothing to configure.
Loading purchasing options
In the field
The family at work.
Technical specification
- Model
- N1617-DEP
- Dimensions
- 1000 long, 58.9 wide, 19.9 high (mm)
- Finishes
- Silver
- Mounting
- Recessed
- Warranty
- 5 years
- Lead time
- 30 days
- Carries
- Two runs of 16 x 17mm silicone neon, side by side
- Fixings
- M3 x 16 stainless screws, supplied
- Material
- Aluminum

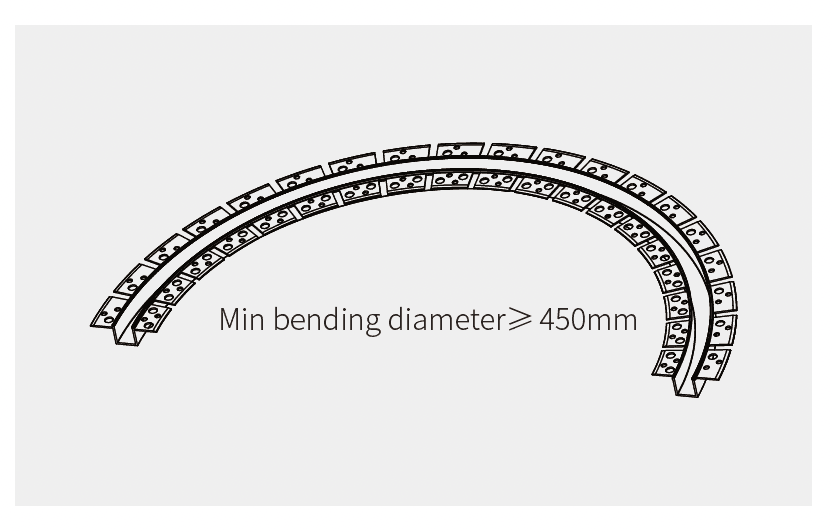

- Bend radius
- Minimum bend diameter 450mm
- Certification
- Not listed
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
