Model NR045
Choose mounting, length, finish, secondary Reflector, color Temperature, beam Angle and dimming. Takes about a minute.
Certified & rated
Configurator · NR045
7 choices. Options that can’t combine with your choices say why. The standard build is filled in; tap a line to change it.

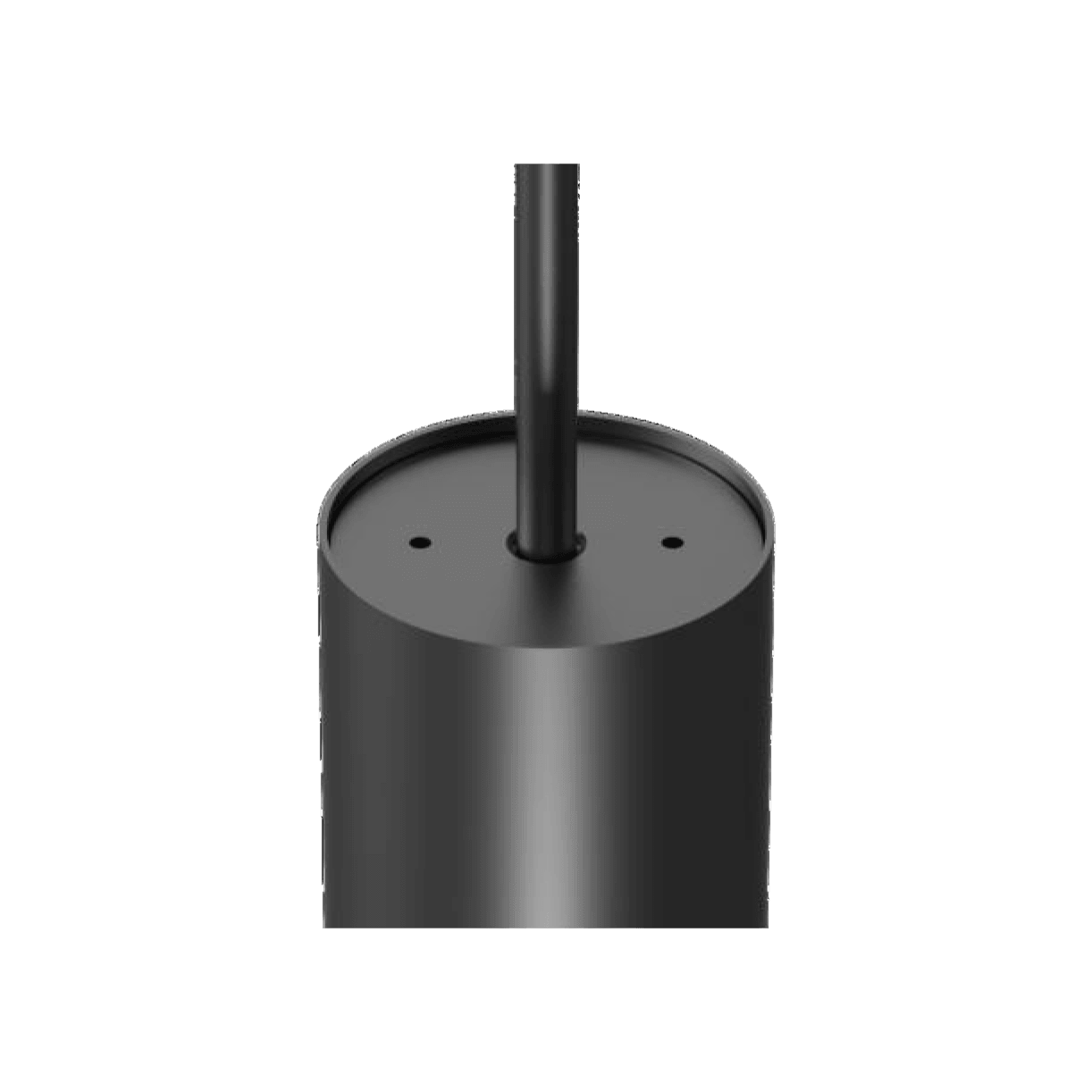

Pendant: Surface ceiling rose, no cutout
TRIAC: Forward phase dimming
Total, before tax
$334.00
Photometrics
Pick an optic, a ceiling height and a color temperature. One set of inputs drives all five views: the beam in section from the face of the hung body, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Distances are measured from the ceiling. Tested IES files for every build are in the downloads below.

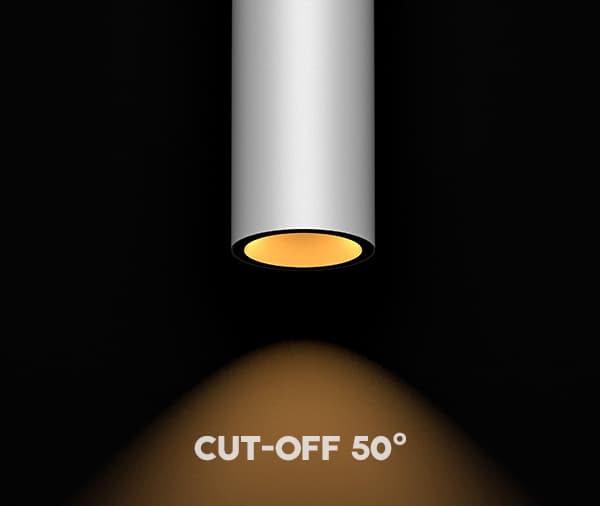

The diameter is measured to the beam edge, where intensity falls to half the center value, and follows from the rated beam angle alone, so it holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

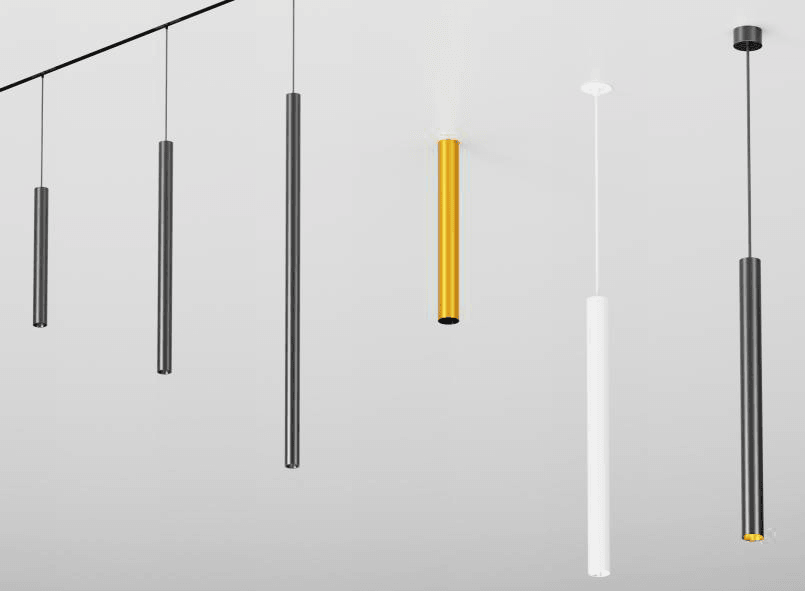

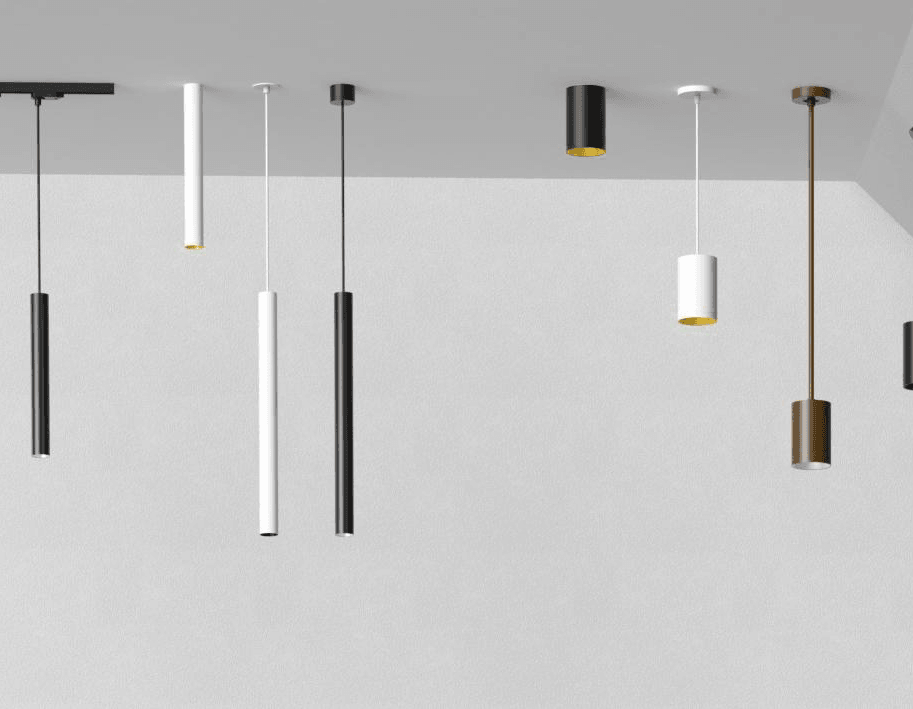

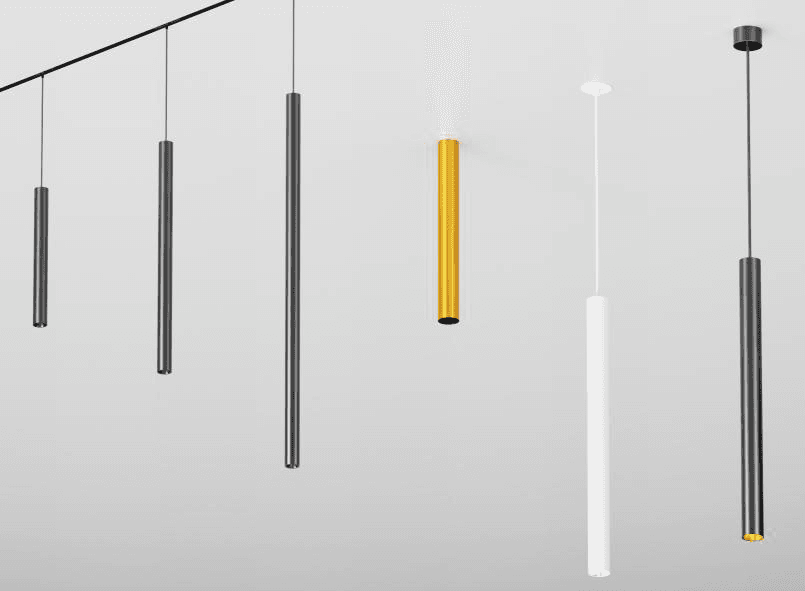

The family at work.
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
Downloads
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.

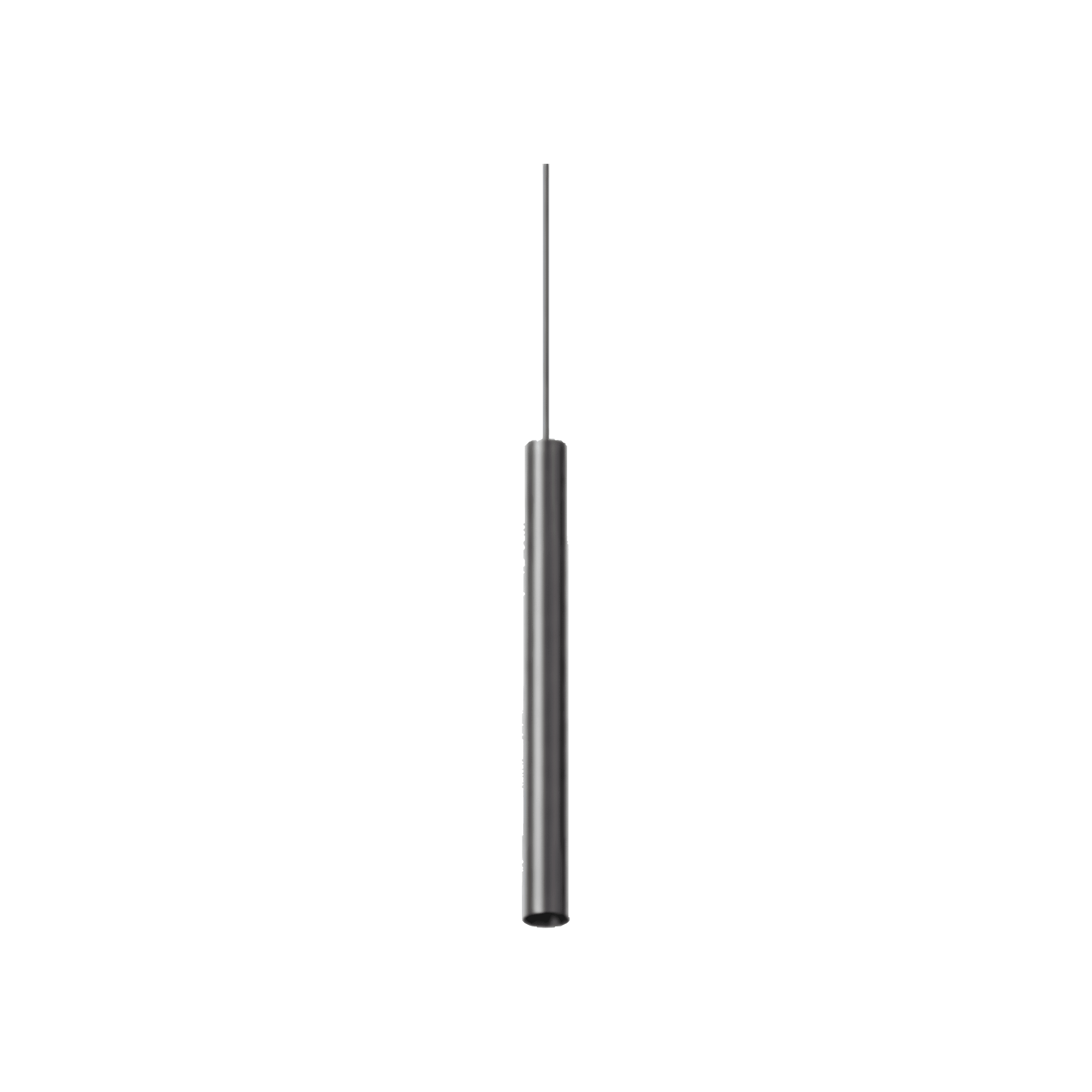

Start a Design BriefFixtures and hardware specified alongside the Nova 1.8 Inch Tube Cylinder Pendant.
