Ovega Track Lighting

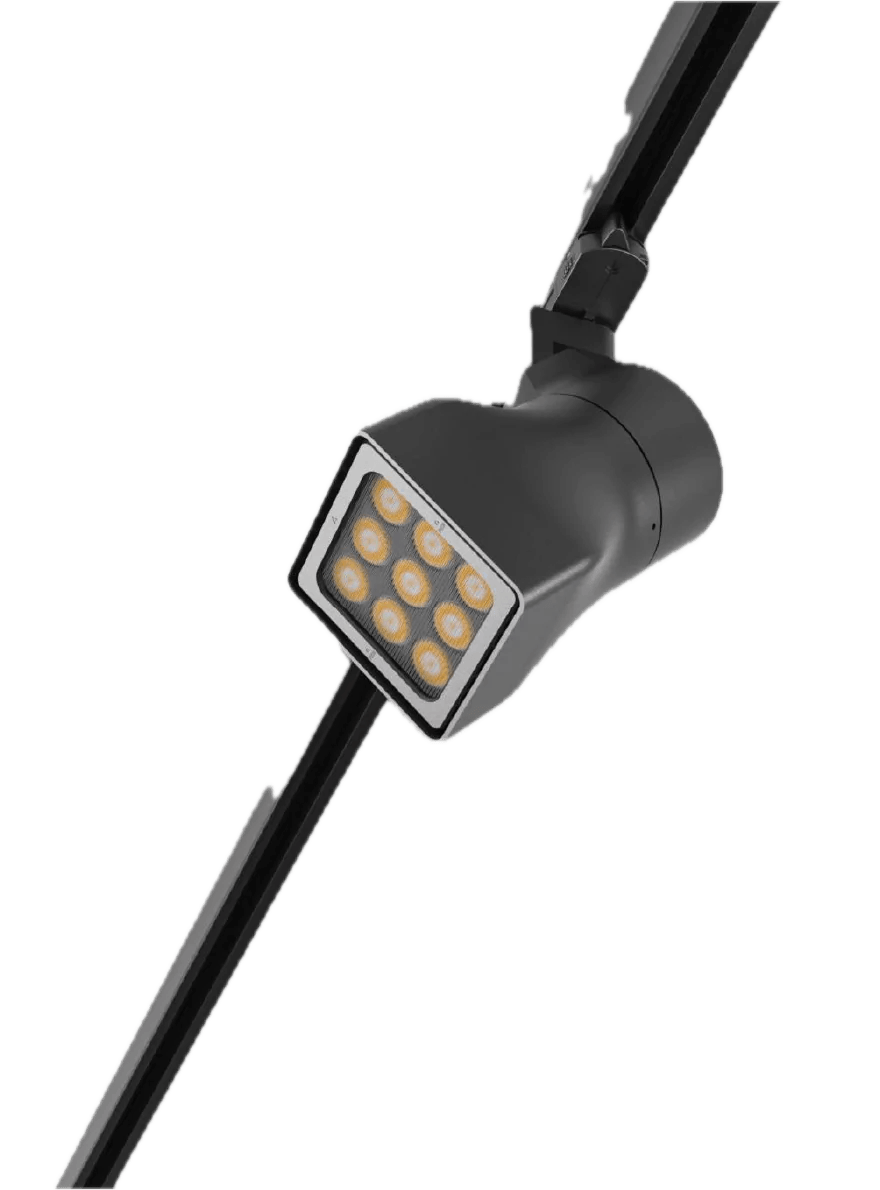

OVEGA-Plus
Model NV3-30

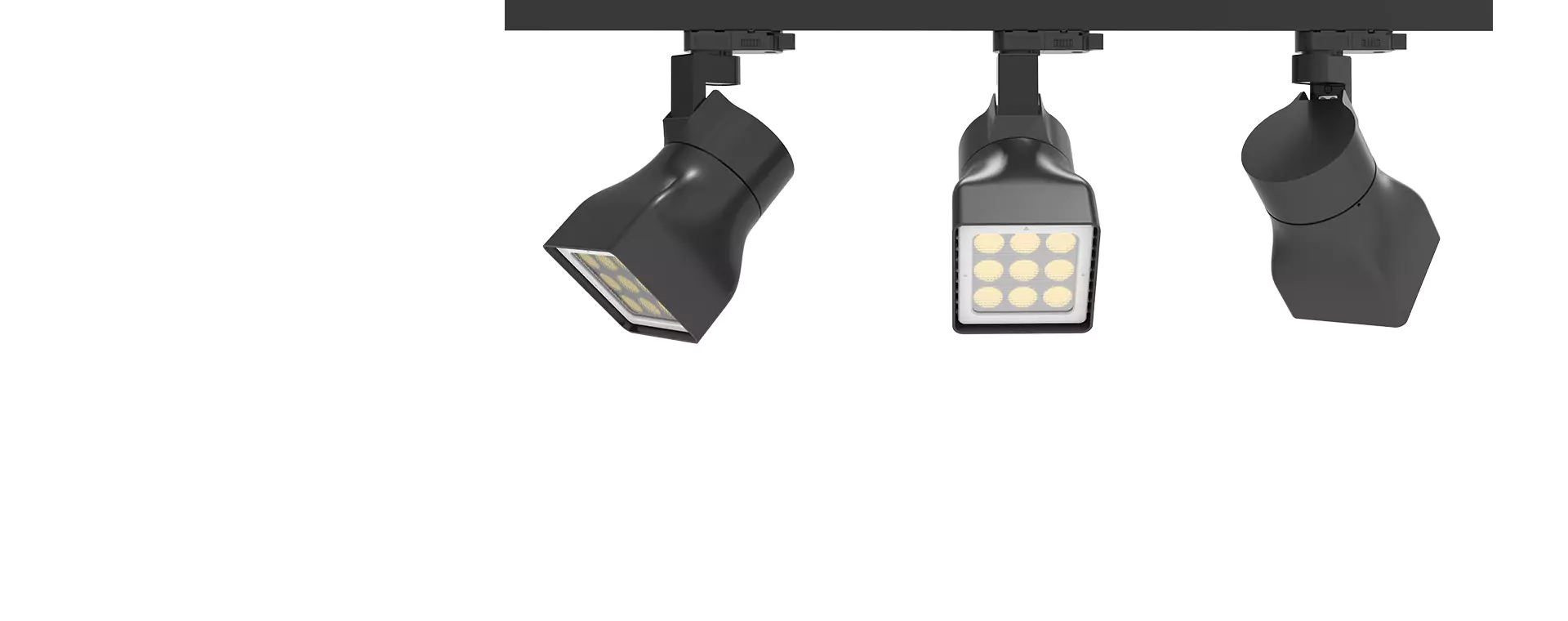

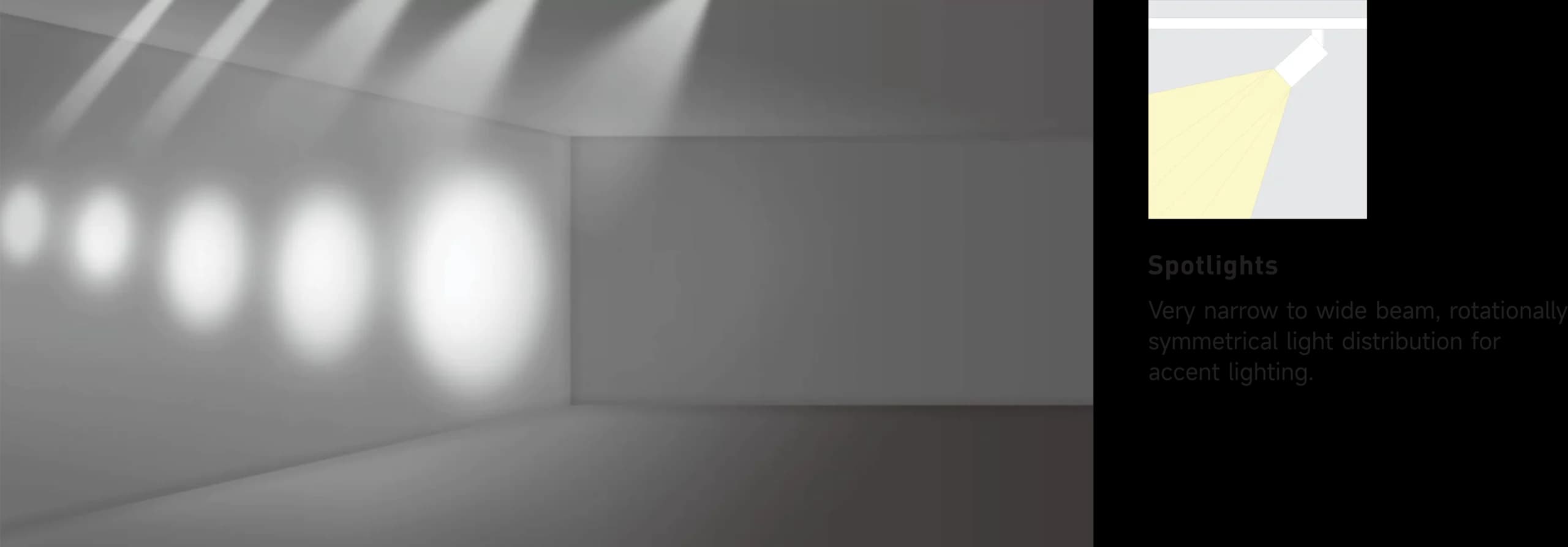

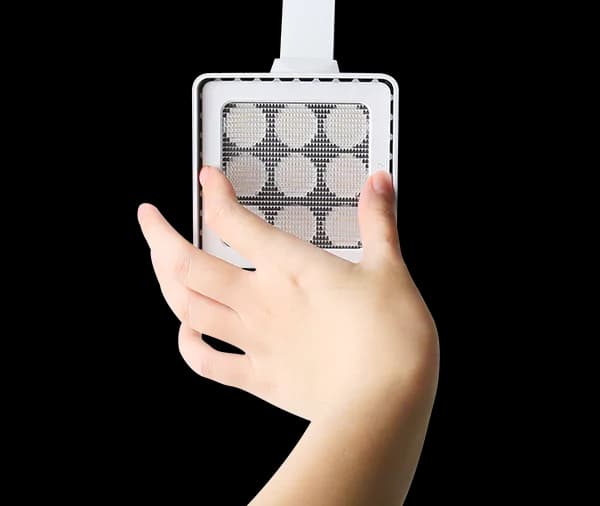

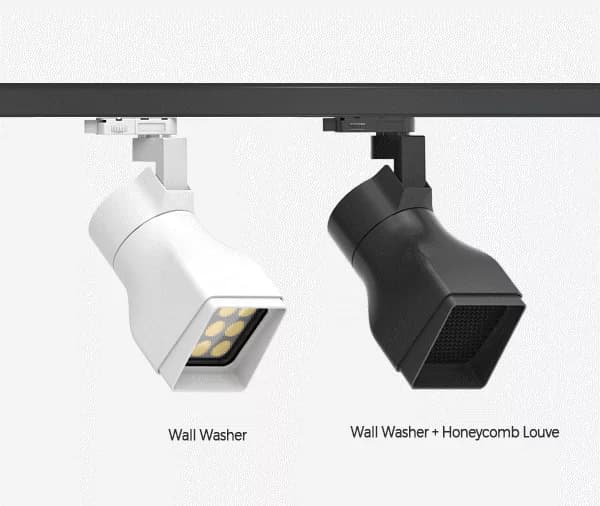

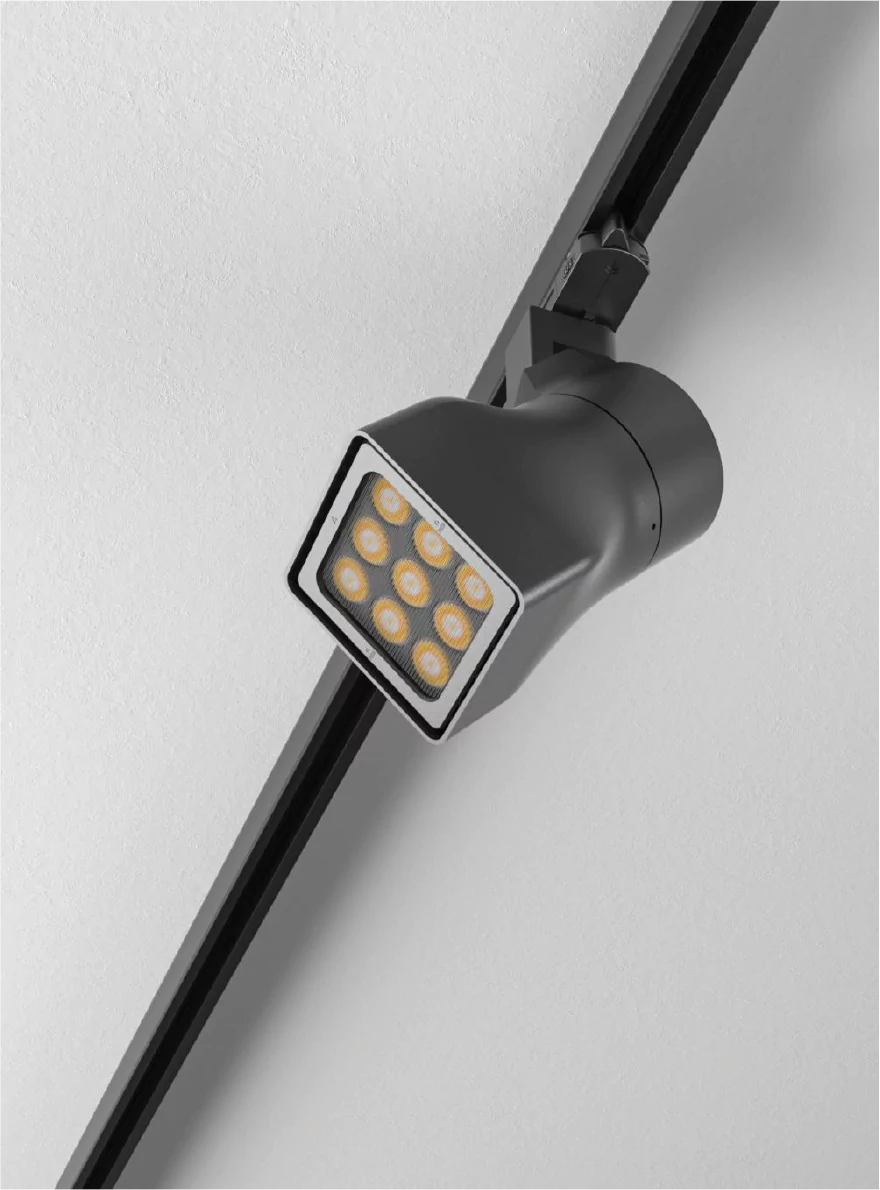

Spotlight, floodlight, and wall washer in one track head, with a circle-meets-square form and an integrated driver. 20W, 25W, or 30W, CRI 90+, 2700K to 4000K, beams from 18° to 50° plus elliptical 20°x30° to 25°x50°, dimming from on-off to 0-10V, DALI, TRIAC, or Casambi. Rotates 360° and tilts 90°; honeycomb and wall-washer accessories push-lock in without tools.
From $399.00Made to order · ships in 30 days
Choose wattage, color Temperature, beam Angle, dimming, track Adapter and finish. Takes about a minute.
Configurator · NV3-30
Build the fixture, get the order code.
7 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Wattage
Choose oneCRI
Choose oneColor Temperature
Choose oneBeam Angle
Choose oneDimming
Choose oneTrack Adapter
Choose oneFinish
Choose oneTotal, before tax
$399.00
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NV3-30
- Wattage (reference)
- 20 to 30 W
- Color temperature
- 2700K · 3000K · 3500K · 4000K
- CRI
- 90
- Driver
- Integral
- Dimming
- Non-dimmable · TRIAC
- Finishes
- Black · White

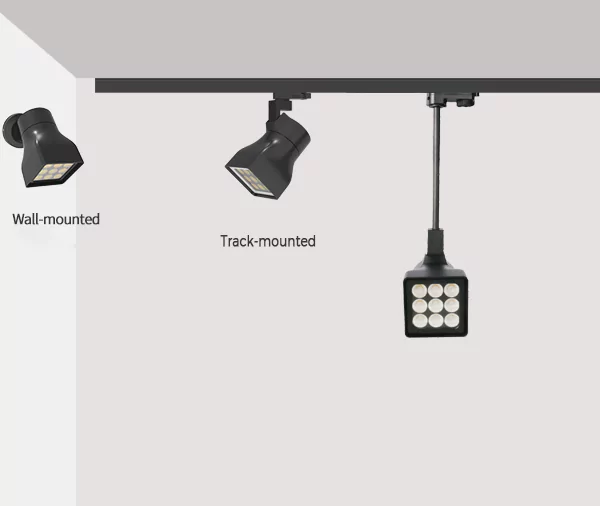

- Mounting
- Track · Wall
- Warranty
- 5 years
- Efficacy
- Up to 80 lm/W
- Elliptical beams
- 20° x 30°, 25° x 40°, 25° x 50°
- Beam angles
- 18° · 25° · 40° · 50° · 20° x 30° (Elliptical flood) · 25° x 40° (Elliptical flood) · 25° x 50° (Elliptical flood)
Downloads
- Spec sheetOn request
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
