1" Magnetic Track
Spot Cylinder - Slim Track
Model NT27-RS

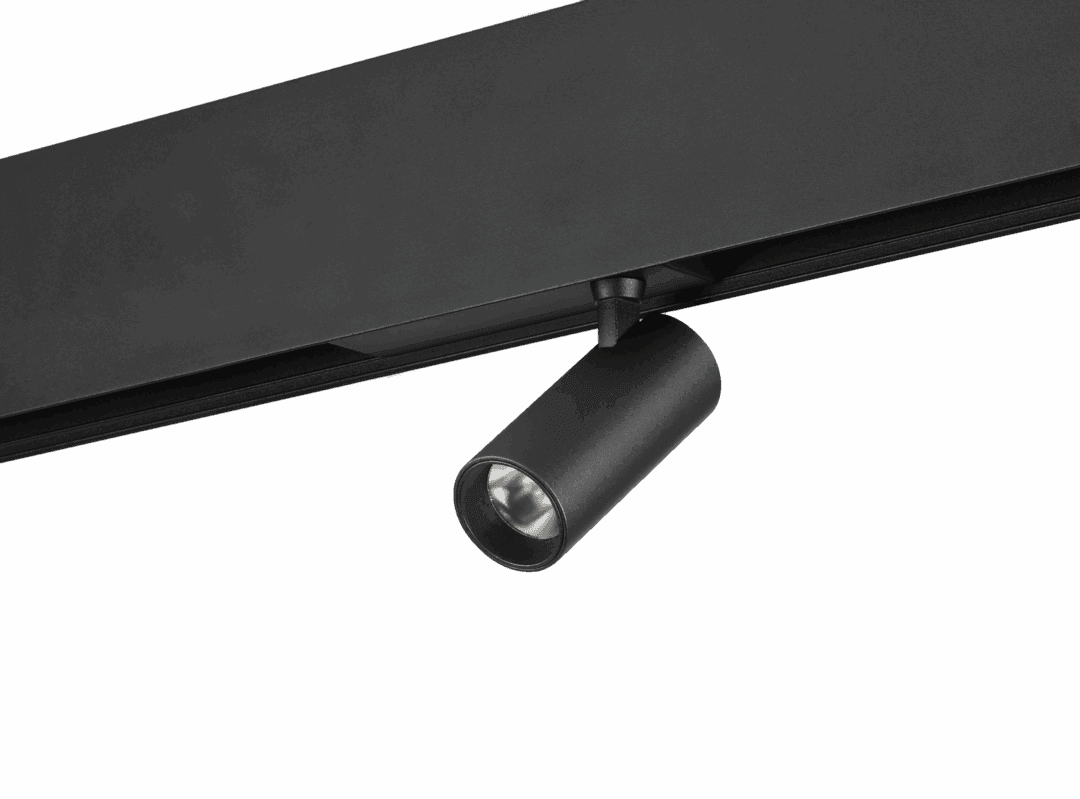

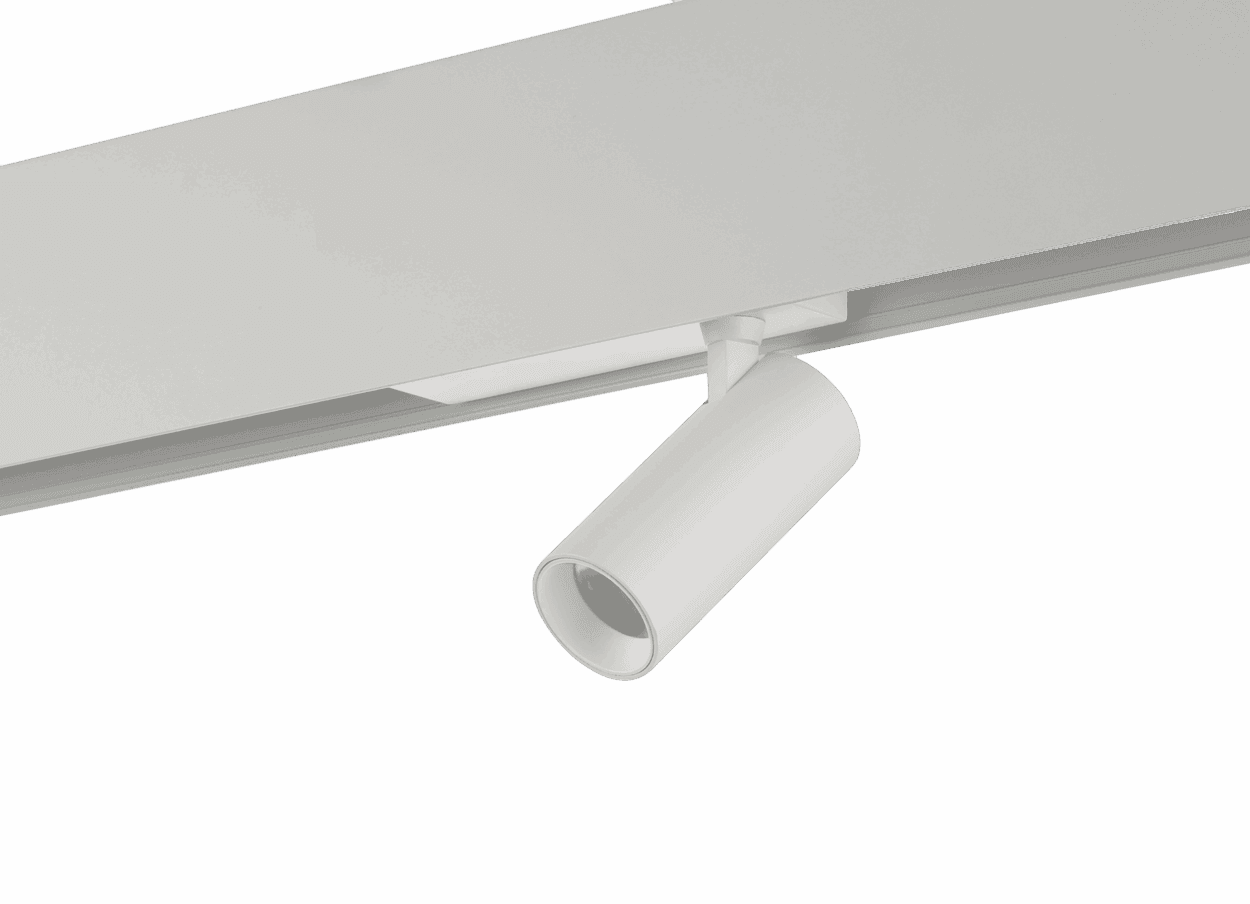

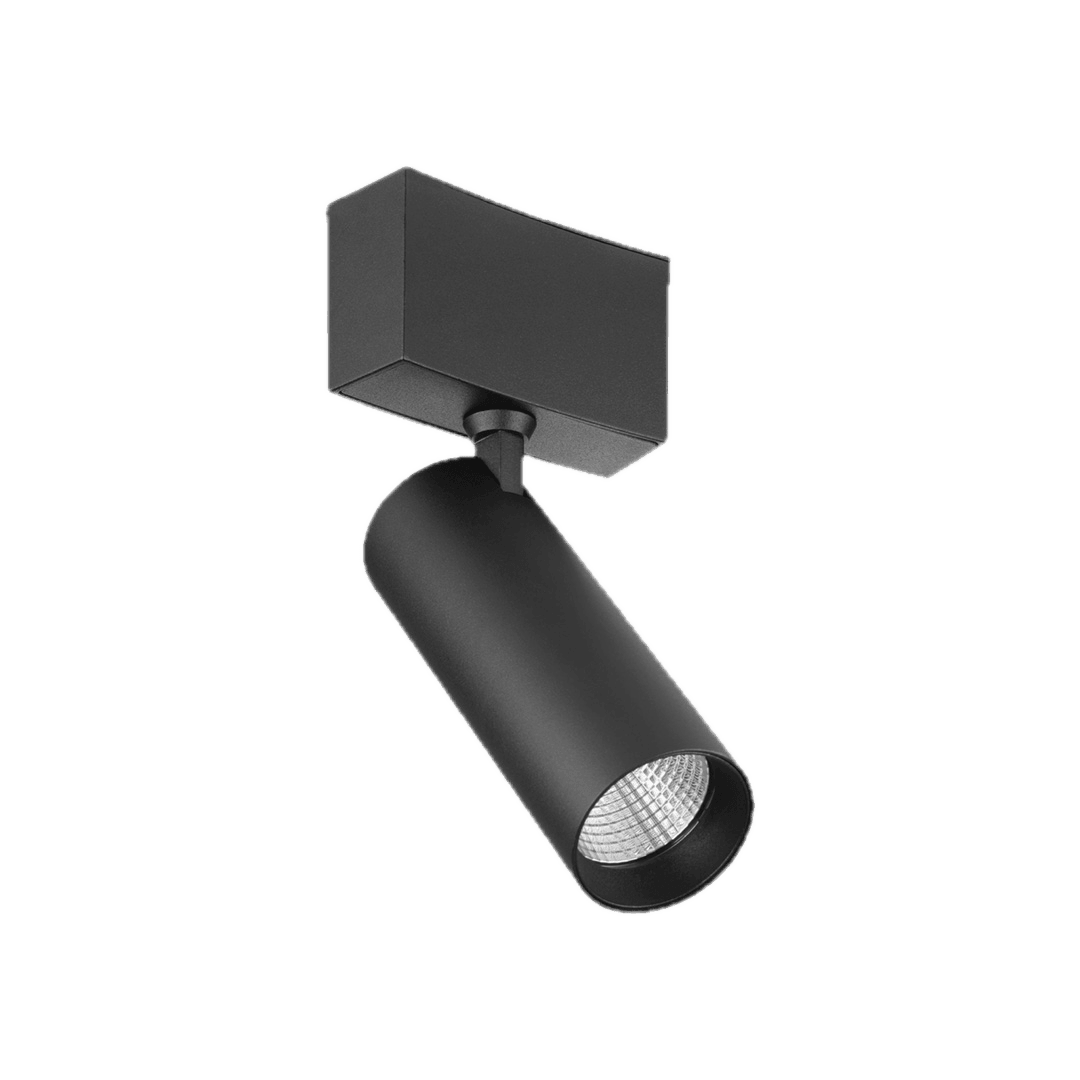

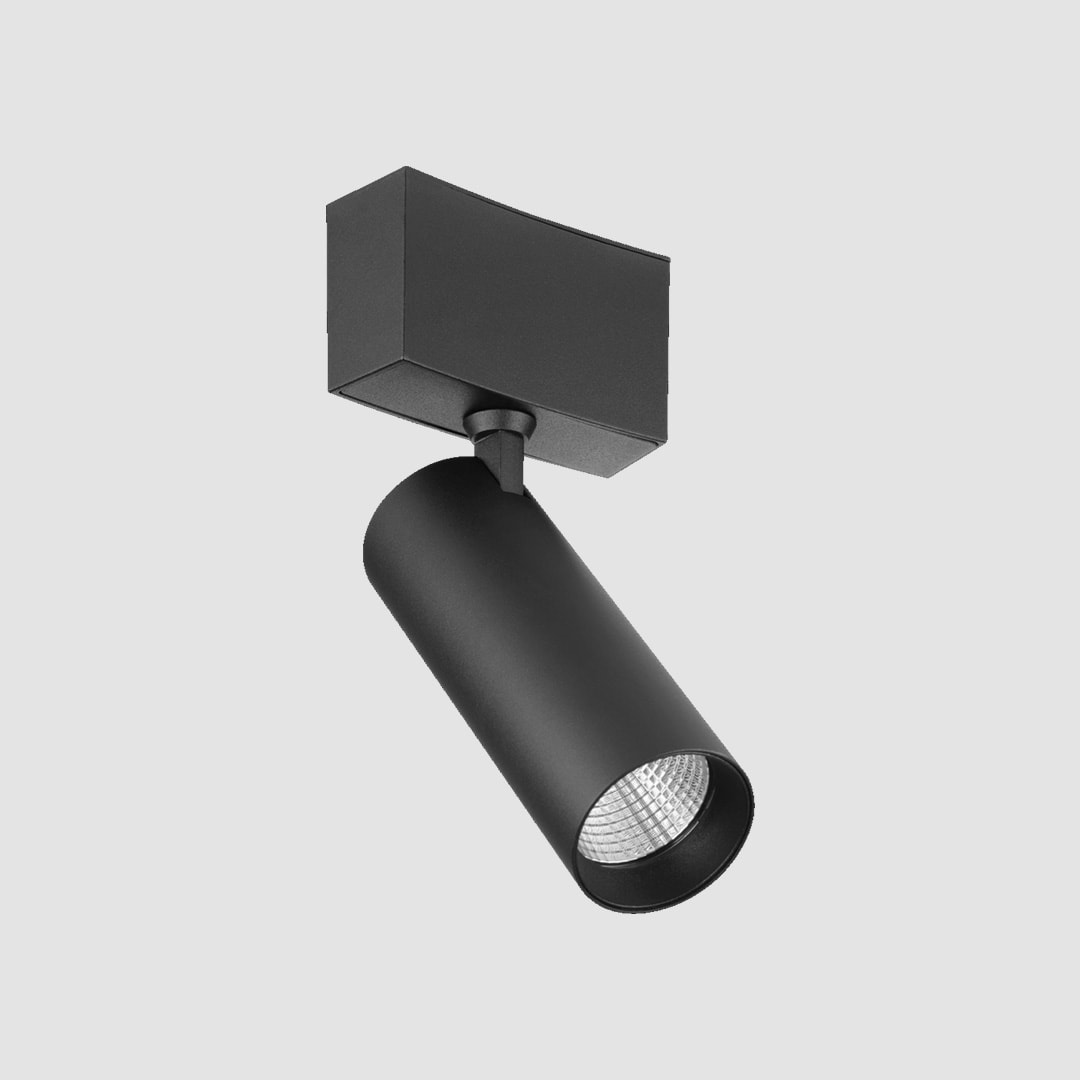

A compact round spotlight for the slim magnetic track, 35mm x 80mm, in black or white. Three beam angles from refractive or hybrid optics, 360° rotation, and Triac, 0/1-10V, and DALI dimming. The junction arm sits on the track's center of balance, so it holds steady on suspended runs. Made for cabinet walls and artwork.
- Beam
- 18-40°
From $119.00Made to order · ships in 20 to 30 days
Choose power, CRI, color temperature, beam angle, dimming and finish. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
Configurator · NT27-RS
Build the fixture, get the order code.
6 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Power
Choose oneCRI
Choose oneColor temperature
Choose oneBeam angle
Choose oneDimming
Choose oneFinish
Choose oneFrom
$119.00
Photometrics
See what the beam does before you set out the run.
Pick a head size, an optic, a ceiling height and a color temperature. One set of inputs drives all five views: the beam in section below the channel, the polar distribution, the spacing a run of heads sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
NT27-RS · Tested IES on file
Head size
Beam angle
Ceiling height
Color temperature
NT27-RS · Beam section5W · 20° · 3000K · 9 ft ceilingScale varies
Beam diameter at the floor
0.97 m3.2 ft
Ø = 2 × 2.74 m × tan 10°Tested · 5W · 3000K460 lm · 3,148 cd · 6.7 W · 69 lm/W
Below fixtureBeam ØLuxIlluminance
1.0 m0.35 m1.2 ft3,150 lx
2.0 m0.71 m2.3 ft790 lx
Floor · 2.74 m0.97 m3.2 ft420 lx
Illuminance is inverse-square from the tested center-beam intensity of 3,148 cd in NT27-RS-5W-3000K-20D.ies, and delivered lumens are as the file states them; the diameter is geometry from the rated beam angle. The lux column is for one fixture on axis, direct. What the room adds is separate and is drawn on the section: a 0.80 ceiling over a 0.20 floor trade light until they settle 19% above the direct level, and that arrives evenly rather than in the pool, so it lifts the gaps between fixtures by as much as the centres. It is an estimate with no walls in it, which makes it the open plan figure; a small room with 0.50 walls returns a little less. For a layout across a whole plan, send us the drawings.
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NT27-RS
- Wattage (reference)
- 5 to 20 W
- Lumen output (reference)
- 530 to 1345 lm
- CRI
- 90
- Fixture voltage
- 24 V DC
- Driver
- Remote
- Dimming
- TRIAC · 0-10V · DALI-2 DT8
- Ingress rating
- IP20
- Finishes
- White · Black
- Mounting
- Recessed · Surface · Pendant
- Environment
- Dry
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 20 to 30 days
- Adjustment
- 360° rotation
- Dimensions (reference)
- 5W: Ø35 x 80 mm · 10W: Ø50 x 140 mm · 20W: Ø70 x 162 mm
- Accessories
- Honeycomb, frosted and stripy filters, ordered separately
- Material
- Aluminum
- Certification
- ETL · CE
- Color temperature
- 2700K · 3000K · 3500K · 4000K
- Beam angles
- 18° · 20° · 24° · 30° · 36° · 40°
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guideOn request
- Magnetic track power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
