Garden Pavilion

Location
Concept study
Type
Residential
Year
2026

An open-sided outdoor lighting concept explored through angled Blender renders and matching calculated amber heatmaps. Dining, lounge seating and the outdoor kitchen share a clear circulation route.

Scope
Dining and outdoor kitchen
Systems
Nuordic N55 10 W / 3000 K / 50 degree measured IES for interior downlights. Generic 1000 lm / 60 degree outdoor downlights where shown.
Targets
Concept studies, not for construction. Flat tables: empty 2.5 ft horizontal workplane, 0.25 ft grid, MF 0.90; opaque walls and closed privacy doors. Upper stair voids excluded; lower stair-void lights at 19 ft. Furnished amber views: direct electric light on upward-facing surfaces with modeled furniture shadows; neutral vertical faces are unmeasured. Both calculations exclude daylight, reflections and interlevel transfer. Appearance renders use daylight. Walls are sectioned for visibility.

Furnished in 3D

The space, and the light within it.

Explore each furnished floor from above. Drag the handle to compare the material view with its amber illuminance heatmap, including furniture shadows. Material views are appearance visualizations.

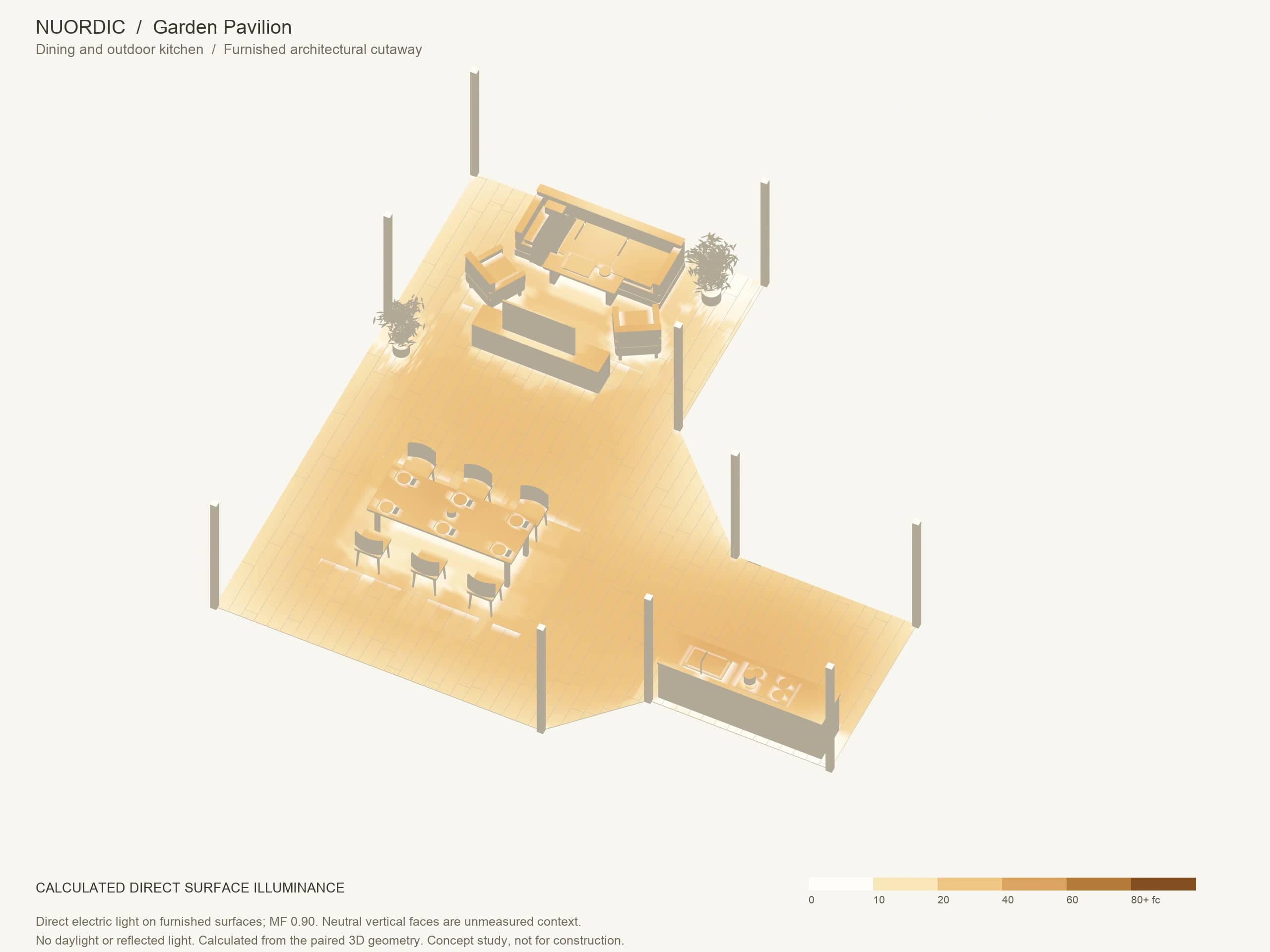

Garden Pavilion, Dining and outdoor kitchen: matching angled Blender view with calculated amber direct electric illuminance on furnished surfaces.
Garden Pavilion, Dining and outdoor kitchen: angled whole-floor Blender Cycles render with furnished interiors, modeled planting, windows and doors.
3D viewHeatmap
Dining and outdoor kitchen / Furnished architectural cutaway

Calculated results

Every room against its target.

Calculated on the empty workplane specified in each row. Furnished 3D heatmaps show light on visible surfaces, so their values can differ from these workplane results.

Calculated maintained illuminance by room, in footcandles
RoomPlaneTarget fcAverage fcMinimum fcUniformity
Dining and outdoor kitchen: Dining pavilionHorizontal plane, 2.5 ft above floor; direct component1021.35.60.264
Dining and outdoor kitchen: Outdoor kitchenHorizontal plane, 2.5 ft above floor; direct component2024.89.30.373
Dining and outdoor kitchen: Covered loungeHorizontal plane, 2.5 ft above floor; direct component518.14.70.262
Maintained values from the issued calculation report. Uniformity is minimum over average.

In the package

  • Dining and outdoor kitchen lighting layoutRCP-01
  • Dining and outdoor kitchen direct illuminanceFC-01
  • Calculation results and assumptionsCALC
RCPIlluminanceRendersCalc report

Supporting drawings

Flat plans and heatmaps.

Footcandles
01020406080+

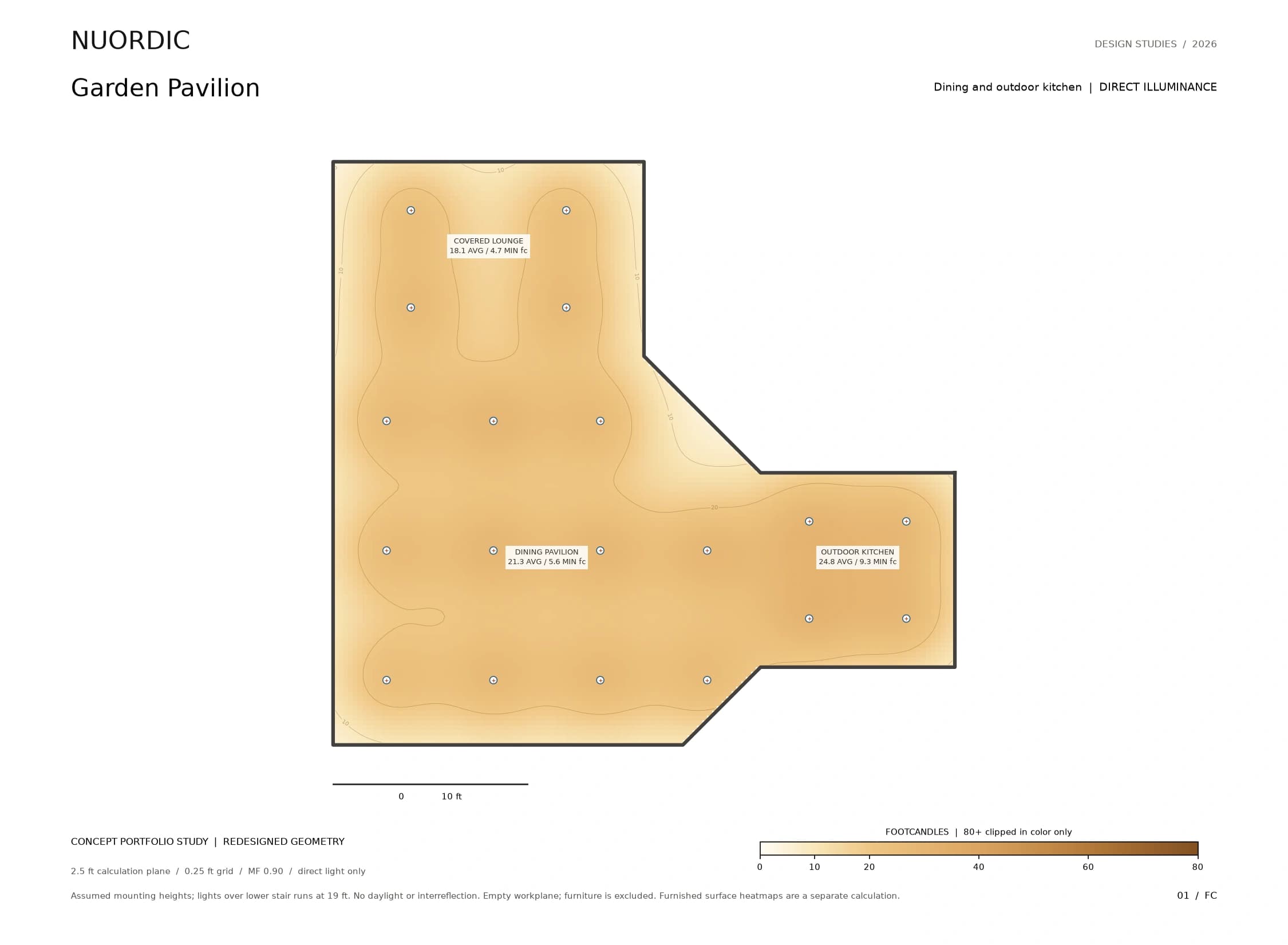

Garden Pavilion, Dining and outdoor kitchen: recalculated amber direct illuminance on the empty 2.5 ft workplane.

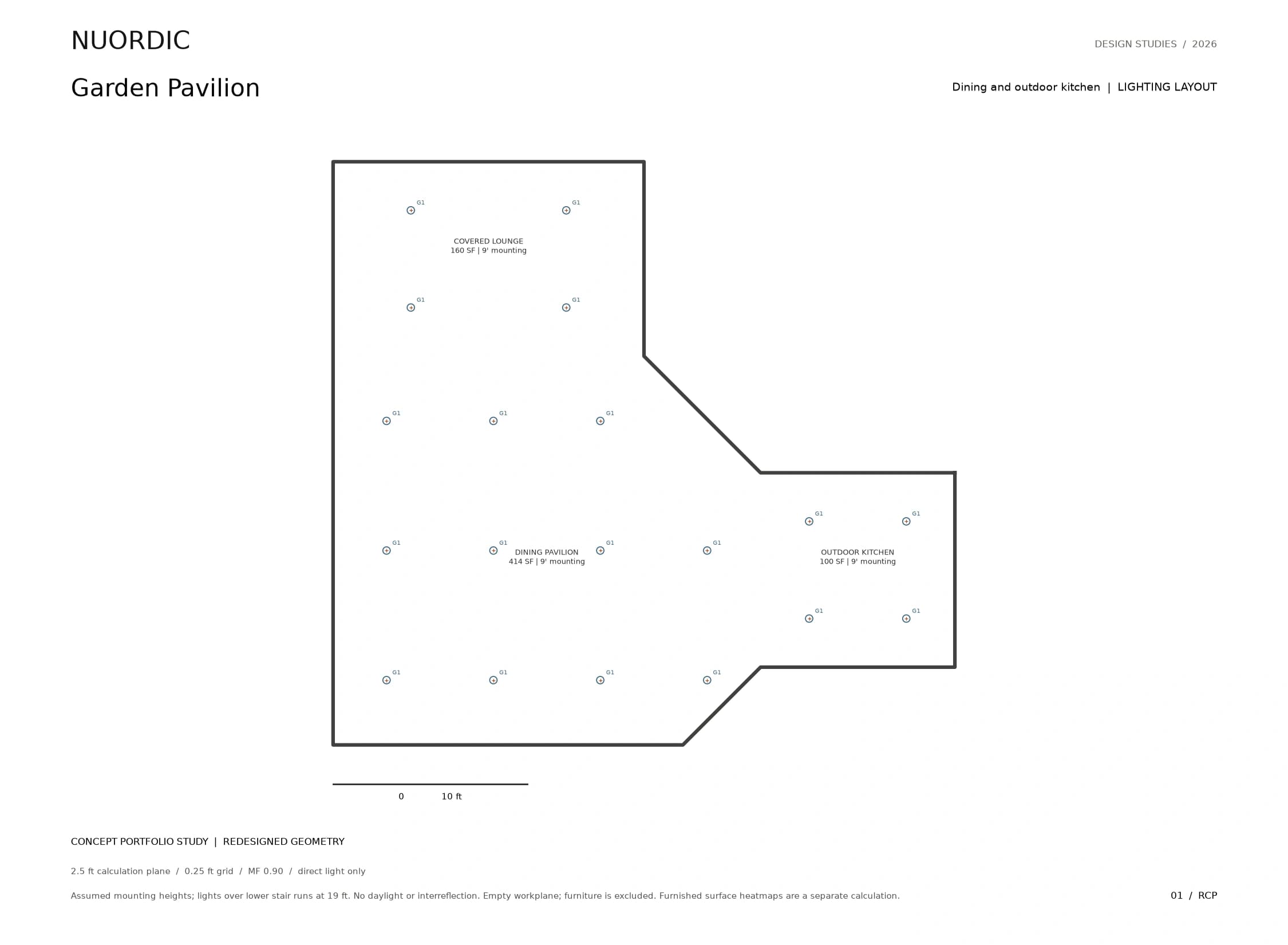

Garden Pavilion, Dining and outdoor kitchen: revised concept lighting layout.
LayoutFootcandles
Dining and outdoor kitchenDrag the handle to compare the layout with its footcandle study
