Lantern Dining Room
- Location
- Concept study
- Type
- Hospitality
- Year
- 2026
A furnished lighting concept explored through angled Blender renders and matching calculated amber heatmaps. Revised layouts include enclosed service rooms, practical circulation and carefully oriented furniture.
- Scope
- Front of house
- Systems
- Nuordic N55 10 W / 3000 K / 50 degree measured IES for interior downlights. Generic 1000 lm / 60 degree outdoor downlights where shown.
- Targets
- Concept studies, not for construction. Flat tables: empty 2.5 ft horizontal workplane, 0.25 ft grid, MF 0.90; opaque walls and closed privacy doors. Upper stair voids excluded; lower stair-void lights at 19 ft. Furnished amber views: direct electric light on upward-facing surfaces with modeled furniture shadows; neutral vertical faces are unmeasured. Both calculations exclude daylight, reflections and interlevel transfer. Appearance renders use daylight. Walls are sectioned for visibility.
Furnished in 3D
The space, and the light within it.

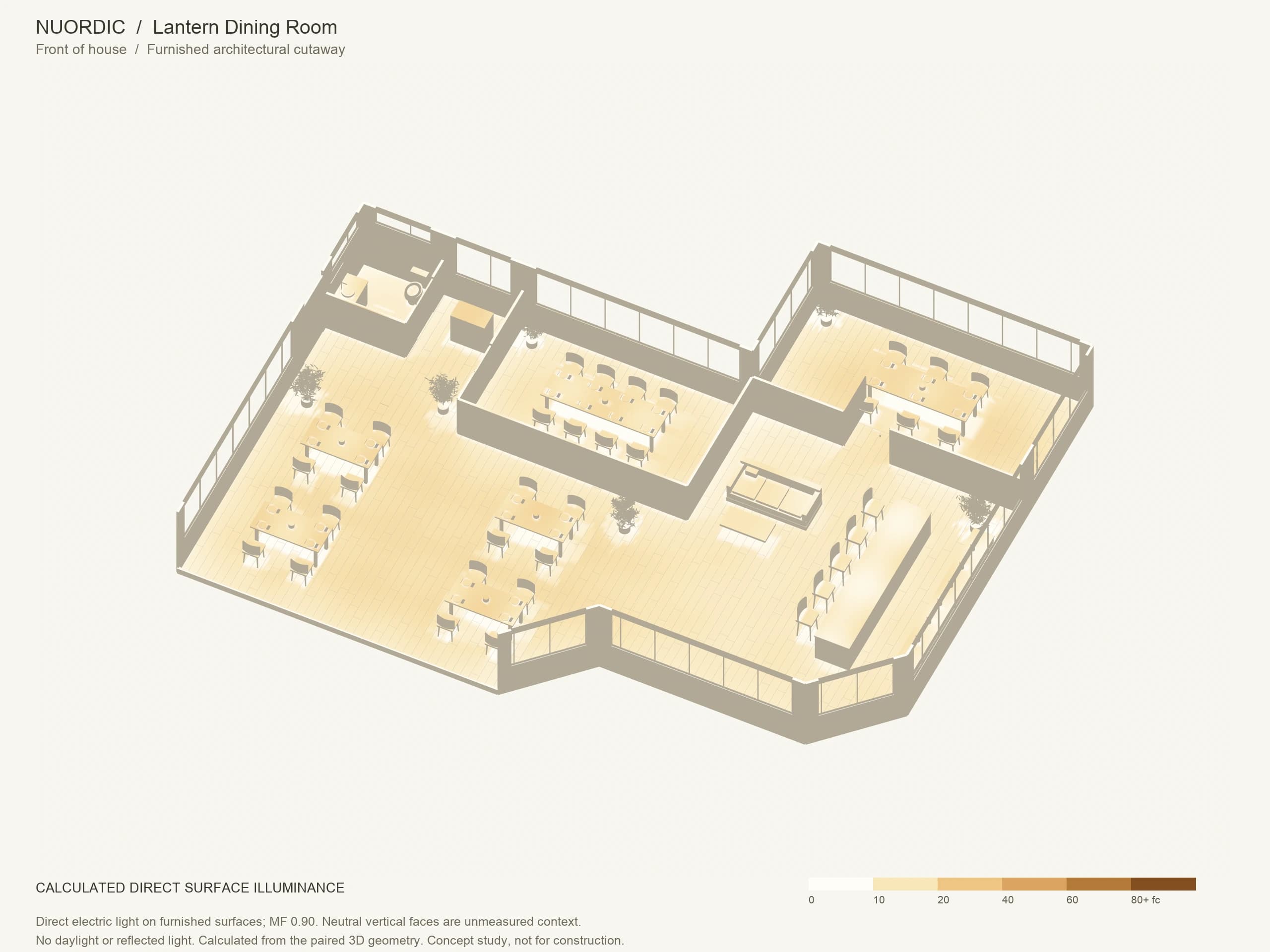

Explore each furnished floor from above. Drag the handle to compare the material view with its amber illuminance heatmap, including furniture shadows. Material views are appearance visualizations.
Calculated results
Every room against its target.
Calculated on the empty workplane specified in each row. Furnished 3D heatmaps show light on visible surfaces, so their values can differ from these workplane results.
| Room | Plane | Target fc | Average fc | Minimum fc | Uniformity |
|---|---|---|---|---|---|
| Front of house: Main dining | Horizontal plane, 2.5 ft above floor; direct component | 10 | 11.3 | 0.8 | 0.073 |
| Front of house: Host gallery | Horizontal plane, 2.5 ft above floor; direct component | 5 | 9.8 | 1.8 | 0.185 |
| Front of house: Private dining | Horizontal plane, 2.5 ft above floor; direct component | 10 | 10 | 2.1 | 0.207 |
| Front of house: Bar lounge | Horizontal plane, 2.5 ft above floor; direct component | 5 | 8.1 | 0.8 | 0.103 |
| Front of house: Tasting room | Horizontal plane, 2.5 ft above floor; direct component | 10 | 11.1 | 2.6 | 0.236 |
| Front of house: Guest washroom | Horizontal plane, 2.5 ft above floor; direct component | 10 | 7.3 | 1.3 | 0.172 |
In the package

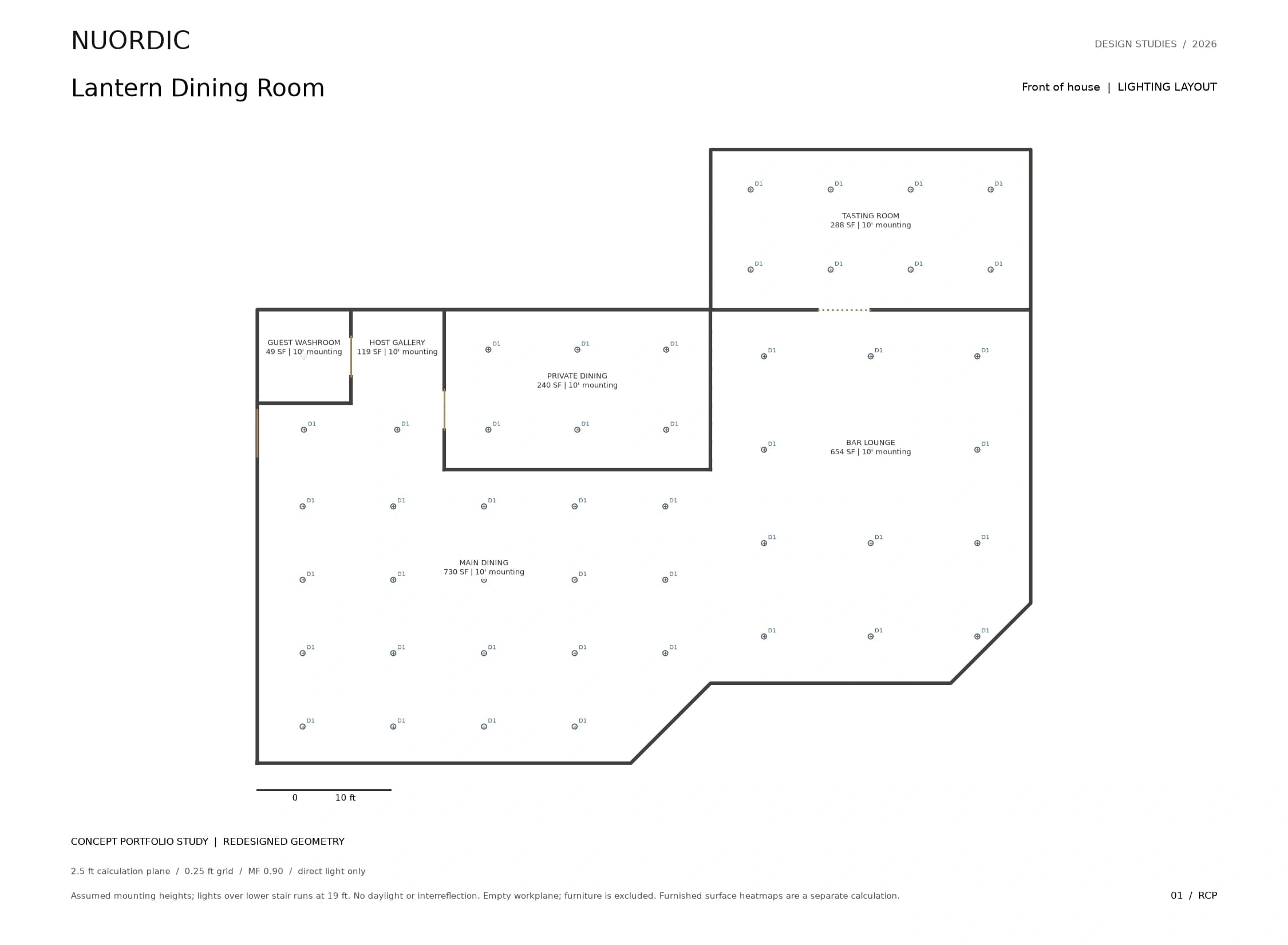

- Front of house lighting layoutRCP-01

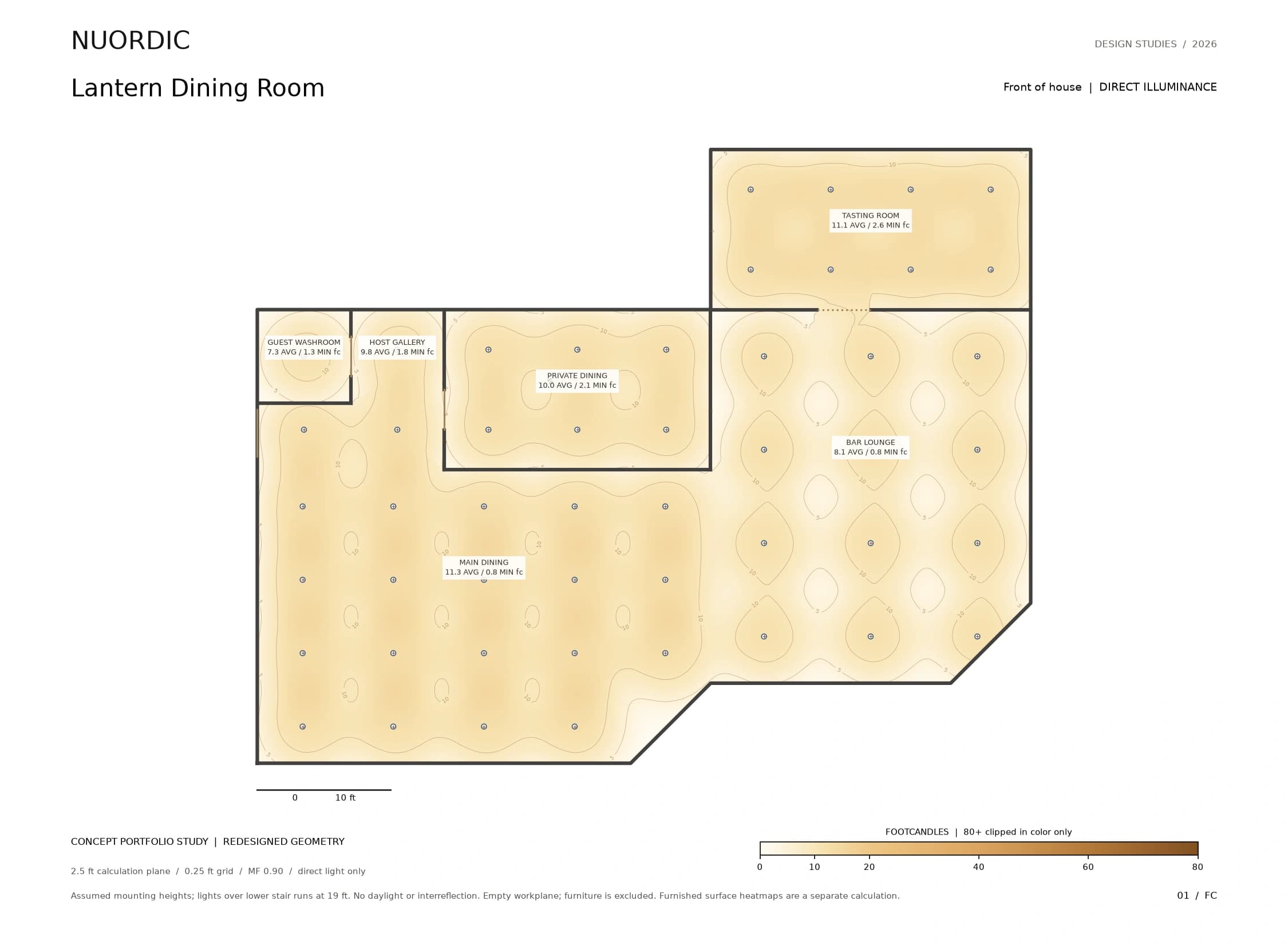

- Front of house direct illuminanceFC-01
- Calculation results and assumptionsCALC
