Garden Wing Retrofit

Location
Concept study
Type
Residential
Year
2026

A furnished lighting concept explored through angled Blender renders and matching calculated amber heatmaps. Revised layouts include enclosed service rooms, practical circulation and carefully oriented furniture.

Scope
Single level
Systems
Nuordic N55 10 W / 3000 K / 50 degree measured IES for interior downlights. Generic 1000 lm / 60 degree outdoor downlights where shown.
Targets
Concept studies, not for construction. Flat tables: empty 2.5 ft horizontal workplane, 0.25 ft grid, MF 0.90; opaque walls and closed privacy doors. Upper stair voids excluded; lower stair-void lights at 19 ft. Furnished amber views: direct electric light on upward-facing surfaces with modeled furniture shadows; neutral vertical faces are unmeasured. Both calculations exclude daylight, reflections and interlevel transfer. Appearance renders use daylight. Walls are sectioned for visibility.

Furnished in 3D

The space, and the light within it.

Explore each furnished floor from above. Drag the handle to compare the material view with its amber illuminance heatmap, including furniture shadows. Material views are appearance visualizations.

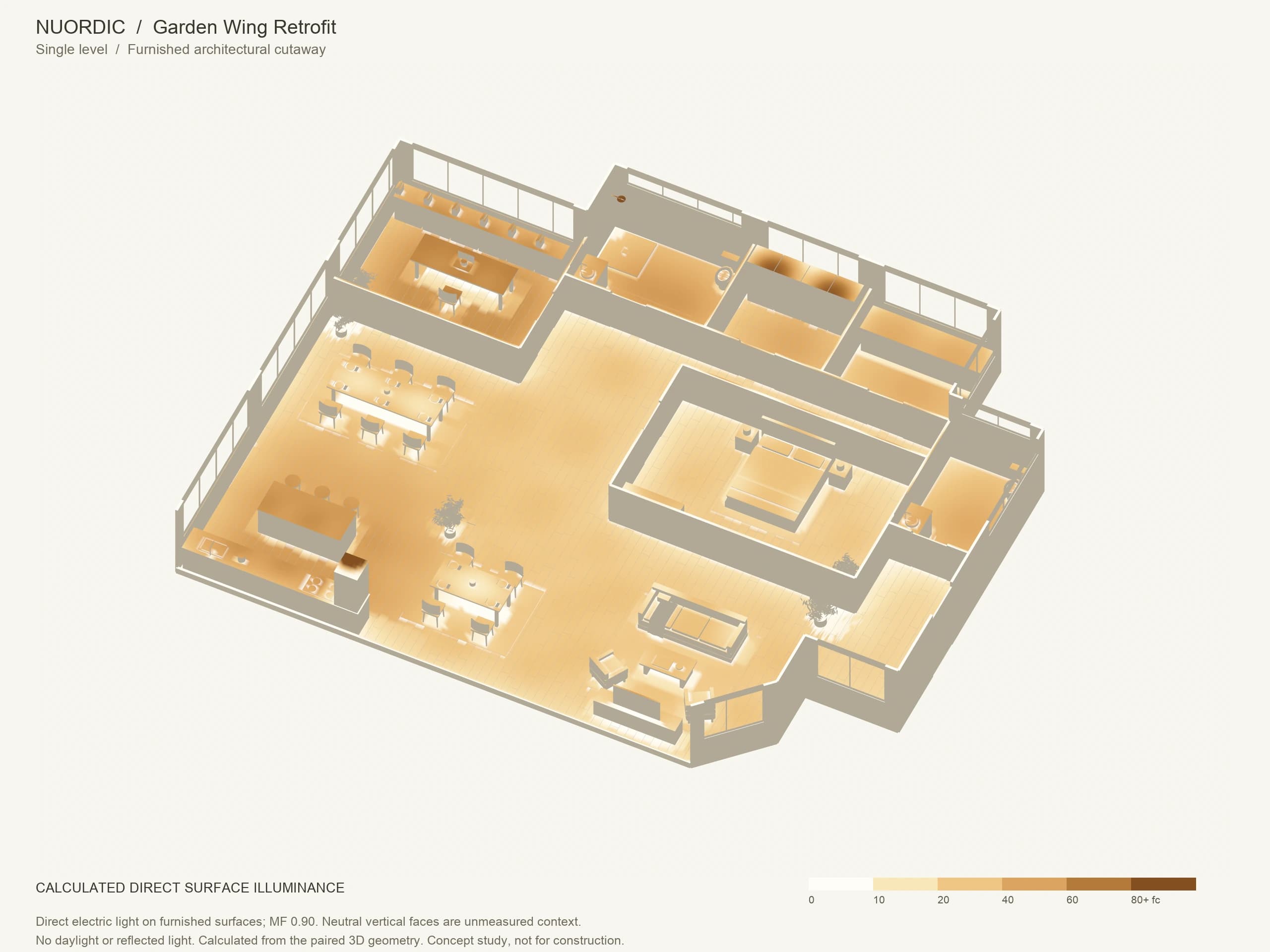

Garden Wing Retrofit, Single level: matching angled Blender view with calculated amber direct electric illuminance on furnished surfaces.

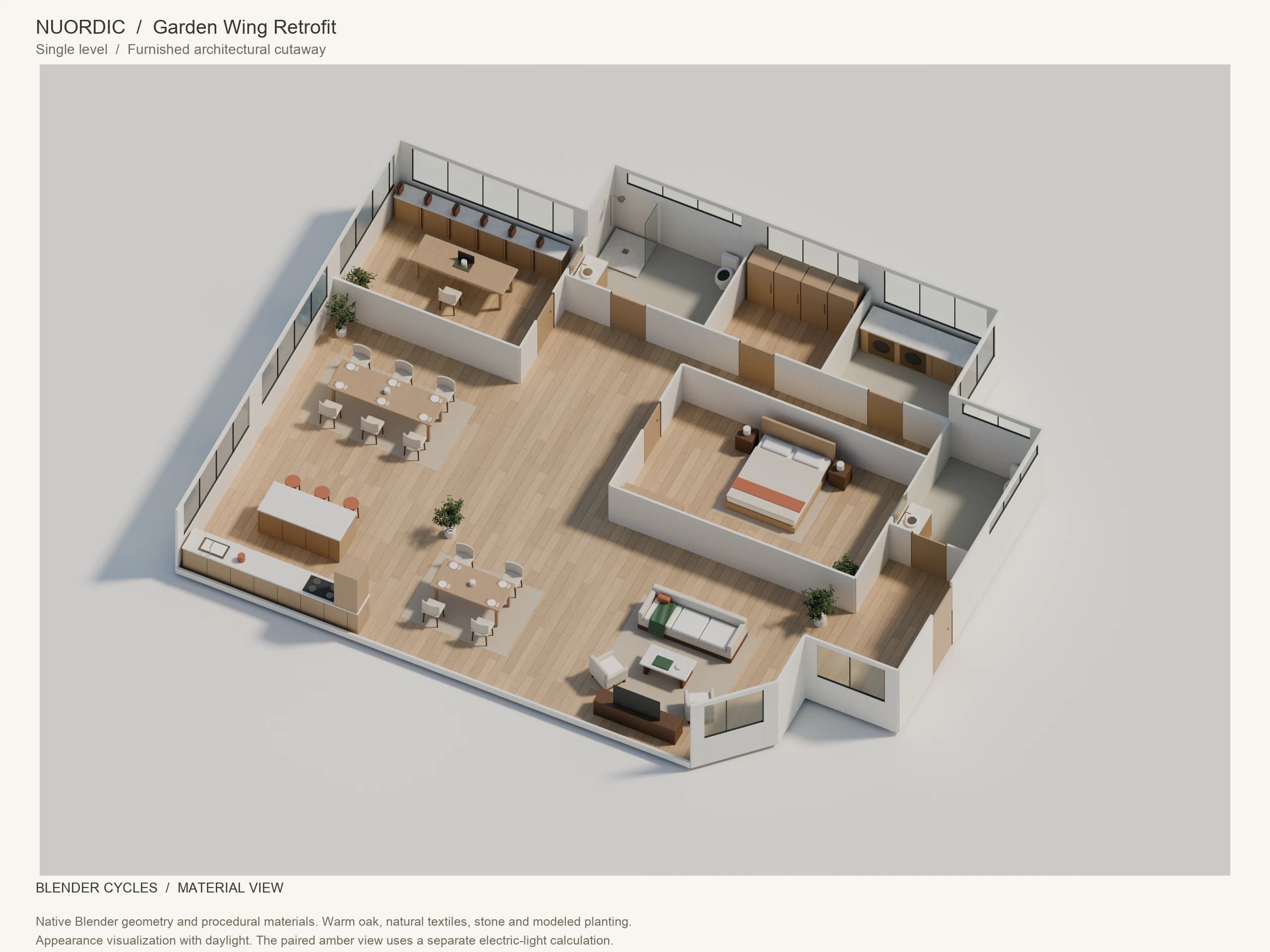

Garden Wing Retrofit, Single level: angled whole-floor Blender Cycles render with furnished interiors, modeled planting, windows and doors.
3D viewHeatmap
Single level / Furnished architectural cutaway

Calculated results

Every room against its target.

Calculated on the empty workplane specified in each row. Furnished 3D heatmaps show light on visible surfaces, so their values can differ from these workplane results.

Calculated maintained illuminance by room, in footcandles
RoomPlaneTarget fcAverage fcMinimum fcUniformity
Single level: KitchenHorizontal plane, 2.5 ft above floor; direct component2038.912.30.316
Single level: BreakfastHorizontal plane, 2.5 ft above floor; direct component1021.54.80.224
Single level: LivingHorizontal plane, 2.5 ft above floor; direct component1018.53.50.191
Single level: DiningHorizontal plane, 2.5 ft above floor; direct component1022.52.80.123
Single level: HallHorizontal plane, 2.5 ft above floor; direct component518.71.80.094
Single level: Primary suiteHorizontal plane, 2.5 ft above floor; direct component1017.21.70.096
Single level: StudyHorizontal plane, 2.5 ft above floor; direct component2043.2140.325
Single level: BathHorizontal plane, 2.5 ft above floor; direct component2036.212.20.338
Maintained values from the issued calculation report. Uniformity is minimum over average.

In the package

  • Single level lighting layoutRCP-01
  • Single level direct illuminanceFC-01
  • Calculation results and assumptionsCALC
RCPIlluminanceRendersCalc report

Supporting drawings

Flat plans and heatmaps.

Footcandles
01020406080+

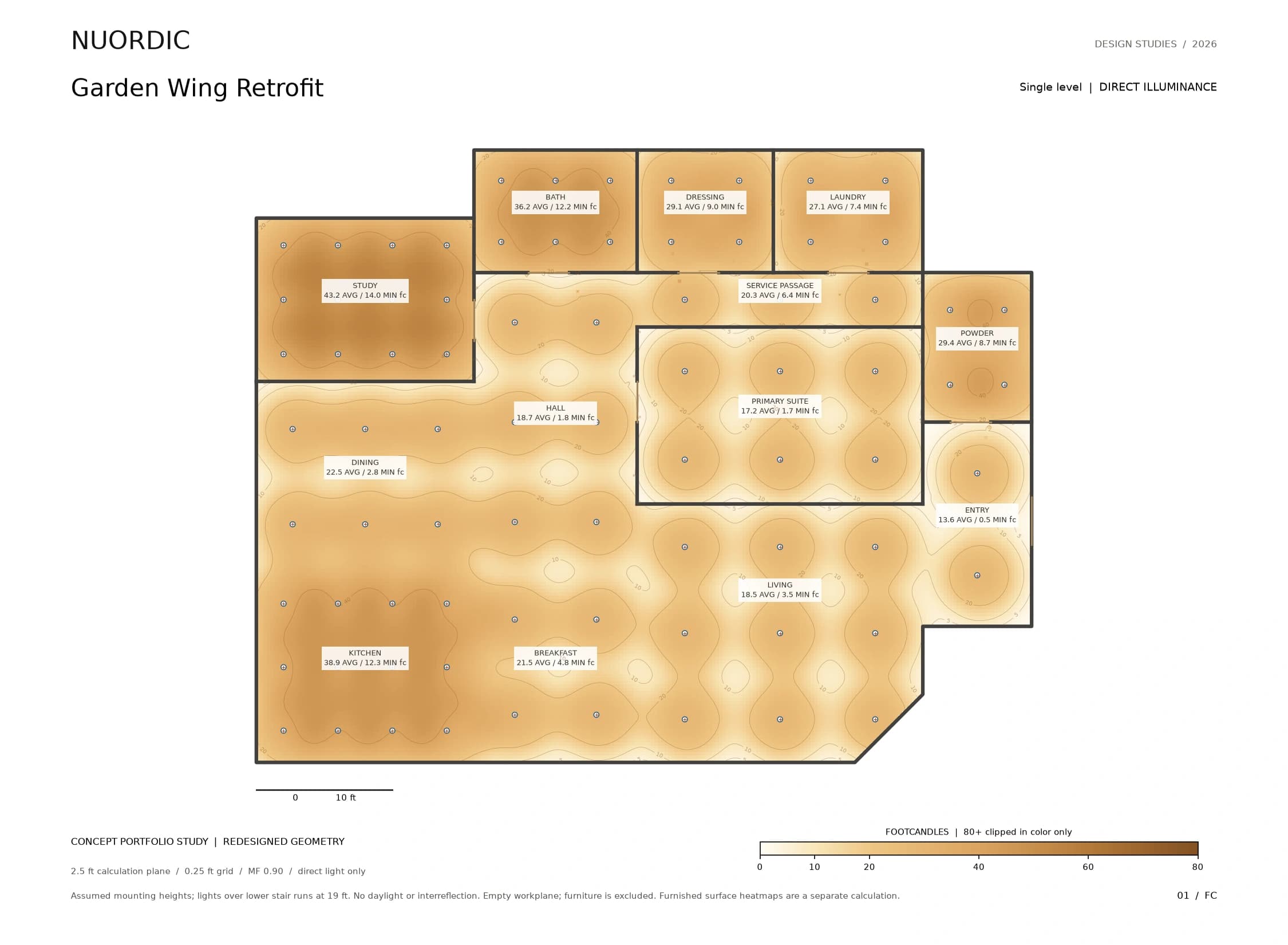

Garden Wing Retrofit, Single level: recalculated amber direct illuminance on the empty 2.5 ft workplane.

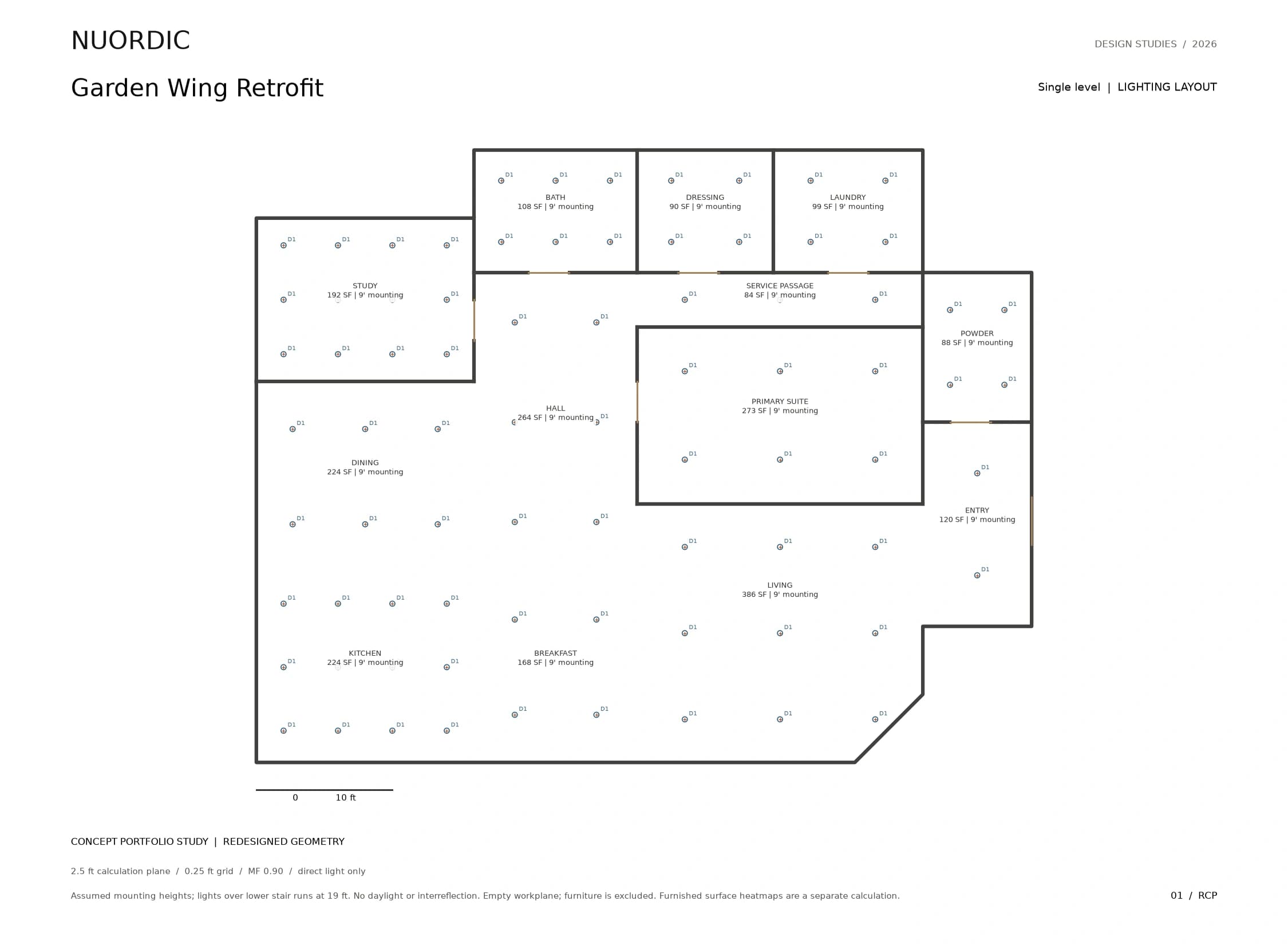

Garden Wing Retrofit, Single level: revised concept lighting layout.
LayoutFootcandles
Single levelDrag the handle to compare the layout with its footcandle study
