Folded Roof House

Location
Concept study
Type
Residential
Year
2026

A furnished lighting concept explored through angled Blender renders and matching calculated amber heatmaps. Revised layouts include enclosed service rooms, practical circulation and carefully oriented furniture.

Scope
Ground floor; Upper floor
Systems
Nuordic N55 10 W / 3000 K / 50 degree measured IES for interior downlights. Generic 1000 lm / 60 degree outdoor downlights where shown.
Targets
Concept studies, not for construction. Flat tables: empty 2.5 ft horizontal workplane, 0.25 ft grid, MF 0.90; opaque walls and closed privacy doors. Upper stair voids excluded; lower stair-void lights at 19 ft. Furnished amber views: direct electric light on upward-facing surfaces with modeled furniture shadows; neutral vertical faces are unmeasured. Both calculations exclude daylight, reflections and interlevel transfer. Appearance renders use daylight. Walls are sectioned for visibility.

Furnished in 3D

The space, and the light within it.

Explore each furnished floor from above. Drag the handle to compare the material view with its amber illuminance heatmap, including furniture shadows. Material views are appearance visualizations.

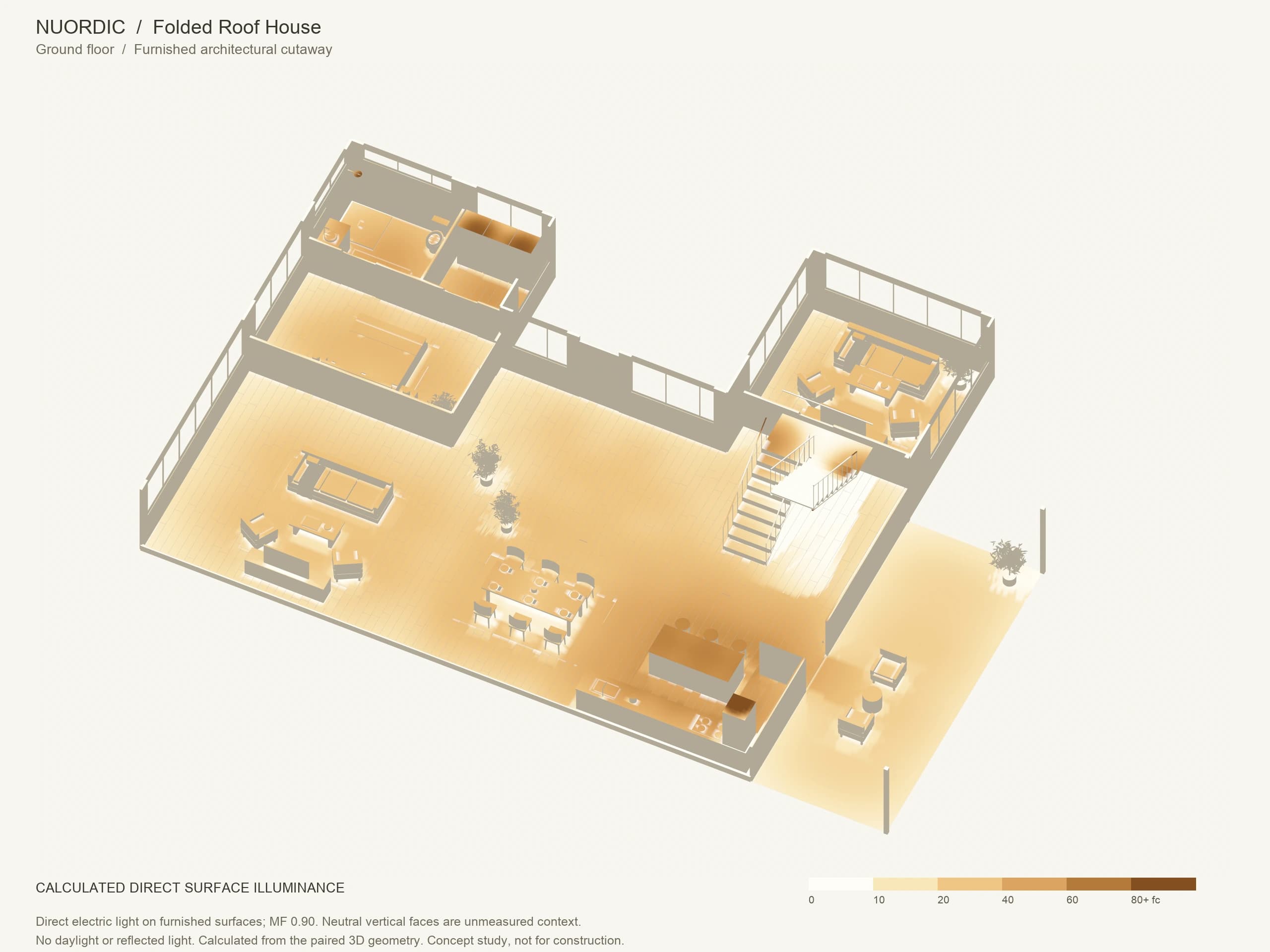

Folded Roof House, Ground floor: matching angled Blender view with calculated amber direct electric illuminance on furnished surfaces.

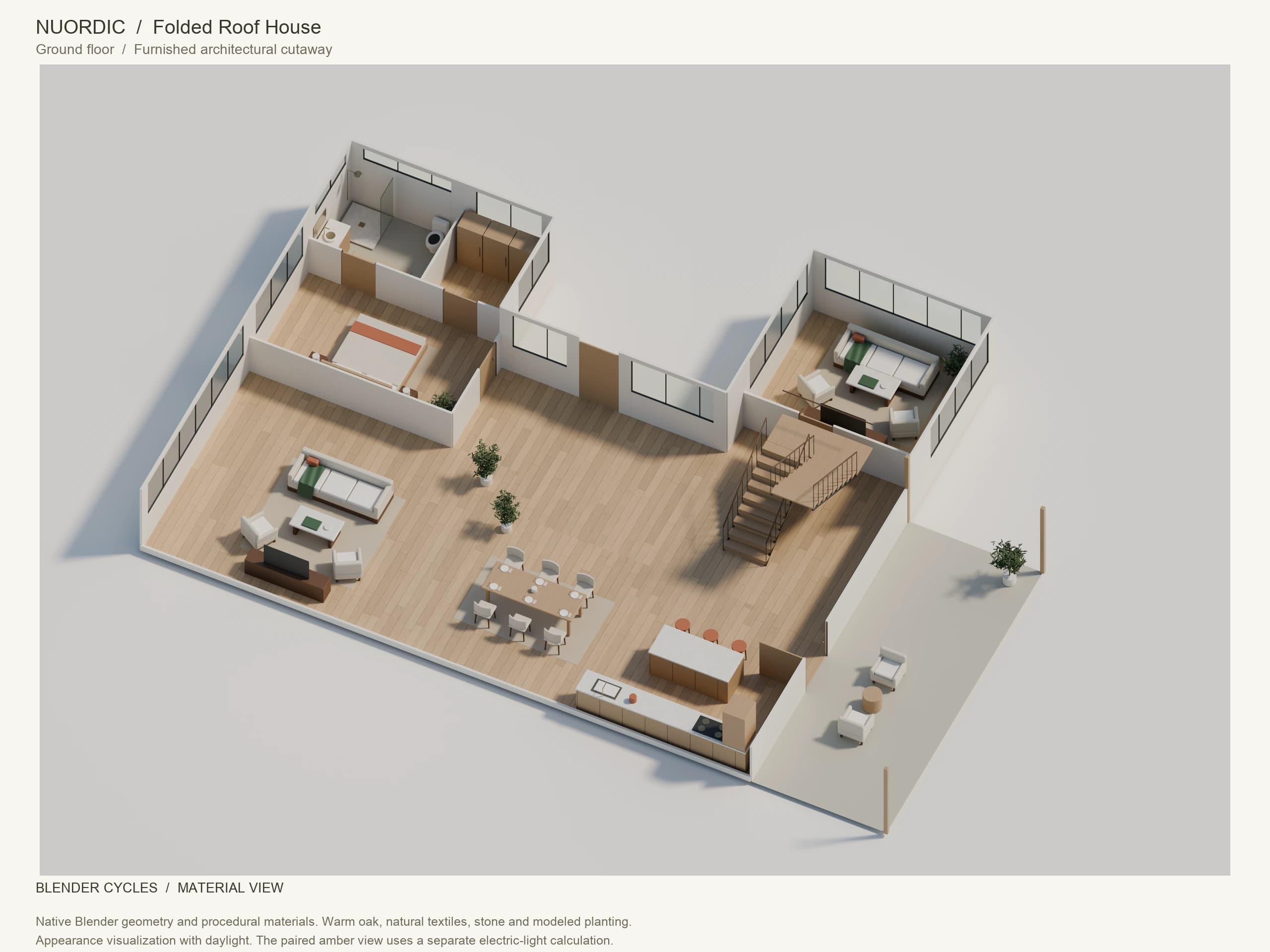

Folded Roof House, Ground floor: angled whole-floor Blender Cycles render with furnished interiors, modeled planting, windows and doors.
3D viewHeatmap
Ground floor / Furnished architectural cutaway

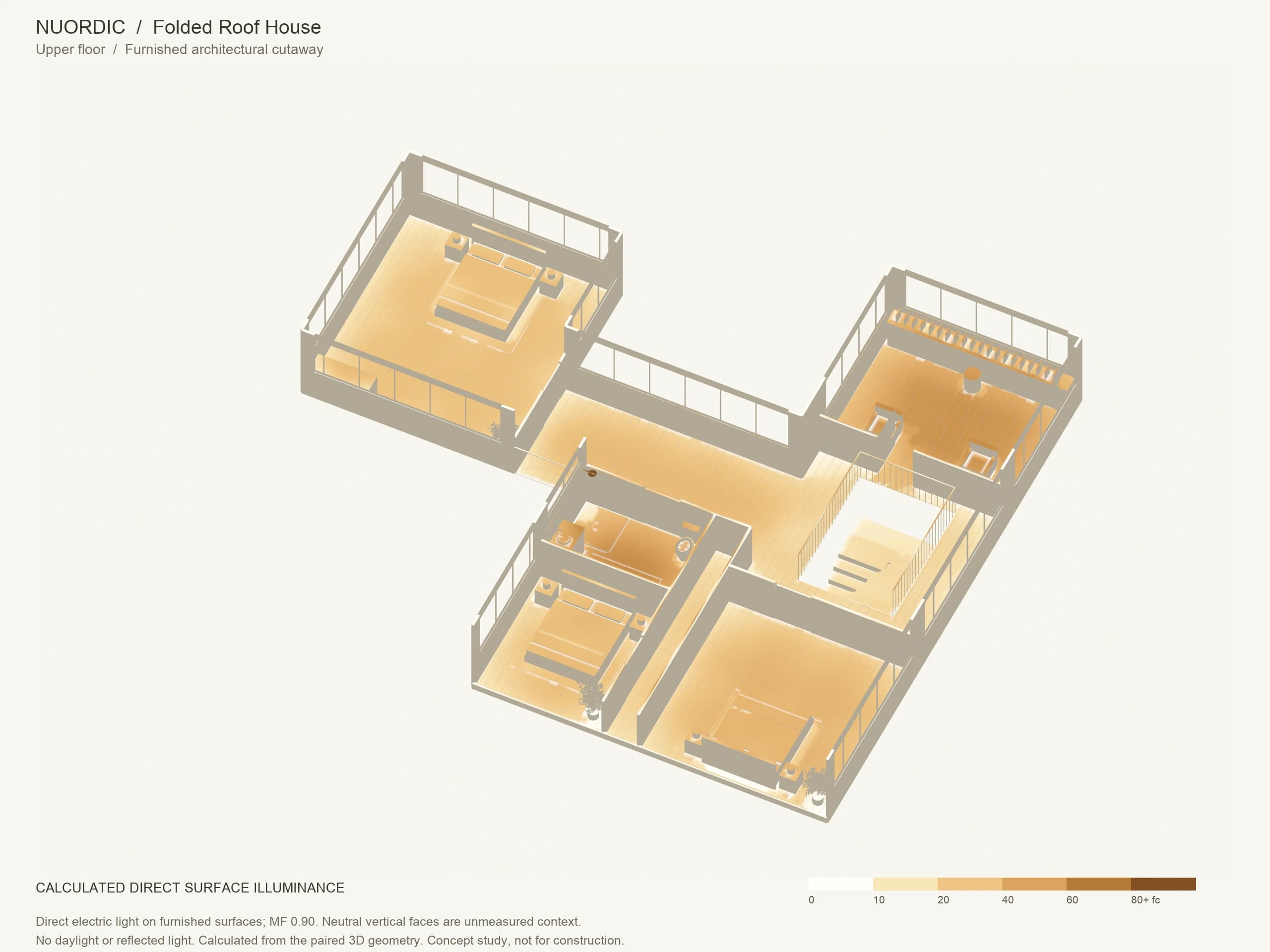

Folded Roof House, Upper floor: matching angled Blender view with calculated amber direct electric illuminance on furnished surfaces.

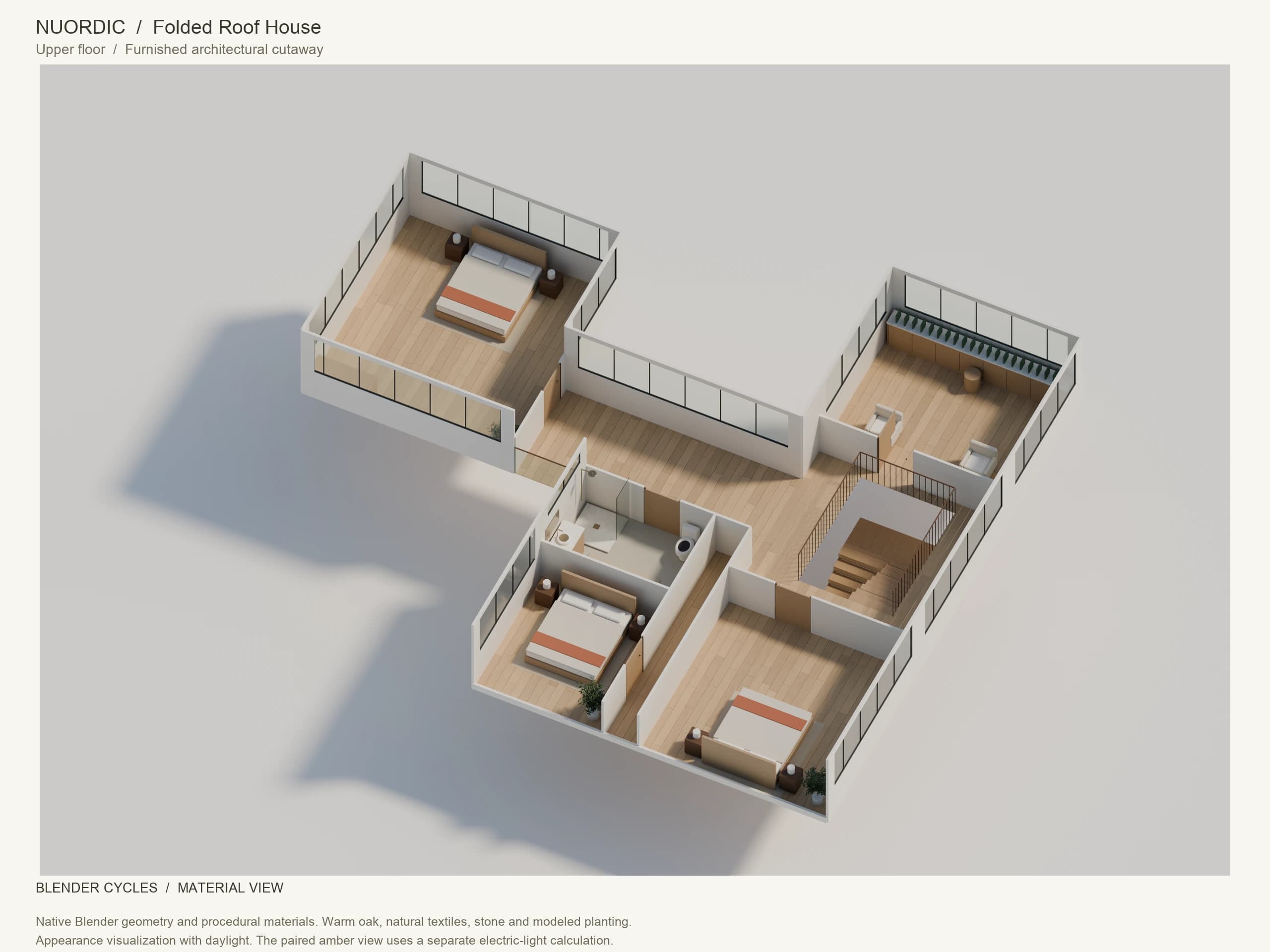

Folded Roof House, Upper floor: angled whole-floor Blender Cycles render with furnished interiors, modeled planting, windows and doors.
3D viewHeatmap
Upper floor / Furnished architectural cutaway

Calculated results

Every room against its target.

Calculated on the empty workplane specified in each row. Furnished 3D heatmaps show light on visible surfaces, so their values can differ from these workplane results.

Calculated maintained illuminance by room, in footcandles
RoomPlaneTarget fcAverage fcMinimum fcUniformity
Ground floor: Vaulted livingHorizontal plane, 2.5 ft above floor; direct component1017.55.40.307
Ground floor: DiningHorizontal plane, 2.5 ft above floor; direct component1024.29.40.388
Ground floor: KitchenHorizontal plane, 2.5 ft above floor; direct component2044.116.60.377
Ground floor: GalleryHorizontal plane, 2.5 ft above floor; direct component517.73.20.179
Ground floor: Primary suiteHorizontal plane, 2.5 ft above floor; direct component1021.15.60.266
Ground floor: Stair hallHorizontal plane, 2.5 ft above floor; direct component515.210.066
Ground floor: Game roomHorizontal plane, 2.5 ft above floor; direct component1020.650.242
Ground floor: Covered terraceHorizontal plane, 2.5 ft above floor; direct component515.950.311
Maintained values from the issued calculation report. Uniformity is minimum over average.

In the package

  • Ground floor lighting layoutRCP-01
  • Upper floor lighting layoutRCP-02
  • Ground floor direct illuminanceFC-01
  • Upper floor direct illuminanceFC-02
  • Calculation results and assumptionsCALC
RCPIlluminanceRendersCalc report

Supporting drawings

Flat plans and heatmaps.

Footcandles
01020406080+

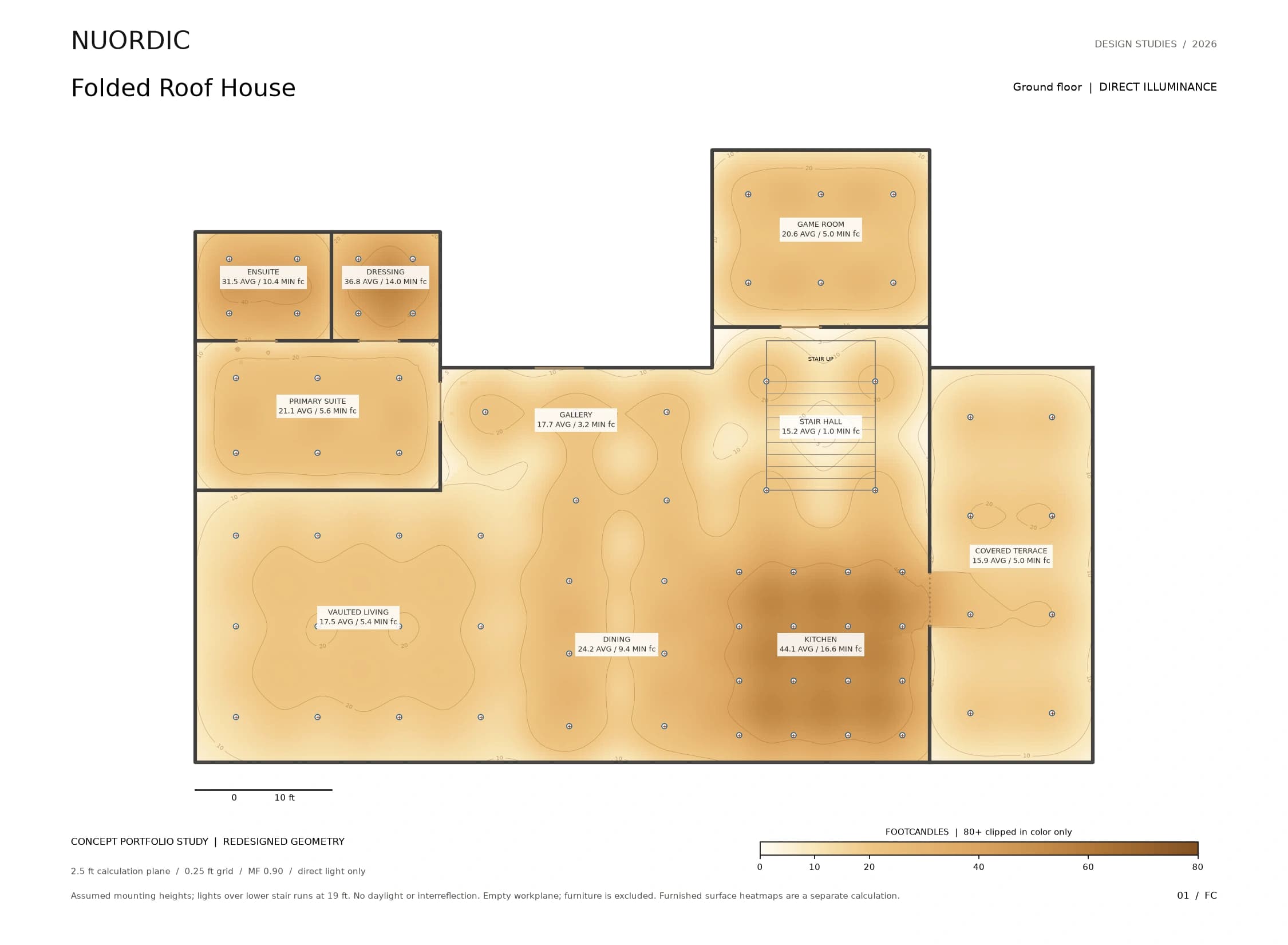

Folded Roof House, Ground floor: recalculated amber direct illuminance on the empty 2.5 ft workplane.

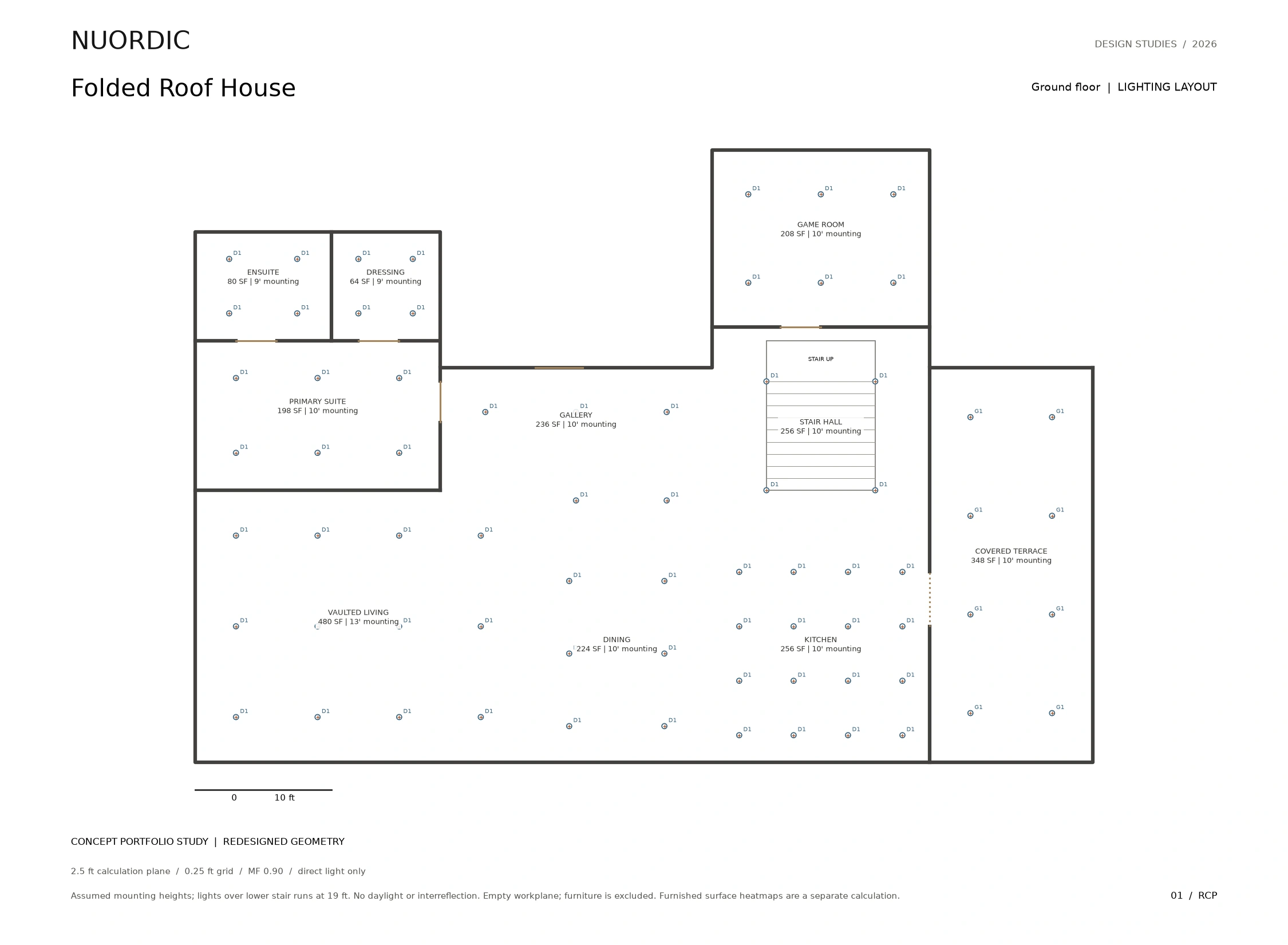

Folded Roof House, Ground floor: revised concept lighting layout.
LayoutFootcandles
Ground floorDrag the handle to compare the layout with its footcandle study

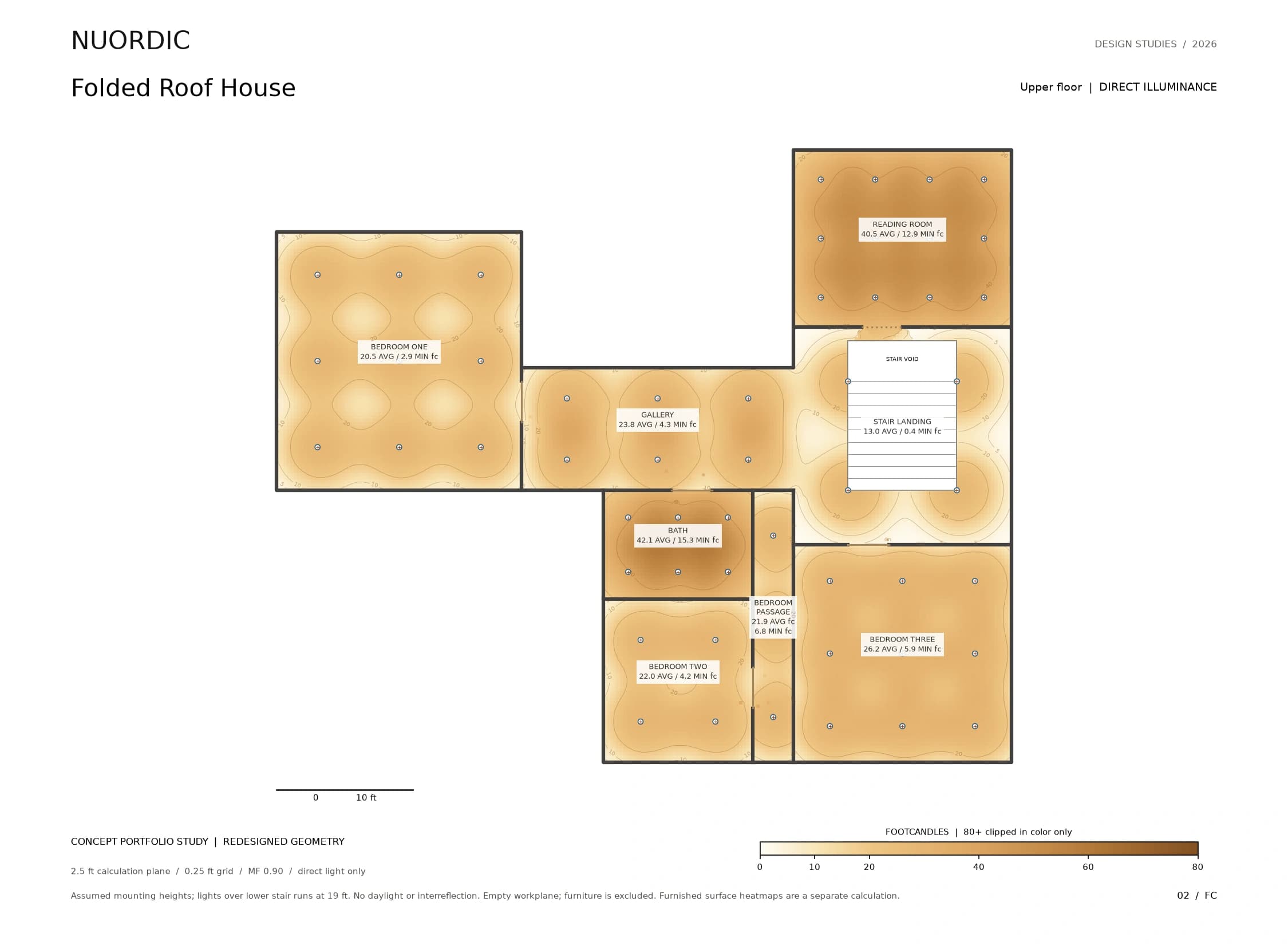

Folded Roof House, Upper floor: recalculated amber direct illuminance on the empty 2.5 ft workplane.

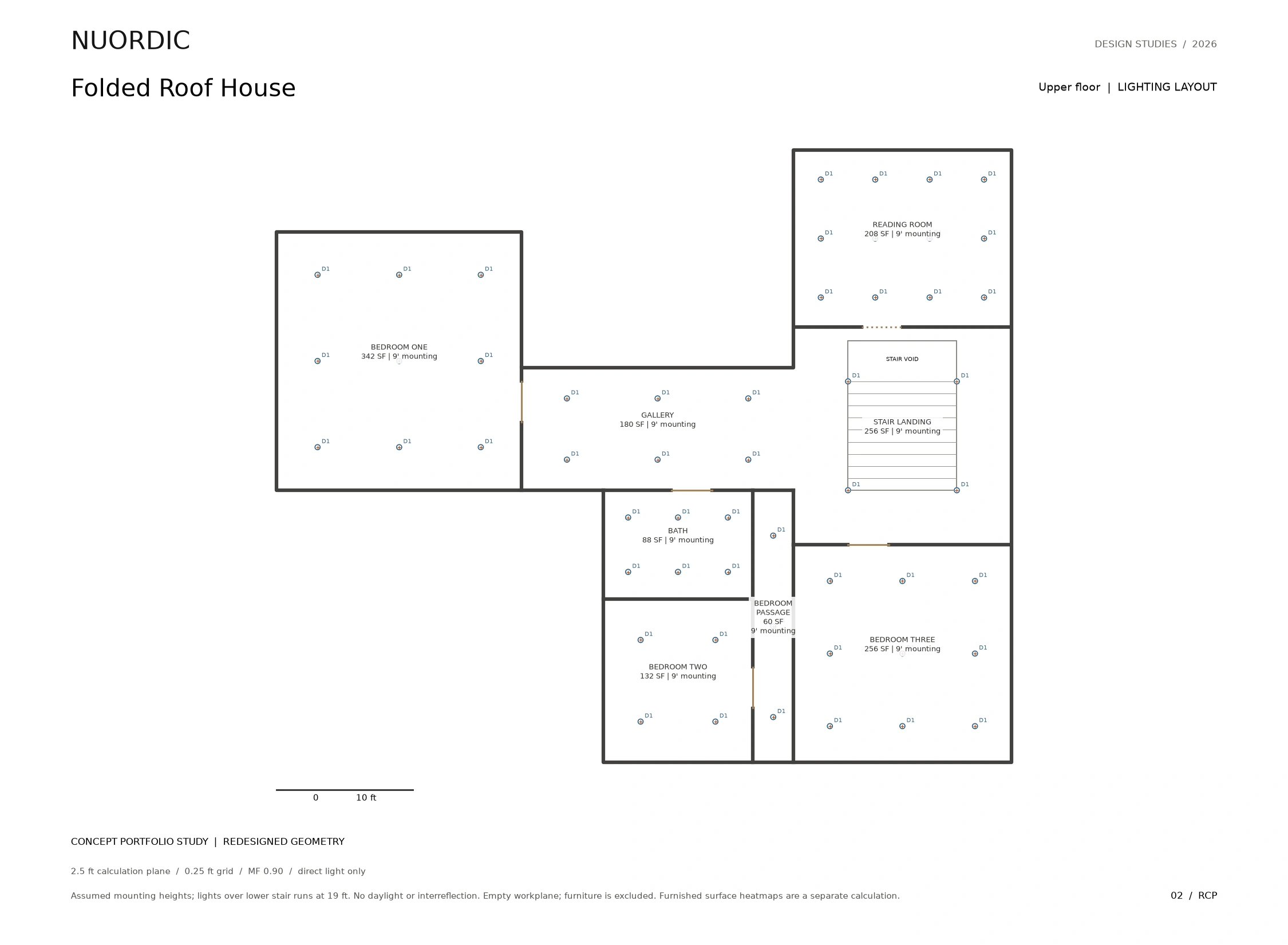

Folded Roof House, Upper floor: revised concept lighting layout.
LayoutFootcandles
Upper floorDrag the handle to compare the layout with its footcandle study
