Slem 2.2 - 2.2 Inch Wide Linear Light
Model NL55

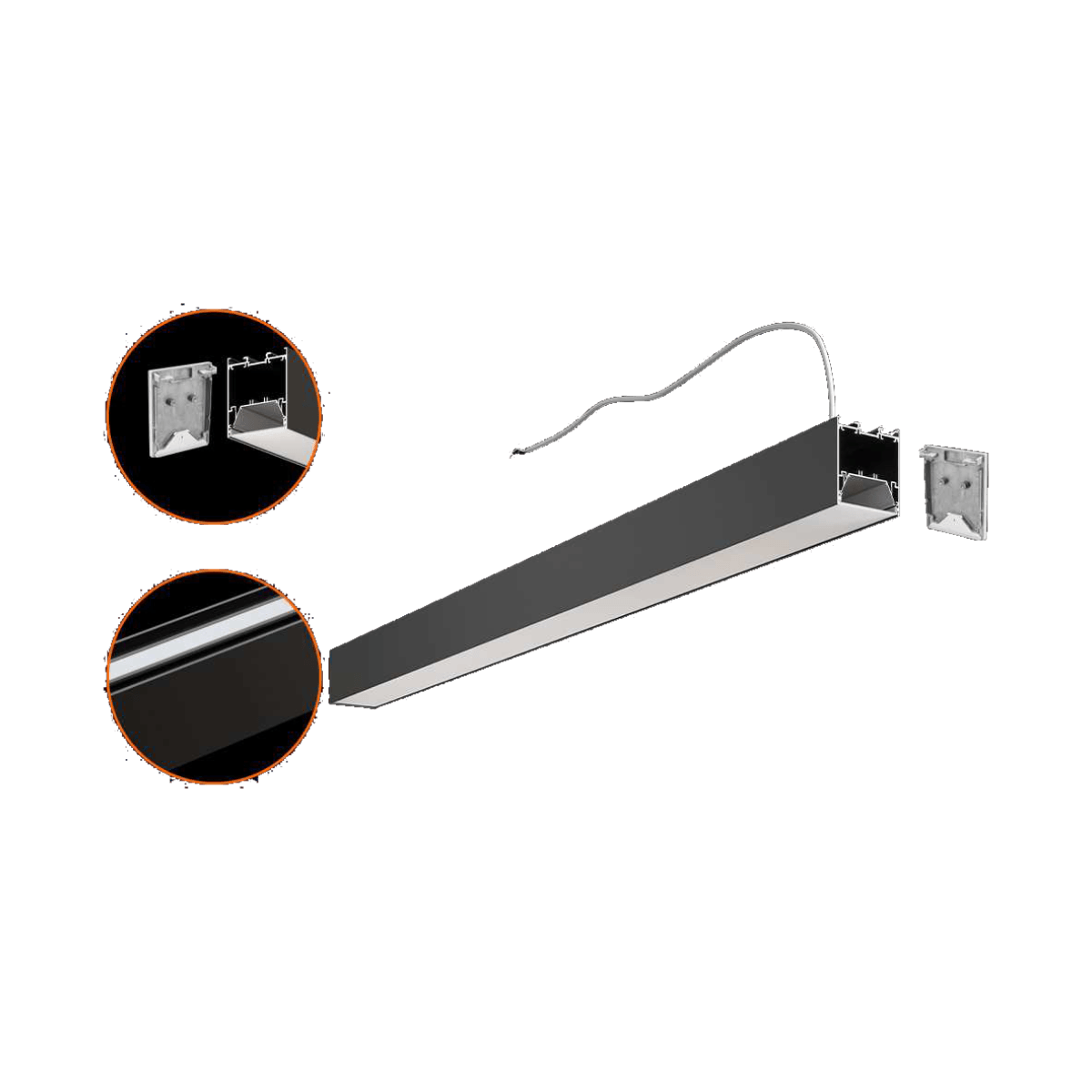

Slem 2.2 is a direct linear downlight in a 2.2 inch wide aluminum extrusion that surface mounts, suspends, wall mounts or recesses off one body. 2, 4 and 6 ft lengths at 20W, 40W and 60W, 90+ CRI, up to 7500 lm, 120 to 277V. Two switches inside the housing set color temperature and output on site.
From $195.00Made to order · ships in 30 days
Choose mounting, length, optic, color Temp, housing, dimming and connection. Takes about a minute.
Certified & rated
- ETLIntertek listed
- CEEU conformity
- FCCUS emissions
Configurator · NL55
Build the fixture, get the order code.
7 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Mounting
Choose oneLength
Choose oneOptic
Choose oneColor Temp
Choose oneHousing
Choose oneDimming
Choose oneConnection
Choose oneTotal, before tax
$195.00
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- NL55
- Dimensions (reference)
- 598 long, 55 wide, 70 high (mm)
- Wattage (reference)
- 20 to 60 W
- Lumen output (reference)
- 2400 to 7500 lm
- CRI
- 90
- Beam angles
- 60° · 100°
- Fixture voltage
- 120 to 277 V AC
- Input voltage (reference)
- 120 to 277 V AC
- Ingress rating
- IP40
- Finishes
- White · Black
- Mounting
- Surface · Pendant · Wall · Recessed
- Environment
- Dry
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 30 days
- Efficacy
- 120 lm/W diffuser, 125 lm/W grille, nominal
- Power steps
- 2 ft 20 / 17 / 14W, 4 ft 40 / 34 / 28W, 6 ft 60 / 51 / 42W
- Power factor
- Above 0.90
- Dial-up select
- CCT switch 3000K / 4000K / 5000K and power switch 100 / 85 / 70 percent, behind the diffuser, set before installation
- Energy program
- DLC Standard
- Continuous runs
- Linkable segments join with a straight connector; one feed cable per run, limited by the 6 A cable
- Length by model
- 2 ft 598mm, 4 ft 1192mm, 6 ft 1786mm
- Output by model
- Diffuser 2400 / 4800 / 7200 lm, grille 2500 / 5000 / 7500 lm at 20 / 40 / 60W. Nominal, plus or minus 10 percent.
- Suspension drop
- 1550mm (61 in) or more, excluding the AC cable
- Color consistency
- SDCM 3 or better
- Measured photometry
- Tested at 40W, 3000K, 90 CRI: 100 degree diffuser 4525 lm, 1736 cd max; 60 degree grille 4890 lm, 5158 cd max
- Operating temperature
- -20 to 40 C
- Certification
- ETL · CE · FCC
- Color temperature
- Dial-up select (3000K / 4000K / 5000K, set on site) · 3000K · 4000K · 5000K
- Driver options
- Non-dimming · 0-10V · 1-10V
- Housing
- White (RAL 9003) · Black (RAL 9004)
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guidePDF
- Tape and linear power and wiringPDF
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
