3D model
Downlights

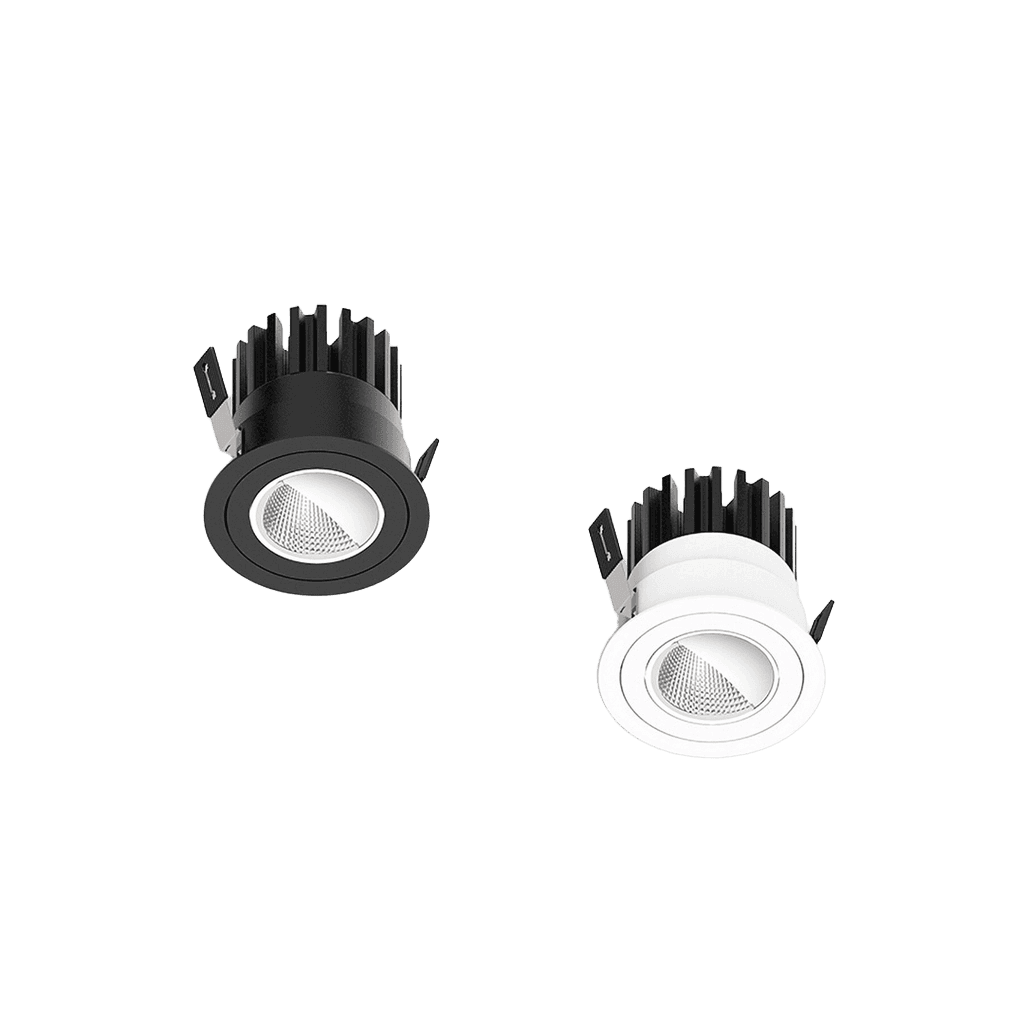

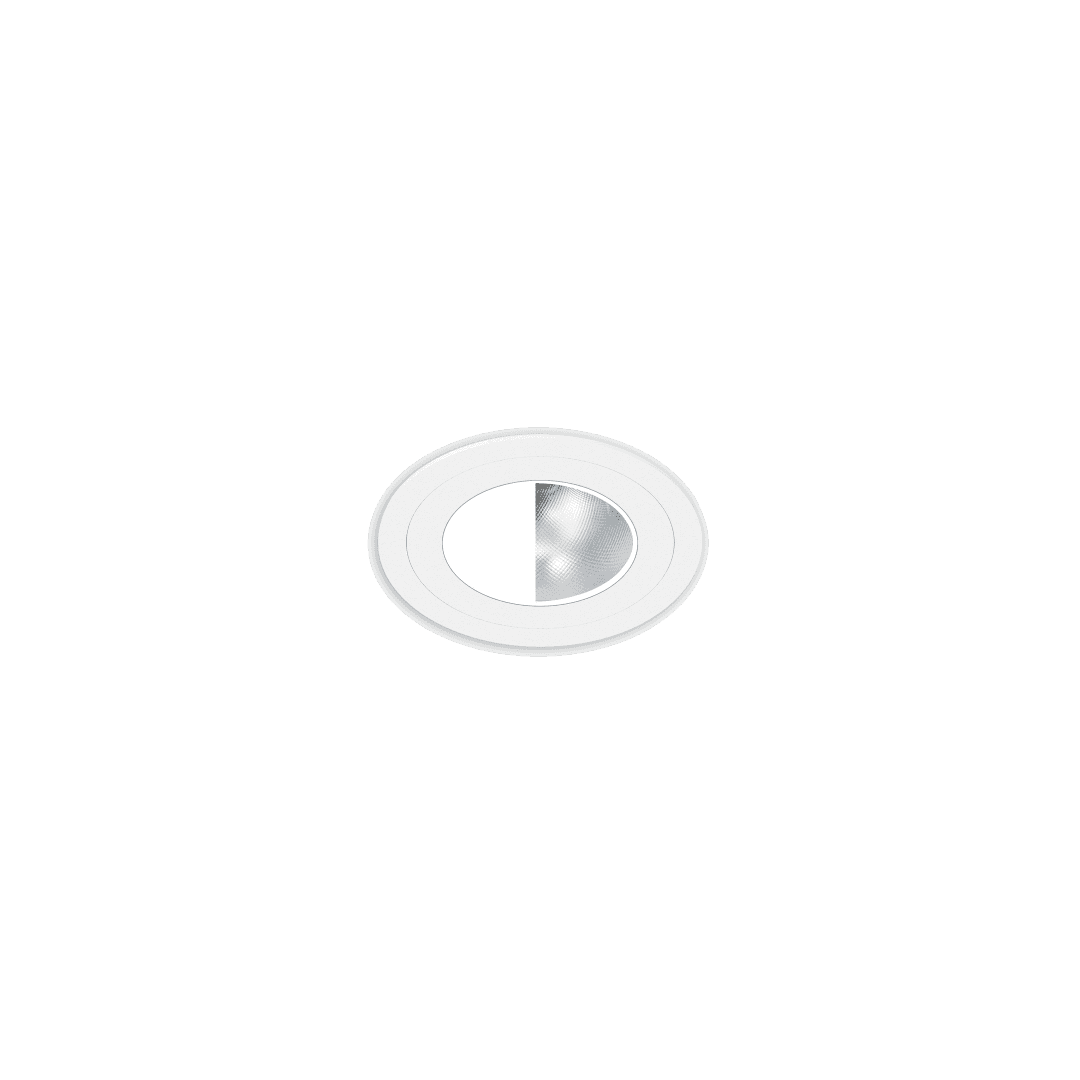

2 Inch Recessed Wall Washer
Model N55R20W · 3 trims
A 2 inch recessed wall washer with a purpose-built asymmetric optic, micro flange or trimless plaster-in. High CRI COB LED spreads an even gradient top to bottom without scallops or hotspots, deep glare-control geometry shields the source, aluminum heat sink keeps color stable. For feature walls, corridors, and galleries. Dry interiors.
- CRI
- 97
- Ingress
- IP20
- Output
- 15 W
From $139.00Made to order · ships in 30 days
Choose CCT, colour Temperature, trim, reflector Colour, trim Colour, driver, housing and tethered Controller. Takes about a minute.
Certified & rated
- IP20Dry interior
Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.
In the box
Included
- Light Fixture
Ordered separately
- Mounting Bracket
- IC Box Mounting Bracket
- Driver, specified during configuration and added as a separate order item
Configurator · N55R20W
Build the fixture, get the order code.
10 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Shape
Choose oneCCT
Choose oneColour Temperature
Not applicable · set by your other choicesThis CCT option sets its own colour temperature, so there is no fixed kelvin to choose.
IP Rating
Choose oneTrim
Choose oneReflector Colour
Choose oneTrim Colour
Choose oneDriver
Choose oneHousing
Choose oneTethered Controller
Choose oneTotal, before tax
$139.00
Photometrics
See what the wash does to the wall before you cut the holes.
Pick a ceiling height, how far out from the wall the run sits, its centres and a color temperature. The section shows the tested lobe and the wall it lights, from the ceiling to the floor, with the lux at each height read from the same IES file. Tested IES files are in the downloads below.
N55R20W · Tested IES on file
Ceiling height
Setback from wall
Centres along the wall
Color temperature
N55R20W · Wall section18 in setback · 18 in centres · 9 ft ceilingDirect light, tested file
Brightest to dimmest on the wall
7.3 : 1
1,470 to 201 lx, 1 ft below the ceiling to the floorTested · 4000K1,253 lm · 1,573 cd · 14.3 W
On the wallAt a fixtureBetween
1 ft down1,344 lx1,282 lx
3 ft down1,071 lx1,069 lx
5 ft down572 lx572 lx
At the floor201 lx201 lx
Wall lux is the direct light from a run on 18 in centres, read from the tested distribution in N55R20W-15W-4000K-50D.ies. Between the measured planes the intensity is interpolated. What the floor and the room hand back is not included. For a layout across a whole plan, send us the drawings.
In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- N55R20W
- Cut-out (reference)
- 62 mm (2.4 in)
- Dimensions (reference)
- 75 high, 68 diameter (mm)
- Wattage (reference)
- 15 W
- Lumen output (reference)
- 915 lm
- Fixture voltage
- 36 V DC
- Input voltage (reference)
- 120 to 277 V AC
- Finishes
- White · Black
- Mounting
- Recessed
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 30 days
- 5CCT
- Five color temperatures selectable on the fixture
- Optic
- Asymmetric wall wash, no beam angle to choose
- Placement
- 13.8 to 23.6 in (350 to 600mm) from the wall, spaced 1 to 1.2 times that distance
- Reflector
- Black or white
- Material
- Aluminum
- Shape
- Round
- Color temperature
- Static CCT (97 CRI, fixed) · 5CCT Switch (Selectable on the fixture) · 2700K to 6000K (95 CRI, tunable white) · 1800K to 5500K (95 CRI, tunable white) · 3000K to 1800K (95 CRI, dim to warm) · RGBW (90 CRI, colour and white)
- Static color temperatures
- 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white)
- Ingress rating
- IP20 (Adjustable, 20° tilt)
- Trim

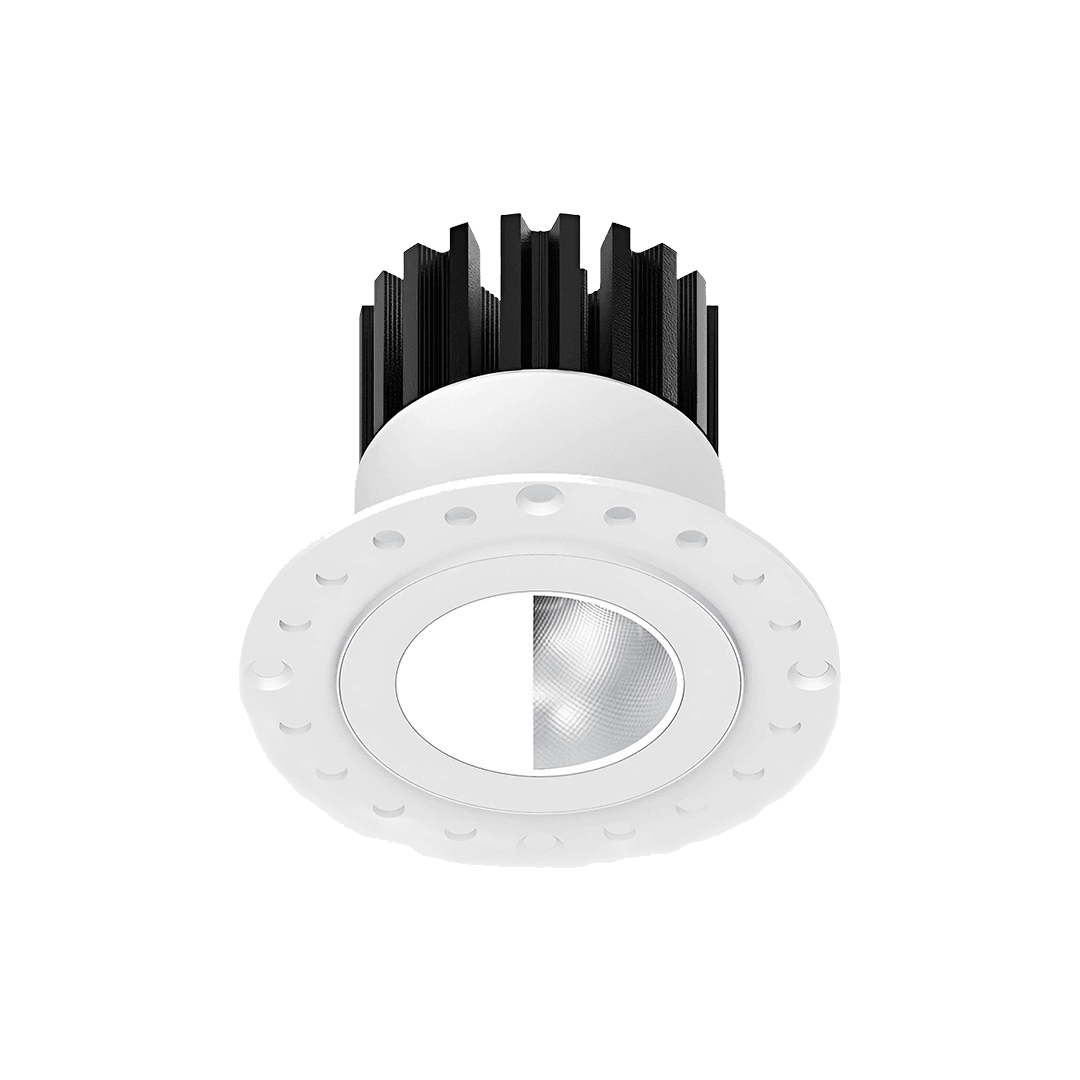

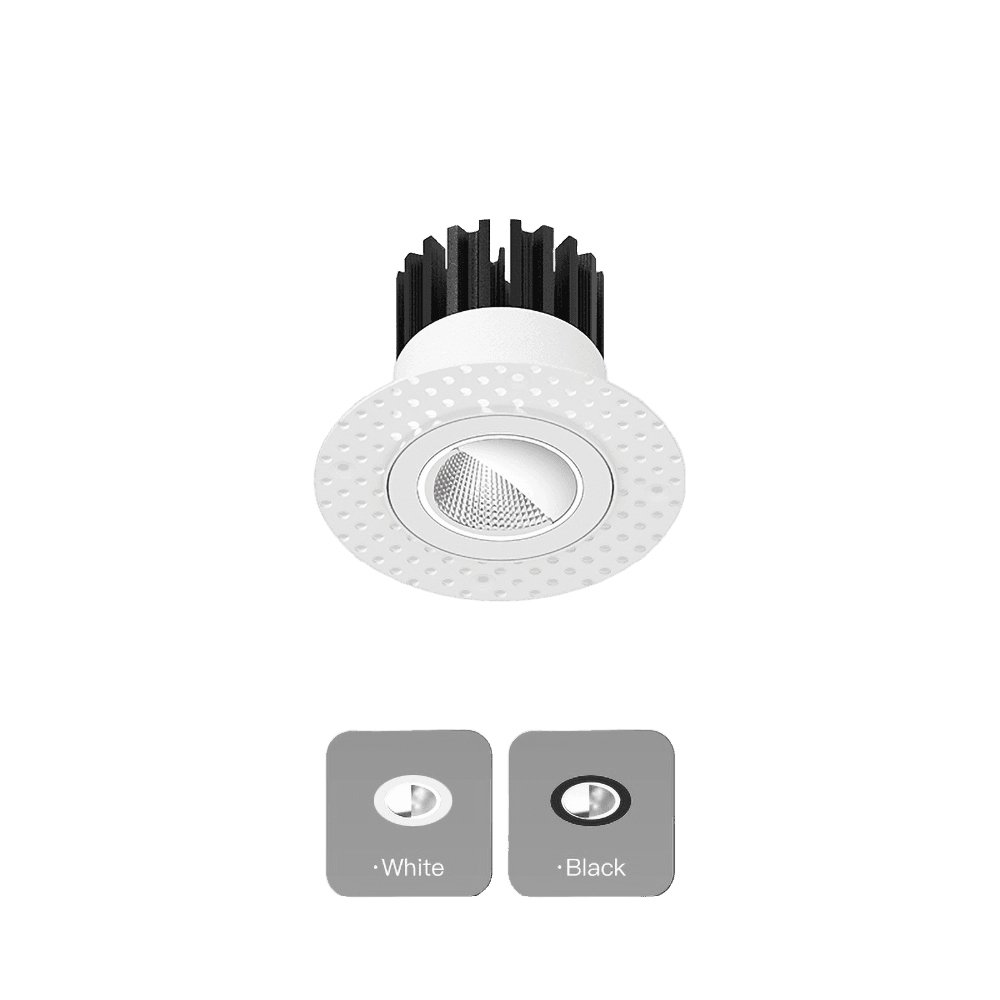

- Trimless (Plastered in) · Micro-flange (Minimal visible edge) · Millwork (For joinery)
- Reflector color
- Black · White
- Driver options
- Remote driver (Driver away from the fixture) · 0-10V · Triac (Mains dim) · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing (Keep clear of insulation) · IC-Housing (Insulation contact)
- Controls
- Casambi · Tuya · Matter
- CRI
- 90 · 95 · 97
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guidePDF
- Lead and driver wiringPDF
- CAD blocksDXF
- Revit familiesOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
