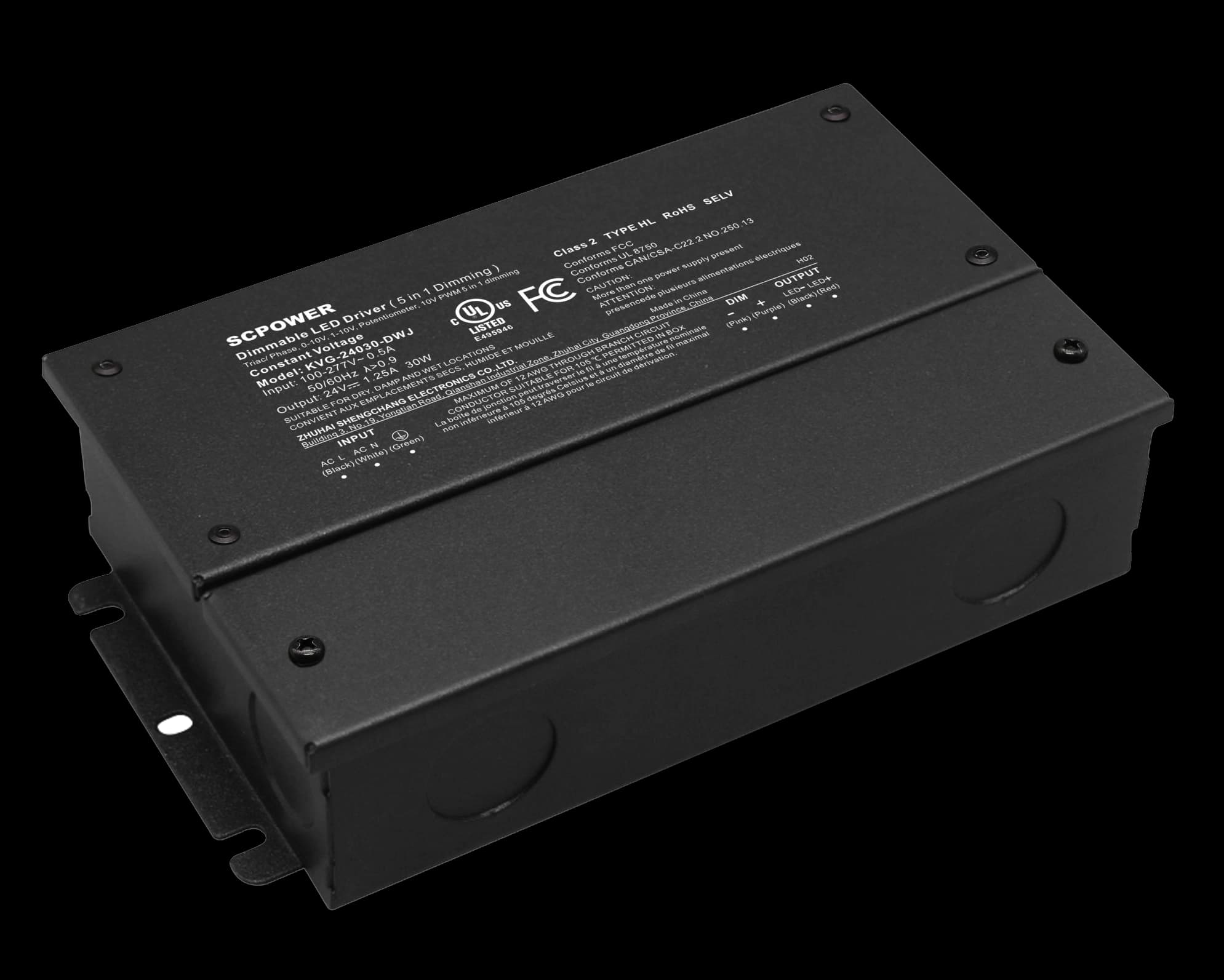

5-in-1 Dimmable Constant Voltage Driver

Name: 5-in-1 Dimmable Constant Voltage Driver
Brand: Nuordic
SKU: KVG-24030-DWJ
Availability: InStock

Model KVG-DWJ

A constant voltage driver at 12, 24, 36 or 48V with five dimming inputs: TRIAC, 0-10V, 1-10V, 10V PWM and potentiometer. 30W to 96W with one output; 192W and 288W with two and three 96W outputs. 100-277VAC input, active PFC and full protection. cULus listed, Class 2 on most models. Wet rated at 24V; 48V is dry and damp.

From $89.00Made to order · ships in 14 to 21 days

Configure this fixture Specs and downloads

Choose power and voltage. Takes about a minute.

Certified & rated

cULusUS and Canada
FCCUS emissions
RoHSRestricted substances

Configurator · KVG-DWJ

Build the fixture, get the order code.

2 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Power

Choose one

Voltage

Choose one

From

$89.00

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: KVG-DWJ
Dimensions (reference): 165 long, 94.5 wide, 40 high (mm)
Wattage (reference): 30 to 288 W
Fixture voltage: 12 to 48 V DC
Input voltage (reference): 100 to 277 V AC
Dimming: TRIAC · ELV · 0-10V · 1-10V · PWM
Ingress rating: IP66
Environment: Dry · Damp · Wet
Lifespan: 50,000 hours
Warranty: 5 years
Lead time: 14 to 21 days
Housing by power: 30W 165 × 94.5 × 40mm. 60W 188 × 94.5 × 40mm. 80W and 96W 220 × 94.5 × 40mm. 192W 278 × 110 × 45mm. 288W 301 × 110 × 45mm
Certification: cULus E495946 · FCC · RoHS
