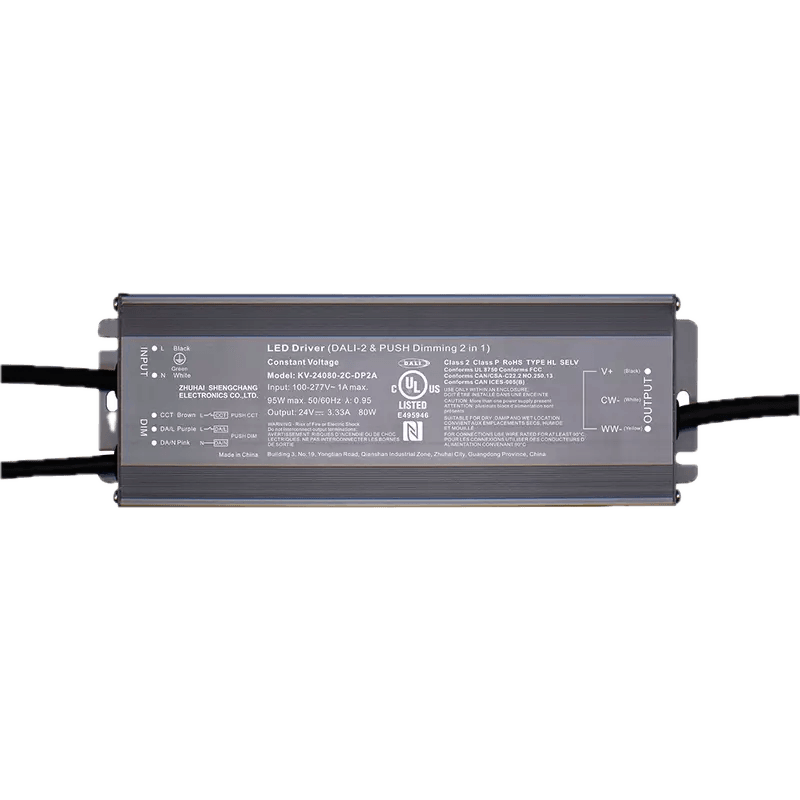

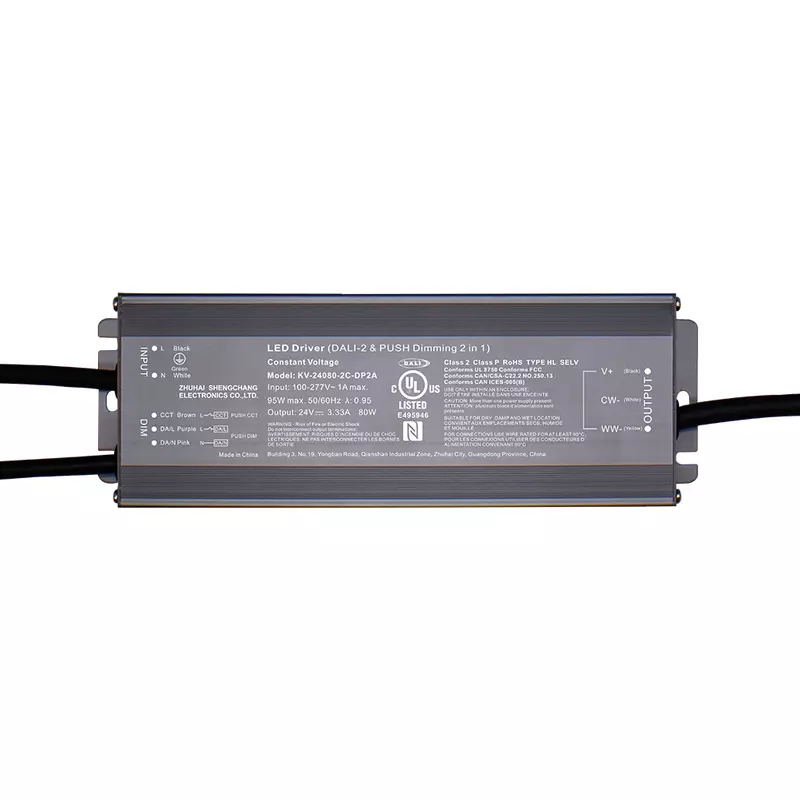

DALI-2 DT8 1-5 Channel Dimmable Constant Voltage Driver UL
Model KV-DP2A
A DALI-2 DT8 constant voltage driver with up to five independent channels, so tunable white, RGB, or RGB+CCT run from one unit. 12V, 24V, 36V, or 48V DC output, flicker-free digital dimming, active power factor correction, built-in safety and thermal protection. For LED strips, linear, and multi-channel accent systems. UL.
Standard configuration
This product ships one way; there is nothing to configure.
Loading purchasing options
Technical specification
- Model
- KV-DP2A
- Dimensions
- 200 long, 78 wide, 25.1 high (mm)
- Wattage
- 60 to 300 W
- Fixture voltage
- 12 to 48 V DC
- Input voltage
- 100 to 277 V AC
- Dimming
- DALI-2 DT8
- Ingress rating
- IP66
- Environment
- Dry · Damp · Wet
- Warranty
- 5 years
- Lead time
- 20 days
- Wet location
- 12V and 24V models are rated dry, damp and wet. 48V models are dry and damp only
- Dimming range
- 0.1 to 100%
- Housing by power
- 60W 200 × 78 × 25mm. 96W and 120W 232 × 78 × 25mm. 150W and 200W 279 × 78 × 25mm. 300W 322 × 78 × 25mm
Downloads
- Spec sheetOn request
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
