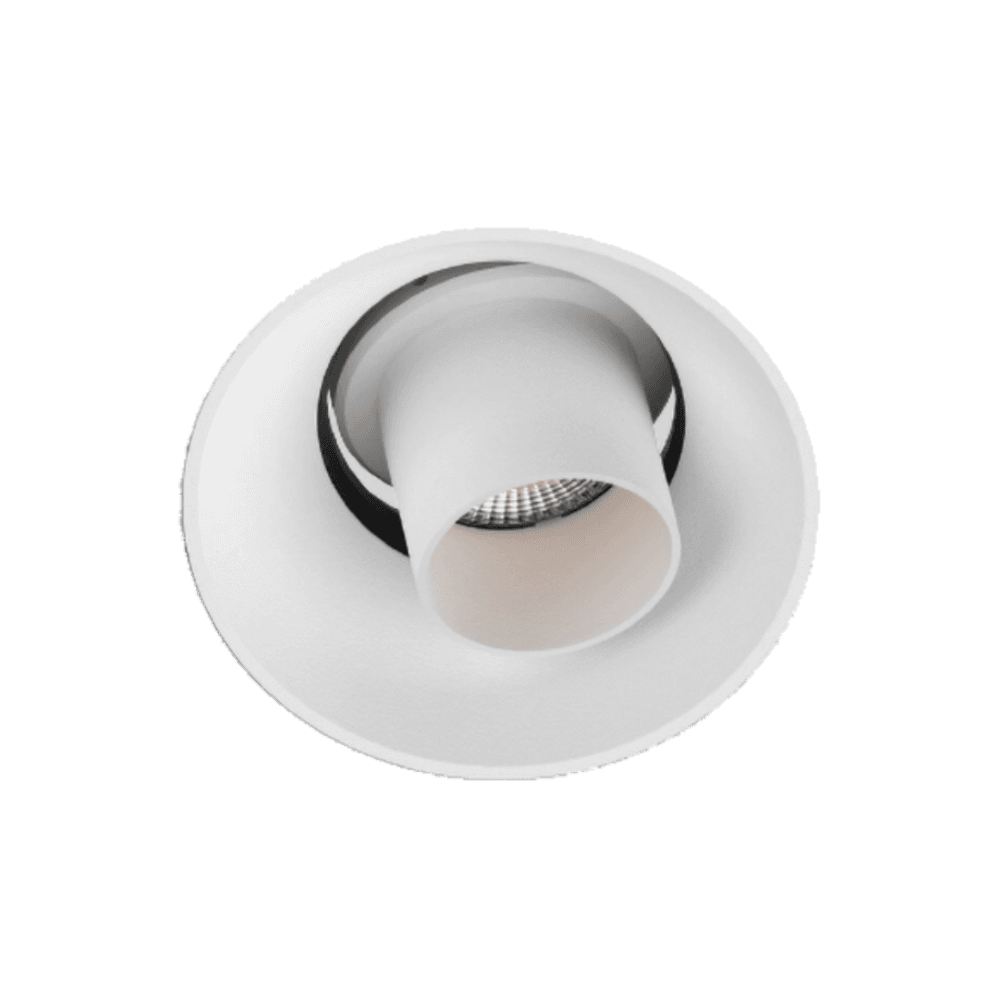

3 Inch Flush Spotlight

Model N75R20SN · 3 trims

A 3 inch round flush spotlight with freely adjustable aiming. Up to 15W at 97 CRI, 3.19 inches wide by 3.23 inches tall on a 75mm (2.95 inch) cutout, with a cold-forged aluminum heat sink. Magnetic fixing with a safety rope speeds installation, and a snout reflector cup with several anti-glare elements keeps the light soft and even.

Beam: 15-35°
CRI: 97
Ingress: IP20
Output: 15 W

From $169.00Made to order · ships in 7 to 30 days

Configure this fixture Specs and downloads

Choose CCT, colour Temperature, beam Angle, trim, reflector Colour, trim Colour, body Colour, driver, housing and tethered Controller. Takes about a minute.

Certified & rated

IP20Dry interior

Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.

In the box

Included

Light Fixture
Driver/Power Supply

Ordered separately

Mounting Bracket
IC Box Mounting Bracket

Configurator · N75R20SN

Build the fixture, get the order code.

12 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Shape

Choose one

CCT

Choose one

Colour Temperature

Not applicable · set by your other choices

This CCT option sets its own colour temperature, so there is no fixed kelvin to choose.

Beam Angle

Choose one · 2 fit your choices

IP Rating

Choose one

Trim

Choose one

Reflector Colour

Choose one

Trim Colour

Choose one

Body Colour

Choose one

Driver

Choose one

Housing

Choose one

Tethered Controller

Choose one

Total, before tax

$169.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.

N75R20SN · Tested IES on file

Beam angle

Ceiling height

Color temperature

N75R20SN · Beam section15° · 3000K · 9 ft ceilingScale varies

Beam diameter at the floor

0.72 m2.4 ft

Ø = 2 × 2.74 m × tan 7.5°

Tested · 3000K853 lm · 3,327 cd · 14.1 W · 60 lm/W

Below fixtureBeam ØLux

1.0 m0.26 m0.9 ft3,330 lx

2.0 m0.53 m1.7 ft830 lx

Floor · 2.74 m0.72 m2.4 ft440 lx

Illuminance is inverse-square from the tested center-beam intensity of 3,327 cd in N75R20SN-14W-3000K-17D.ies, and delivered lumens are as the file states them; the diameter is geometry from the rated beam angle. The lux column is for one fixture on axis, direct. What the room adds is separate and is drawn on the section: a 0.80 ceiling over a 0.20 floor trade light until they settle 19% above the direct level, and that arrives evenly rather than in the pool, so it lifts the gaps between fixtures by as much as the centres. It is an estimate with no walls in it, which makes it the open plan figure; a small room with 0.50 walls returns a little less. For a layout across a whole plan, send us the drawings.

In the field

The family at work.

View projects →

Recessed spotlights grazing a rough stone wall and a stone counter

Gallery wall with paintings lit by adjustable recessed spotlights

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: N75R20SN
Cut-out (reference): 75 mm (3.0 in)
Dimensions (reference): 82 high, 81 diameter (mm)
Wattage (reference): 15 W
Lumen output (reference): 945 to 1380 lm
Fixture voltage: 36 V DC
Input voltage (reference): 100 to 120 V AC
Finishes: White · Black
Mounting: Recessed
Lifespan: 50,000 hours
Warranty: 5 years
Lead time: 7 to 30 days
Glare: UGR < 9, 67° shielding angle
Aiming: 20° tilt, 360° rotation
Reflector: White, black or golden
Material: Cold Forged Aluminum
Shape: Round
Color temperature: Static CCT (97 CRI, fixed) · Static CCT (90 CRI, fixed) · 2700K to 6000K (95 CRI, tunable white) · 1800K to 5500K (95 CRI, tunable white) · 3000K to 1800K (95 CRI, dim to warm) · 3000K to 1800K (90 CRI, dim to warm, 6W)
Static color temperatures: 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white)
Beam angles: 15° · 25° · 35°
Ingress rating: IP20 (Adjustable, 20° tilt)

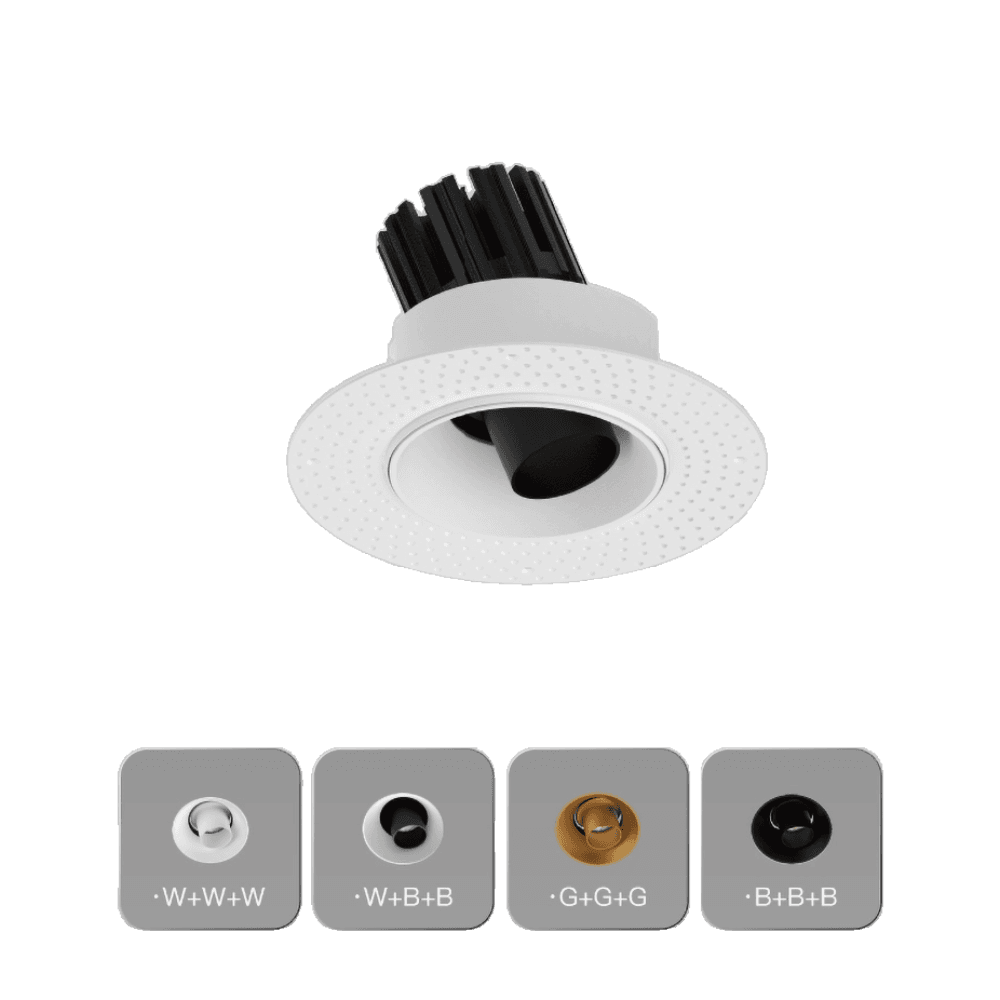

Trim: Trimless (Plastered in) · Micro-flange (Minimal visible edge) · Millwork (For joinery)
Reflector color: Black · White · Gold
Driver options: Remote driver (Driver away from the fixture) · 0-10V · Triac (Mains dim) · Dali2
Housing: None · Flat Bracket · Non-IC Housing (Keep clear of insulation) · IC-Housing (Insulation contact)
Controls: Casambi · Tuya · Matter
CRI: 90 · 95 · 97
