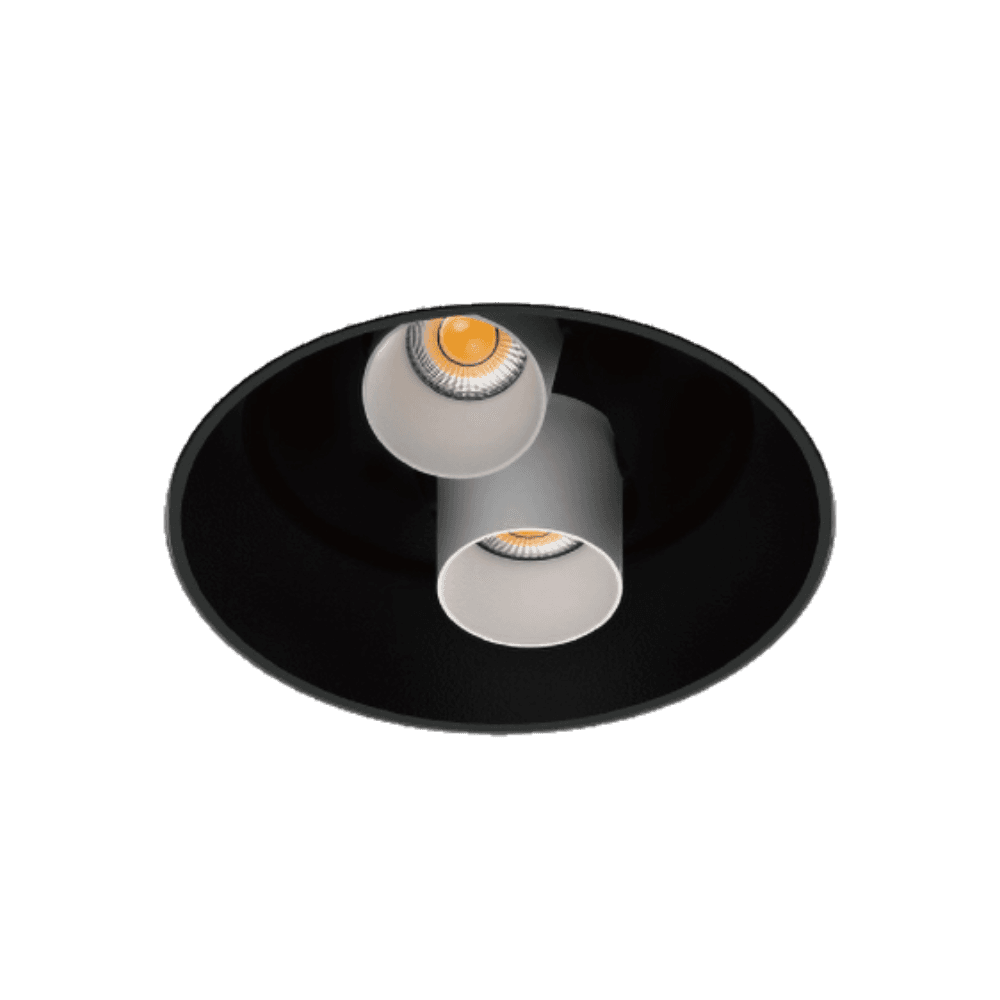

3 Inch Twin Mini Spotlight
Model N75R20TW · 3 trims
Two independently adjustable mini spotlights in one 3 inch trimless aperture. Each head rotates 360° and tilts 25°, so a single cutout can light two focal points. A cold-forged pure aluminum heat sink and aluminum reflector give soft, even, low-glare output. 3.19 inches wide and only 1.81 inches tall.
- Beam
- 15-80°
- CRI
- 97
- Ingress
- IP20
- Trims
- 3
From $195.00Made to order · ships in 30 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- IP20Dry interior
Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.
In the box
Included
- Light Fixture
- Driver/Power Supply
Ordered separately
- Mounting Bracket
- IC Box Mounting Bracket
Configurator · N75R20TW
Build the fixture, get the order code.
12 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Shape
Choose oneCCT
Choose oneColour Temperature
Not applicable · set by your other choicesThis CCT option sets its own colour temperature, so there is no fixed kelvin to choose.
Beam Angle
Choose one · 4 fit your choicesIP Rating
Choose oneTrim
Choose oneReflector Colour
Choose oneTrim Colour
Choose oneBody Colour
Choose oneDriver
Choose oneHousing
Choose oneTethered Controller
Choose oneTotal, before tax
$195.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
Beam angle
Ceiling height
Colour temperature
DistanceFocus Ø
1.0 m0.44 m
2.0 m0.89 m
Floor · 2.74 m1.22 m
The diameter is geometry from the rated beam angle and holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.
N75R20TW · Beam section25° · 3000K · 9 ft ceilingScale varies

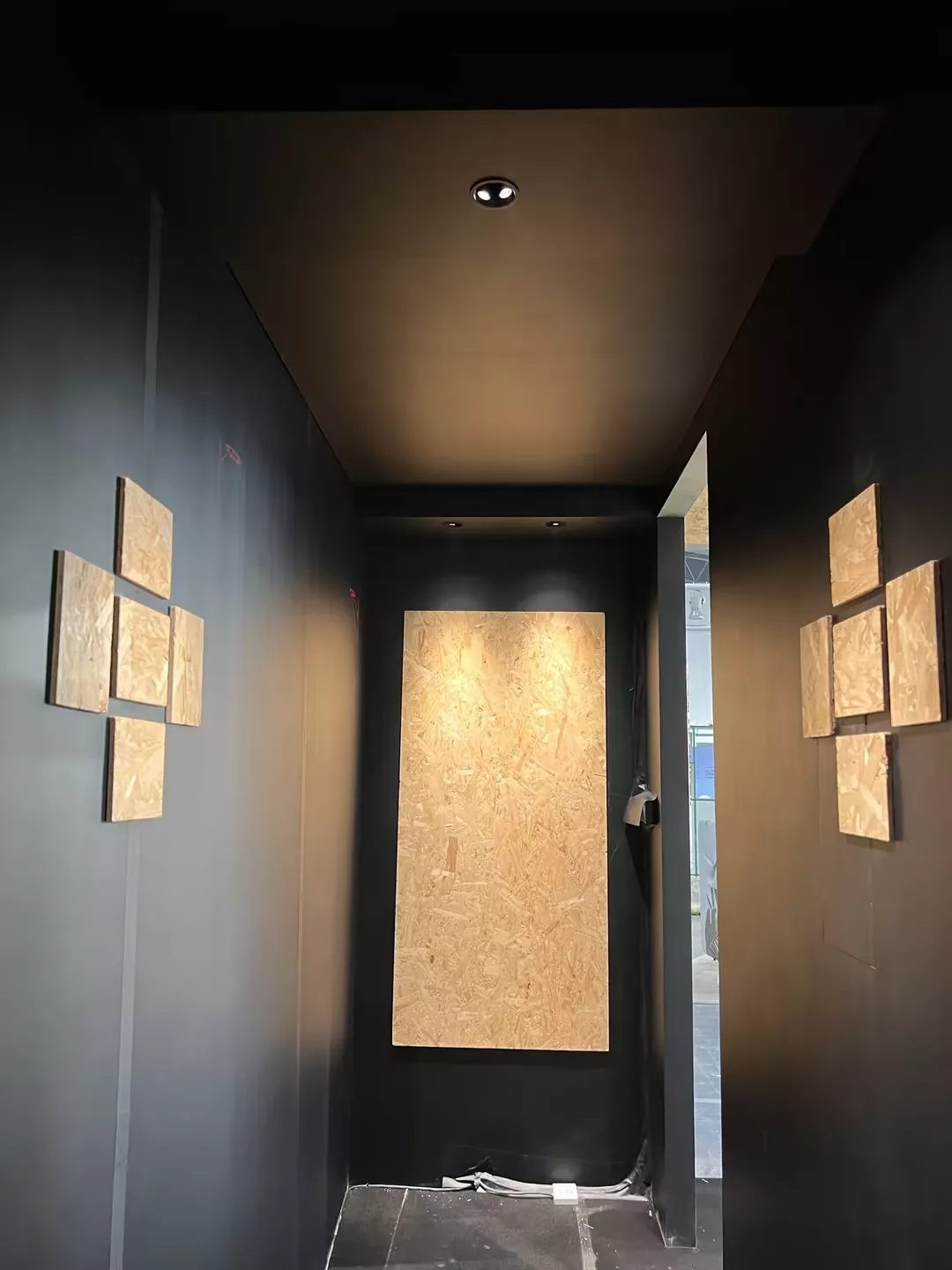

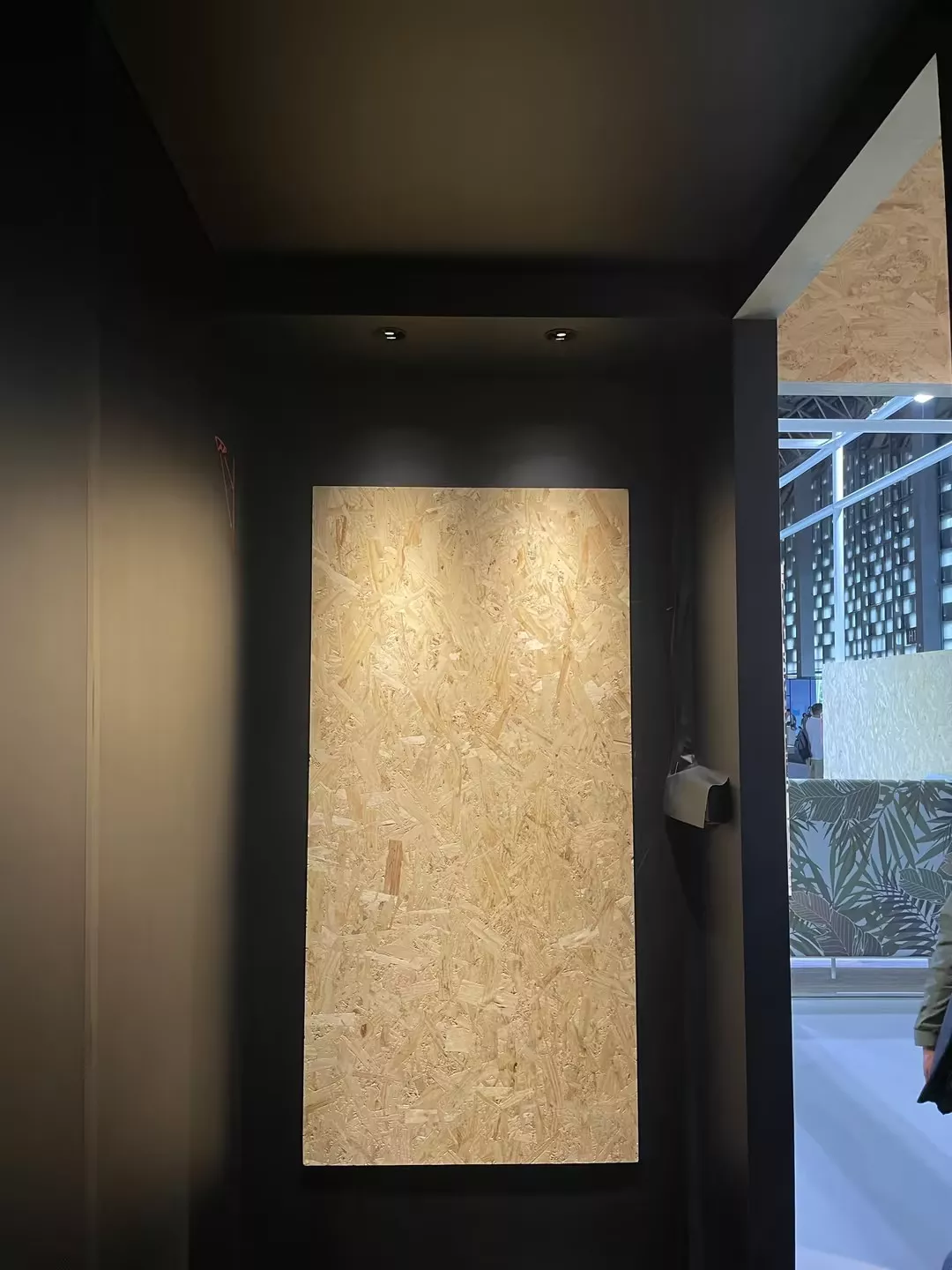

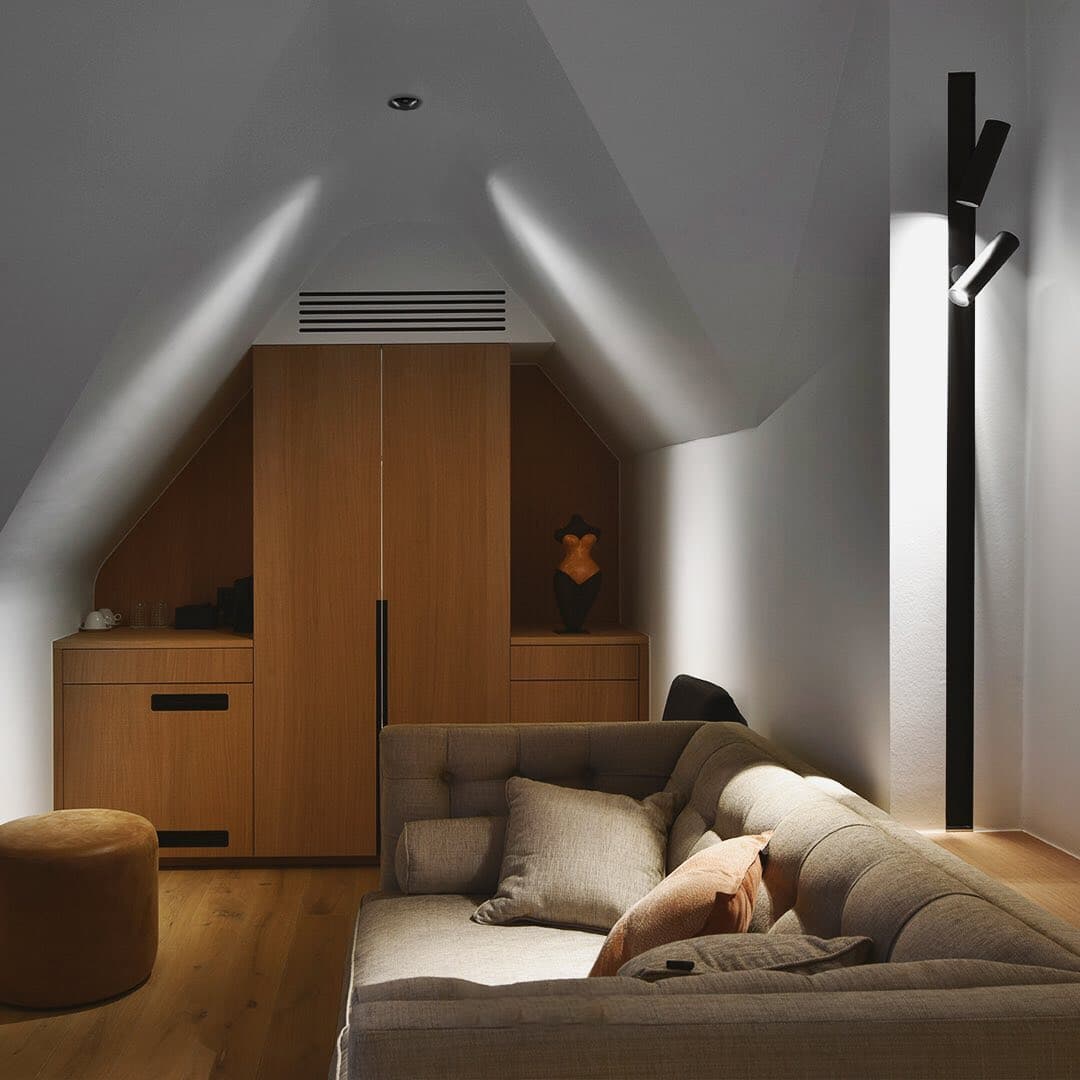

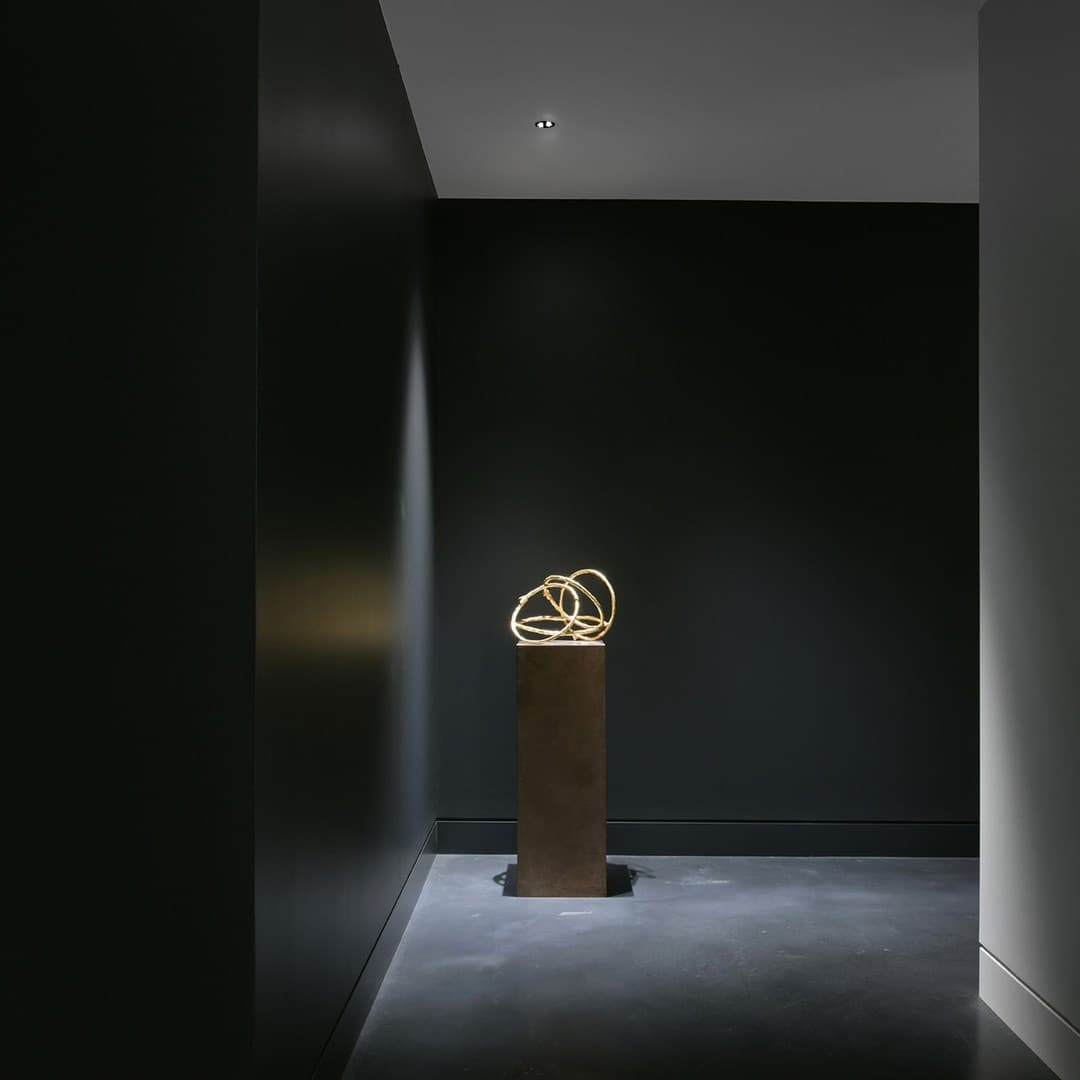

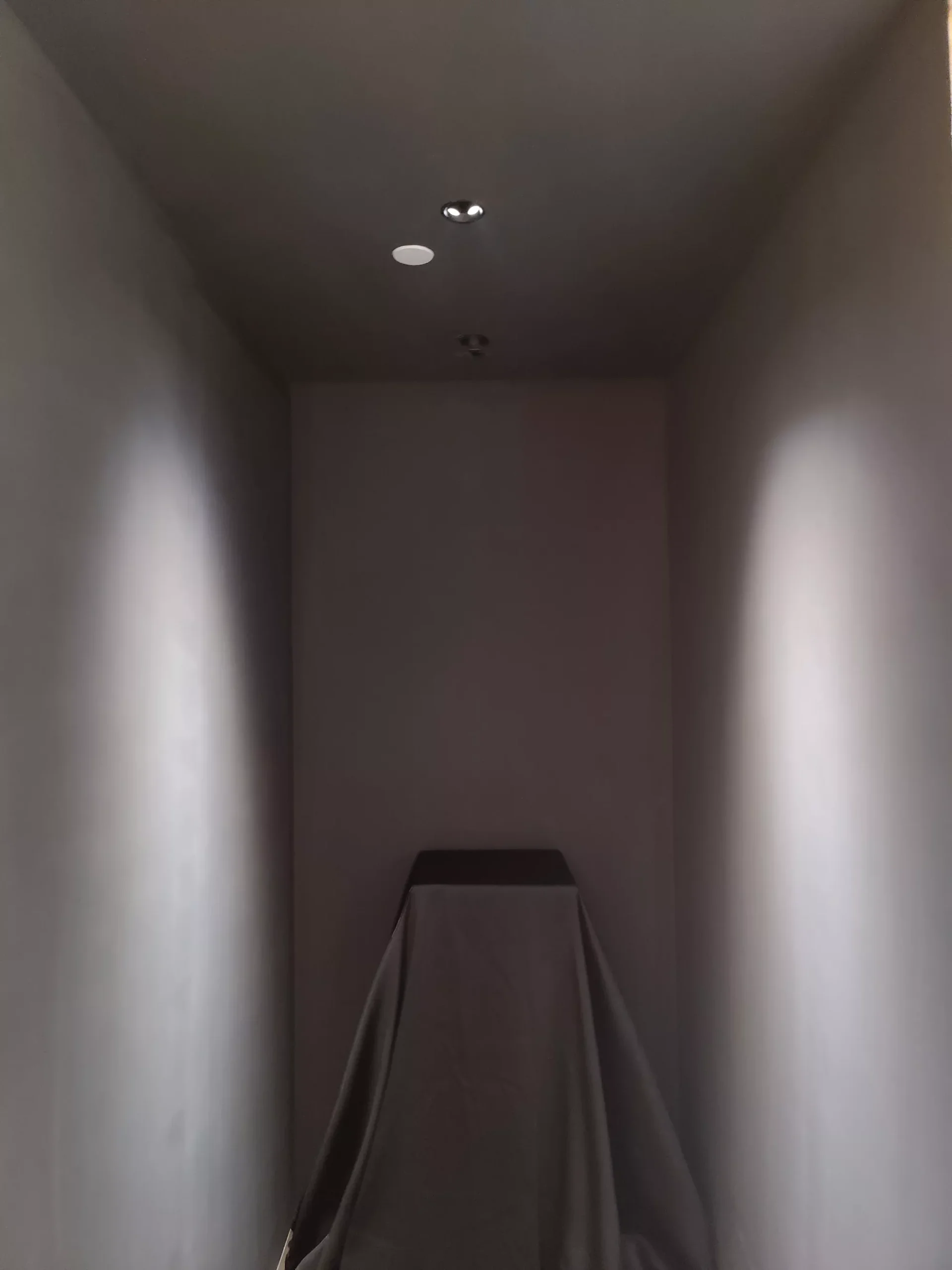

In the field
The family at work.
Technical specification
- Model
- N75R20TW
- Material
- Die Cast Aluminum
- Shape
- Round
- Colour
- Static CCT · 5CCT Switch · 2700K to 6000K · 1800K to 5500K · 3000K to 1800K · RGBW
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress and aiming
- IP20

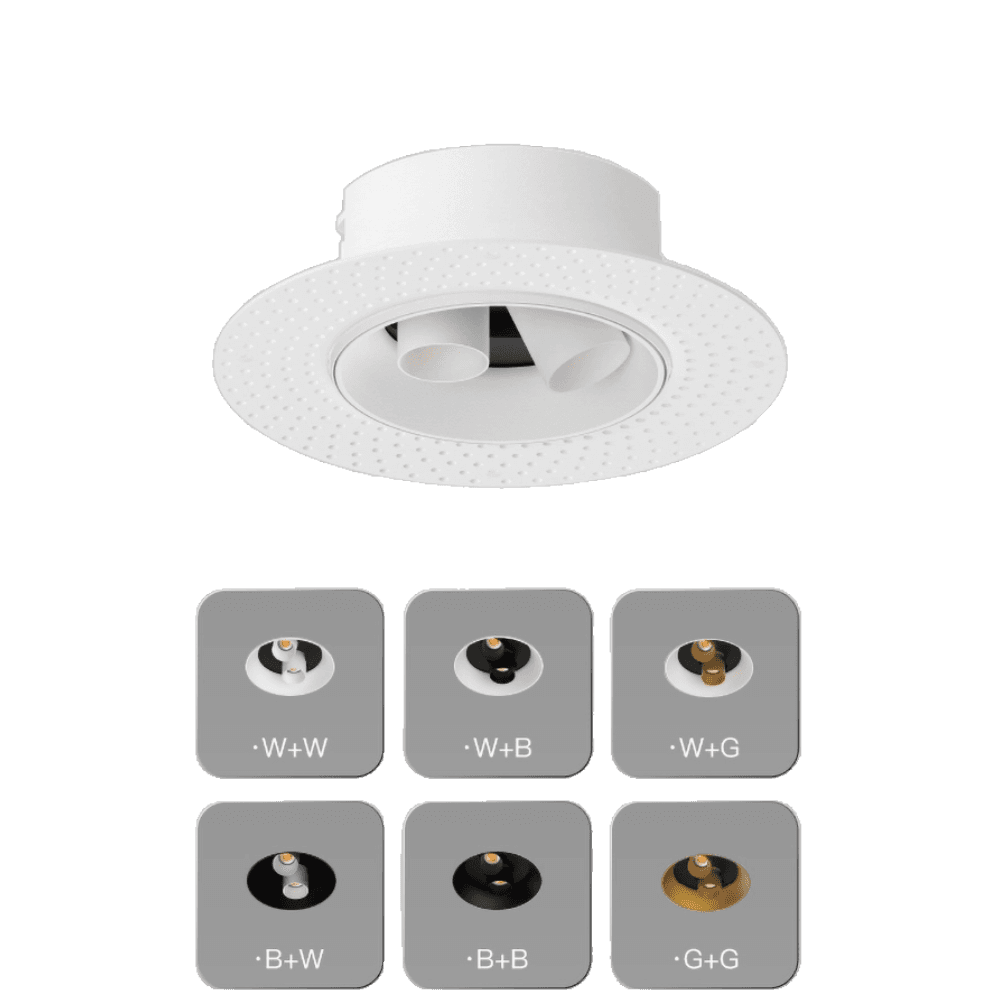

- Trim
- Trimless · Micro-flange · Millwork
- Reflector colour
- Black · White
- Driver
- Remote driver · 0-10V · Triac · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing · IC-Housing
- Tethered control
- Casambi · Tuya · Matter
Downloads
- Spec sheetPDF
- IES photometric filesZIP
- Installation guidePDF
- CAD blocksDXF
- Revit familiesOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
