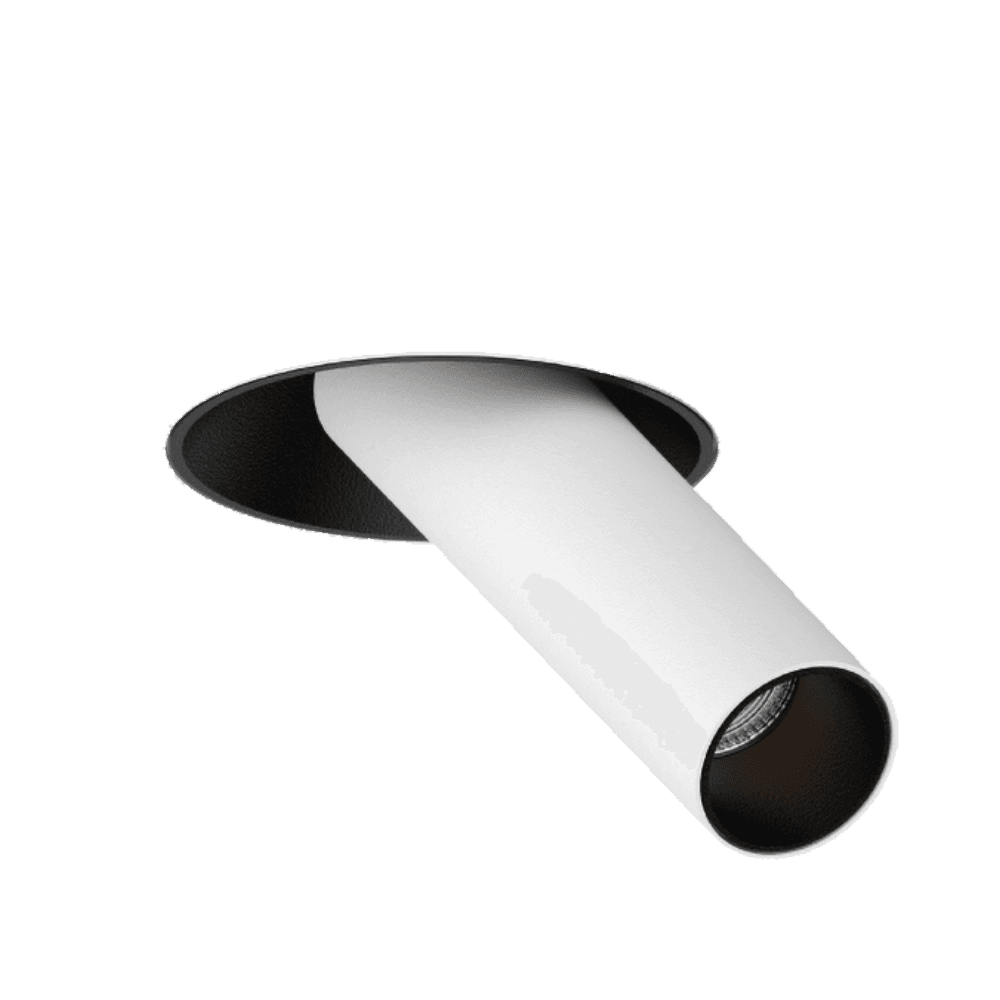

3 Inch Telescopic Spotlight
Model N5-75 · 3 trims

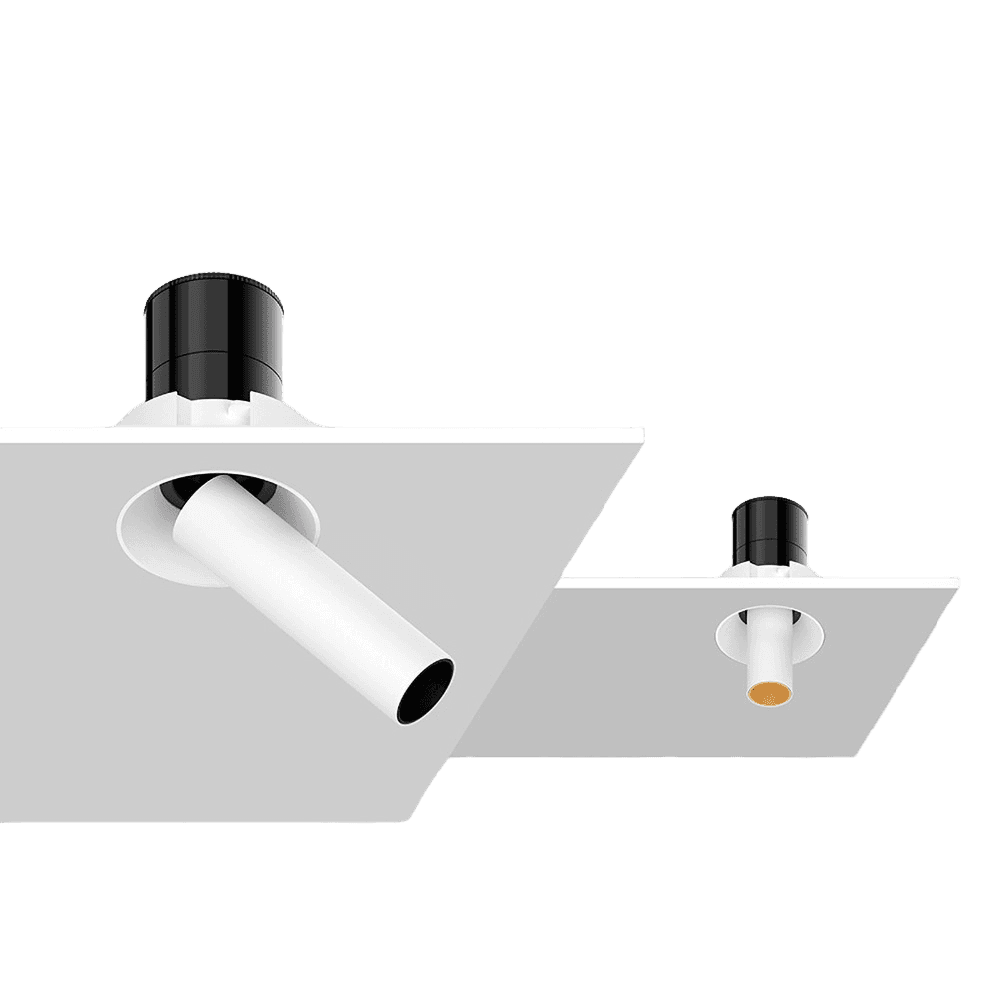

A 3 inch recessed spotlight with a retractable lamp body for varying ceiling heights. Slim trim, trimless, or protruding, with 360° rotation and up to 75° of tilt. 97 CRI, 2700K to 5000K, and Triac, 0-10V, or DALI dimming. Magnetic fixing with a safety rope, cold-forged aluminum heat sink, 3 inches wide by 3.74 inches tall.
- Beam
- 15-80°
- CRI
- 97
- Ingress
- IP20
- Output
- 8 W
From $219.00Made to order · ships in 7 to 30 days
Choose CCT, colour Temperature, beam Angle, trim, reflector Colour, trim Colour, body Colour, driver, housing and tethered Controller. Takes about a minute.
Certified & rated
- IP20Dry interior
Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.
In the box
Included
- Light Fixture
- Driver/Power Supply
Ordered separately
- Mounting Bracket
- IC Box Mounting Bracket
Configurator · N5-75
Build the fixture, get the order code.
12 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Shape
Choose oneCCT
Choose oneColour Temperature
Not applicable · set by your other choicesThis CCT option sets its own colour temperature, so there is no fixed kelvin to choose.
Beam Angle
Choose one · 4 fit your choicesIP Rating

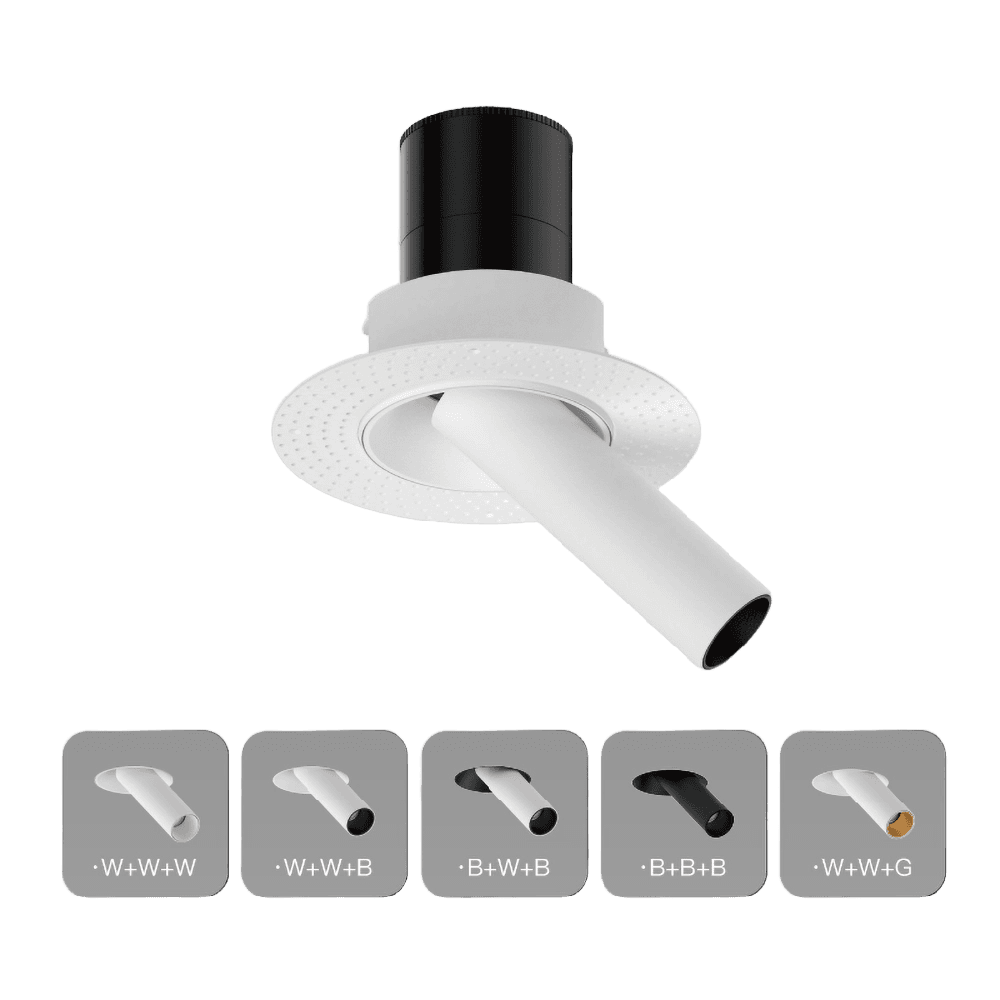

Choose oneTrim
Choose oneReflector Colour
Choose oneTrim Colour
Choose oneBody Colour
Choose oneDriver
Choose oneHousing
Choose oneTethered Controller
Choose oneTotal, before tax
$219.00
Photometrics
See what the beam does before you cut the hole.
Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.
N5 · Geometry only
Beam angle
Ceiling height
Color temperature
N5 · Beam section25° · 3000K · 9 ft ceilingScale varies
Beam diameter at the floor
1.22 m4.0 ft
Ø = 2 × 2.74 m × tan 12.5°Below fixtureBeam Ø
1.0 m0.44 m1.5 ft
2.0 m0.89 m2.9 ft
Floor · 2.74 m1.22 m4.0 ft
The diameter is measured to the beam edge, where intensity falls to half the center value, and follows from the rated beam angle alone, so it holds for any fixture at that angle. Illuminance in lux is not shown because it needs tested IES data for this optic, which we publish on the downloads below rather than estimate here. For a layout across a whole plan, send us the drawings.

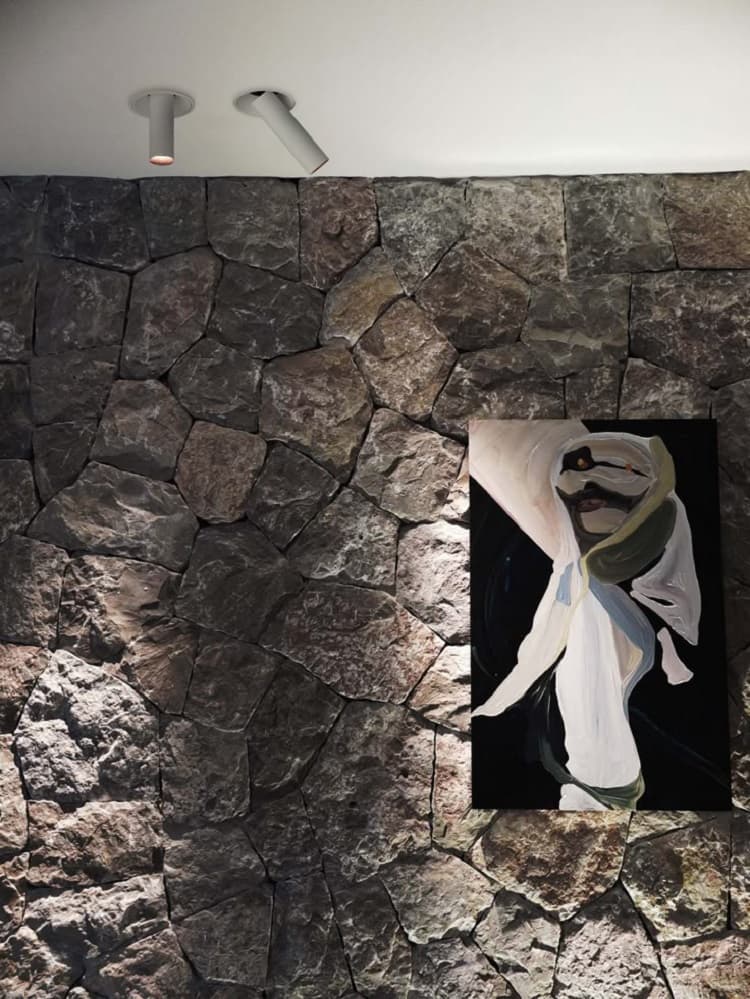

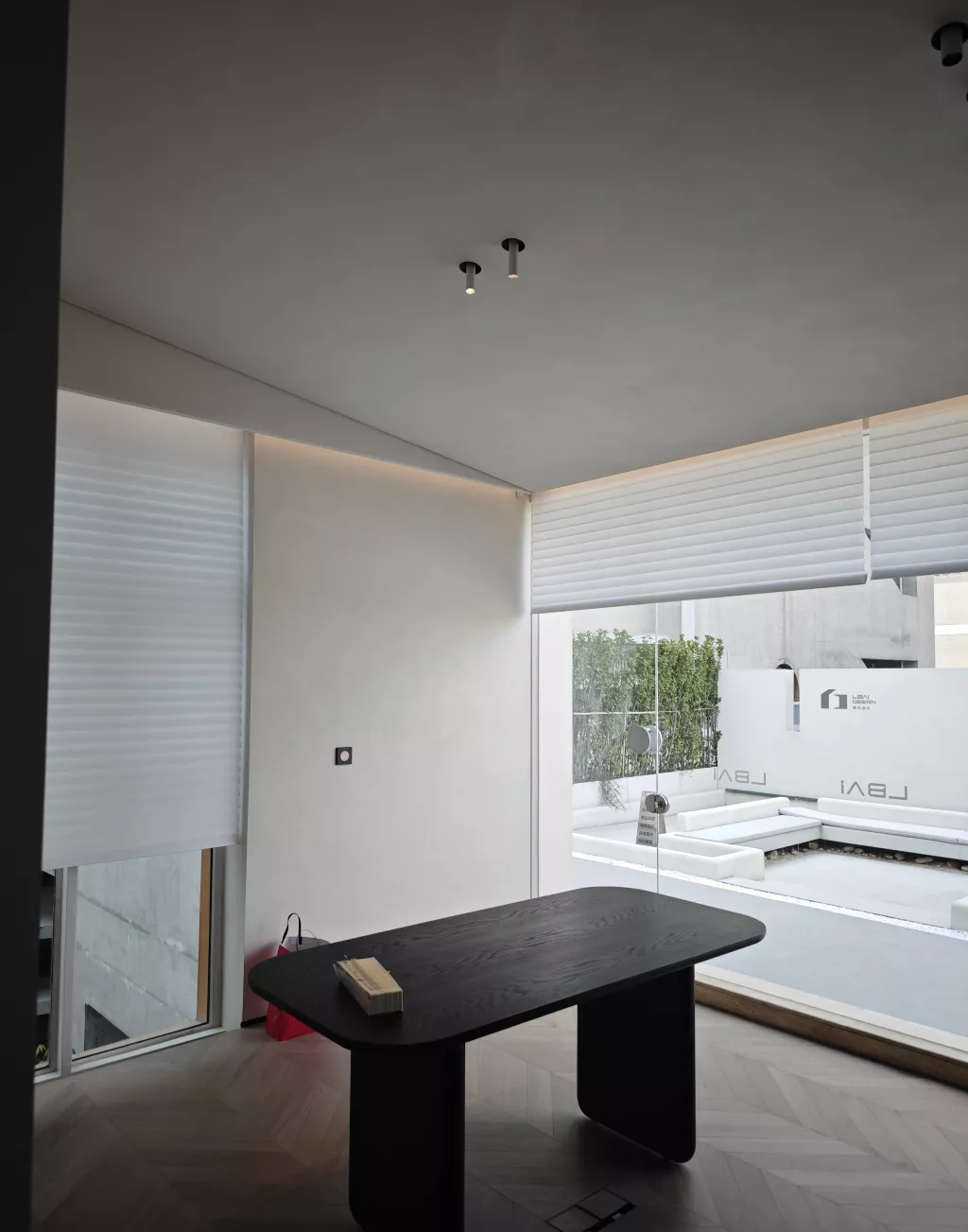

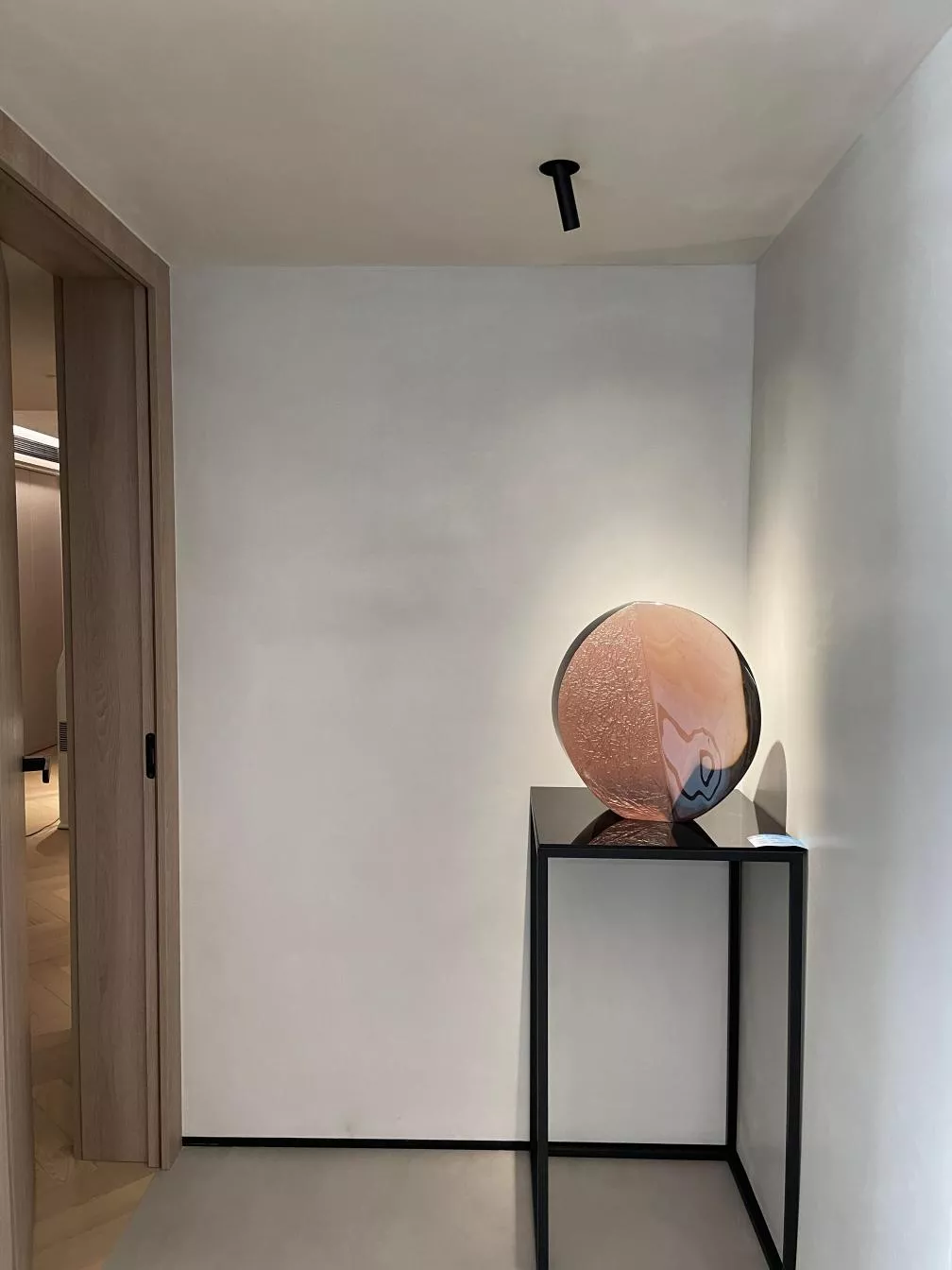

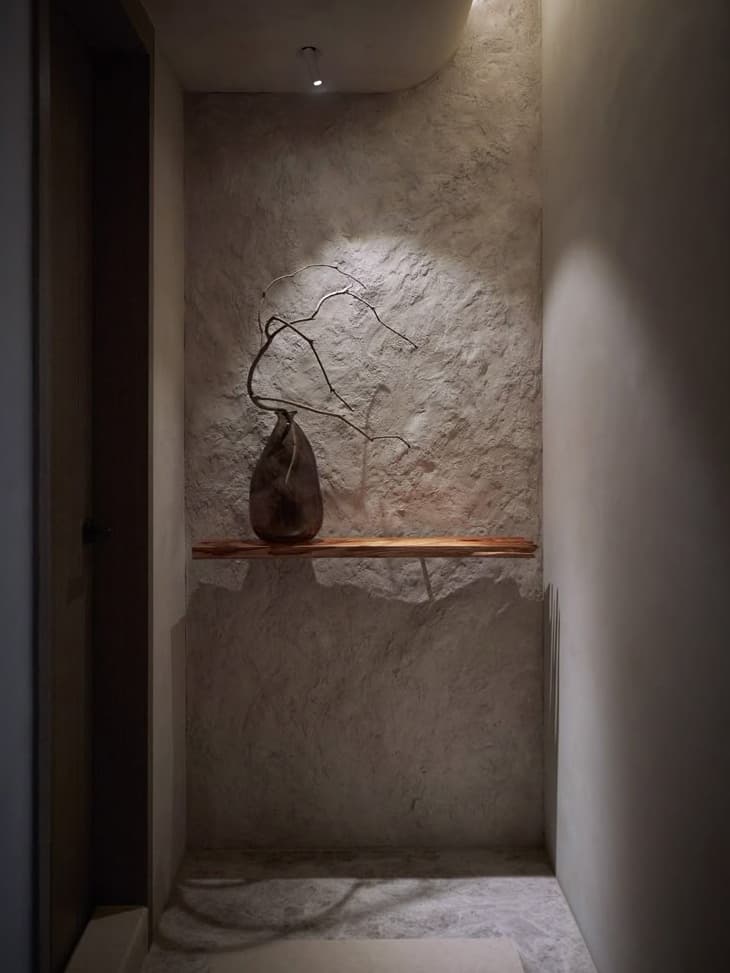

In the field
The family at work.
Technical specification
Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.
- Model
- N5-75
- Cut-out (reference)
- 75 mm (3.0 in)
- Dimensions (reference)
- 95 high, 81 diameter (mm)
- Wattage (reference)
- 8 W
- Fixture voltage
- 36 V DC
- Input voltage (reference)
- 100 to 120 V AC
- Finishes
- White · Black
- Mounting
- Recessed
- Lifespan
- 50,000 hours
- Warranty
- 5 years
- Lead time
- 7 to 30 days
- 5CCT
- Five color temperatures selectable on the fixture
- Aiming
- 75° tilt, 360° rotation, 1.81 in (46mm) telescopic drop
- Barrel
- Ø1.18 in (30mm)
- Reflector
- Black or white
- Delivered lumens
- 597 lm (35° optic, 3000K), measured on a 90 CRI reference build. 97 CRI and color tuning builds deliver less.
- Material
- Cold Forged Aluminum
- Shape
- Round
- Color temperature
- Static CCT (97 CRI, fixed) · 5CCT Switch (Selectable on the fixture) · 2700K to 6000K (95 CRI, tunable white) · 1800K to 5500K (95 CRI, tunable white) · 3000K to 1800K (95 CRI, dim to warm) · RGBW (90 CRI, colour and white)
- Static color temperatures
- 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white)
- Beam angles
- 15° · 25° · 35° · 50° · 80°
- Ingress rating
- IP20 (Adjustable, 75° tilt)
- Trim
- Trimless (Plastered in) · Micro-flange (Minimal visible edge) · Millwork (For joinery)
- Reflector color
- Black · White
- Driver options
- Remote driver (Driver away from the fixture) · 0-10V · Triac (Mains dim) · Dali2
- Housing
- None · Flat Bracket · Non-IC Housing (Keep clear of insulation) · IC-Housing (Insulation contact)
- Controls
- Casambi · Tuya · Matter
- CRI
- 90 · 95 · 97
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guidePDF
- Lead and driver wiringPDF
- CAD blocksDXF
- Revit familiesOn request
- Photometric test reportPDF
Anything marked on request we will send the same day. Ask at info@nuordic.com.
