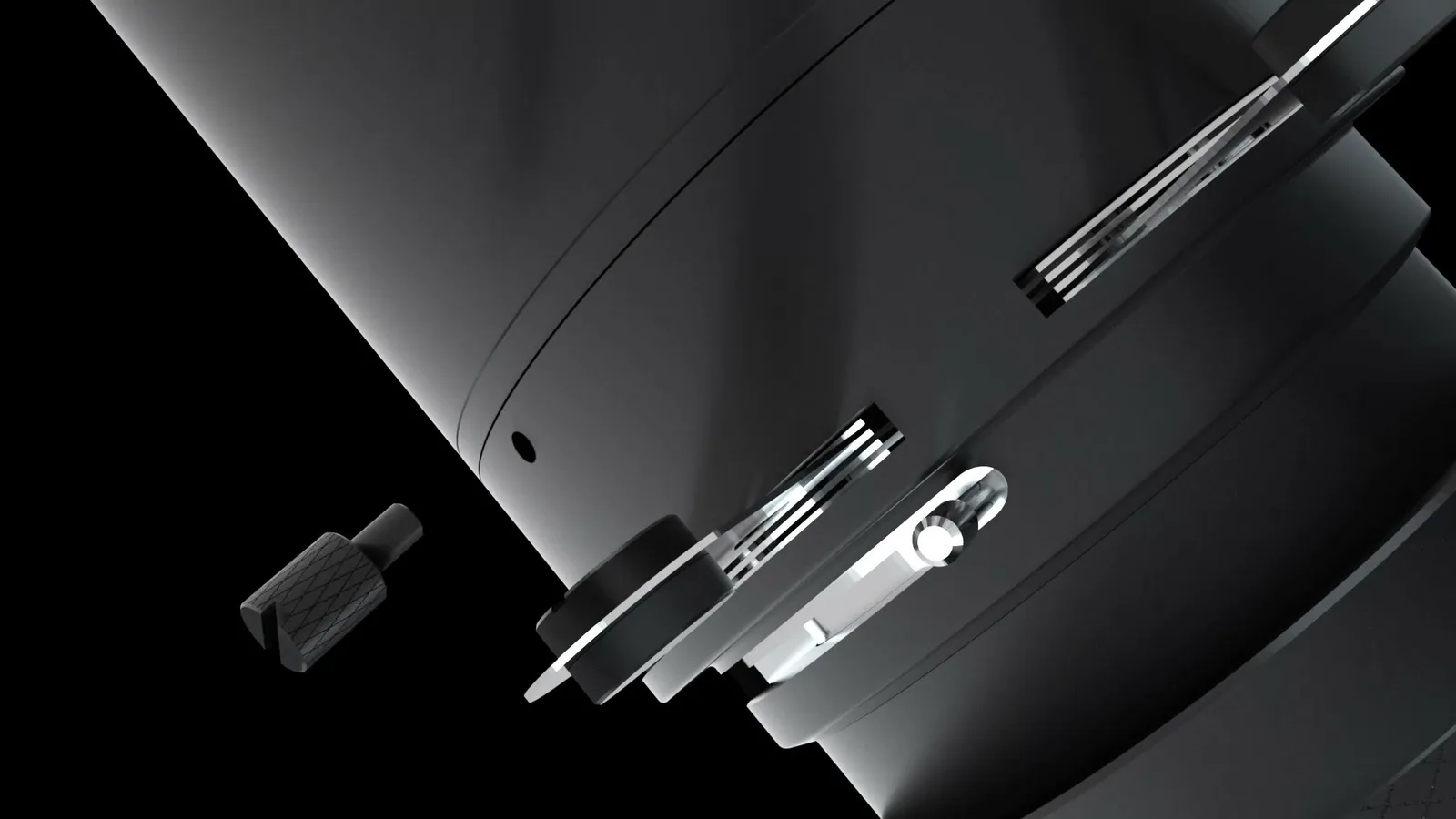

Product film
Track Lighting
IMAX-Projector - Line Voltage Track
Model TLI020-71
A framing projector for line voltage track, built for galleries, museums and showrooms. 20W and 805 lm at CRI 90+ or 95+, 2700K to 4000K, with an 18° to 30° or 24° to 36° zoom. Four framing blades, an iris and a focus ring cut the light to the edge of a canvas.
From $1,158.00Made to order · ships in 30 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- cETLusIntertek listed, US and Canada
Configurator · TLI020-71
Build the fixture, get the order code.
8 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Finish
Choose oneTrack adapter
Choose oneCRI
Choose oneColor temperature
Choose oneZoom optic
Choose oneDimming
Choose oneLogo projection
OptionalColor filter
Add anyFrom
$1,158.00

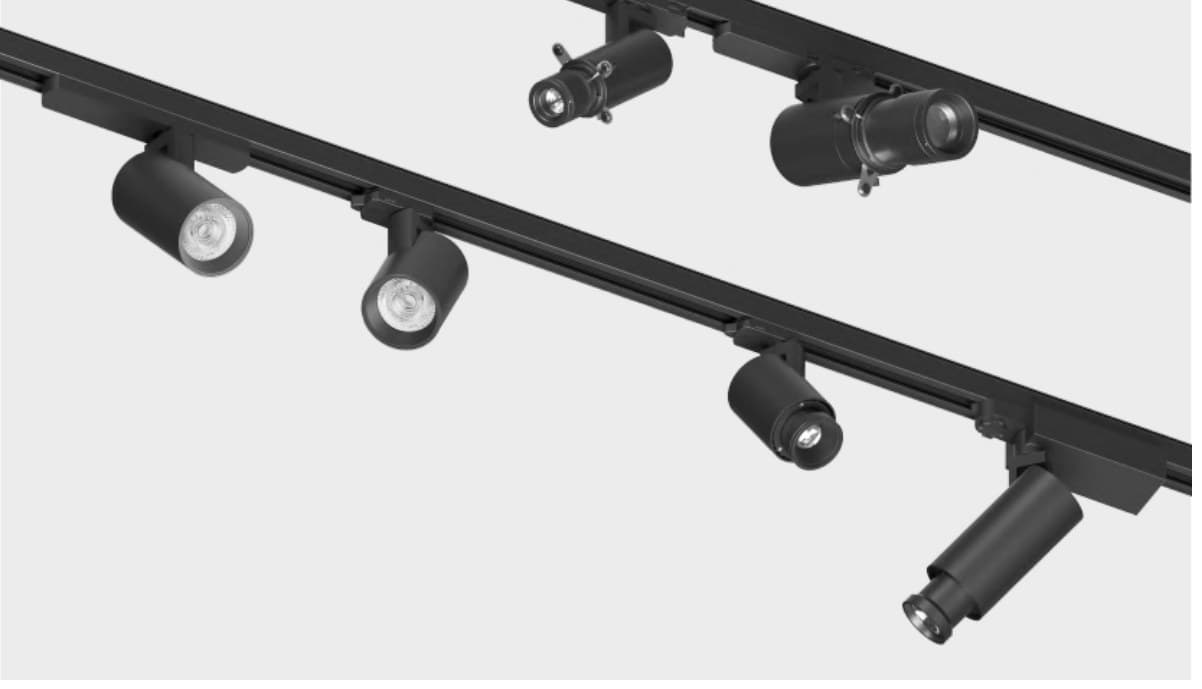

In the field
The family at work.
Technical specification
- Model
- TLI020-71
- Dimensions
- 213 high, 75 diameter (mm)
- Wattage
- 20 W
- Lumen output
- 704 to 805 lm
- Color temperature
- 2700K · 3000K · 3500K · 4000K
- CRI
- 90 · 95
- Beam angles
- 18° · 24° · 30° · 36°
- Fixture voltage
- 100 to 120 V AC
- Input voltage
- 100 to 120 V AC
- Driver
- Integral
- Dimming
- TRIAC · Non-dimmable · Casambi
- Controls
- Casambi
- Ingress rating
- IP20
- Finishes
- Black · White
- Mounting
- Track
- Environment
- Dry
- Lifespan
- 50,000 hours (L80)
- Warranty
- 5 years
- Lead time
- 30 days
- Track
- Line voltage adapter for 2-pin Juno, 2-pin Lightolier, 3-pin Halo, 4-pin Global or 4-pin Standard track. Not compatible with our magnetic track
- Aiming
- 0° to 90° tilt, rotation beyond 360°
- Optics
- Zoom 18° to 30° (1T3) or 24° to 36° (2T3); four framing blades, iris 3° to 45°, focus from a sharp to a soft edge
- Control
- TRIAC on a dimmer rated for LED loads, non-dimming, or Casambi Bluetooth. Wall dimmers not supplied
- Listing
- ETL and cETL listed for dry locations in the TRIAC and non-dimming builds. The Casambi build is not ETL listed
- Accessories
- Color filter (TLI020-71-CF); logo projection made to order from your artwork (TLI020-71-L)
- Electrical class
- Class II, power factor above 0.9
- Color consistency
- SDCM ≤3; TM-30 Rf 99 to 105, Rg 88 to 92
- Operating temperature
- -4°F to 104°F (-20°C to 40°C), dry indoor locations only
- Certification
- cETLus
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
