Recessed Linear Dot Downlight

Model NL20 · 2 trims

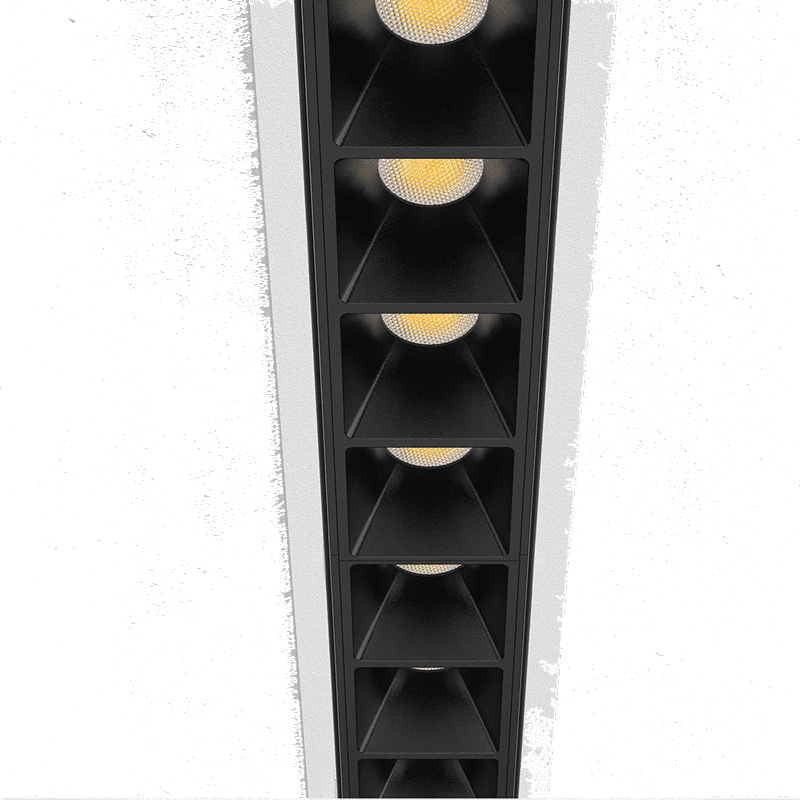

Five or ten glare-controlled cells in one slim linear housing, on a shared 49mm body. 12W or 24W, 90 or 95 CRI, 2700K to 6000K with warm dim and tunable white options. Micro flange or trimless, black or white. The cells sit deep enough that the ceiling reads as a dark line.

Beam: 25-50°
CRI: 95
Ingress: IP20
Trims: 2

From $195.00Made to order · ships in 20 to 30 days

Configure this fixture Specs and downloads

Choose length, CCT, colour Temperature, beam Angle, trim, reflector Colour, trim Colour, driver, housing and tethered Controller. Takes about a minute.

Certified & rated

ETLIntertek listed
CEEU conformity
SAAAustralia / NZ
FCCUS emissions
IP20Dry interior

Ratings apply per build. The IP20 rating belongs to the builds that carry it, not to every option on this page.

Configurator · NL20

Build the fixture, get the order code.

11 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Length

Choose one

CCT

Choose one

Colour Temperature

Not applicable · set by your other choices

This CCT option sets its own colour temperature, so there is no fixed kelvin to choose.

Beam Angle

Choose one

IP Rating

Choose one

Trim

Choose one

Reflector Colour

Choose one

Trim Colour

Choose one

Driver

Choose one

Housing

Choose one

Tethered Controller

Choose one

From

$195.00

Photometrics

See what the beam does before you cut the hole.

Pick an optic, a mounting height and a color temperature. One set of inputs drives all five views: the beam in section, the polar distribution, the spacing a run sets out at, the measured spectrum, and color rendition. Tested IES files for every build are in the downloads below.

NL20 · Tested IES on file

Beam angle

Ceiling height

Color temperature

NL20 · Beam section50° · 3000K · 9 ft ceilingScale varies

Beam diameter at the floor

2.56 m8.4 ft

Ø = 2 × 2.74 m × tan 25°

Tested · 3000K1,834 lm · 2,517 cd · 24.4 W · 75 lm/W

Below fixtureBeam ØLux

1.0 m0.93 m3.1 ft2,520 lx

2.0 m1.87 m6.1 ft630 lx

Floor · 2.74 m2.56 m8.4 ft330 lx

Illuminance is inverse-square from the tested center-beam intensity of 2,517 cd in NL20F10-24W-3000K-50D.ies, and delivered lumens are as the file states them; the diameter is geometry from the rated beam angle. The lux column is for one fixture on axis, direct. What the room adds is separate and is drawn on the section: a 0.80 ceiling over a 0.20 floor trade light until they settle 19% above the direct level, and that arrives evenly rather than in the pool, so it lifts the gaps between fixtures by as much as the centres. It is an estimate with no walls in it, which makes it the open plan figure; a small room with 0.50 walls returns a little less. For a layout across a whole plan, send us the drawings.

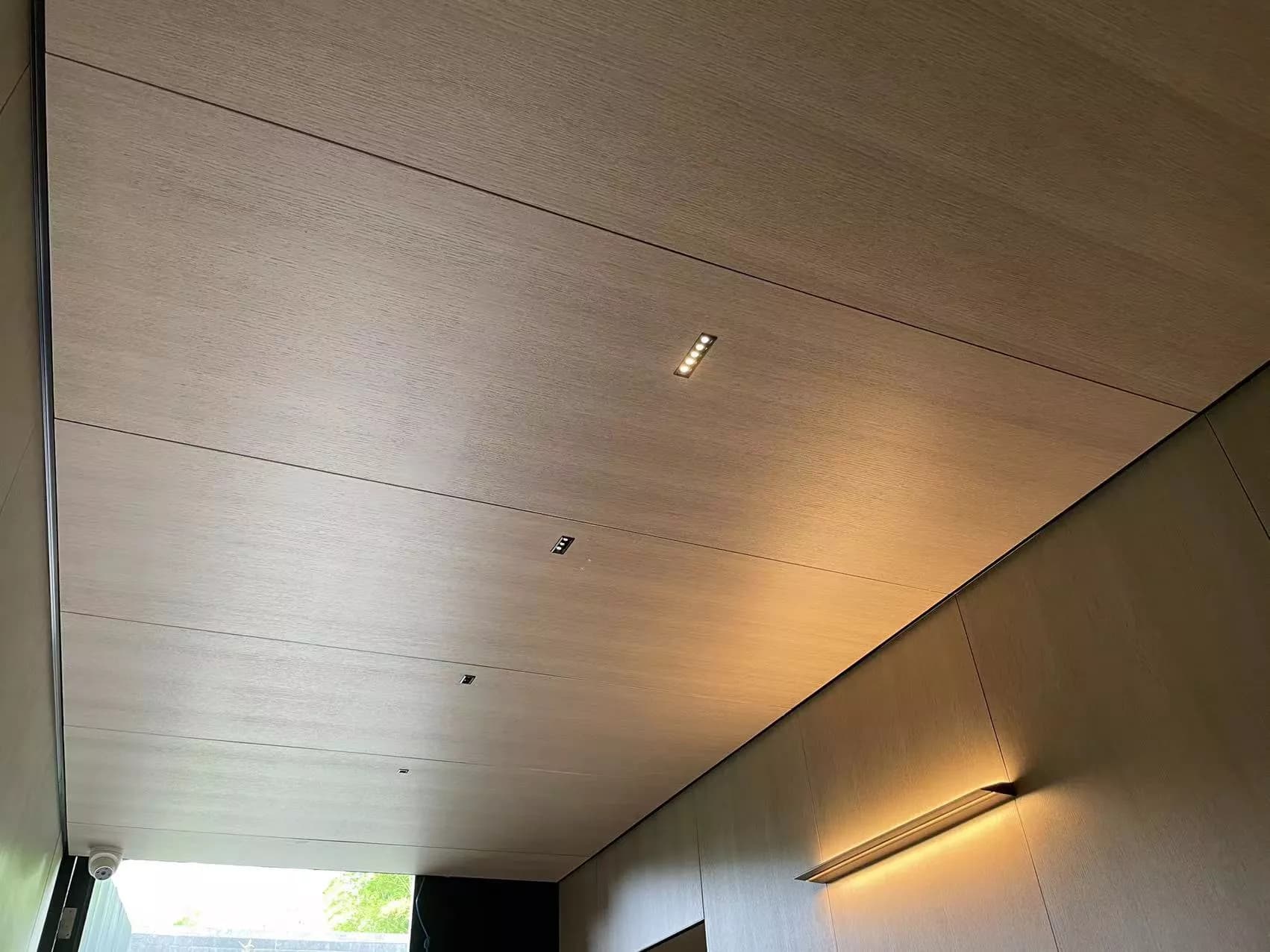

In the field

The family at work.

View projects →

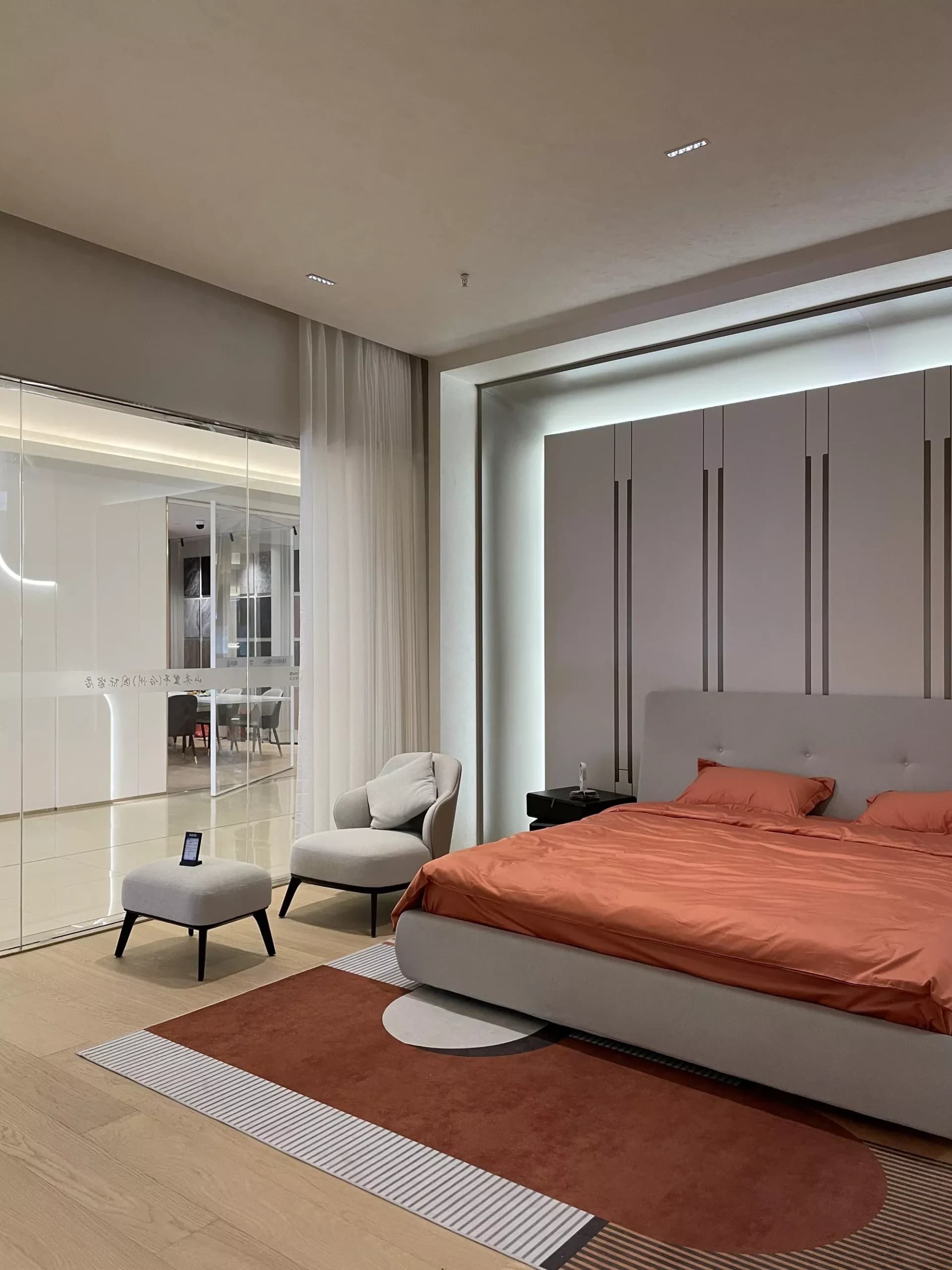

Living room lit by recessed downlights set into a flat plaster ceiling

Bathroom with a freestanding tub, the stone wall grazed by recessed downlights

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: NL20
Cut-out (reference): 163 x 44 mm
Dimensions (reference): 172 long, 49 wide, 59 high (mm)
Wattage (reference): 12 to 24 W
Lumen output (reference): 756 to 1788 lm
Fixture voltage: 24 to 36 V DC
Input voltage (reference): 120 to 277 V AC
Finishes: White · Black
Mounting: Recessed
Lifespan: 50,000 hours
Warranty: 5 years
Lead time: 20 to 30 days
driver: Separate component, remote placed in an accessible location or tethered to the housing. DALI-2 two channel is required for tunable white and RGBW.
safety: Class III SELV luminaire, powered from the remote driver

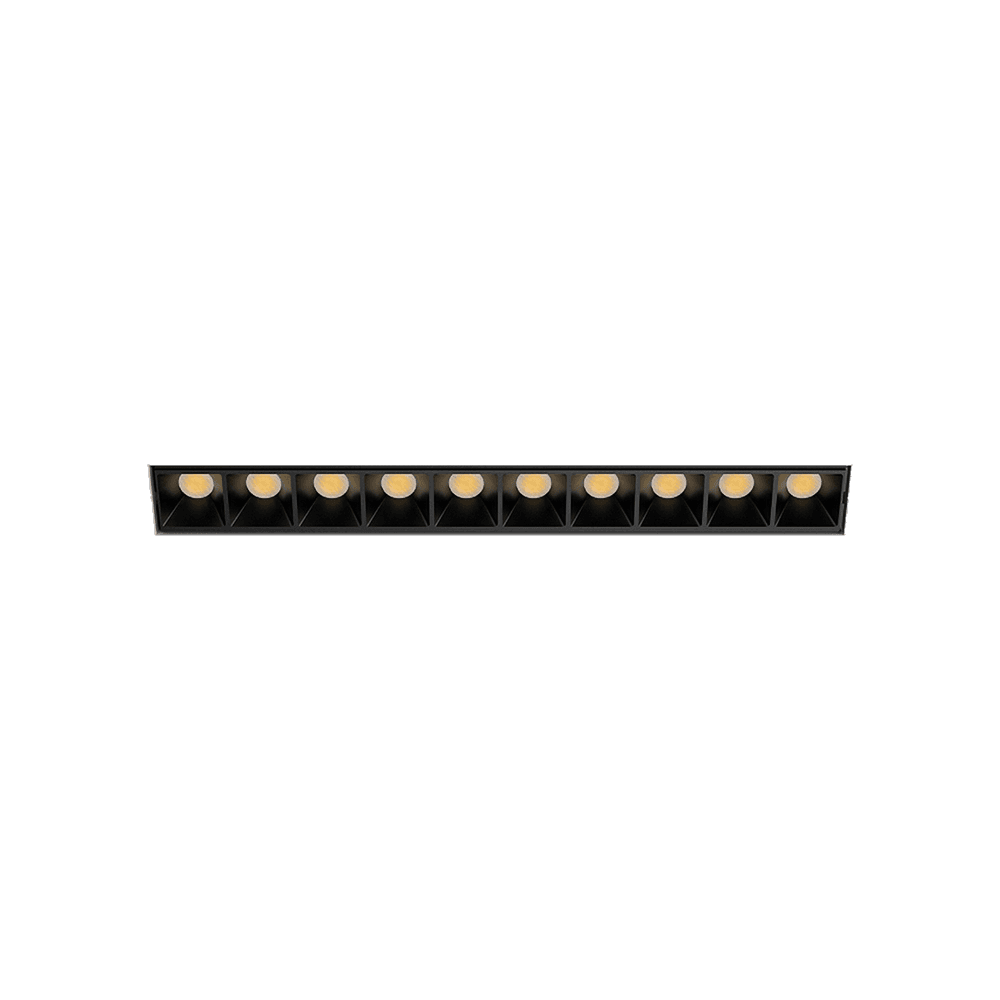

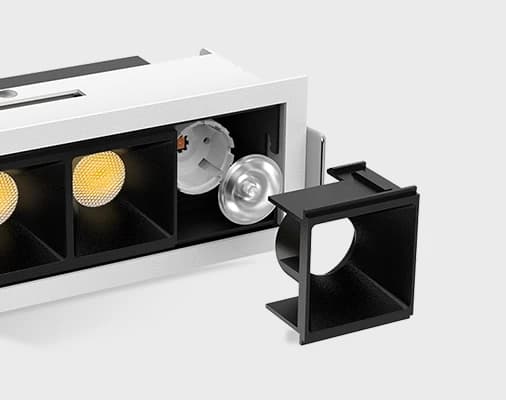

aperture: 32mm slot, five cells on NL20F5 and ten on NL20F10
housings: Flat rough-in plate 600 x 200mm on both lengths; non-IC rough-in plate and IC box on the 6 inch only
ceiling_void: Allow 100mm of clear ceiling void above the aperture plane
colour_engines: Static CCT, CCT switch, tunable white and RGBW engines on the same body. RGBW is offered but has no published lumen figure.
cutout_by_model: NL20F5 163 x 44mm; NL20F10 319 x 44mm. Cutout depth 60mm on both. The stored cutout_mm is the NL20F5; the schema holds one cutout per product.
lumens_by_model: NL20F5 756 lm at 90+ CRI, 894 lm at 95+ CRI; NL20F10 1512 lm at 90+ CRI, 1788 lm at 95+ CRI. Typical at 4000K on the 50 degree optic, plus or minus 5 percent.
wattage_by_model: NL20F5 12W, NL20F10 24W
dimensions_by_model: Micro flange NL20F5-TR 172 x 49mm, NL20F10-TR 328 x 49mm; trimless mud-in ring NL20F5-TL 220 x 85mm with 156mm visible aperture, NL20F10-TL 381 x 85mm with 311mm visible aperture. 59mm recess depth on all four.
measured_photometry: IES at 3000K on the 50 degree optic: NL20F5 903 lm at 13.0W, NL20F10 1834 lm at 24.4W
Aperture: 32 mm slot

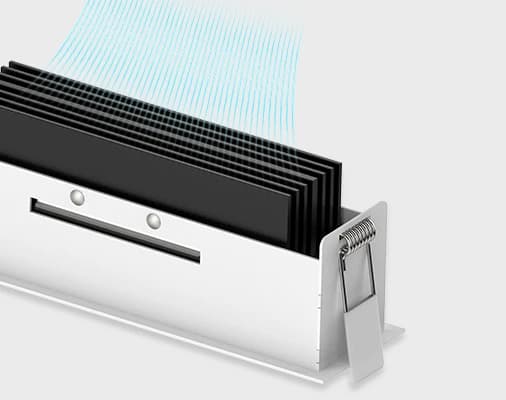

Material: Die Cast Aluminum
Certification: ETL · CE · SAA · FCC
Color temperature: Static CCT (90 CRI, fixed) · Static CCT (95 CRI, fixed) · 5CCT Switch (90 CRI, selectable on the fixture) · 2700K to 6000K (90 CRI, tunable white) · 1800K to 5500K (90 CRI, tunable white) · 3000K to 1800K (95 CRI, dim to warm) · RGBW (90 CRI, colour and white)
Static color temperatures: 2700K (Warm white) · 3000K (Soft white) · 3500K (Neutral) · 4000K (Cool white)
Beam angles: 25° · 35° · 50°
Ingress rating: IP20 (Fixed aim, dry location)
Trim: Trimless (Plastered in) · Micro-flange (Minimal visible edge)
Reflector color: Black · White
Driver options: Remote driver (Driver away from the fixture) · 0-10V · Triac (Mains dim) · Dali2
Housing: None · Flat Bracket · Non-IC Housing (Keep clear of insulation) · IC-Housing (Insulation contact)
Controls: Casambi · Tuya · Matter
CRI: 90 · 95
