Trimless Gypsum Circle Step Light

Model NGW-C · Aluminium Light Body

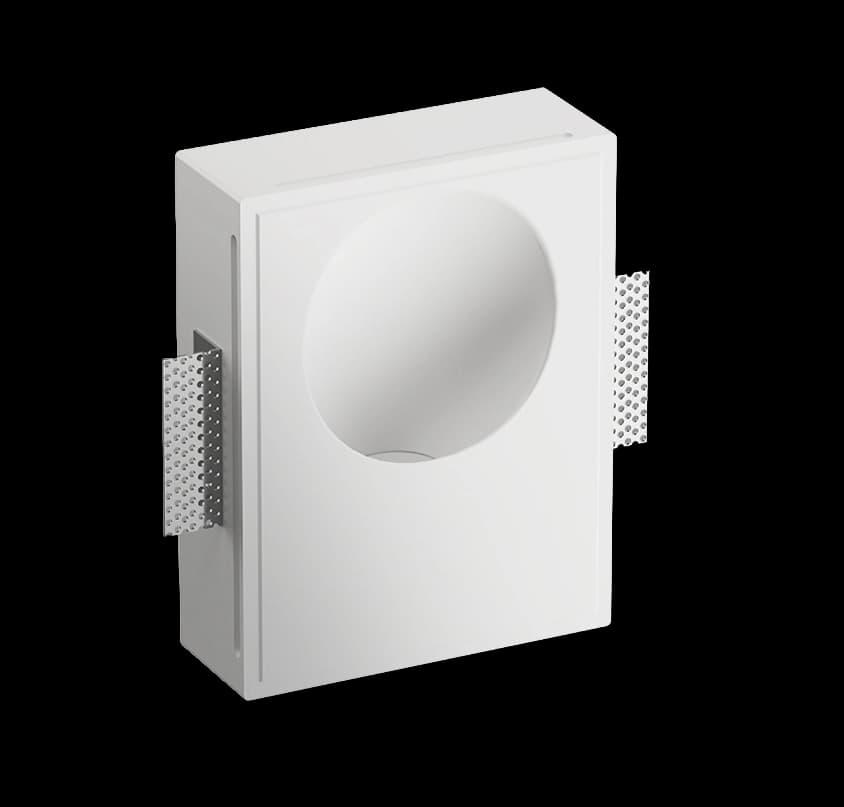

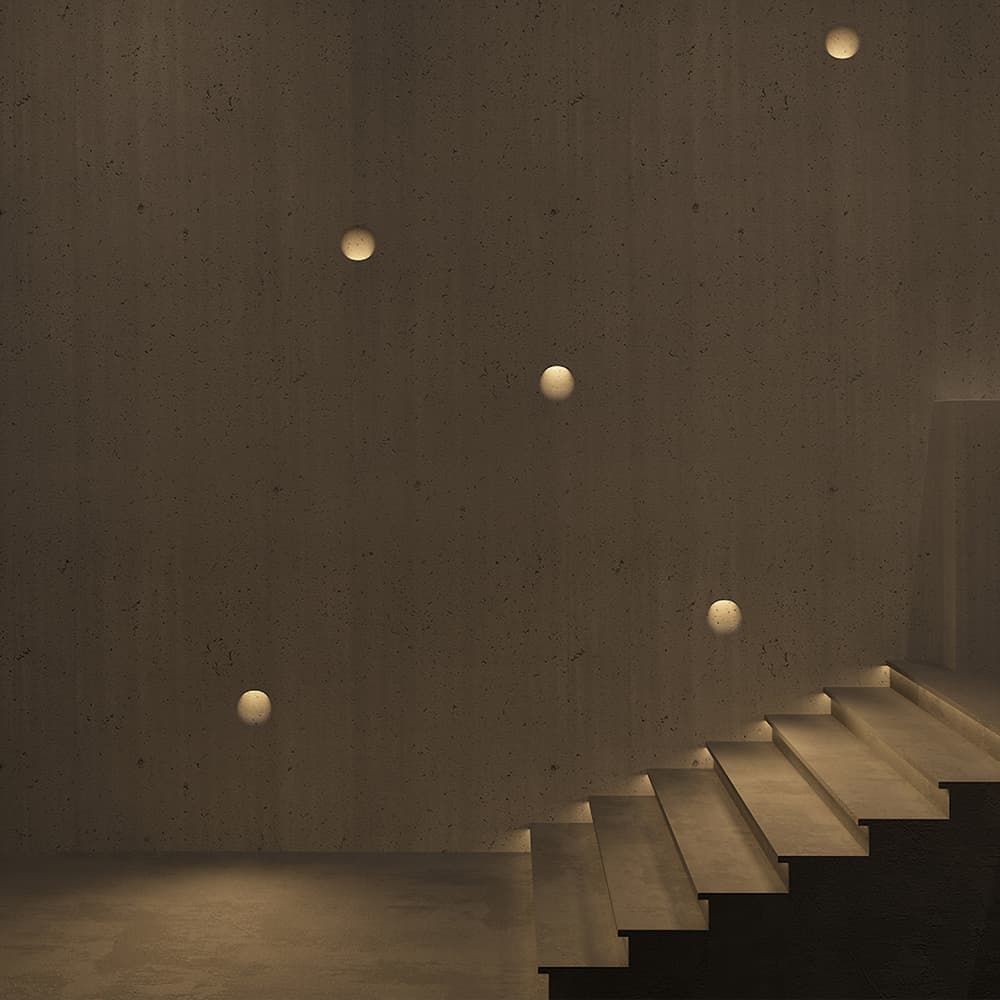

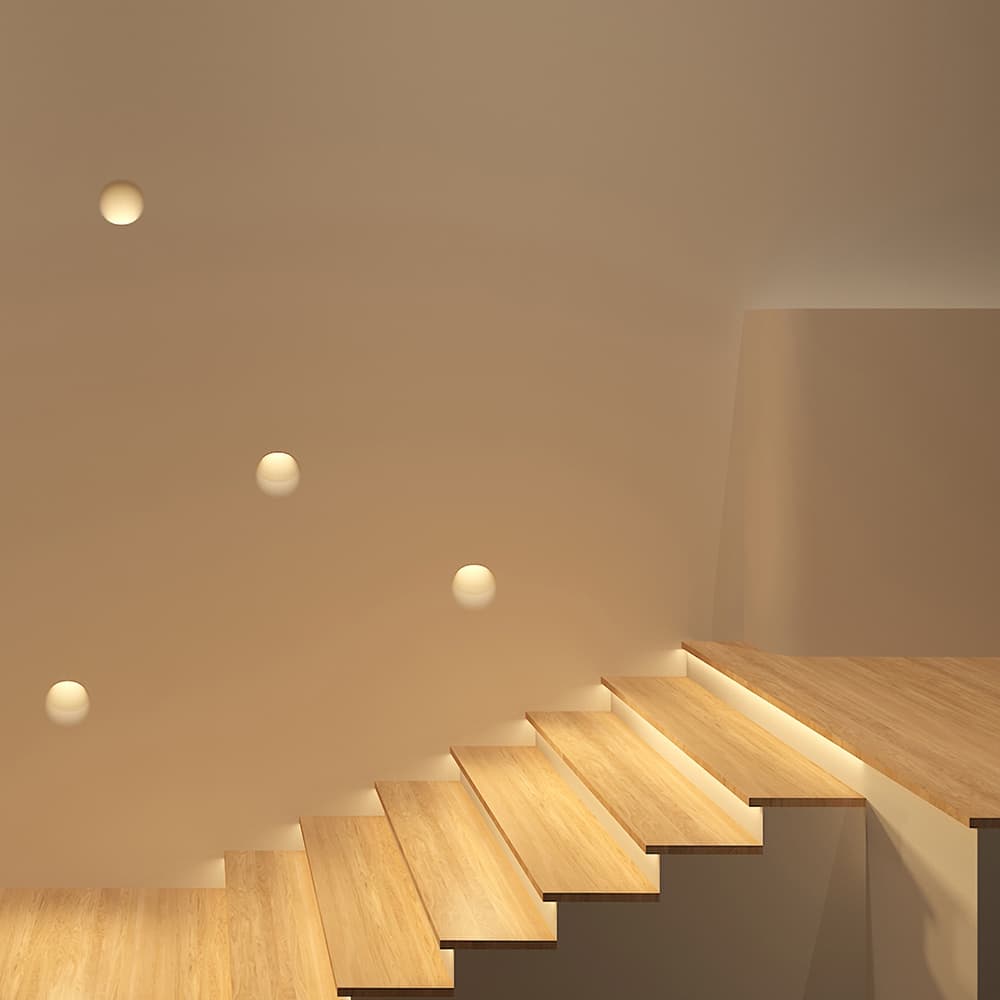

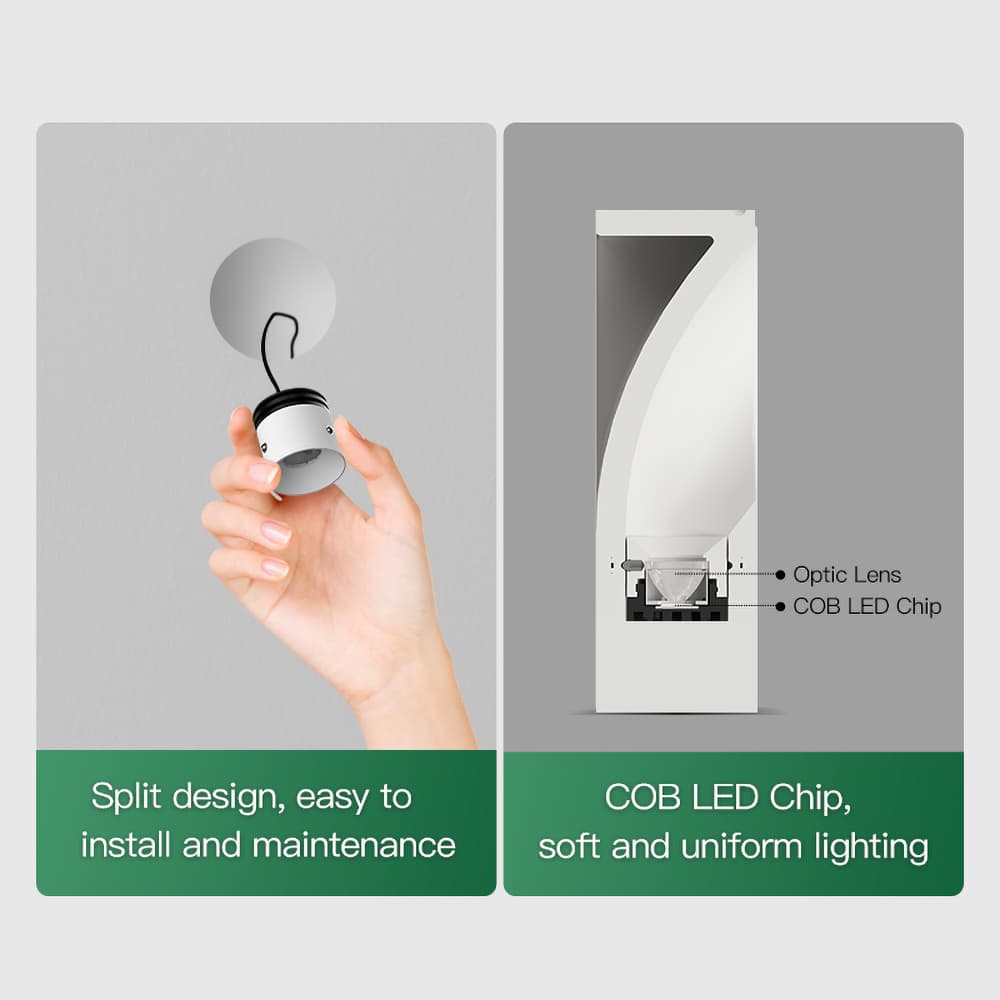

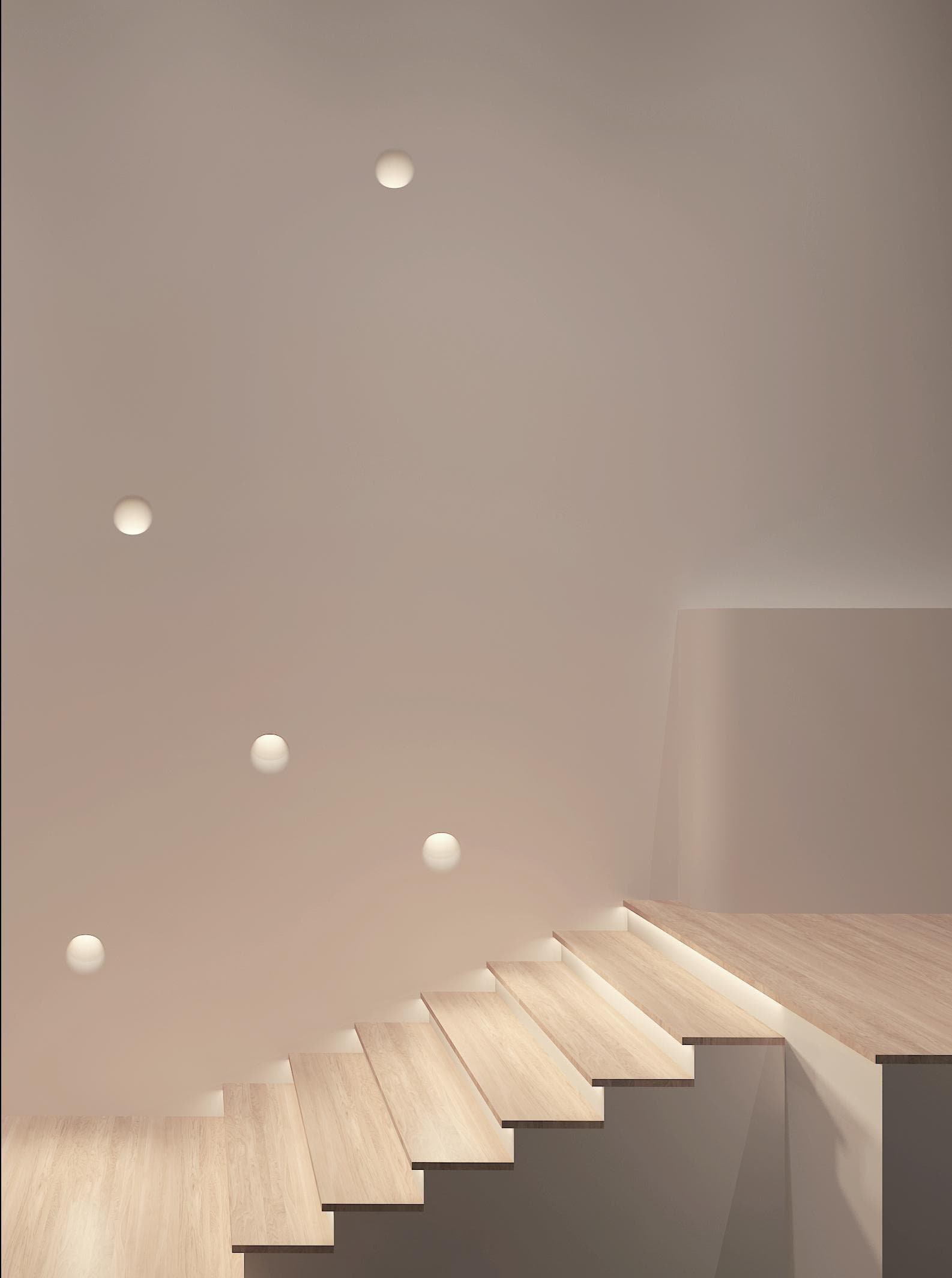

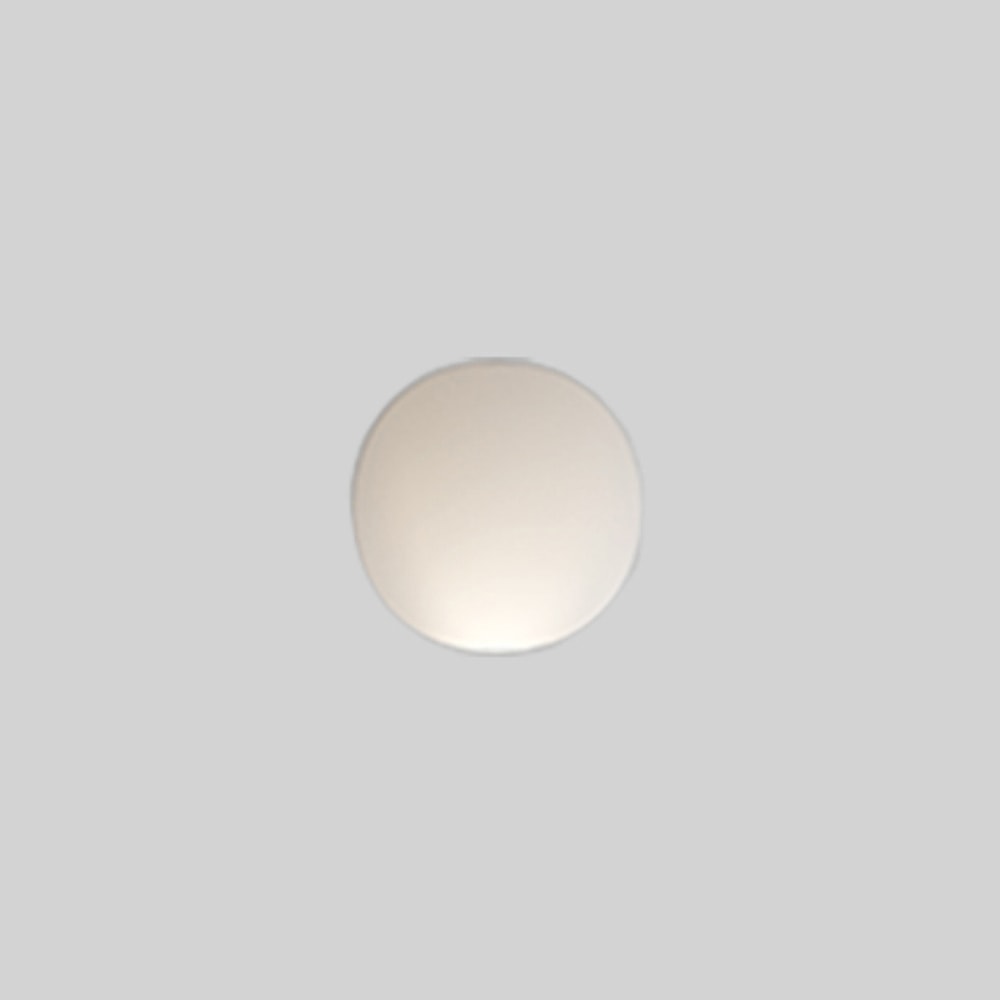

A plaster-in gypsum step light that vanishes into the wall, leaving only a circular glow. The COB LED sits deep inside a curved housing, so light falls softly down and across steps and floors without glare. High CRI so finishes read true at low levels, fixed beam, gypsum body with an aluminum light module. Dry interiors only.

Output: 3 W

From $135.00Made to order · ships in 30 days

Configure this fixture Specs and downloads

Choose color Temp and driver. Takes about a minute.

Configurator · NGW-C

Build the fixture, get the order code.

2 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Color Temp

Choose one

Driver

Choose one

Total, before tax

$135.00

Photometrics

See what the step light does before you fix the run.

Pick what the fixture is doing, how far up the wall it sits and the centres it is set out at. One set of inputs drives all five views: the measured throw in section with the floor it lights, the run seen from above, the polar distribution, the measured spectrum, and color rendition. A step light is shielded and asymmetric, so the section draws the distribution the file measures rather than a beam angle.

NGW-C · Geometry only

What it is doing

Height above the floor

Spacing along the run

Color temperature

NGW-C · Step section12 in above the floor · 5 ft centresNo tested file

Across the floorSet-out

At the wall—

1 ft out—

2 ft out · walking line—

3 ft out—

12 in above the floor

Where the light lands is geometry from the height, and holds for any step light. How much lands there is not: an asymmetric shielded fixture has no beam angle that stands in for its distribution, so lux waits for the tested file rather than being estimated here. The 1 fc line the section draws is the code minimum for a stair walking surface (IBC 1011.5.3) and for the floor of a means of egress (IBC 1008.2.1, NFPA 101 7.8.1.3). For a layout across a whole plan, send us the drawings.

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: NGW-C

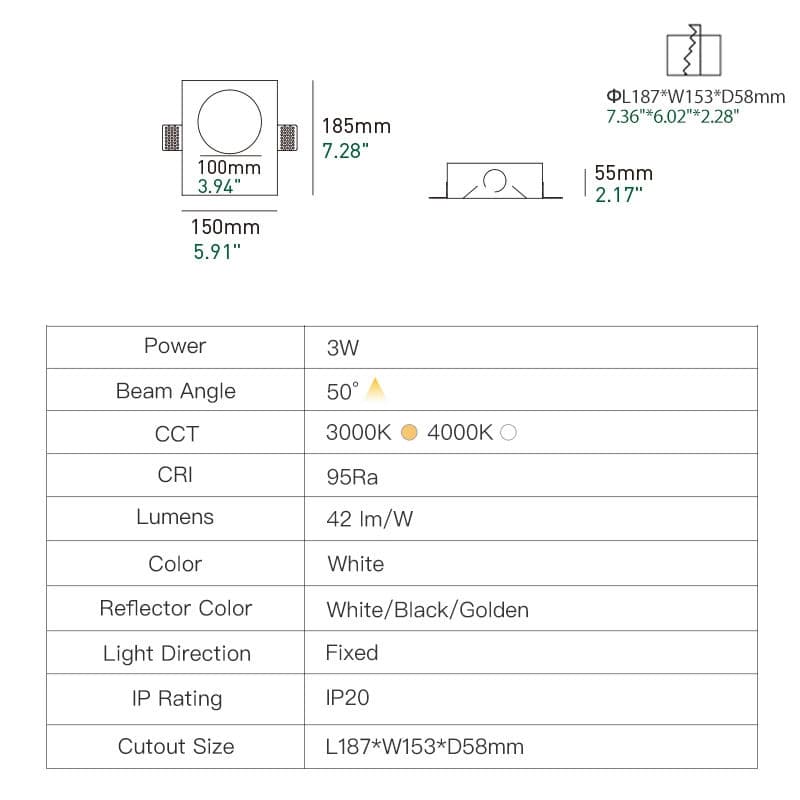

Cut-out (reference): 187 x 153 mm
Dimensions (reference): 185 long, 150 wide, 55 deep (mm)
Wattage (reference): 3 W
CRI: 95
Beam angles: 50°
Input voltage (reference): 100 to 120 V AC
Ingress rating: IP20
Finishes: White
Mounting: Recessed · Step · Wall
Trim: Trimless
Environment: Dry
Lifespan: 50,000 hours
Warranty: 5 years

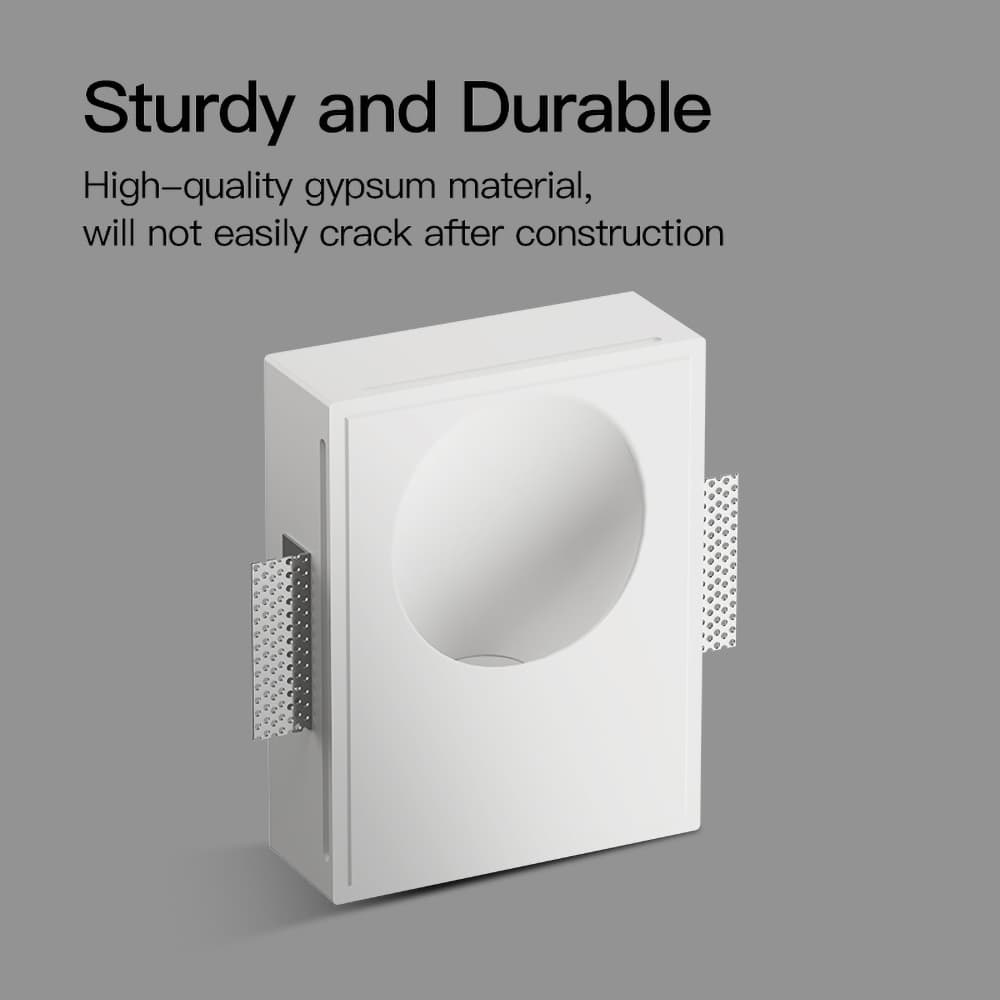

Housing: Gypsum, plaster-in, paintable. Aluminum light body
Opening: Ø100mm
Efficacy: 42 lm/W
Cutout depth: 58mm
Drive current: 350mA max, constant current
Material: Aluminium Light Body
Color temperature: 3000K · 3500K · 4000K
Driver options: No driver (DC 3 V input, driver supplied separately) · On/Off · TRIAC / phase cut · 0/1-10V · TRIAC + 0-10V combo (One driver, either protocol) · DALI
