DALI-2 Constant Current Driver, 10W to 60W
Model KI-DP2J

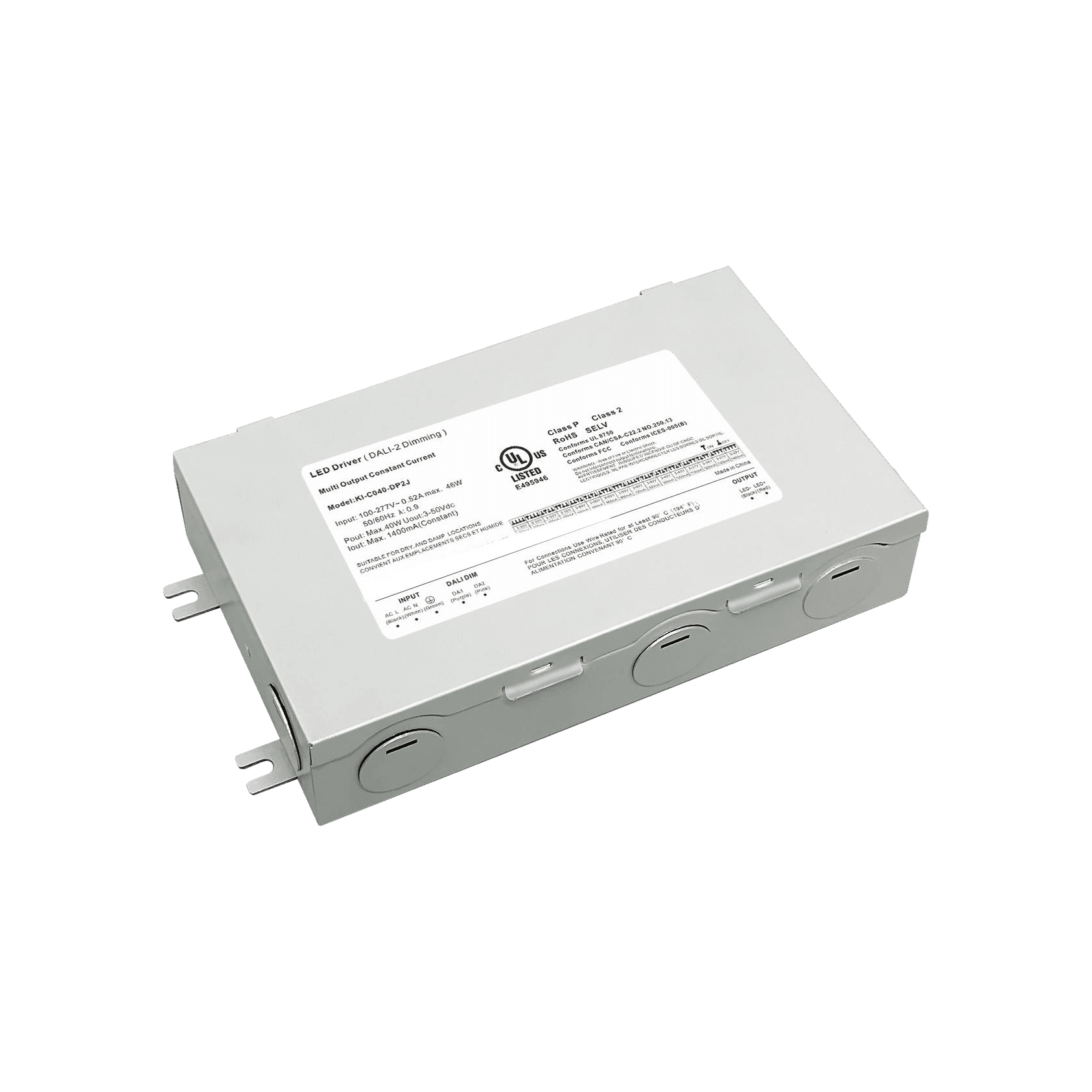

A family of single-channel constant current drivers for DALI-2 systems, each built into its own metal junction box. Five models from 10W to 60W, with the output current set on a DIP switch, so one series covers a project's remote-driver downlights and short linear runs. The Class 2 60W model adds NFC addressing and dims to 0.1%.
From $58.00Made to order · ships in 14 to 21 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- cULusUS and Canada
- FCCUS emissions
- RoHSRestricted substances
Configurator · KI-DP2J
Build the fixture, get the order code.
1 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Wattage
Choose oneFrom
$58.00
Technical specification
- Model
- KI-DP2J
- Dimensions
- 190.2 long, 103.9 wide, 36 high (mm)
- Wattage
- 10 to 60 W
- Fixture voltage
- 3 to 65 V DC
- Input voltage
- 100 to 277 V AC
- Dimming
- DALI-2 DT6
- Ingress rating
- IP20
- Environment
- Dry · Damp
- Warranty
- 5 years
- Lead time
- 14 to 21 days
- Driver class
- Class P, all models
- Output class
- Class 2: KI-010, KI-020, KI-C060
- Housing, 10W and 20W
- 163 x 93.9 x 36 mm
- Housing, 40W and 60W
- 190.2 x 103.9 x 36 mm
- Certification
- cULus E495946 · FCC · RoHS
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
