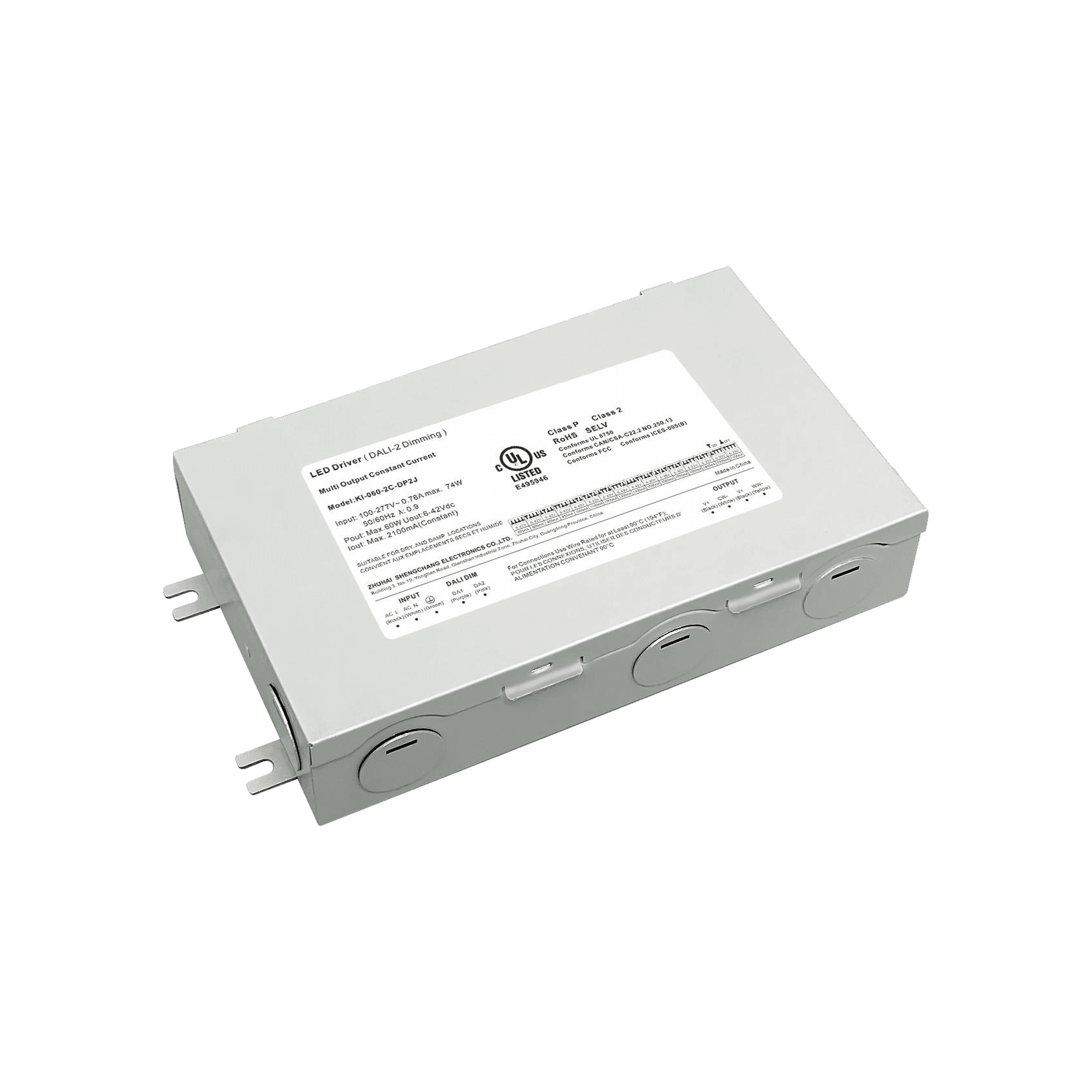

DALI-2 tunable white constant current driver in its metal junction box with knockouts and hinged cover; the 60W model shown, one of three wattages from 20W to 60W

Drivers

DALI-2 Tunable White Constant Current Driver, 20W to 60W

Name: DALI-2 Tunable White Constant Current Driver, 20W to 60W
Brand: Nuordic
SKU: KI-2C-DP2J-60
Availability: InStock

Model KI-2C-DP2J

A family of two-channel constant current drivers for tunable white downlights and linear fixtures on DALI-2 systems. Three models from 20W to 60W drive common anode cool white and warm white strings from one DALI address, 0.1% to 100%, flicker free. The rated power is the total across both channels. Output current is set on a DIP switch, in a metal junction box listed Class 2 and Class P.

From $83.00Made to order · ships in 14 to 21 days

Configure this fixture Specs and downloads

Choose wattage. Takes about a minute.

Certified & rated

cULusUS and Canada
FCCUS emissions

Configurator · KI-2C-DP2J

Build the fixture, get the order code.

1 choice. Options that can’t combine with your choices say why.

Wattage

Choose one

From

$115.00

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: KI-2C-DP2J
Dimensions (reference): 190.2 long, 103.9 wide, 36 high (mm)
Wattage (reference): 20 to 60 W
Fixture voltage: 3 to 65 V DC
Input voltage (reference): 100 to 277 V AC
Dimming: DALI-2 DT8
Ingress rating: IP20
Environment: Dry · Damp
Warranty: 5 years
Lead time: 14 to 21 days
Channels: 2, cool white and warm white, common anode; rated power total across both
Driver class: Class P
Housing, 20W: 163 x 93.9 x 36 mm
Output class: Class 2
Housing, 40W and 60W: 190.2 x 103.9 x 36 mm
Certification: cULus E495946 · FCC
