Drivers
96W DALI-2 DT8 Multi-Channel Constant Voltage Driver
Model KV-DP2J

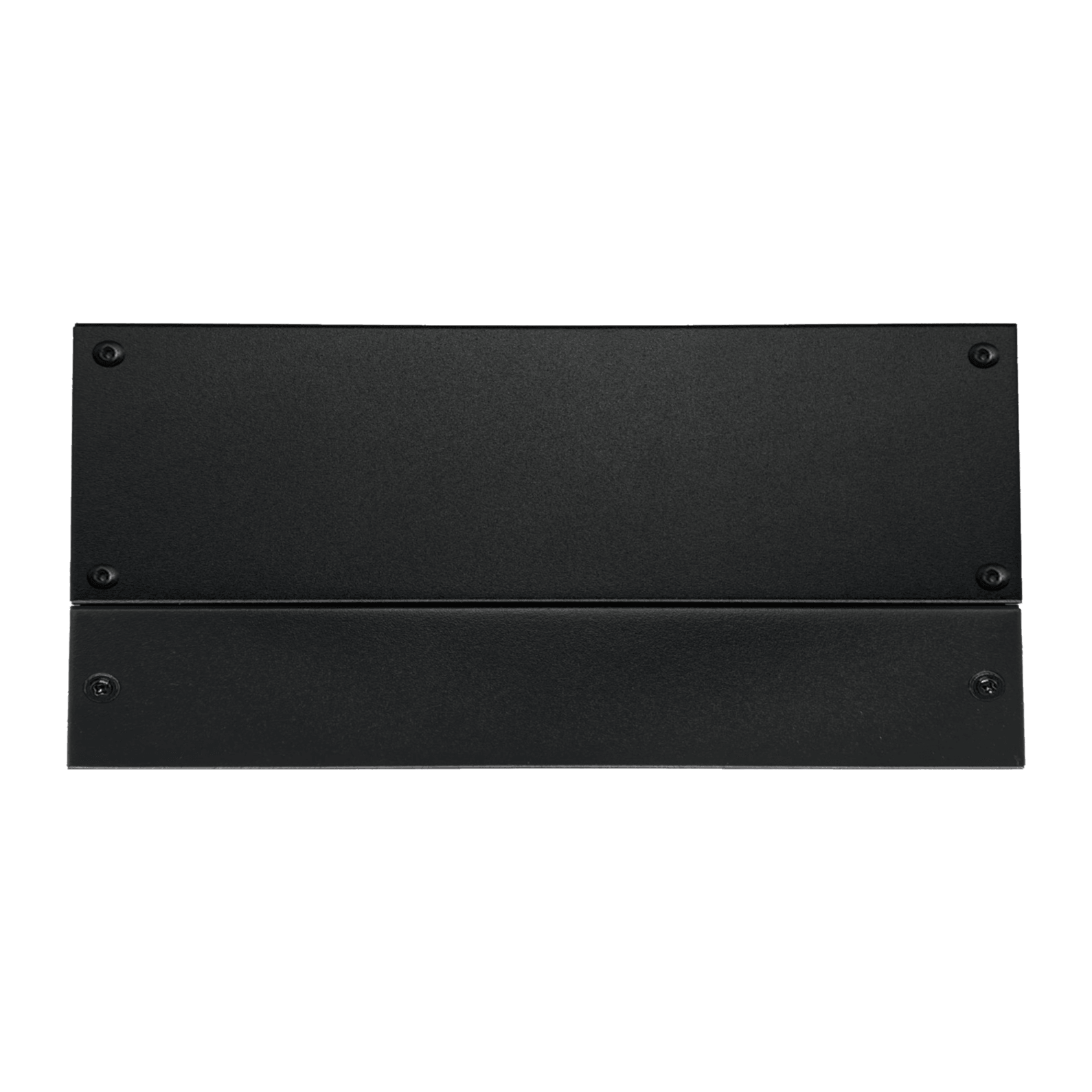

A 96W constant voltage driver for color-changing and tunable LED tape on DALI-2 systems. It drives common anode tape with three, four or five channels at 24V or 48V, and sets brightness and color from one DALI address, 0.1% to 100%, flicker free. Built into an iron junction box rated for dry, damp and wet locations, with NFC addressing.
- Output
- 96 W
From $225.00Made to order · ships in 14 to 21 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- cULusUS and Canada
- FCCUS emissions
Configurator · KV-DP2J
Build the fixture, get the order code.
2 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Voltage
Choose oneChannels
Choose oneFrom
$225.00
Technical specification
- Model
- KV-DP2J
- Dimensions
- 241 long, 125 wide, 41 high (mm)
- Wattage
- 96 W
- Fixture voltage
- 24 to 48 V DC
- Input voltage
- 100 to 277 V AC
- Dimming
- DALI-2 DT8
- Ingress rating
- IP66
- Environment
- Dry · Damp · Wet
- Warranty
- 5 years
- Lead time
- 14 to 21 days
- Certification
- cULus E495946 · FCC
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportOn request
