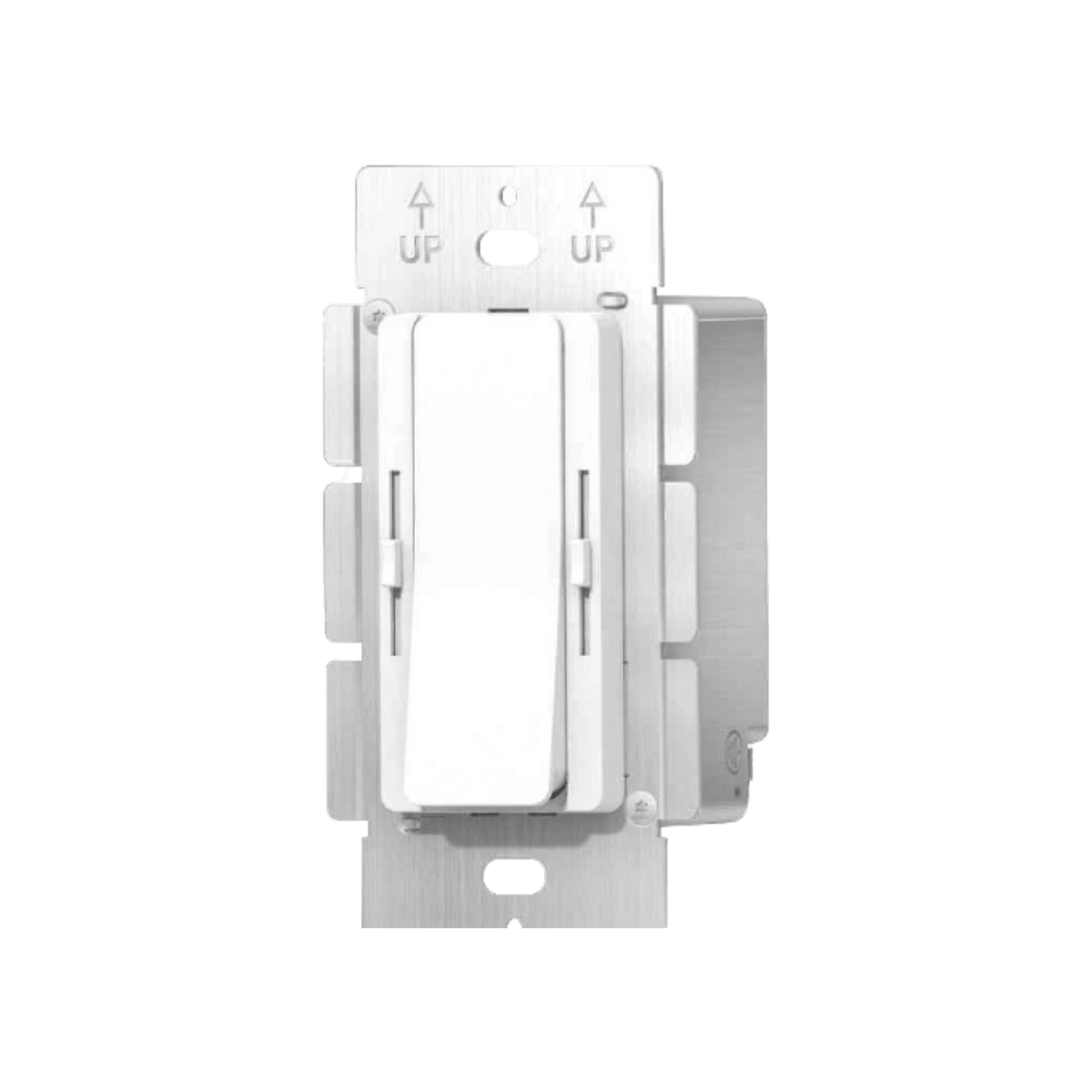

96W Wireless In-Wall Driver and Dimmer
Model SDD
A 96W constant voltage driver built into a decorator dimmer for a standard wall box, running LED tape from 120VAC with no remote driver. Choose single channel, tunable white or RGB plus tunable white output at 24V or 48V, dimming 0.3% to 100%, flicker free. A wireless module adds app and voice control through Tuya, Matter or Casambi.
- Output
- 96 W
From $172.00Made to order · ships in 14 to 21 days
Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.
Certified & rated
- cULusUS and Canada
- FCCUS emissions
- RoHSRestricted substances
Configurator · SDD
Build the fixture, get the order code.
3 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.
Voltage
Choose oneWireless Module
Choose oneOutput
Choose oneFrom
$202.00
Technical specification
- Model
- SDD
- Dimensions
- 105 long, 54 wide, 52 high (mm)
- Wattage
- 96 W
- Fixture voltage
- 24 to 48 V DC
- Input voltage
- 120 V AC
- Dimming
- PWM · Casambi
- Controls
- Tuya · Casambi
- Ingress rating
- IP20
- Finishes
- White · Black
- Environment
- Dry · Damp
- Warranty
- 5 years
- Lead time
- 14 to 21 days
- Certification
- cULus E495946 · FCC · RoHS
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- Revit and CAD blocksOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
Need a layout, not just a fixture?
Send a floor plan and we will return spacing, photometrics and a bill of materials priced to your tier.
Start a Design Brief
