Drivers

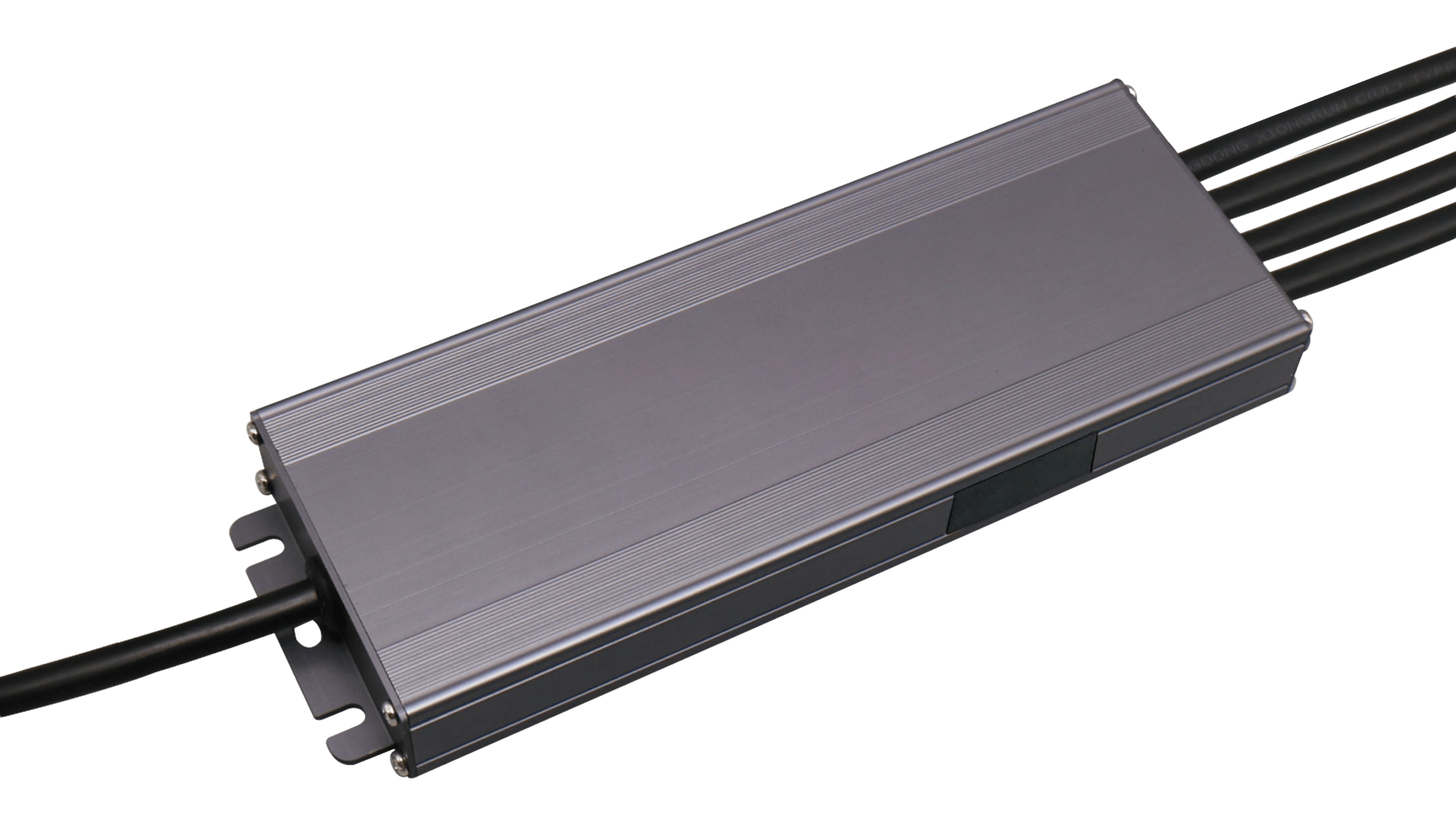

DALI-2 DT8 100W 4 Channel Dimmable Constant Current Driver UL
Model KI-DP2WA
A 100W DALI-2 DT8 constant current driver with four addressable channels for tunable white or RGBW. 120-277VAC input, 150mA to 1500mA output across 12-70V, ripple under 2%, dimming from 0.1% to 100% for real low-level scenes. NFC programming without cycling power, up to 64 DALI addresses, aluminum housing rated dry, damp, and wet. 5-year warranty.
Standard configuration
This product ships one way; there is nothing to configure.
Loading purchasing options
Technical specification
- Model
- KI-DP2WA
- Dimensions
- 217.5 long, 78.1 wide, 25.3 high (mm)
- Wattage
- 100 W
- Fixture voltage
- 12 to 70 V DC
- Input voltage
- 120 to 277 V AC
- Dimming
- DALI-2 DT8
- Ingress rating
- IP66
- Environment
- Dry · Damp · Wet
- Warranty
- 5 years
- Lead time
- 20 days
- Channels
- 4
- Addressing
- NFC programmable, DALI addresses 0 to 63
- Dimming range
- 0.1 to 100%
- Output current
- 150 to 1500mA
Downloads
- Spec sheetPDF
- IES photometric filesOn request
- Installation guideOn request
- CAD blocksOn request
- Revit familiesOn request
- Photometric test reportOn request
Anything marked on request we will send the same day. Ask at info@nuordic.com.
