Outdoor Vertical Slot Step Light

Model ODW-S1060Q

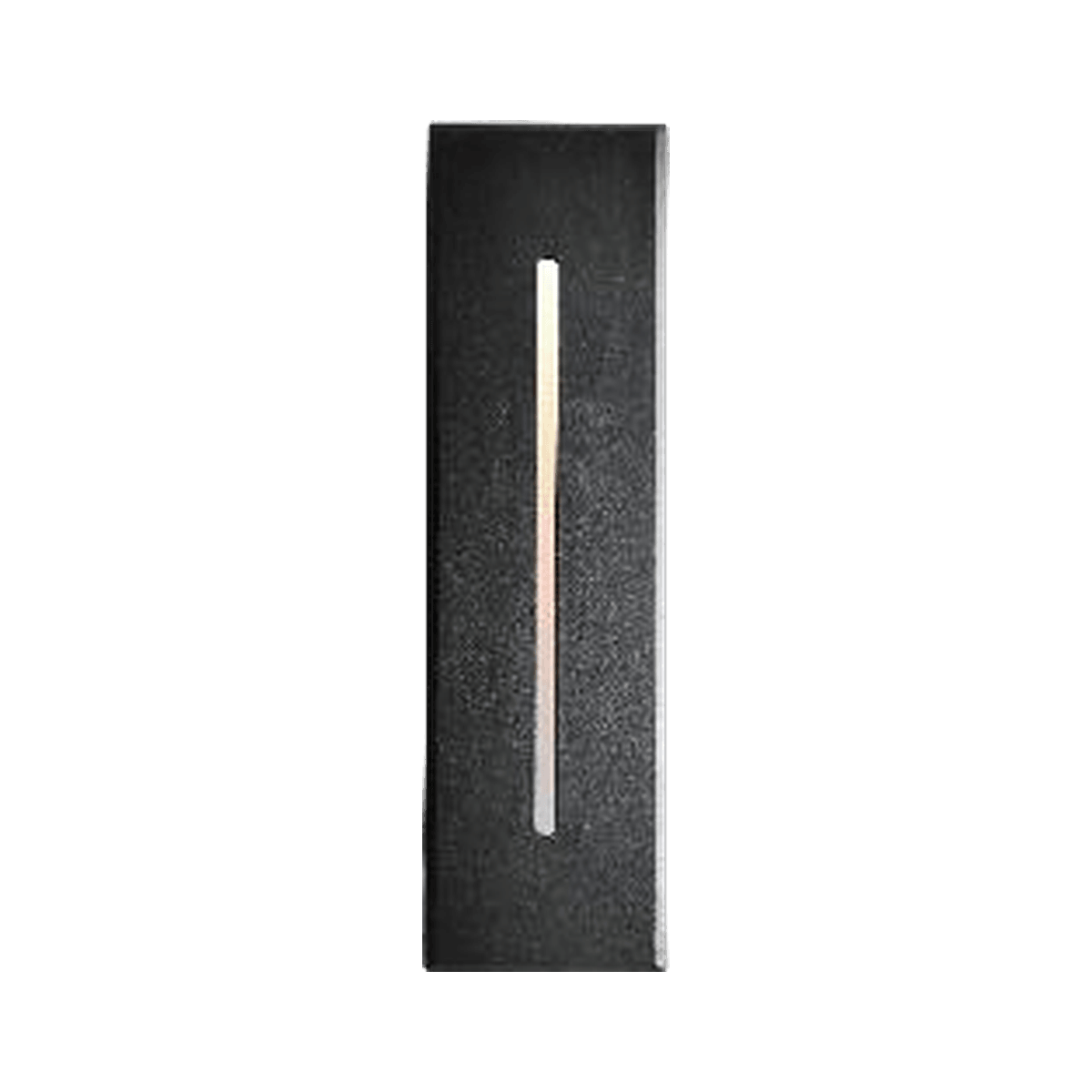

A narrow vertical slot in a black face, recessed into a stair wall. The light leaves in a tight asymmetric 10° beam and lands as a clean stripe across the tread below. 3W at 90 CRI, IP54 and IK10 in aluminum alloy. Line voltage input, 220 to 240V AC.

Output: 3 W

From $145.00Made to order · ships in 30 days

Configure this fixture Specs and downloads

Pick trim, ingress rating, beam angle and color temperature. Takes about a minute.

Certified & rated

CEEU conformity

Configurator · ODW-S1060Q

Build the fixture, get the order code.

2 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Light

Choose one

Control

Choose one

Total, before tax

$145.00

Photometrics

See what the step light does before you fix the run.

Pick what the fixture is doing, how far up the wall it sits and the centres it is set out at. One set of inputs drives all five views: the measured throw in section with the floor it lights, the run seen from above, the polar distribution, the measured spectrum, and color rendition. A step light is shielded and asymmetric, so the section draws the distribution the file measures rather than a beam angle.

What it is doing

Height above the floor

Spacing along the run

Colour temperature

Across the floorSet-out

At the wall—

1 ft out—

2 ft out · walking line—

3 ft out—

12 in above the floor

Where the light lands is geometry from the height, and holds for any step light. How much lands there is not: an asymmetric shielded fixture has no beam angle that stands in for its distribution, so lux waits for the tested file rather than being estimated here. The 1 fc line the section draws is the code minimum for a stair walking surface (IBC 1011.5.3) and for the floor of a means of egress (IBC 1008.2.1, NFPA 101 7.8.1.3). For a layout across a whole plan, send us the drawings.

ODW · Step section12 in above the floor · 5 ft centresNo tested file

Technical specification

Model: ODW-S1060Q
Cut-out: 163 x 46 mm
Dimensions: 210 long, 60 wide, 37 deep (mm)
Wattage: 3 W
Color temperature: 2700K · 3000K · 4000K · 1800K to 5500K tunable · 2700K to 6500K tunable
CRI: 90
Beam angles: 10°
Fixture voltage: 220 to 240 V AC
Input voltage: 220 to 240 V AC
Driver: Integral
Dimming: Non-dimmable · 0-10V · DALI-2 DT6 · DMX
Ingress rating: IP54
Finishes: Black
Mounting: Step · Wall · Recessed
Lifespan: 50,000 hours (L70)
Warranty: 5 years
Lead time: 30 days
Housing: Aluminum alloy
Back box: 163 × 46 × 36mm
Distribution: Asymmetric 10°, downward
Impact rating: IK10
Material: Aluminum alloy
Colour: 2700K · 3000K · 4000K · Tunable White 1800K to 5500K · Tunable White 2700K to 6500K
Certification: CE
