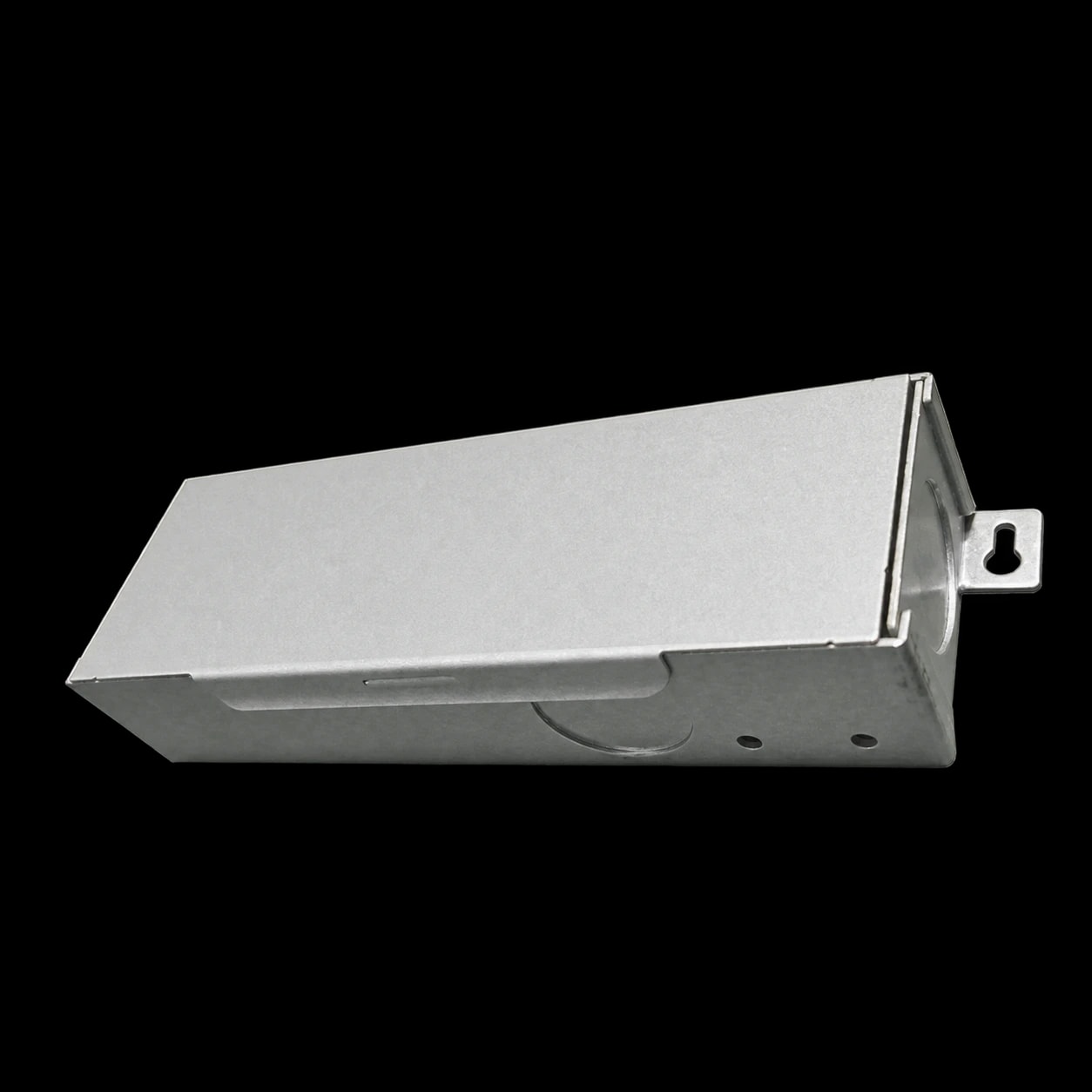

Tethered driver metal enclosure with mounting tab, shown without labels on a transparent background

Drivers

Tethered TRIAC and 0-10V Constant Current Driver

Name: Tethered TRIAC and 0-10V Constant Current Driver
Brand: Nuordic
SKU: PVD-UNV7-6
Availability: InStock

Model PVD-UNV7

Our compact tethered constant current driver supports matched LED loads up to 15W, with 120-277V AC input and 0-10V control. Leading-edge and trailing-edge TRIAC dimming operates at 120V only. Specify the output current and LED voltage for the selected fixture before ordering.

From $25.00Made to order · ships in 14 days

Configure this fixture Specs and downloads

Choose wattage. Takes about a minute.

Certified & rated

cULusUS and Canada

Configurator · PVD-UNV7

Build the fixture, get the order code.

1 steps, top to bottom. Options that can’t combine with your choices say why. The code and price update as you go.

Wattage

Choose one

From

$25.00

Technical specification

Family options are listed below. Available combinations depend on the configuration. Reference dimensions and performance describe the catalog reference build; confirm the selected build against its specification sheet before installation.

Model: PVD-UNV7

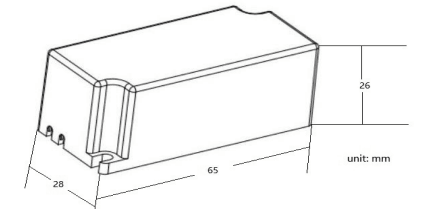

Dimensions (reference): 65 long, 28 wide, 26 high (mm)
Wattage (reference): 15 W
Fixture voltage: 36 V DC
Input voltage (reference): 120 to 277 V AC
Dimming: TRIAC · 0-10V
Ingress rating: IP44
Environment: Dry · Damp
Warranty: 5 years
Lead time: 14 days
Availability: Primarily ordered with a 14-day lead time; may be stocked
Output power: 15W maximum; selected build must match LED load
TRIAC control: Leading and trailing edge; 120V AC only
Estimated life: 50,000+ hours, dependent on case temperature
Output current: Programmable 100-700mA; setting depends on matched LED load
Output voltage: 36V DC for offered builds; driver family maximum 55V DC
Location rating: IP44; dry and damp locations
Case temperature: 75°C for rated life; 80°C safety limit stated in source
Minimum dim level: 1% of output current, minimum 1mA, with compatible controls
Ambient temperature: -20 to +50°C
Standard lead length: 6 in (152mm)
Operating input range: 108-305V AC
Certification: cULus E350385
